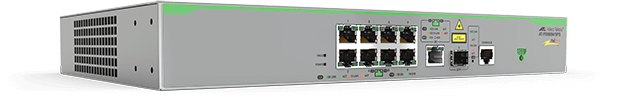

FS980M/9PS

Fast Ethernet Managed Access Switch

The FS980M/9PS features 8 x 10/100TX PoE+ ports and 1 combo (10/100/1000T or 100/1000X SFP) uplink port.

The CentreCOM FS980M Series are cost-effective Fast Etherent switches for deployment at the network edge. As part of an Autonomous Management Framework™ (AMF) network, the FS980M switches utilize automated management and zero-touch recovery to lower running costs. Power over Ethernet delivers the full 30 watts of PoE+ to support video surveillance and wireless access applications.

Add to quote
View Datasheet

Specifications

Product10/100T (RJ-45) Copper Ports10/100/1000T (RJ-45) Copper Ports100/1000X SFP PortsSwitching FabricForwarding Rate
FS980M/981 combo1 combo3.62.68 Mpps
FS980M/9PS81 combo1 combo3.62.68 Mpps
FS980M/18162 combo2 combo7.25.36 Mpps
FS980M/18PS162 combo2 combo7.25.36 Mpps
FS980M/2824-412.89.52 Mpps
FS980M/28PS24-412.89.52 Mpps
FS980M/28DP24-412.89.52 Mpps
FS980M/5248-417.613.09 Mpps
FS980M/52PS48-417.613.09 Mpps

Physical

ProductWidth x Depth x HeightUnpackaged WeightPackaged Weight
FS980M/9330 x 204 x 43.6 mm
(13.0 x 8.0 x 1.7 in)
2.0 kg (4.41 lb)3.7 kg (8.2 lb)
FS980M/9PS330 x 204 x 43.6 mm
(13.0 x 8.0 x 1.7 in)
2.5 kg (5.51 lb)4.2 kg (9.3 lb)
FS980M/18330 x 204 x 43.6 mm
(13.0 x 8.0 x 1.7 in)
2.15 kg (4.74 lb)4.0 kg (8.8 lb)
FS980M/18PS440 x 257 x 43.2 mm
(17.3 x 10.1 x 1.7 in)
3.6 kg (7.94 lb)5.7 kg (12.5 lb)
FS980M/28440 x 257 x 43.2 mm
(17.3 x 10.1 x 1.7 in)
3.2 kg (7.05 lb)5.3 kg (11.7 lb)
FS980M/28PS440 x 345 x 44 mm
(17.3 x 13.6 x 1.7 in)
5.1 kg (11.24 lb)7.6 kg (16.8 lb)
FS980M/28DP440 x 425 x 43.2 mm
(17.3 x 16.7 x 1.7 in)
7.1 kg (15.65 lb)9.1 kg (20.06 lb)
FS980M/52440 x 257 x 43.2 mm
(17.3 x 10.1 x 1.7 in)
3.4 kg (7.50 lb)5.6 kg (12.3 lb)
FS980M/52PS440 x 345 x 43.2 mm
(17.3 x 13.6 x 1.7 in)
5.4 kg (11.91 lb)8.2 kg (18.1 lb)

Power and Noise Characteristics

ProductNo PoE Load Max Power Consumption (W)No PoE Load Max Heat Dissipation (BTU/h)No PoE Load Noise (dBA)Full PoE+ Load Max Power Consumption (W)Full PoE+ Load Max Heat Dissipation (BTU/h)Full PoE+ Load Noise (dBA)
FS980M/96.322Fanless---
FS980M/9PS13453719066049
FS980M/181242Fanless---
FS980M/18PS2482333201,10046
FS980M/281966Fanless---
FS980M/28PS49170365201,18049
FS980M/28DP49170365201,18049
FS980M/523612034---
FS980M/52PS63210365401,18049

Power over Ethernet

ProductConnected PSUPoE Power Budget (W)System/PoE RedundancyMax PoE Enabled Ports at 7.0W Per PortMax PoE Enabled Ports at 15.4W Per PortMax PoE+ Enabled Ports at 30W Per Port
FS980M/9PS1150-884
FS980M/18PS1250-16168
FS980M/28PS1375-242412
FS980M/28DP1375-242412
 2375Yes242412
FS980M/52PS1375-482412



Ordering Information

AT-FS980M/9-xx(1)

8-port 10/100TX switch with 1 Gigabit/SFP combo
uplinks and one fixed AC power supply

AT-FS980M/9PS-xx(1)

8-port 10/100TX PoE+ switch with 1 Gigabit/SFP
combo uplinks and one fixed AC power supply

AT-FS980M/18-xx(1)

16-port 10/100TX switch with 2 Gigabit/SFP
combo uplinks and one fixed AC power supply

AT-FS980M/18PS-xx(1)

16-port 10/100TX PoE+ switch with 2 Gigabit/SFP
combo uplinks and one fixed AC power supply

AT-FS980M/28-xx

24-port 10/100TX switch with 4 SFP
uplinks and one fixed AC power supply

AT-FS980M/28PS-xx

24-port 10/100TX PoE+ switch with 4 SFP
uplinks and one fixed AC power supply

AT-FS980M/28DP-xx

24-port 10/100TX PoE+ switch with 4 SFP
uplinks and dual fixed AC power supply

AT-FS980M/52-xx

48-port 10/100TX switch with 4 SFP
uplinks and one fixed AC power supply

AT-FS980M/52PS-xx

48-port 10/100TX PoE+ switch with 4 SFP
uplinks and one fixed AC power supply

AT-BRKT-J22

Wall-mount kit for FS980M/9, 9PS, 18, 18PS, 28,
28PS, 52, 52PS

(1) Rack-mount kit is included

Where xx =
10 for US power cord
20 for no power cord
30 for UK power cord
40 for Australian power cord
50 for European power cord

Feature Licenses

NameDescriptionIncludes
AT-FL-FS98-UDLDUniDirectional Link DetectionUDLD
