Operations related to Nodes

Operation Reference > SNMP Network Management > Operations related to Nodes

Shows subnet and device node details.

View Node Details

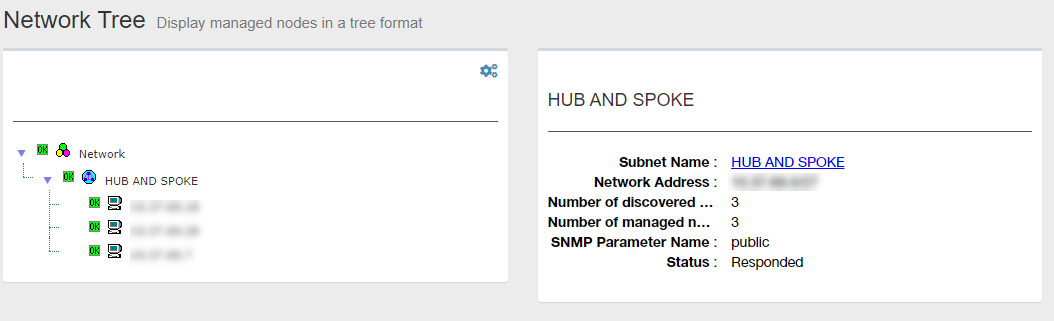

You can view the details of each node on the Device Tree View page under the "Network Tree" menu.

Clicking a node name (e.g. "Network") in the Tree View expands a subtree under the node.
(Clicking "Network" opens subnets under it, clicking a subnet opens devices under it and so on)
Details of the node you clicked is shown in the node attribute section on the right side of the Content section.

When you click the node name in the attribute section, Detailed information page for the selected node type such as the Network Details page, the Subnet Details page or the Device Details page is displayed.

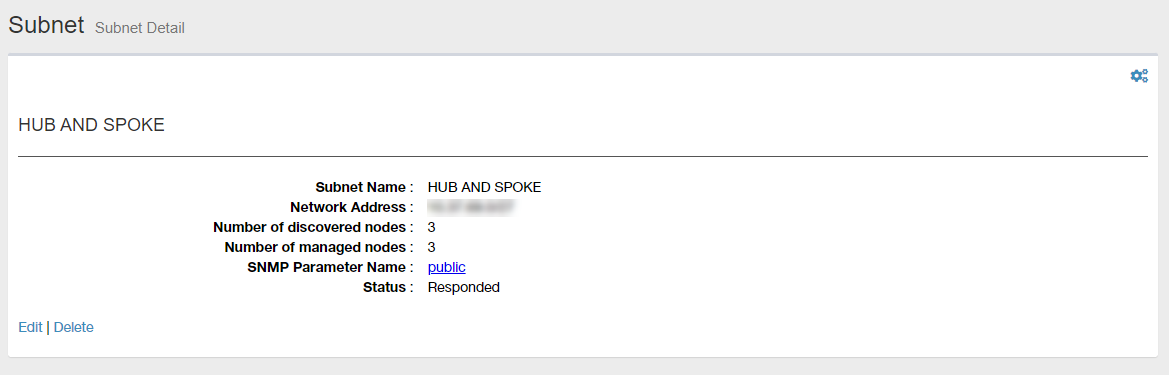

For example, when you click "area1" on the previous page, the following the Subnet Details page is displayed.

The Device Details page can be also reached from the Device List page by clicking the "Details" button for a device you want to see details.
You can also access Device Details page for a high Importance device from the Dashboard's "Device List by Importance" section.

Edit Node Attributes

To edit a node information, click the "Edit" button on each node's details page. A page for editing a node such as the Edit Subnet page, the Edit Device page is displayed depending on the selected node type.

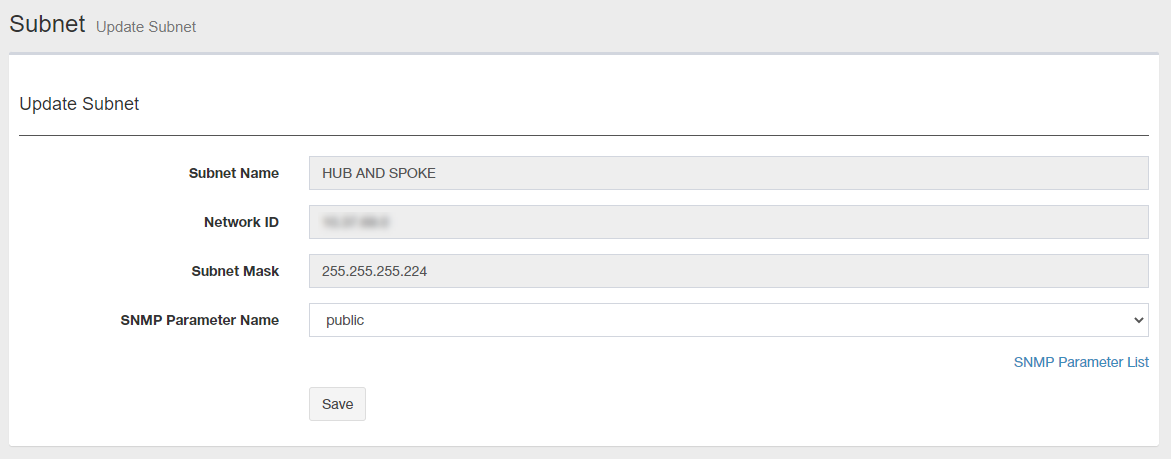

The next is an example of the Edit Subnet page.

Note
The above figure is an example. You can not edit any attributes of "Network" node.

Delete Node

To delete a node, click the "Delete" on the node's details page. Then the "Delete Node" dialog box is displayed.
Clicking "Yes" in the dialog box deletes the node.
Click the "No" or "Close (x)" button at the top left of the dialog box allows you to cancel the delete operation and goes back to node details page.

Note
You can directly delete "Subnet" and "Device" only.
