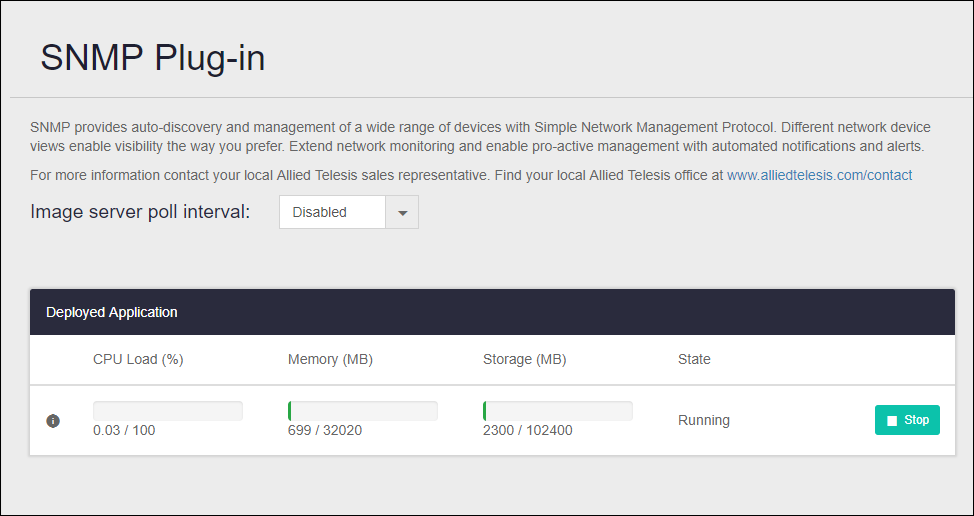

What is SNMP Plug-in
SNMP Plug-in is a network management application based on Simple Network Management Protocol (SNMP).
With SNMP Plug-in, you can manage your network efficiently because most intelligent network devices support SNMP.
With SNMP Plug-in, in addition to the AMF Network that can be managed by the Vista Manager application, AMF Network devices and non-AMF Network devices that use SNMP can be displayed and managed on the Network Map.
Support Limits
Number of devices which can be monitored by SNMP Plug-in is as follows.NoteThe above shows the maximum number that can be managed by SNMP Plug-in. Depending on other plug-ins and devices, if you register many monitoring devices, you may not be able to achieve sufficient performance.
- Monitored Devices
1000 units
Note
The maximum number may vary depending on other plug-ins and devices, so please also check the documents posted on our website.
Note
Set the subnet to a value larger than the 22-bit mask (255.255.252.0) (set the number of IP addresses to be 1,024 or less).
Example:
22-bit mask (255.255.252.0), Number of IP addresses: 1,024
23-bit mask (255.255.254.0), Number of IP addresses: 512
24-bit mask (255.255.255.0), Number of IP addresses: 256
Account Types
SNMP Plug-in shares the account database with Vista Manager EX and other plugins.| Type | Overview |
|---|---|
| Admin | Can use all SNMP management functions. View/Create/Edit/Delete Node Information, Run Subnet Auto Discovery, View/Create/Edit/Delete User Account and View System Version |
| User | Can use limited set of SNMP management functions. View Node Information and Run Subnet Auto Discovery |
Products required to use SNMP Plug-in
Describes VST-VRT and each application version, documents to be referenced, restrictions, etc. required to use SNMP Plug-in.VST-VRT
Product name, version, reference document
| Product name | VST-VRT |
| Software version | 1.2.1 |
| Documents | VST-VRT User Guide |
Limitations
- SNMP Plug-in cannot be used concurrently with the Trap Receiver application. To use SNMP Plug-in, stop the Trap Receiver application on VST-VRT.

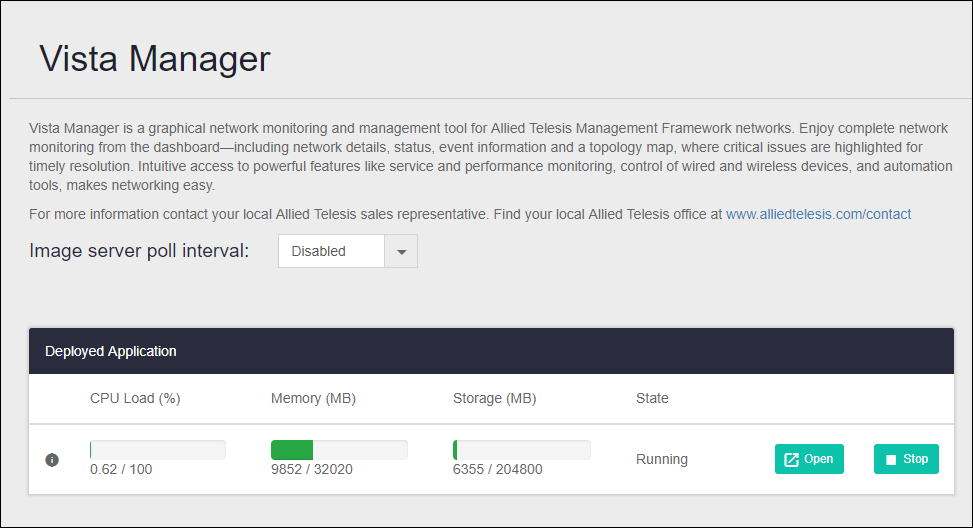

Vista Manager
SNMP Plug-in that runs on VST-VRT can only work with the Vista Manager application running on the same VST-VRT. It cannot be linked with the software version of Vista Manager EX.
Product name, version, reference document
| Product name | Vista Manager EX |
| Software version | 3.6.0 |
| Documents | Vista Manager EX documentation |
20 Sep 2021 14:30
