Add Task

Screen Reference > Wireless Maintenance > Add Task

You can use Tasks to perform operations such as applying configuration, updating firmware, and applying AWC calculation results at specific times.

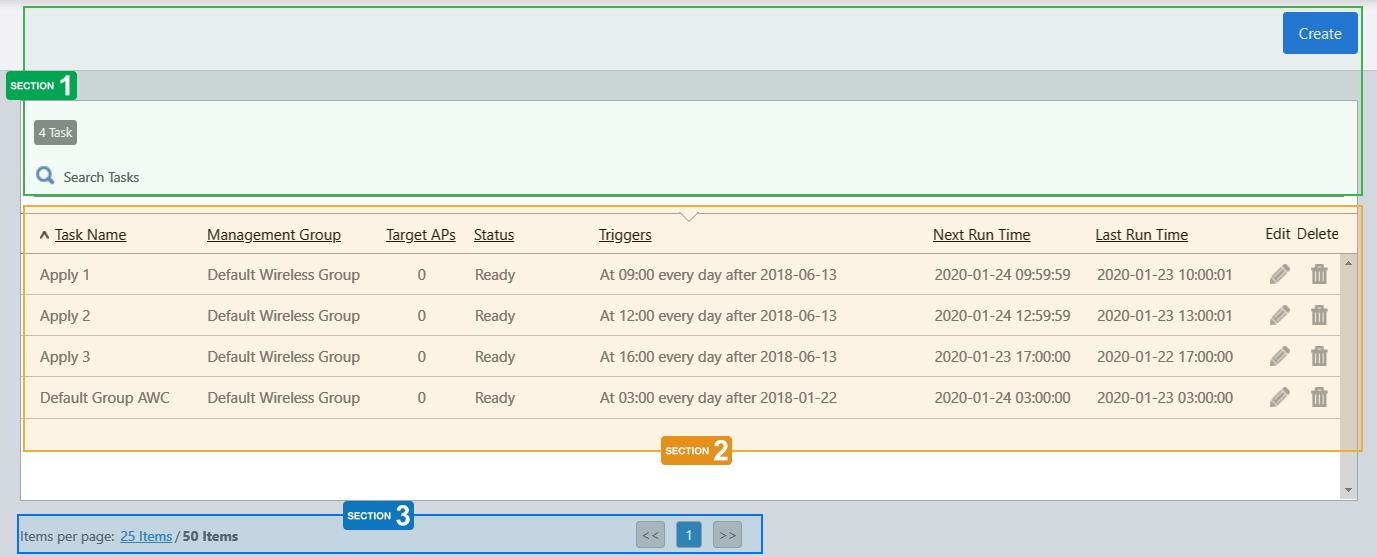

Section 1

Table 1
Item Name	Description
"Create" button	Creates a new Task.
X Task	Show the number of Tasks in the list.
Search Tasks	Lets you filter the list of tasks. The search field lets you enter a partial string to match. The screen displays entries with that string in one of the following fields: "Task Name" or "Management Group". To remove the filter, delete the string from the search field and press enter. Note The search is case-sensitive.

Section 2

Table 2: Task List
Item Name	Description
Task Name	Shows the task name.
Management Group	Shows the management group for the task.
Deployed APs	Shows the number of APs on which the task will be performed.
Status	Shows whether the task is enabled.
Trigger	Shows the schedule for when the task is performed.
Next Run Time	Shows the date/time when the task will next be performed.
Last Run Time	Shows the date/time when the task was last performed.
Edit (pencil icon)	Lets you edit the task.
Delete (trashbin icon)	Lets you delete the task.

Section 3

Table 3
Item Name	Description
Items per page	Specifies the number of items per page.
<<	Goes to the first page of the list.
(Page Number)	Shows the current page number in the list.
>>	Goes to the last page of the list.

C613-04137-00 Rev A

21 Oct 2022 11:57
