Account Group

Quick Tour > Account Group

Example of device management using Account Group

This section describes how to create multiple Accounts and manage them in multiple Account Groups.

What is Account Group

Accounts can be divided into accounts with permission to edit the Authorization database and accounts with permission to modify system settings. System administrators and general users can be registered separately.
Account Groups associate accounts with switches (AMF Members). For each Account Group, you can view AMF Members that can be managed, and the devices under their management.
Using Account Groups not only clarifies switches to be managed and the devices connected to switches, but also enhances security by not being able to display switches that are not managed.

Add Account Group

Set the following items in Account Group.

Account Group ID
Note

Note
There is no default Account Group. If you do not create Account Group, you cannot select "Account Group ID" when creating Account or registering Device.

Refer to System Settings > Account Group List for how to create Account Group.

Add Account

Set the following items in Account.

Account Name
Password
Email Address
Account Group ID (can be selected when Account Group is created)
Whether authentication database can be edited
Whether system settings can be changed

The "Account Name" registered by default is "manager" and cannot be changed or deleted. For "manager" account, password is "friend", "Account Group ID" is not set, authentication database can be edited (cannot be changed), and system settings can be changed (cannot be changed).

Note
You need to initialize (delete and recreate) the AMF Security mini application instance in the Web GUI of your AlliedWare Plus device, if you forget Password for all Accounts that have the "Configure system settings" check box, including the default "manager". Please make sure that you keep your passwords safely and never forget them.
Refer to the AlliedWare Plus device manual for the setting method.

Note
Register your Email Address in your account and set the Email Notification on the System Settings > Email Notification Settings page. This allows you to recover your password by email if you forget it.
Refer to Appendix / If you forget your password for instructions on how to recover your password by email.

Note
Allied Telesis recommends that you do not set Account Group for the default "manager" or for Account created to manage the entire network.

Refer to System Settings > Account List for how to create Account.

Example of device management using Account Group

Account Groups associate accounts with switches (AMF Members).
In the page below, only Switches that have the same Account Group as the Account Group set for the logged-in Account and devices connected to the Switch are displayed.

For example, the following describes an example in which there is one AMF Master (AT-AR4050S) in the machine room and one AMF Member (AT-x510) for each floor, and Account Group is created for each floor.
- Creating Account Name and Account Group

Table 1: Sample Configuration Data
Account Name	Account Group	Switch / Installation location
manager	(None)	All Switches / Machine room
1F_admin 1F_user	group_1	AMF Member (AT-x510_1F) / First floor
2F_admin 2F_user	group_2	AMF Member (AT-x510_2F) / Second floor

- Account Group associated with each Switch

Table 2: Sample Configuration Data
Switches	Account Group
AMF Master (AT-AR4050S)	admin_group
AMF Member (AT-x510_1F)	group_1
AMF Member (AT-x510_2F)	group_2

In this case, the display example of the Devices > Active Device List page is as follows.

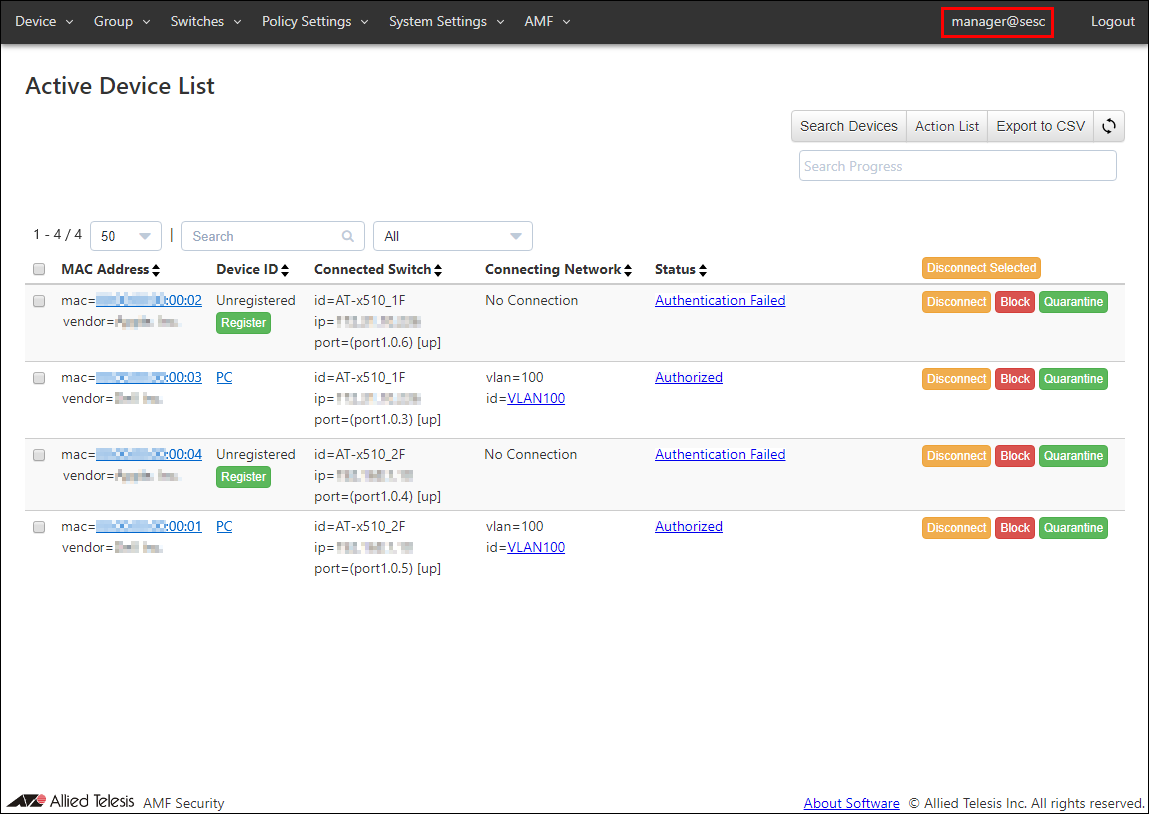

When logged in with the "manager" Account (no Account Group)

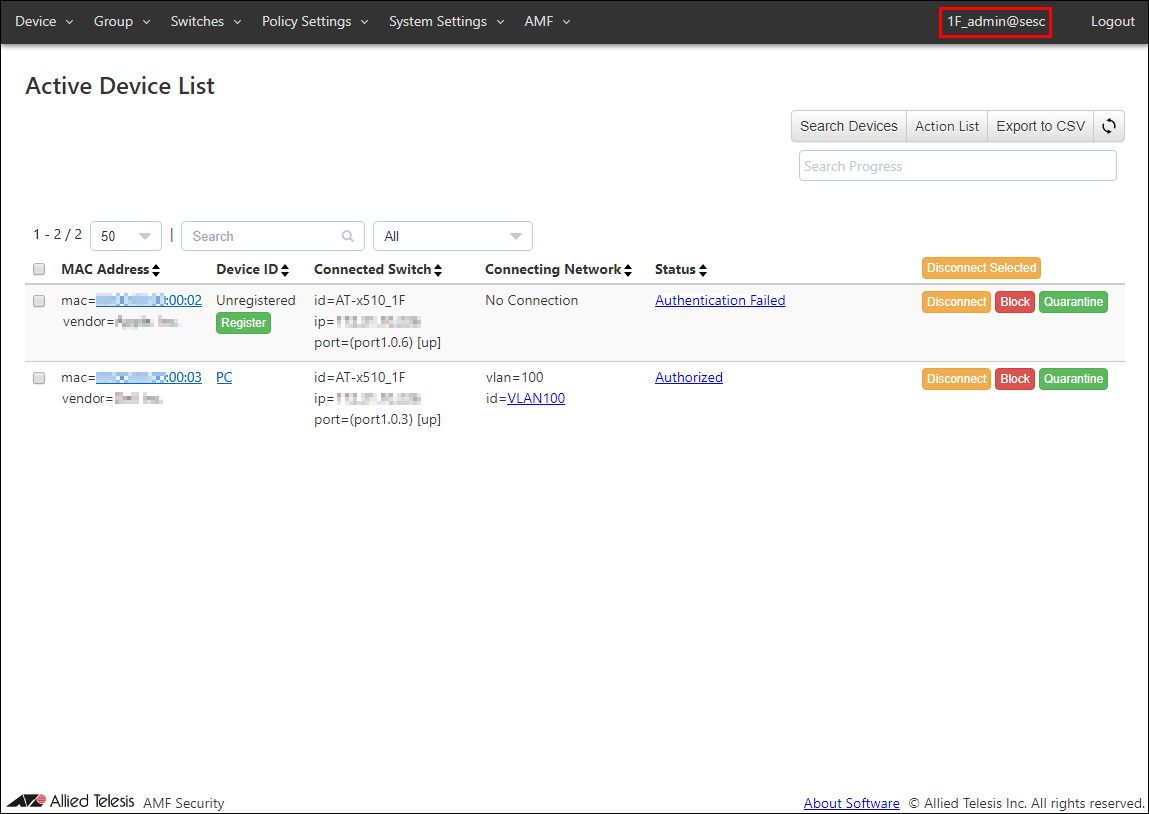

When logging in with the "1F_admin" Account belonging to "group_1"

By associating Account Group with a registered Switch as described above, Switches that can be displayed differ depending on the logged-in user, and Switch to be managed and the devices connected to that Switch become clear.
Note that the Switches > Active AMF Member List page, the related Switches are also displayed. However, in the above example, no Account Group has been set for the system administrator Account "manager" that manages the entire system, and AMF Master (AT-AR4050S) has Account Group "admin_group" that is different from AMF Members for each floor. By setting, AMF Master (AT-AR4050S) is displayed only with "manager" Account.

Registering Device

Refer to Quick Tour for the instruction on how to register Device.
By selecting "Account Group ID" on the page for adding or editing Device, you can associate that device with the "Account Group ID".

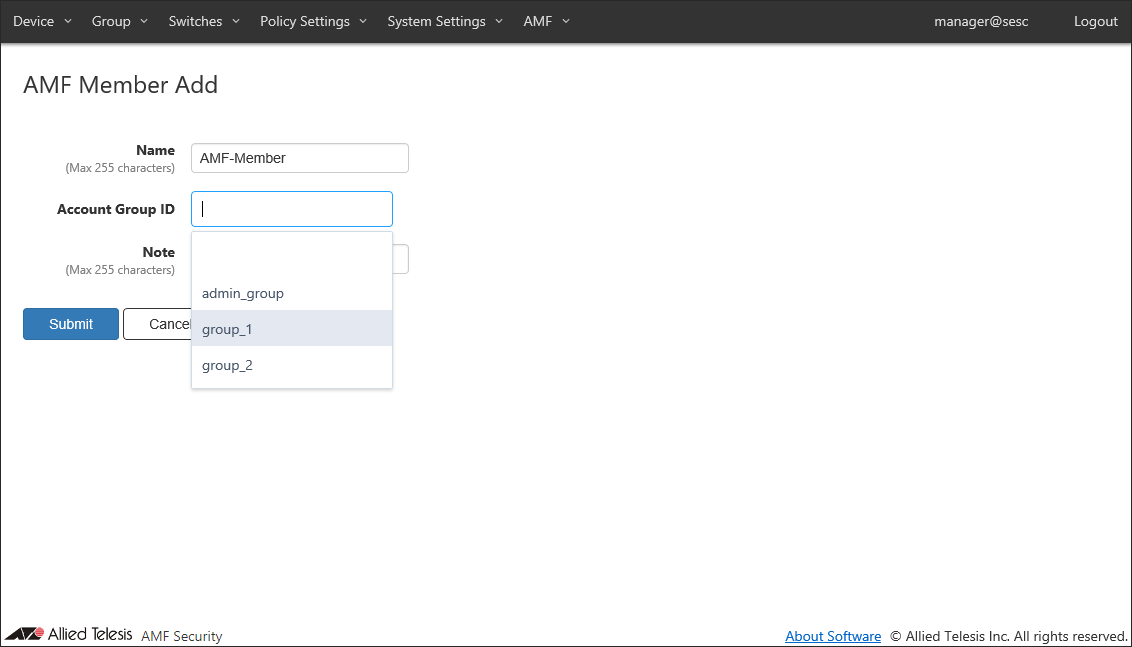

The following is an example of the Switches > AMF Member Add page.

Note
Devices associated with "Account Group ID" are not displayed unless you log in with Account belonging to that "Account Group ID" or "manager" (no Account Group). Be careful not to register another "Account Group ID" by mistake.

C613-04158-00 Rev A

06 Sep 2023 16:33
