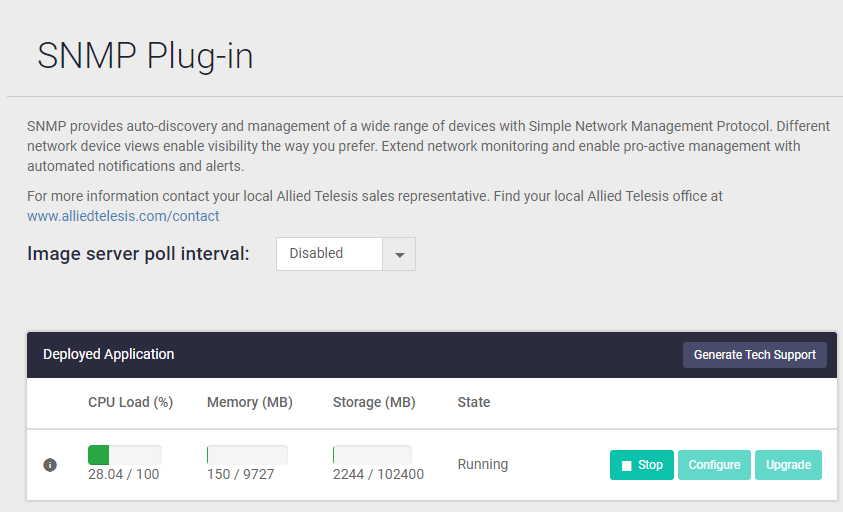

SNMP Plug-in is a network management application based on Simple Network Management Protocol (SNMP).
With SNMP Plug-in, you can manage your network efficiently because most intelligent network devices support SNMP.
With SNMP Plug-in, in addition to the AMF Network that can be managed by the Vista Manager application, AMF Network devices and non-AMF Network devices that use SNMP can be displayed and managed on the Network Map.

Note
This version of SNMP Plug-in supports SNMP v1/v2c/v3.

In this manual, the SNMP Plug-in application running on AT-VST-VRT are collectively referred to as "SNMP Plug-in".

Support Limits

Number of devices which can be monitored by SNMP Plug-in is as follows.

Note
The above shows the maximum number that can be managed by SNMP Plug-in. Depending on other plug-ins and devices, if you register many monitoring devices, you may not be able to achieve sufficient performance.

Monitored Devices
1000 units

Note
The maximum number may vary depending on other plug-ins and devices, so please also check the documents posted on our website.

Note
Set the subnet to a value larger than the 22-bit mask (255.255.252.0) (set the number of IP addresses to be 1,024 or less).

Example:
22-bit mask (255.255.252.0), Number of IP addresses: 1,024
23-bit mask (255.255.254.0), Number of IP addresses: 512
24-bit mask (255.255.255.0), Number of IP addresses: 256

Note
The more devices you manage, the longer it may take to display each page.

Account Types

SNMP Plug-in shares the account database with AVM EX and other plugins.

Table 1: Account Types
Type	Overview
Admin	Can use all SNMP management functions. View/Create/Edit/Delete Node Information, Run Subnet Auto Discovery, View/Create/Edit/Delete User Account and View System Version
User	Can use limited set of SNMP management functions. View Node Information and Run Subnet Auto Discovery

For details, refer to the Vista Manager EX documentation posted on our website.

Products required to use SNMP Plug-in

Describes VST-VRT and each application version, documents to be referenced, restrictions, etc. required to use SNMP Plug-in.

AT-VST-VRT

Product name, reference document

Table 2: AT-VST-VRT
Product name	AT-VST-VRT
Documents	VST-VRT User Guide

Note
The combination of the AT-VST-VRT firmware version and the Vista Manager application software version that can use SNMP Plug-in can be found in the AT-VST-VRT document posted on our website.

Limitations

The SNMP Plug-in cannot be used concurrently with the Trap Receiver application. To use the SNMP Plug-in, stop the Trap Receiver application on AT-VST-VRT.

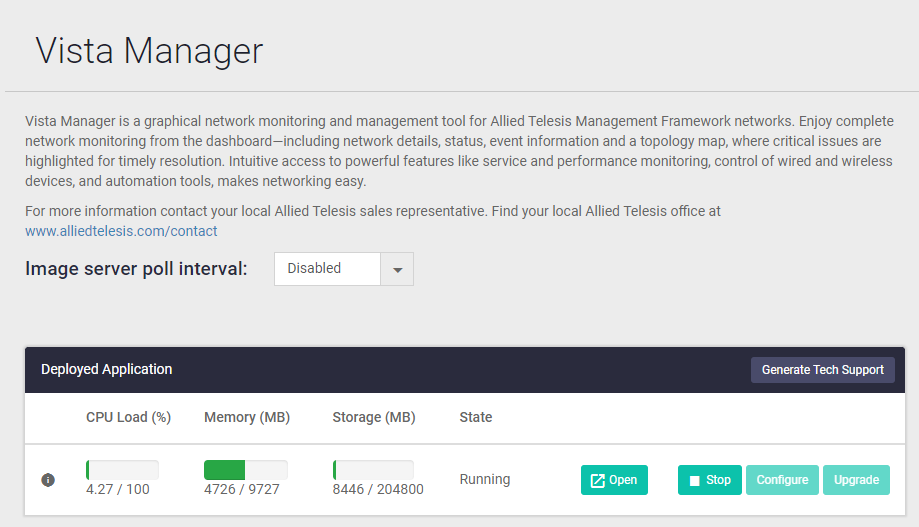

Vista Manager

SNMP Plug-in that runs on VST-VRT can only work with the Vista Manager application running on the same VST-VRT. It cannot be linked with the software version of Vista Manager EX.

Product name, reference document

Table 3: Vista Manager
Product name	Vista Manager EX
Documents	Vista Manager EX documentation

Note
The combination of the AT-VST-VRT firmware version and the Vista Manager application software version that can use SNMP Plug-in can be found in the AT-VST-VRT document posted on our website.
