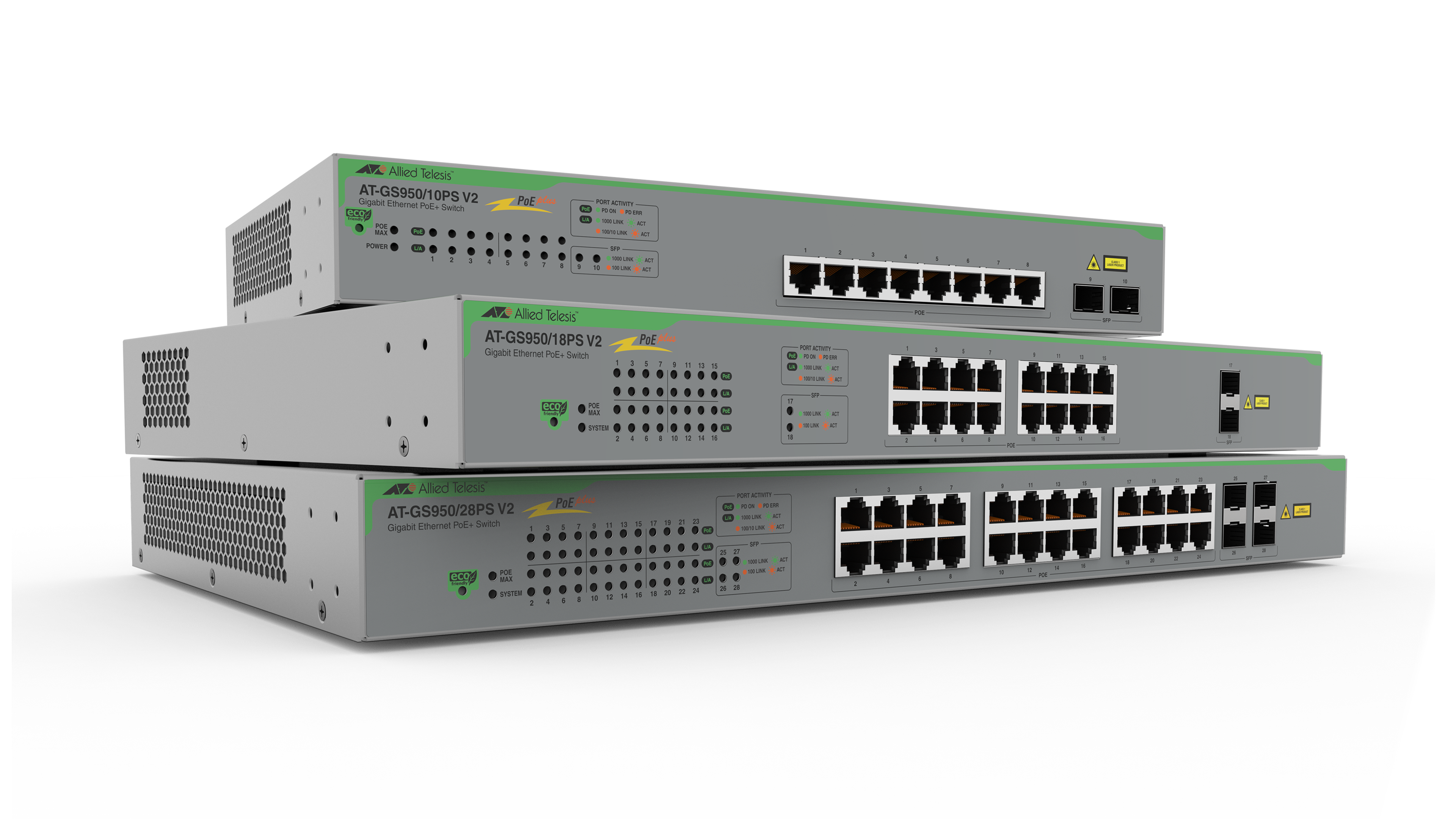

GS950 V2 Series
WebSmart Gigabit PoE+ Switches
A cost-effective and high-performing solution that enables small businesses to connect and power devices at the network edge.
Overview
- Combine the performance of Gigabit connectivity with PoE+ for a flexible network edge solution
- User-friendly, web-based management
- Minimal power consumption for an eco-friendly environment
- The full 30 Watts of PoE+ to connect and power a variety of devices
Key Features
- 802.1x port-based, and MAC-based, network access control
- IGMP snooping (v1/v2)
- Ingress/egress rate limiting
- Port-based traffic prioritization
Certifications and Compliance
Trade Agreement Act (TAA)
TAA compliance is mandatory for US Government purchases to prove that products are manufactured only in the USA or other approved countries.
Specifications
| Product | 10/100/1000T Copper Ports | 100/1000X SFP Ports | Total Ports | PoE+ Enabled Ports | Switching Fabric | Forwarding Rate |
|---|---|---|---|---|---|---|
| GS950/10PS V2 | 8 | 2 | 10 | 8 | 20Gbps | 14.88Mpps |
| GS950/18PS V2 | 16 | 2 | 18 | 16 | 36Gbps | 26.78Mpps |
| GS950/28PS V2 | 24 | 4 | 28 | 24 | 56Gbps | 41.66Mpps |
| GS950/52PS V2 | 48 | 4 | 52 | 24 | 104Gbps | 77.38Mpps |
Physical
| Product | Width | Depth | Height | Weight |
|---|---|---|---|---|
| GS950/10PS V2 | 330 mm (13.00 in) | 180 mm (7.09 in) | 44 mm (1.73 in) | 1.9 kg (4.19 lb) |
| GS950/18PS V2 | 440 mm (17.32 in) | 250 mm (9.80 in) | 44 mm (1.73 in) | 3.7 kg (8.16 lb) |
| GS950/28PS V2 | 440 mm (17.32 in) | 250 mm (9.80 in) | 44 mm (1.73 in) | 3.7 kg (8.16 lb) |
| GS950/52PS V2 | 440 mm (17.32 in) | 431 mm (17.080 in) | 44 mm (1.73 in) | 6.1 kg (13.45 lb) |
Power and Noise Characteristics
| Product | No PoE Load Max Power Consumption (W) | No PoE Load Max Heat Dissipation (BTU/h) | No PoE Load Noise (dBA) | Full PoE+ Load Max Power Consumption (W) | Full PoE+ Load Max Heat Dissipation (BTU/h) | Full PoE+ Load Noise (dBA) |
|---|---|---|---|---|---|---|
| GS950/10PS V2 | 25 | 119.425 | Fanless | 100 | 350.692 | Fanless |
| GS950/18PS V2 | 75 | 255.911 | 41 | 260 | 890.948 | 47.1 |
| GS950/28PS V2 | 95 | 324.153 | 41 | 270 | 919.383 | 52 |
| GS950/52PS V2 | 150 | 511.821 | 38 | 520 | 1,800.853 | 50 |
Note: Noise values are dependent on the ambient temperature, not POE load. Above 25C the fan runs at full speed.
Power over Ethernet
| Product | PoE Power Budget (W) | 7.5W PoE Sourcing Ports | 15.4W PoE Sourcing Ports | 30W PoE+ PoE Sourcing Ports |
|---|---|---|---|---|
| GS950/10PS V2 | 75 | 8 | 4 | 2 |
| GS950/18PS V2 | 185 | 16 | 12 | 6 |
| GS950/28PS V2 | 185 | 24 | 12 | 6 |
| GS950/52PS V2 | 370 | 24 | 24 | 12 |
Ordering Information
Model availability can vary between regions. Please check our website to see which models are available in your region.
AT-GS950/10PS V2-xx(1)
8-port 10/100/1000T POE (8 POE Enabled)
WebSmart switch with 2 SFP ports
AT-GS950/18PS V2-xx(1)
16-port 10/100/1000T POE (16 POE Enabled)
WebSmart switch with 2 SFP ports
AT-GS950/28PS V2-xx(1)
24-port 10/100/1000T POE (24 POE Enabled)
WebSmart switch with 4 SFP ports
AT-GS950/52PS V2-xx(2)
48-port 10/100/1000T POE (24 POE Enabled)
WebSmart switch with 4 SFP ports
AT-BRKT-J22
Wall Mount Brackets for GS950PS V2 Series
(1) Rack-mount kit is included. It can also be used for a wall-mount
(2) Rack-mount kit is included
