MAC Address List

Screen Reference > Wireless Configuration > MAC Address List

This page lets you view, add, edit, and delete MAC Address Lists.
Only a single MAC Address List can be assigned to an AP Profile regardless of its type (whitelist or blacklist).

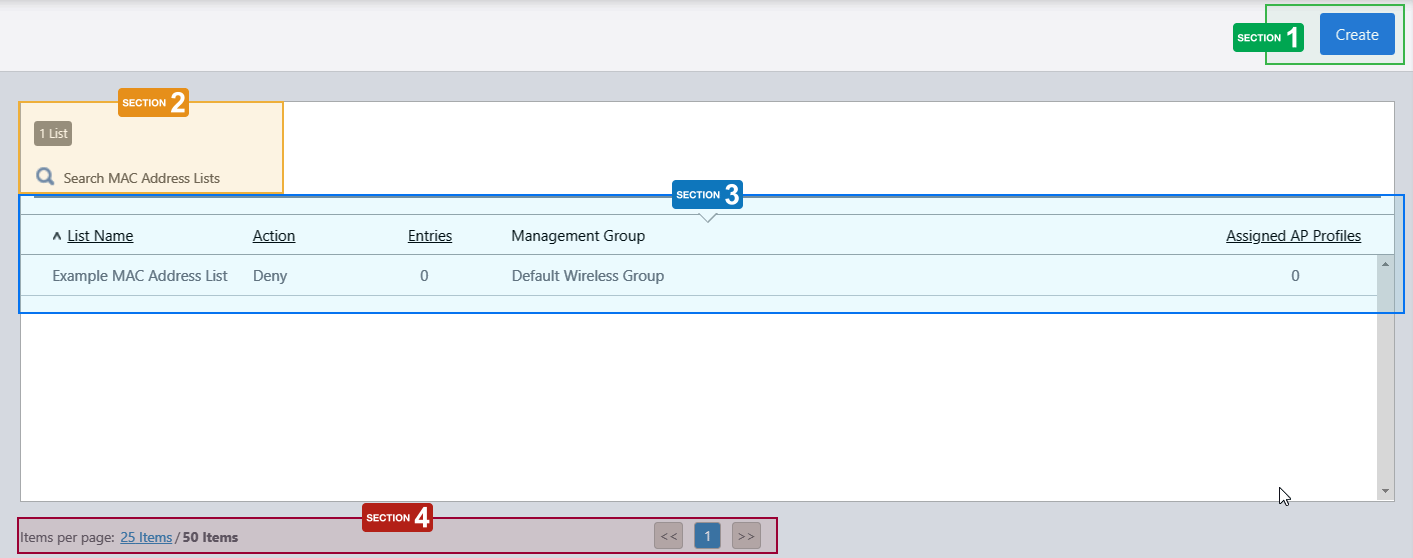

Section 1

Table 1
Item Name	Description
"Create" button	Creates a new MAC Address List. Refer to Operation Reference > Wireless Configuration > Configure MAC Address Lists for more details.

Section 2

Table 2
Item Name	Description
X List	Shows the number of MAC Address Lists.
Search MAC Address Lists	Lets you filter the MAC Address Lists. The Search field lets you enter a partial string to match. The screen displays entries with that string in one of the following fields: "List Name", "Action" or "Management Group". To filter with the Action field, specify either "0" (Deny) or "1" (Allow). To remove the filter, delete the string from the Search field and press Enter. Note The search is case-sensitive.

Section 3

Table 3: MAC Address Lists
Item Name	Description
List Name	Shows the name of the MAC Address List.
Action	Shows the action of the MAC Address List (either "Allow" or "Deny").
Entries	Shows the number of MAC Address in the list.
Management Group	Shows the Management Groups for the MAC Address List.
Assigned AP Profiles	Shows the number of AP Profiles to which the MAC Address List is assigned.

Section 4

Table 4
Item Name	Description
Items per page	Specifies the number of items per page.
<<	Go to the first page in the list.
(Page Number)	Shows the current page number in the list.
>>	Go to the last page in the list.
