IDS/IPS Settings

Screen Reference > Wireless Configuration > IDS/IPS Settings

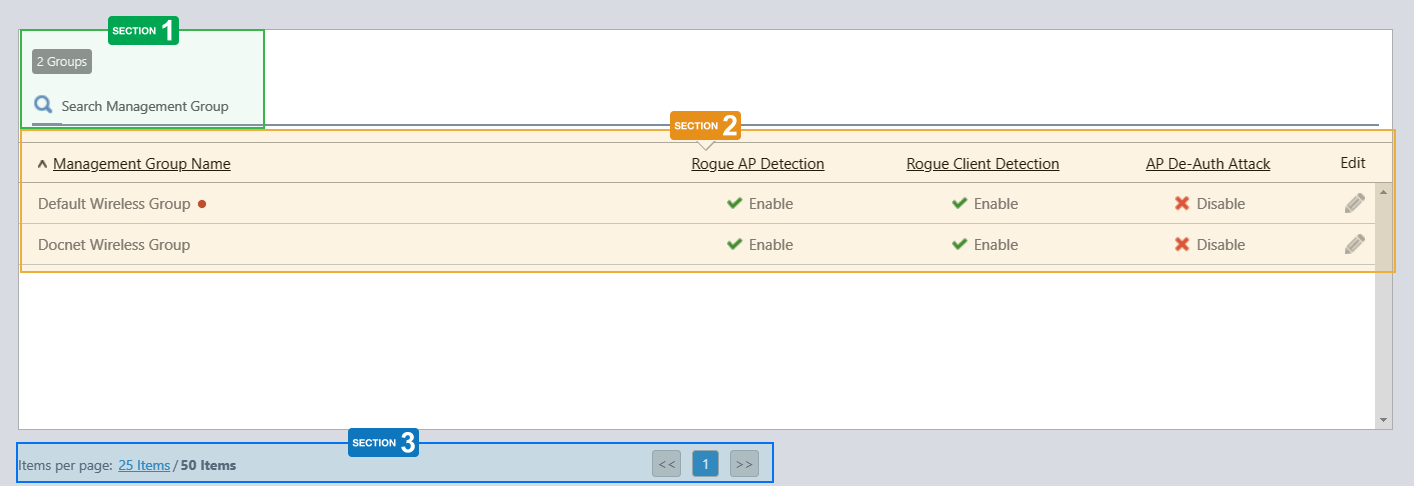

On this screen, you can configure IDS/IPS (Intrusion Detection/Protection System). These settings determine whether Rogue APs and Clients are detected, whether to execute a De-Auth attack, and whether to send a Rogue AP detection message to the Notification section.
Refer to Supported Functions per AP Model > Wireless Configuration > IDS/IPS Settings for APs that support this function.

IDS/IPS settings can be configured for each Management Group.

Section 1

Table 1
Item Name	Description
X Group	Shows the number of Management Groups.
Search Management Group	Lets you filter the list of Management Groups. The Search field lets you enter a partial string to match. The screen displays entries with that string in one of the following fields: "Management Group Name" or "Creation Date/Time". To remove the filter, delete the string from the Search field and press Enter. Note The search is case-sensitive.

Section 2

Table 2: IDS/IPS settings per Management Group
Item Name	Description
Management Group	Shows the Management Group name.
Rogue AP Detection	Shows whether to detect rogue APs.
Rogue Client Detection	Shows whether to detect rogue clients.
AP De-Auth Attack	Shows whether to attack rogue APs.
Edit (pencil icon)	Lets you edit the IDS/IPS configuration. Refer to Operation Reference > Miscellaneous Settings > Configure IDS/IPS Settings for more details.

Section 4

Table 3
Item Name	Description
Items per page	Specifies the number of items per page.
<<	Go to the first page in the list.
(Page Number)	Shows the current page number in the list.
>>	Go to the last page in the list.
