View Clients

Operation Reference > Floor Map > View Clients

This section explains how to view clients connecting to APs on a Floor Map.

View Wireless Clients on Floor Map

1. Select "Wireless Monitoring" > "Floor Map" from the AWC Plug-in menu.

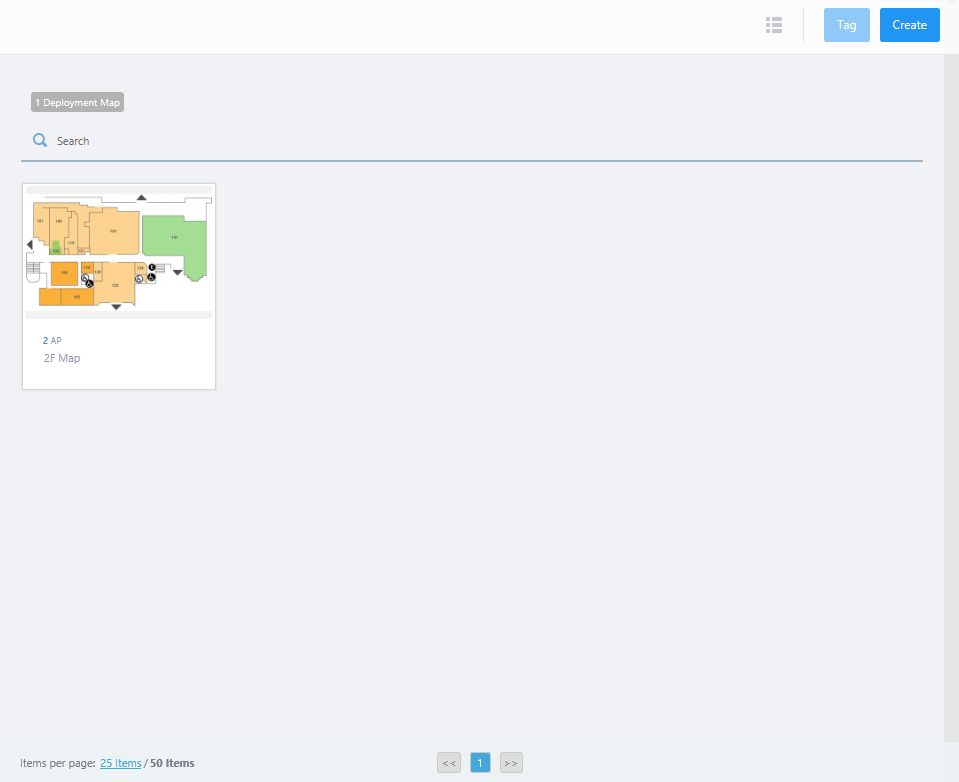

2. Mouse over a floor map panel.






3. Click the "View Details>>" button on the floor map panel.

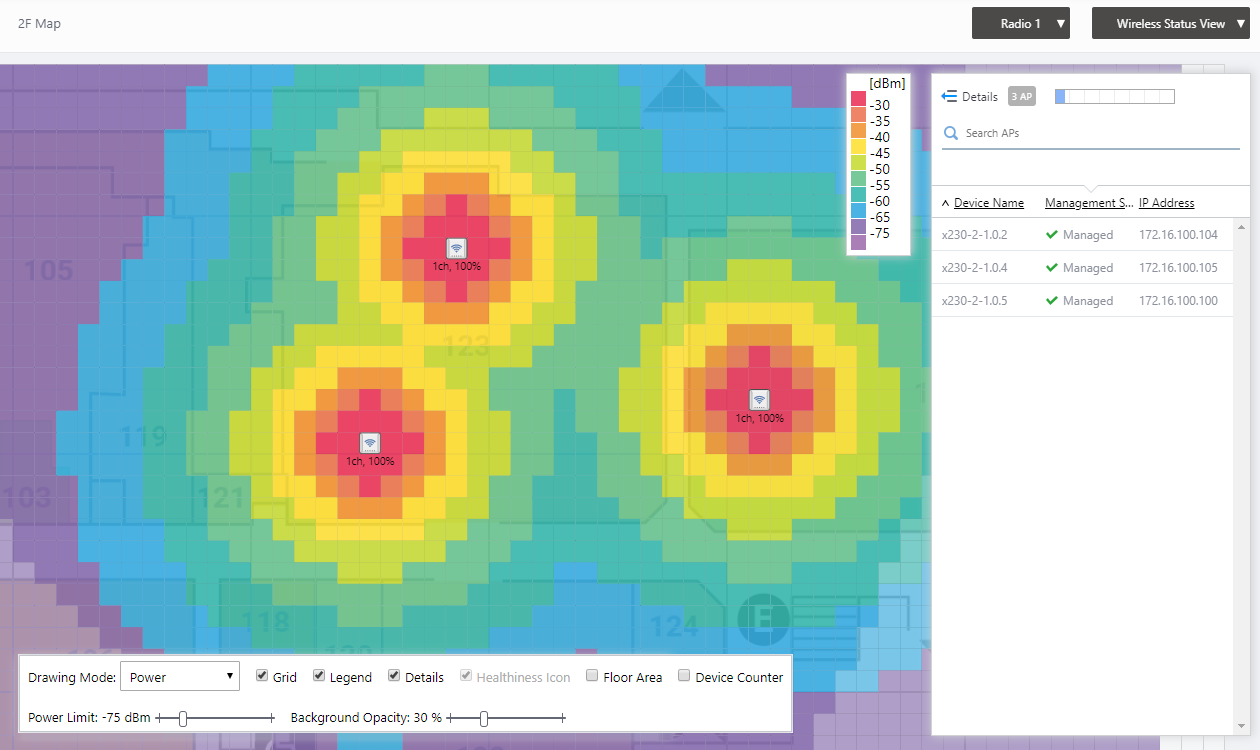

   The Wireless Status View of the map will be shown in the Content section.






4. Click the View Selection drop down menu at the top right and select "Associated Client View" from the list.

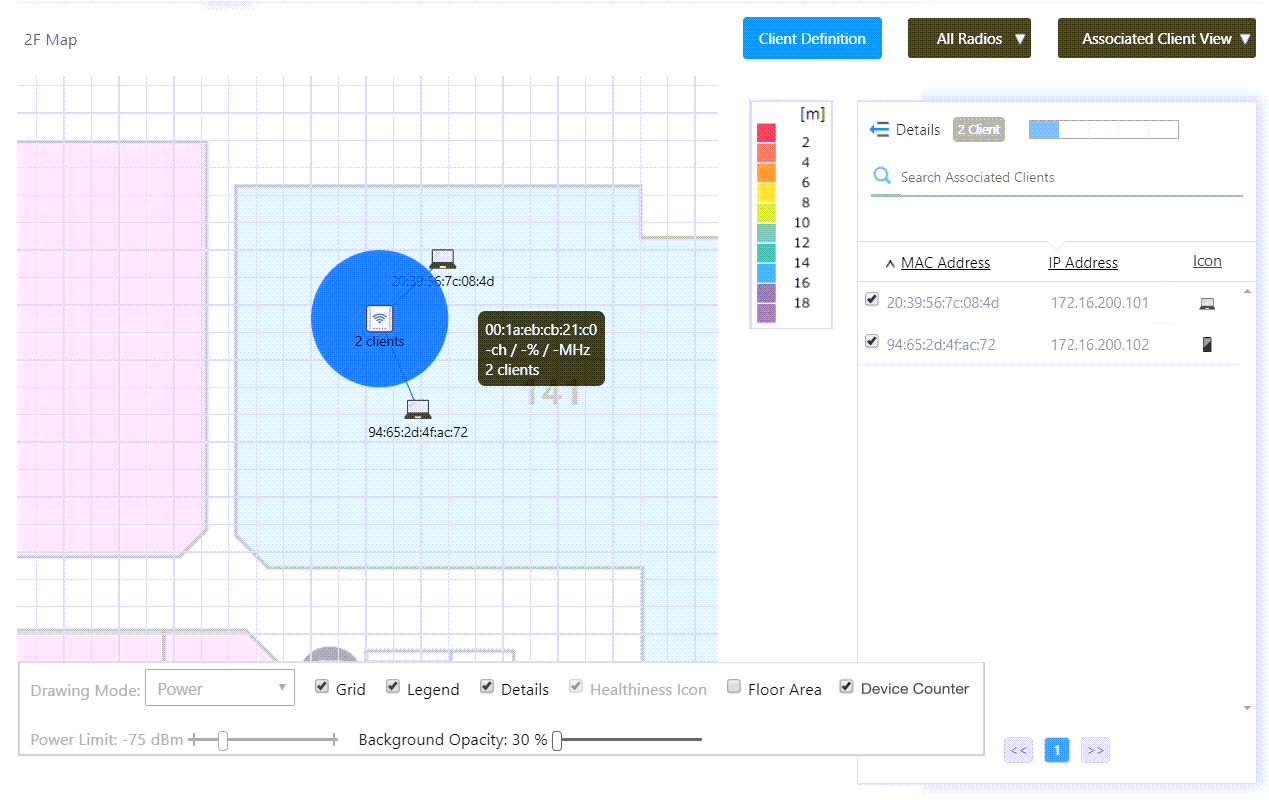

   The Associated Client View will be displayed on the map in the Content section.


   • The number of clients will be shown under each AP icon on the map.


   • The MAC and IP addresses of all the clients on the map will be shown in the client list at the right side of the Content section.


   • When you select checkboxes in the list, icons and MAC addresses of the selected clients will be shown on the map beside the APs they are connecting to.


   • When you click an AP icon, only clients connecting to the selected AP will be shown in the client list.
