In this section, we will show you the basic steps to configure an AWC-CB (AWC-Channel Blanket) wireless network, through a quick tour.

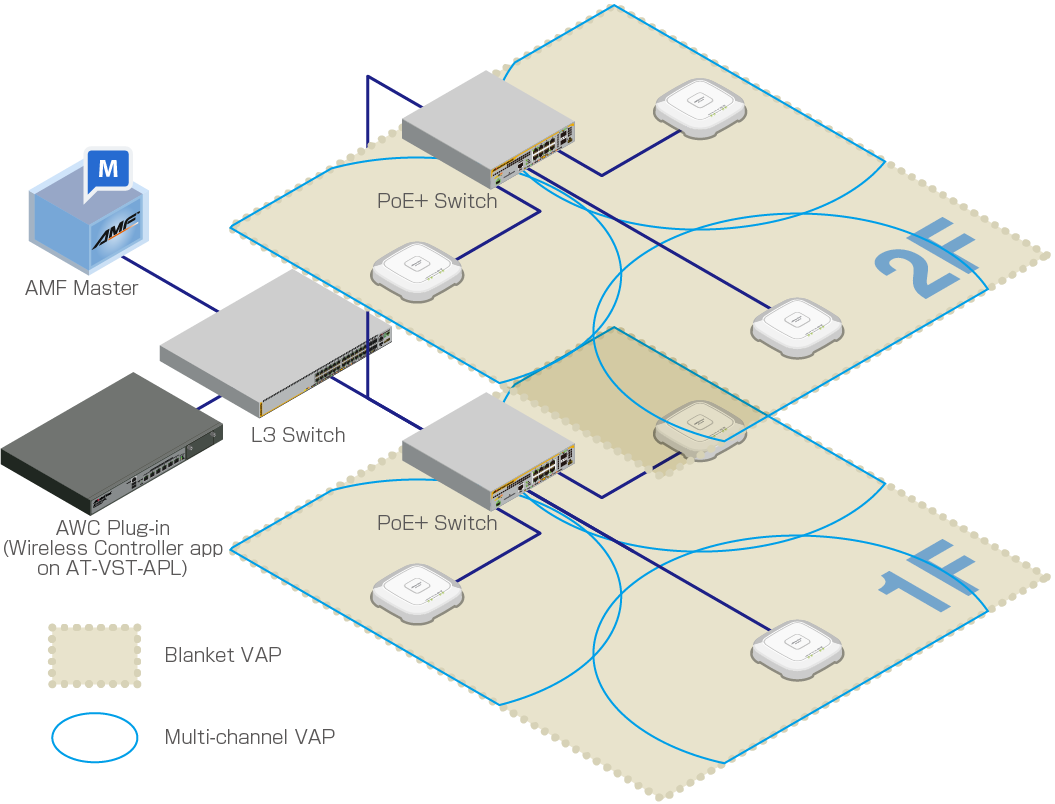

Here we assume the following configuration:

There are two floors (1F and 2F).
On both floors, we will operate wireless networks for employee PCs and mobile devices.
On the first floor, we will also operate a separate wireless network for guests.

Table 1: Devices in the target network
	Device Name	Node Name	IP Address	MAC Address	Role
	AMF Master	AT-VAA			AMF Cloud
	Wireless Controller application container				AWC Plug-in
	AlliedWare Plus Layer 3 Switch		192.168.1.1		DHCP/NTP Server
1F	PoE+ AlliedWare Plus Switch	x230-1F			Supplying power with PoE+
	TQ5403	TQ5403-1F-1	192.168.1.100	00:00:5E:00:53:00	AMF Guest Device
		TQ5403-1F-2	192.168.1.101	00:00:5E:00:53:20
		TQ5403-1F-3	192.168.1.102	00:00:5E:00:53:40
2F	PoE+ AlliedWare Plus Switch	x230-2F			Supplying power with PoE+
	TQ5403	TQ5403-2F-1	192.168.1.103	00:00:5E:00:53:60	AMF Guest Device
		TQ5403-2F-2	192.168.1.104	00:00:5E:00:53:80
		TQ5403-2F-3	192.168.1.105	00:00:5E:00:53:A0

We assume that the following configuration items have been completed on the AMF network devices:

The AMF network has been added to the management database of Vista Manager EX.
The PoE+ switch has been properly configured to accommodate APs as guest devices.
The L3 switch has been configured with three VLANs, vlan1 (192.168.1.0/24) as the default VLAN and vlan100 (192.168.100.0/24) and vlan200 (192.168.200.0/24) for wireless clients. A DHCP pool for each VLAN has also been set up.
The PoE+ switch ports for the wireless APs (and other required ports) have been configured with vlan1 as the native VLAN and vlan100, vlan101, vlan200 and vlan201 as the tagged VLANs for normal traffic.

Moreover, to facilitate AP management and achieve quick recovery from device failures, the following configuration items have also been added so that Zero Touch Configuration and Auto Recovery are available:

APs will get their IP addresses from the DHCP server running on the L3 switch.
AMF devices have been set up to accommodate wireless APs as guest devices.
PoE+ switches have been configured to collect the guest device information automatically ("discovery dynamic").
PoE+ switches have been configured to perform DHCP Snooping on the AP management VLAN (vlan1).

We also assume that we have prepared a suitable image for each floor's map.

Configure External IP Address for AWC Plug-in

When using the AWC Plug-in on VST-APL to manage wireless APs, it is recommended to register the IP address of the Wireless Controller application (AWC Plug-in) on the VST-APL as an external IP address in the System Setting screen of the AWC Plug-in in advance.
If you have already configured the external IP address of the AWC plug-in correctly, this step is not necessary.

Click on System Setting from the AWC Plug-in menu.
The "System Setting" screen appears.
In "External IP Address for AWC plug-in" under "IP Address Settings", select the IP address of the Wireless Controller application (i.e., AWC Plug-in) on the VST-APL from the dropdown list.
Click on the "Save" button on the right side of "IP Address Settings".
