System Settings

References > System Settings

---

---

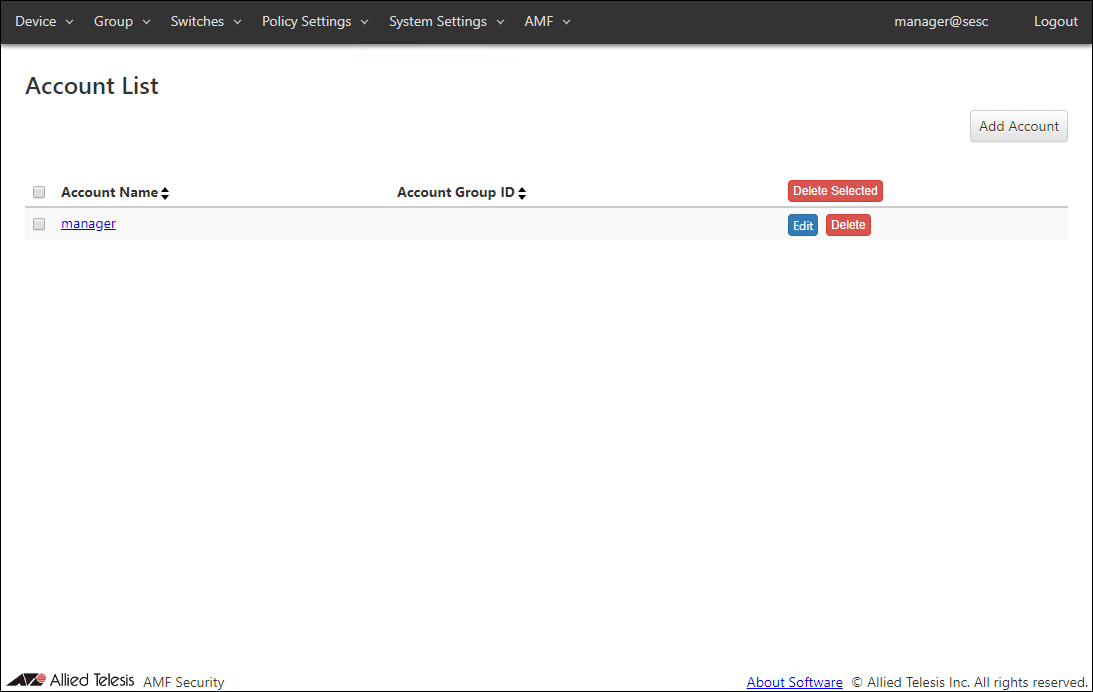

Account List

Table 1: Target columns for sort operation

Item Name	Sort
Account Name	×
Account Group ID	×

Table 2: Displayed columns

Item Name	Description
Account Name	Name of the login account. When clicked, the Update Account page for the account is displayed.
Account Group ID	Account group to which the Login Account belongs. When clicked, the Update Account Group page for the account group is displayed. If you delete the account group on the System settings > Account group list page after registering the account group to the login account, the link to the Update Account Group page above is deleted.

Table 3: Buttons

Item Name	Description
Page Top
Add Account	Go to Add Account page.
Account List
Heading Row
Delete Selected	Delete all the checked accounts.
Each Row
Edit	Go to Update Account page for the account.
Delete	Delete the account.

Note

Default account "manager" cannot be deleted.

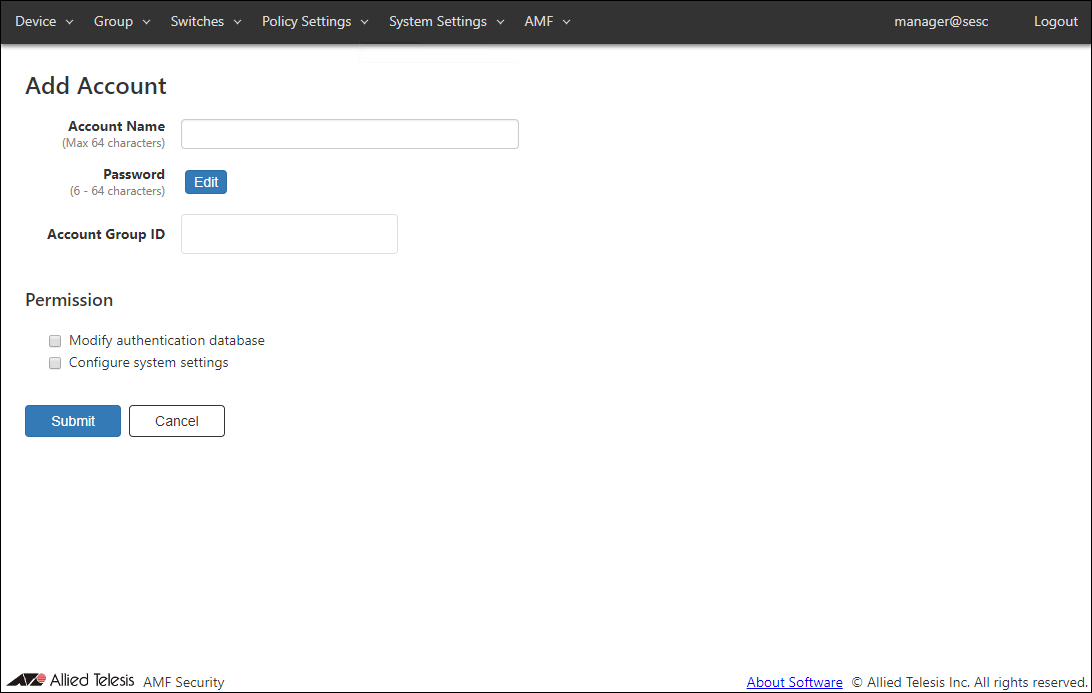

Add Account

Table 4: Sample Configuration Data

Item Name	Description
Account Name (Mandatory)	Name of the login account. Maximum length is 64 characters. Allowed characters are as follows. a-z, A-Z, 0-9, ' - _ .
Password	Login password for the account. Click "Edit" to configure password.
Account Group ID	Select the Account Group ID to which the Login Account belongs.
Permission
Modify authentication database	Check this to grant permission to change authentication database to the account.
Configure system settings	Check this to grant permission to change system configurations to the account.

Table 5: Buttons

Item Name	Description
Password
Edit	Open Password Configuration dialog to configure the account's password.
Page Bottom
Submit	Add a new account with the input information.
Cancel	Cancel the operation for adding a new account.

Note

When you forget all the passwords for user accounts with "Configure system settings The AMF Security configurations must be initialized if you forget passwords for all accounts with the permission of "Configure system settings" including the "manager" account. Please make sure that you keep your passwords safely and never forget them.

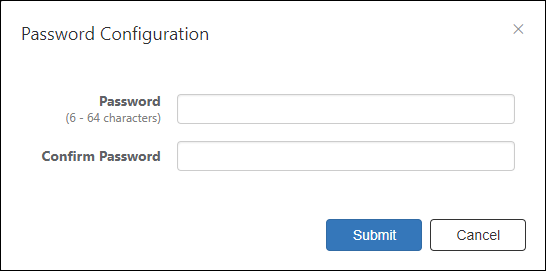

Password Configuration

Table 6: Sample Configuration Data

Item Name	Description
Password (Mandatory)	Login password for the account. Password must be 6 to 64 characters long. Allowed characters are as follows. a-z, A-Z, 0-9, ! # $ % & ' * + - / = ? ^ _ ` { | } ~ .
Confirm Password (Mandatory)	Enter the password again.

Table 7: Buttons

Item Name	Description
Bottom of the dialog
Submit	Configure the input password.
Cancel	Cancel the operation for configuring a password.

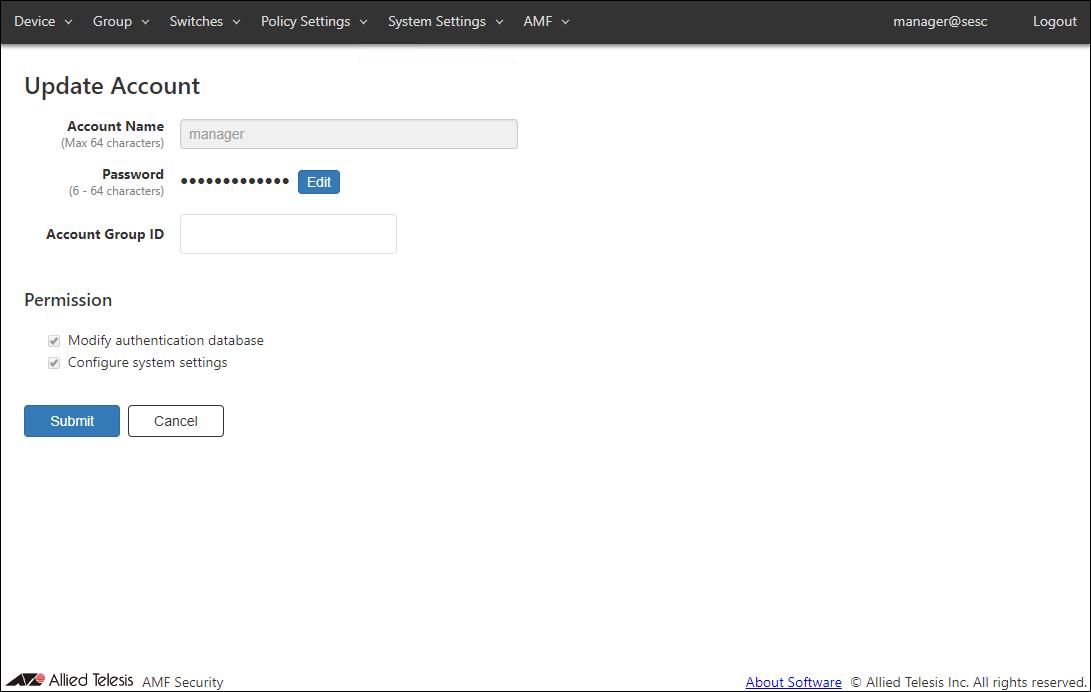

Update Account

Table 8: Configurable fields

Item Name	Description
Account Name (Mandatory)	Name of the login account. Maximum length is 64 characters. Allowed characters are as follows. a-z, A-Z, 0-9, ' - _ .
Password	Login password for the account. Click "Edit" to configure password.
Account Group ID	Select the Account Group ID to which the Login Account belongs.
Permission
Modify authentication database	Check this to grant permission to change authentication database to the account.
Configure system settings	Check this to grant permission to change system configurations to the account.

Table 9: Buttons

Item Name	Description
Password
Edit	Open Password Configuration dialog to configure the account's password.
Page Bottom
Submit	Update the account with the input information.
Cancel	Cancel the operation for updating the account.

Note

Account name and permissions of the default account "manager" cannot be changed.

Note

When you forget all the passwords for user accounts with "Configure system settings The AMF Security configurations must be initialized if you forget passwords for all accounts with the permission of "Configure system settings" including the "manager" account. Please make sure that you keep your passwords safely and never forget them.

Password Configuration

Table 10: Configurable fields

Item Name	Description
Password (Mandatory)	Login password for the account. Password must be 6 to 64 characters long. Allowed characters are as follows. a-z, A-Z, 0-9, ! # $ % & ' * + - / = ? ^ _ ` { | } ~ .
Confirm Password (Mandatory)	Enter the password again.

Table 11: Buttons

Item Name	Description
Bottom of the dialog
Submit	Configure the input password.
Cancel	Cancel the operation for configuring a password.

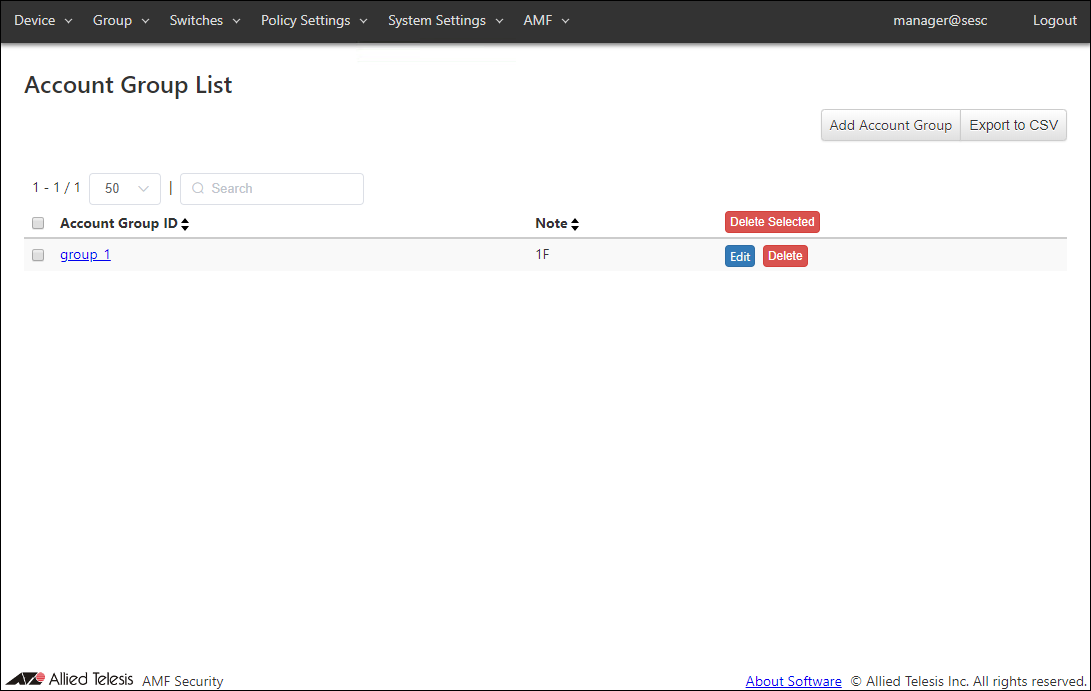

Account Group List

Table 12: Target columns for search and sort operations

Item Name	Search	Sort
Account Group ID	×	×
Note	×	×

Table 13: Displayed columns

Item Name	Description
Account Group ID	Account group name.
Note	Arbitrary string (comment) for the Account Group.

Table 14: Buttons

Item Name	Description
Page Top
Add Account Group	Go to Add Account Group page.
Export to CSV	Start downloading of a list of account groups in CSV format.
Account Group List
Heading Row
Delete Selected	Delete all the checked account groups.
Each Row
Edit	Go to Update Account Group page for the account group.
Delete	Delete the account group.

Note

Refer to CSV File in Appendix for CSV Files.

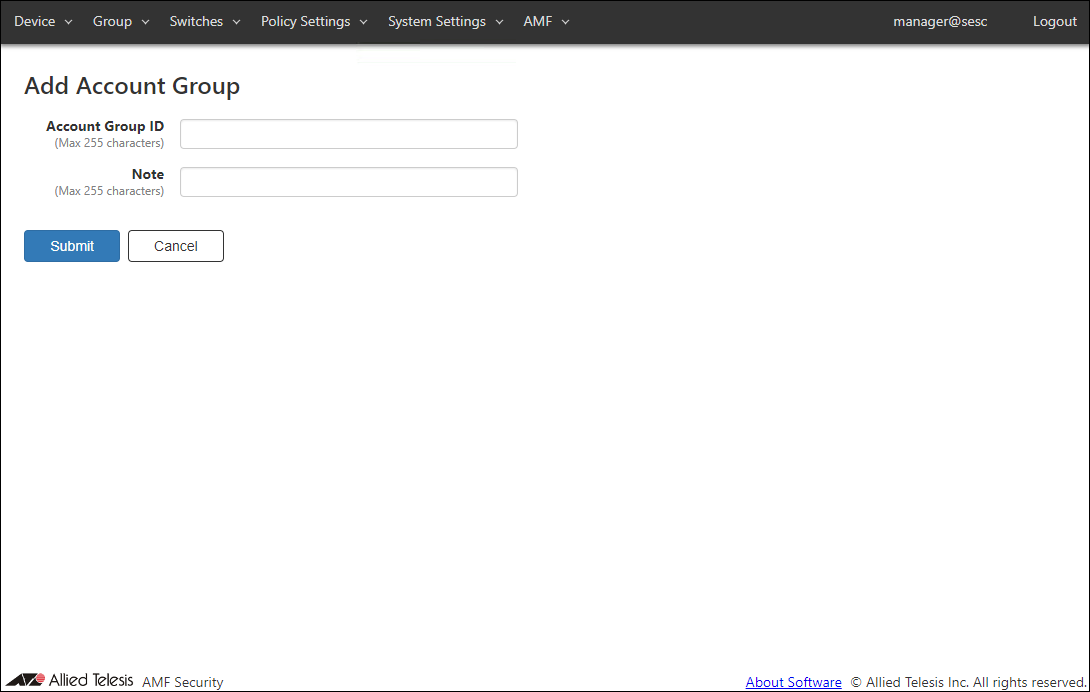

Add Account Group

Table 15: Configurable fields

Item Name	Description
Account Group ID (Mandatory)	Account group to which the Login Account belongs. Account Group ID must be unique. Max 255 characters
Note	Arbitrary string (comment) for the Account Group.

Table 16: Buttons

Item Name	Description
Submit	Add a new account group with the input information.
Cancel	Cancel the operation for adding a new account group.

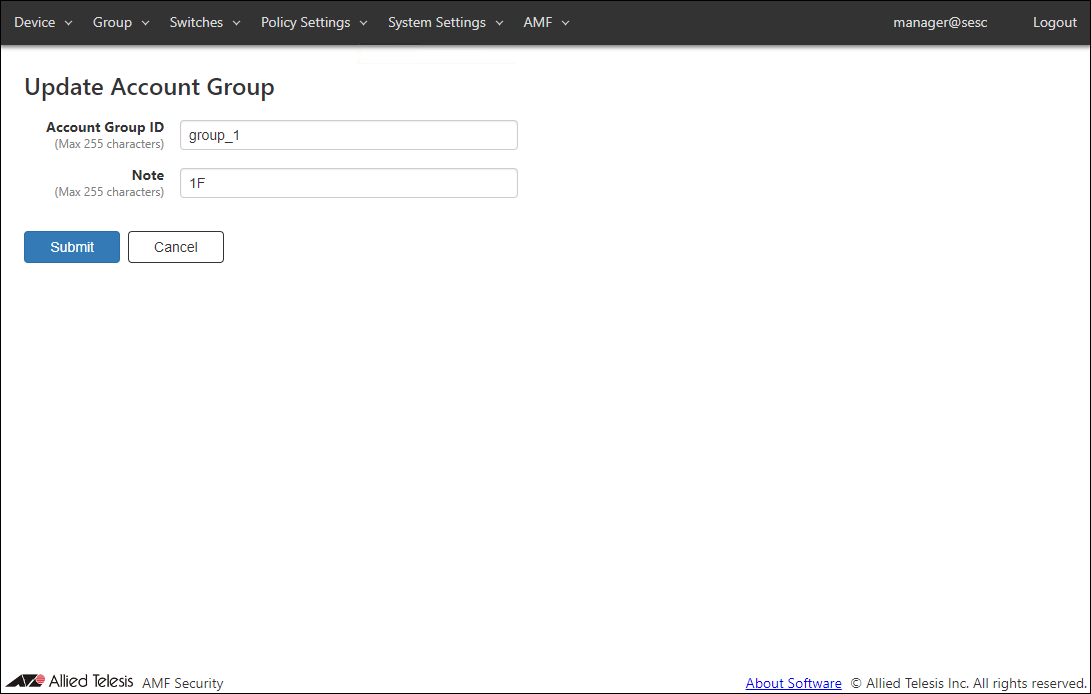

Update Account Group

Table 17: Configurable fields

Item Name	Description
Account Group ID (Mandatory)	Account group to which the Login Account belongs. Account Group ID must be unique. Max 255 characters
Note	Arbitrary string (comment) for the Account Group.

Table 18: Buttons

Item Name	Description
Submit	Go to Update Account Group page for the account group.
Cancel	Cancel the operation for updating the account group.

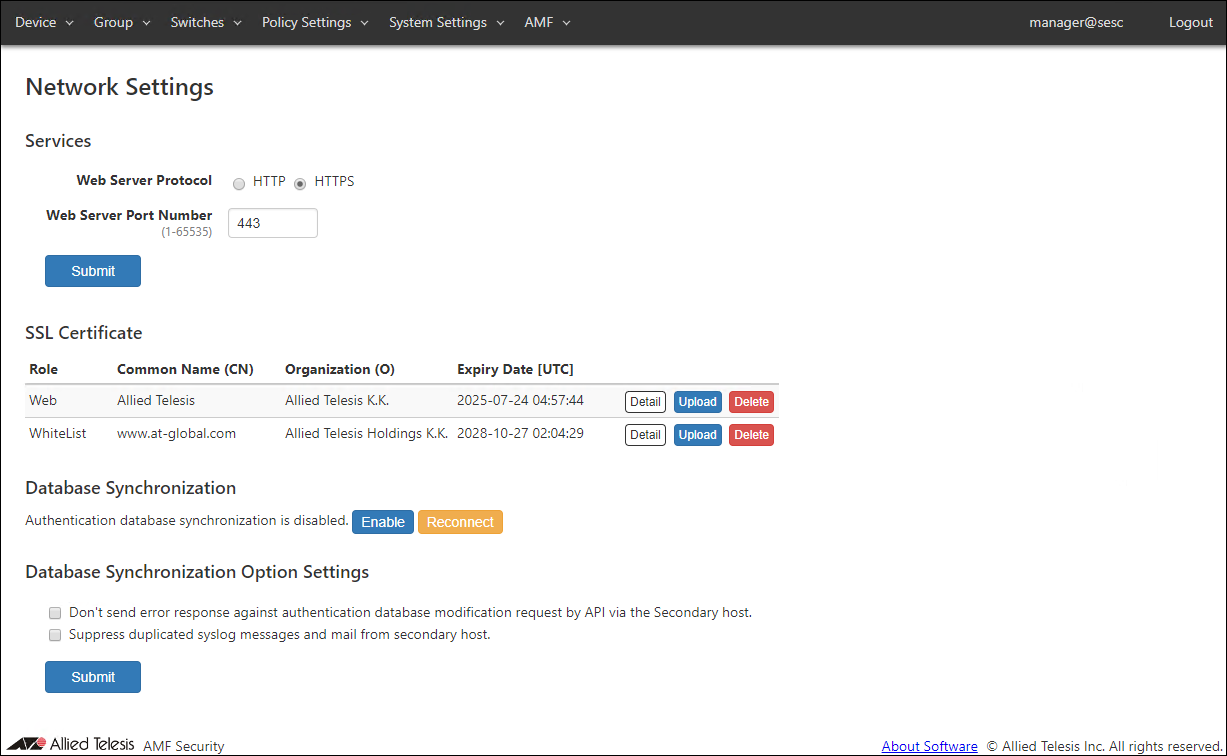

Network Settings

View and change network configurations for the AMF Security system.

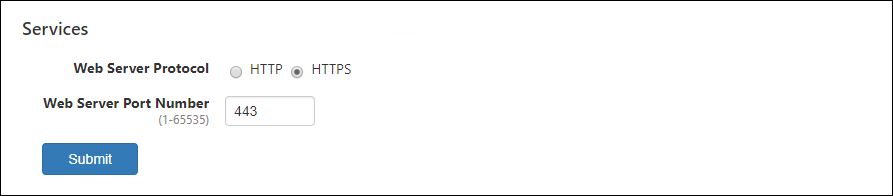

Services

Table 19: Configurable fields

Item Name	Description
Web Server Protocol	Protocol (HTTP or HTTPS) to use for the web interface. Default is HTTPS.
Web Server Port Number	TCP port number that AMF Security's web interface is listening on. Valid range is 1 to 65535. Default is 443.

Note

Only TLS 1.1 and TLS 1.2 are supported for HTTPS.

Note

AMF Security is using several ports internally. Refer to Appendix's TCP or UDP port used by AMF Security for the ports used by AMF Security.

Table 20: Buttons

Item Name	Description
Submit	Save the input services configurations.

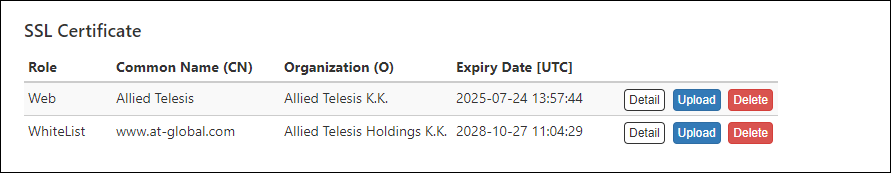

SSL Certificate

Register the SSL server certificate of the Web server (AMF Security) and the SSL server certificate of the whitelist authentication server installed in AMF Security.
If you want external applications to interact with AMF Security via HTTPS, you may have to install an SSL server certificate issued by a trusted certificate authority (CA).
If you want to encrypt control session between AMF Master and Whitelist Server (AMF Security), upload an SSL server certificate issued by a trusted certificate authority (CA).

"SSL Certificate" section shows a summary of the installed SSL server certificate.

Use the method best suited for your needs to get the certificate.

• If your CA provides you with intermediate CA certificates or cross root CA certificates in addition to your server certificate, concatenate those certificates into a single file then upload the file to AMF Security. Contact the CA for detailed information on how to concatenate certificate files.


• To install a certificate file, it must meet the following requirements.



  Table 21: SSL Certificate Requirements

  Type	X.509, RFC6818
  Encryption	PEM (Privacy Enhanced Mail)
  Extension	.crt

Table 22: Displayed columns

Item Name	Description
Role	Displays Web (Web server) or WhiteList (Authentication server).
Common Name(CN)	Displays the common name of the web server (AMF Security) or authentication server (AMF Security).
Organization(O)	Displays the name of the organization to which the Web server (AMF Security) or authentication server (AMF Security) belongs.
Expiration Date [UTC]	Expiration date of the certificate.

Table 23: Buttons

Item Name	Description
Detail	The detailed information of the registered SSL server certificate is displayed.
Upload	Register the SSL server certificate in AMF Security.
Delete	Delete the installed SSL server certificate and restore the default certificate which is self-signed by AMF Security.

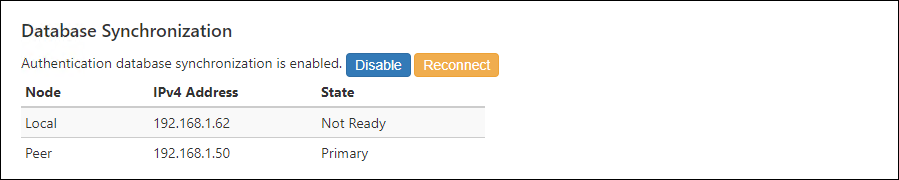

Database Synchronization

Set AMF security to redundant and synchronize the authentication database.
Set up database synchronization on the device used first as the secondary device and then on the device used as the primary device.
Disable database synchronization on the device used first as the secondary device and then on the device used as the primary device.

Note

The Device > Active Device List page and Switches > Active OpenFlow Switch List page show the live information retrieved from OpenFlow Switches managed by AMF Security. Therefore, the information displayed on those pages may differ between the primary and secondary's web interfaces.

Note

AMF Application Proxy Whitelist does not support redundant AMF Security configuration.

Note

When an OpenFlow packet control flow (flow entry) is updated, such as when an authenticated node moves to another port, multiple logs indicating that the flow entry has been deleted may be recorded. However, it does not affect the authentication behavior.

Note

Database synchronization settings are not included in the file exported (downloaded) on the System Settings > System Information page. Therefore, after importing the system settings file, set the database synchronization again.

Table 24: Displayed columns

Item Name	Description
Node	Displays the database synchronization node as Local or Peer.
IPv4 address	The set IPv4 address is displayed.
Status	Displays the status of database synchronization as Primary, Secondary, Not Ready, or Down.

Table 25: Buttons

Item Name	Description
Enable	Open the Database Synchronization Node Settings dialog.
Disable	Disable authentication database synchronization. Only when database synchronization is enabled, the "Enable" button changes to the "Disable" button.
Reconnect	Reconnect to the authentication database.

Database Synchronization Node Settings

Table 26: Configurable fields

Item Name	Description
Local IPv4 Address	Set the currently set AMF Security IPv4 address.
Peer IPv4 Address	Remote IPv4 address to use for synchronization.

Table 27: Buttons

Item Name	Description
Enable as Primary	AMF Security works as the primary.
Enable as Secondary	AMF Security works as a secondary.
Close	Go back to the Network Settings page.

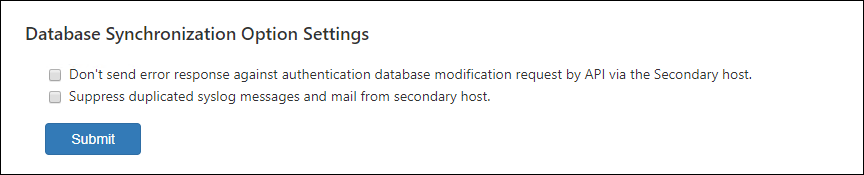

Database Synchronization Option Settings

Table 28: Configurable fields

Item Name	Description
Don't send error response against authentication database modification request by API via the Secondary host.	Suppress error logs generated by the secondary AMF Security system.
Suppress duplicated syslog messages and mail from secondary host.	Suppress duplicated log messages by disabling log transmission on the secondary AMF Security system.

Table 29: Buttons

Item Name	Description
Submit	Save the settings.

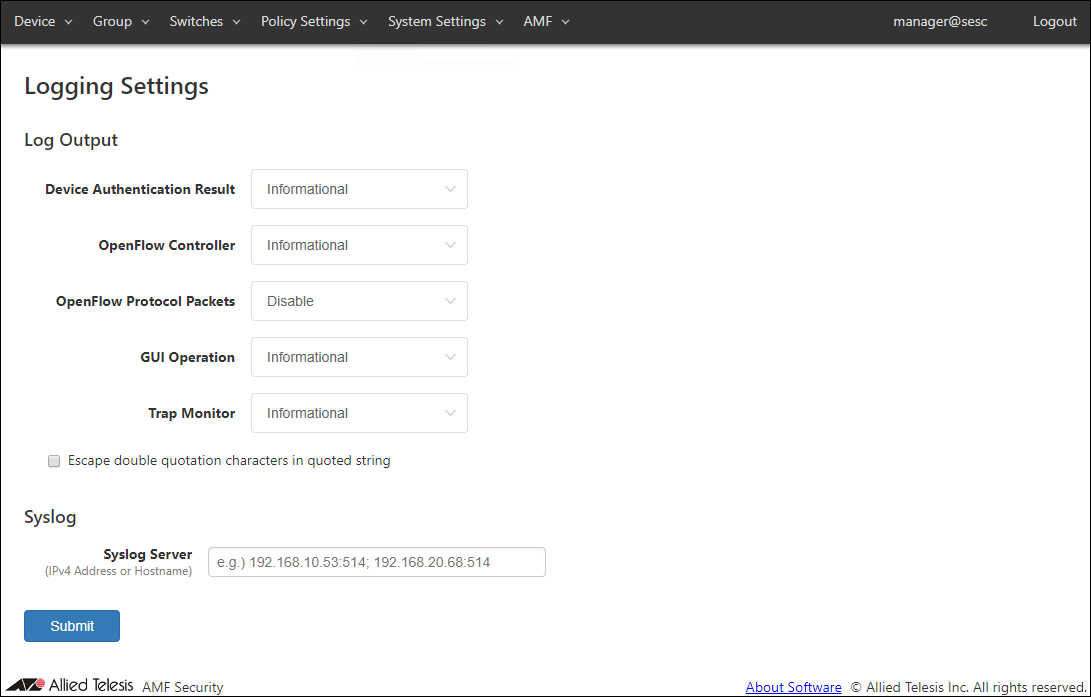

Logging Settings

Note

When changing the Logging Settings, the connection with the connected OpenFlow switch is temporarily disconnected.

◼ Log Output
You can view and configure levels for various types of logs.

Table 30: Configuration Parameters for Log Output

Item Name	Description
Device Authentication Result	Minimum level for device authentication logs to be output. Default is Informational.
OpenFlow Controller	Minimum level for the OpenFlow protocol logs to be output. Default is Informational.
OpenFlow Protocol Packets	Minimum level for the OpenFlow packet logs to be output. Default is Disable (do not output any log of this type).
GUI Operation	Minimum level for the web interface logs to be output. Default is Informational.
Trap Monitor	Minimum level for the trap monitor logs to be output. Default is Informational.
Escape double quotation characters in quoted string	Escape double quotes in the log message. Default is disabled.

◼ Syslog

Table 31: Configuration fields for Syslog

Item Name

Description

Syslog Server

Set the IPv4 address or hostname and UDP port number of the external Syslog server that sends the log. The forwarding destination should be in the form of "A.B.C.D:P" where the A.B.C.D is an IPv4 address and P is a port number. Multiple Syslog servers can be specified by separating each address by a semicolon (;). A colon (:) and a port number can be omitted if the host is listening on the default syslog port (514).

Note

AMF Security is using several ports internally. Refer to Appendix's TCP or UDP port used by AMF Security for the ports used by AMF Security.

Table 32: Buttons

Item Name	Description
Page Bottom
Submit	Save the input logging configurations.

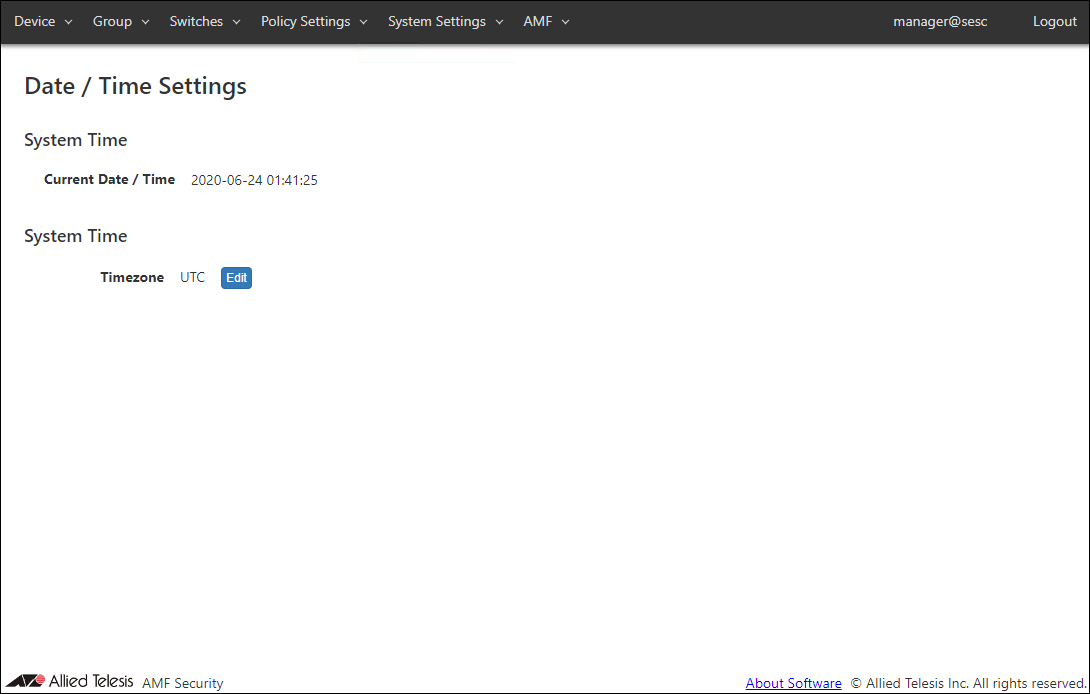

Date / Time Settings

Table 33: Displayed columns

Item Name	Description
Current Date / Time	Display system date.

Table 34: Configurable fields

Item Name	Description
Timezone	Display the system timezone. Default is UTC. Click the "Edit" button to set the timezone.

Table 35: Buttons

Item Name	Description
Edit	Display the Select Timezone dialog and set the system timezone.

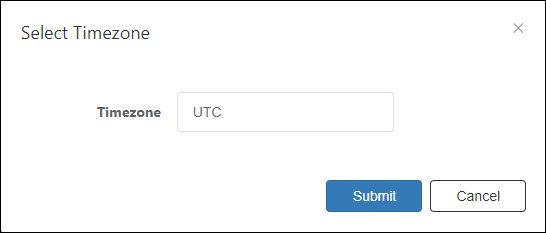

Select Timezone

Table 36: Configurable fields

Item Name	Description
Timezone	Select the timezone from the dropdown list.

Table 37: Buttons

Item Name	Description
Submit	Save the selected timezone.

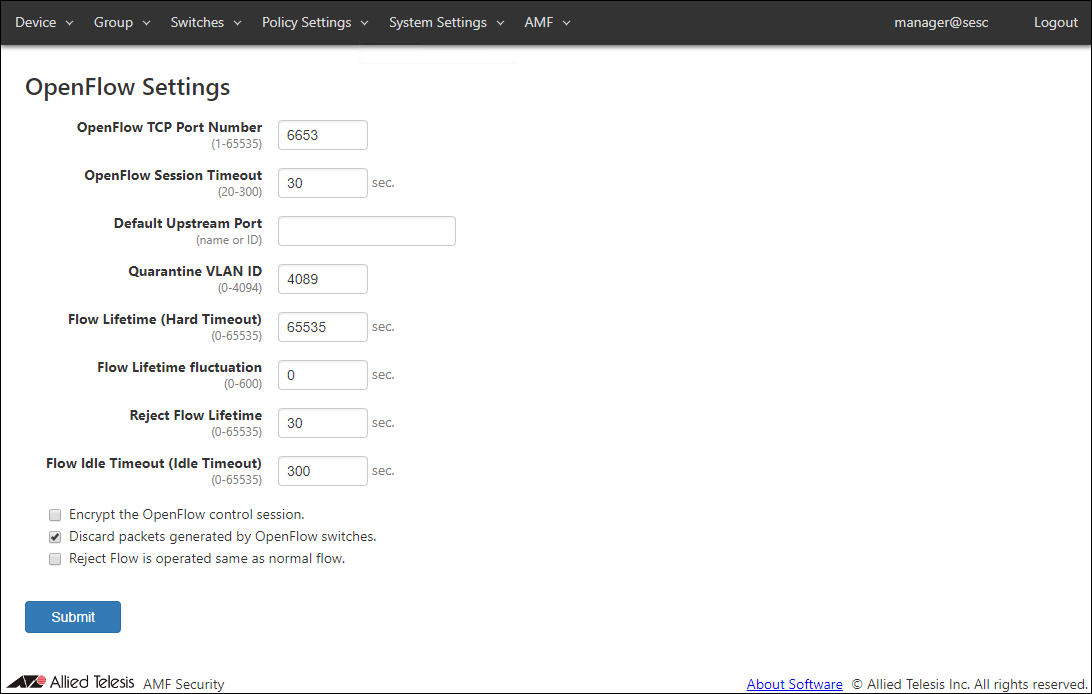

OpenFlow Settings

Note

When changing the OpenFlow Settings, the connection with the connected OpenFlow switch is temporarily disconnected.

Table 38: Configurable fields

Item Name	Description
OpenFlow TCP Port Number	TCP port number on which AMF Security's OpenFlow controller is waiting for control plane connections. Valid range is 1 to 65535. Default is 6653.
OpenFlow Session Timeout	Configure a timeout (in seconds) to disconnect an OpenFlow session with an irresponsive switch. When AMF Security does not receive any message from an OpenFlow Switch for half of this timeout value, AMF Security sends Echo request message to the switch. If the switch does not respond to the Echo request within the timeout period, AMF Security automatically closes the session with the switch. Valid range is 20 to 300. Default is 30.
Default Upstream Port	Default setting for OpenFlow Switch's upstream port. If no upstream port is specified in a configuration for an OpenFlow Switch, the default upstream port is used as upstream port on the OpenFlow Switch. Specify it with a port name or an OpenFlow port number. Default is unspecified (empty) which means that the OpenFlow port with the smallest OpenFlow port number on a switch is used as upstream port.
Quarantine VLAN ID	VLAN ID of the quarantine network where quarantined devices are placed. Valid range is 0 to 4094. Default is 4089.
Flow Lifetime (Hard Timeout)	Configure the default flow lifetime (in seconds) on the switch. When this amount of time has passed since a flow is created for a device, the flow is automatically deleted from OpenFlow Switches even though the device is still sending traffic. Valid range is 0 to 65535. Default is 65535. Specifying 0 means that flows are never timed out. This value is used when a security policy for a device does not have Schedule. This value may be preceded by a Schedule's End Date / Time. This value is used as it is when the interval between the successful authentication and a scheduled End Date / Time is less than 65535 seconds. If the interval between the successful authentication and a scheduled End Date / Time is larger than or equals to 65535 seconds, actual timeout is set to 65535 seconds.
Flow Lifetime fluctuation	Configure a maximum fluctuation value for Flow Lifetime (in seconds). When set to non-zero value (X), actual flow lifetime value is calculated by subtracting a random fluctuation value between 0 and X from the Default Flow Lifetime. This value must be less than the Flow Lifetime value and in the range between 0 and 600 (Only 0 is valid when the Default Flow Lifetime is 0). Default is 0. (The Default Flow Lifetime is used as is). For example, when the Flow Lifetime fluctuation is set to 600 seconds, actual flow lifetime set to flow entries is determined by subtracting a random value between 0 and 600 from the Default Flow Lifetime (If the Default Flow Lifetime is 65535 (default), actual flow lifetime can be any value in the range between 64935 and 65535).
Reject Flow Lifetime	Flow lifetime in seconds for devices which failed to authenticate. Valid range is 0 to 65535. Default is 30. Specifying 0 means that reject flows are never created.
Flow Idle Timeout (Idle Timeout)	An amount of time that should have passed without any traffic from a device before the flow for the device is deleted automatically. Valid range is 0 to 65535. Default is 300. Specifying 0 means that flows are never deleted even though no traffic is seen from devices.
Encrypt the OpenFlow control session.	Check this to encrypt control plane traffic between AMF Security and OpenFlow Switches. TLS is used for encryption. To use encrypted control plane, you also have to configure OpenFlow Switches to use encryption.
Discard packets generated by OpenFlow Switches.	Check this to install flows on the OpenFlow Switches that discard packets originated from the OpenFlow Switch themselves.
Reject Flow is operated same as normal flow.	Configure the timer and deletion behavior of Reject flows. Default is disabled. Unchecked: The timer is set to Reject Flow Lifetime. OpenFlow Switches does not notify AMF Security when they delete the flow entry. Checked: The timer is set to Default Flow Lifetime and Flow Idle Timeout is used. OpenFlow Switches notify AMF Security when they delete the flow entry.

Note

AMF Security is using several ports internally. Refer to Appendix's TCP or UDP port used by AMF Security for the ports used by AMF Security.

Note

Default Upstream Port is applied to unregistered OpenFlow Switches When you are using both AlliedWare plus switches and AT-TQ wireless access points as OpenFlow Switches, configuring the Default Upstream Port disturbs flow entry registration due to the difference in the port number structure between AlliedWare Plus and AT-TQ series.
When you use non-minimum number OpenFlow port as upstream port on AlliedWare Plus Devices, individually configure the upstream port on each OpenFlow Switch.
Refer to Switches > Add OpenFlow Switch for instructions on how to register OpenFlow Switches.

Table 39: Buttons

Item Name	Description
Page Bottom
Submit	Save the input OpenFlow configurations.

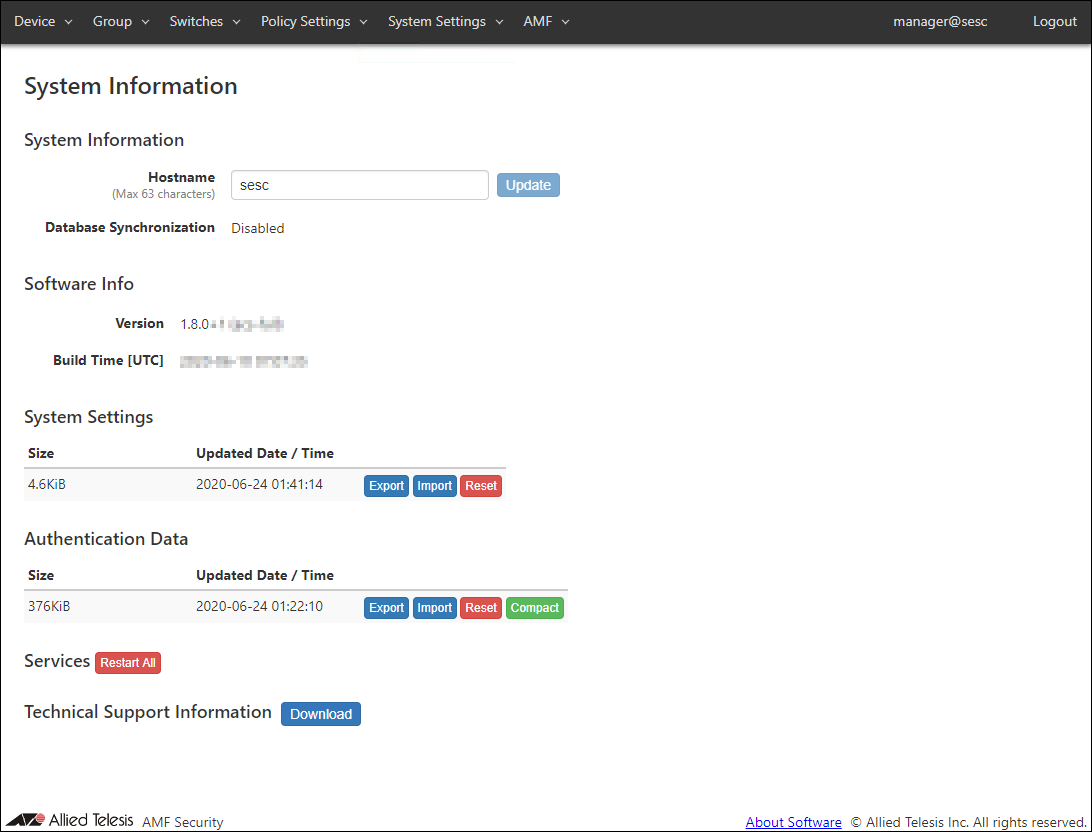

System Information

Note

When changing the hostname, the connection with connected OpenFlow Switch or AMF Master is temporarily disconnected.

◼ System Information

Table 40: Configurable fields

Item Name	Description
Hostname	Hostname of the system Default is "sesc". To change the hostname, enter a new hostname and click "Update". Max 63 characters. Allowed characters are as follows. a-z, A-Z, 0-9, - Hyphen (-) cannot be used for the first letter.
Database Synchronization	Status of database synchronization. One of Disabled, Syncing or Disconnected.

Table 41: Buttons

Item Name	Description
Refresh	Update the hostname.

◼ Software Info

Table 42: Displayed columns

Item Name	Description
Version	Version and build number (internal version) of the installed AMF Security software.
Build Time	Build date and time of the installed AMF Security software.

◼ System Settings

Table 43: Configurable fields

Item Name	Description
Size	Displays the file size of system setting data.
Updated Date / Time	Displays the date and time when the system setting data was updated.

Table 44: Buttons

Item Name	Description
Export	Download system configuration for backup.
Import	Import and restore system settings.
Reset	Reset system configuration to factory default.

Some system settings that are exported, imported, or reset are not covered.
Manually backup, configure or delete those elements.

• Configurations to be backed up, restored and reset.

  • Account List

  • Network Settings - Services

  • Logging Settings

  • Date / Time Settings

  • Trap Monitor Settings

  • Email Notification Settings

  • AMF Settings



• Configurations not to be backed up, restored and reset.

  • Network Settings - SSL Certificate

  • Network Settings - Database Synchronization

  • AMF - SSL Certificate

  • SESC Log

  • Action Log


◼ Authentication Data

Table 45: Configurable fields

Item Name	Description
Size	Displays the file size of the authentication data.
Updated Date / Time	Displays the date and time when the authentication data was updated.

Table 46: Buttons

Item Name	Description
Export	Download authentication data for backup.
Import	Import authentication data from a CSV file.
Reset	Delete all authentication data on this system.
Compact	Rebuild the authentication database.

Note

Authentication data file to import should be in CSV format. Refer to CSV File in Appendix for CSV Files.

◼ Services

Table 47: Buttons

Item Name	Description
Restart All	Restart AMF Security system.

◼ Technical Support Information

Table 48: Buttons

Item Name	Description
Download	Download technical support information for trouble shooting.

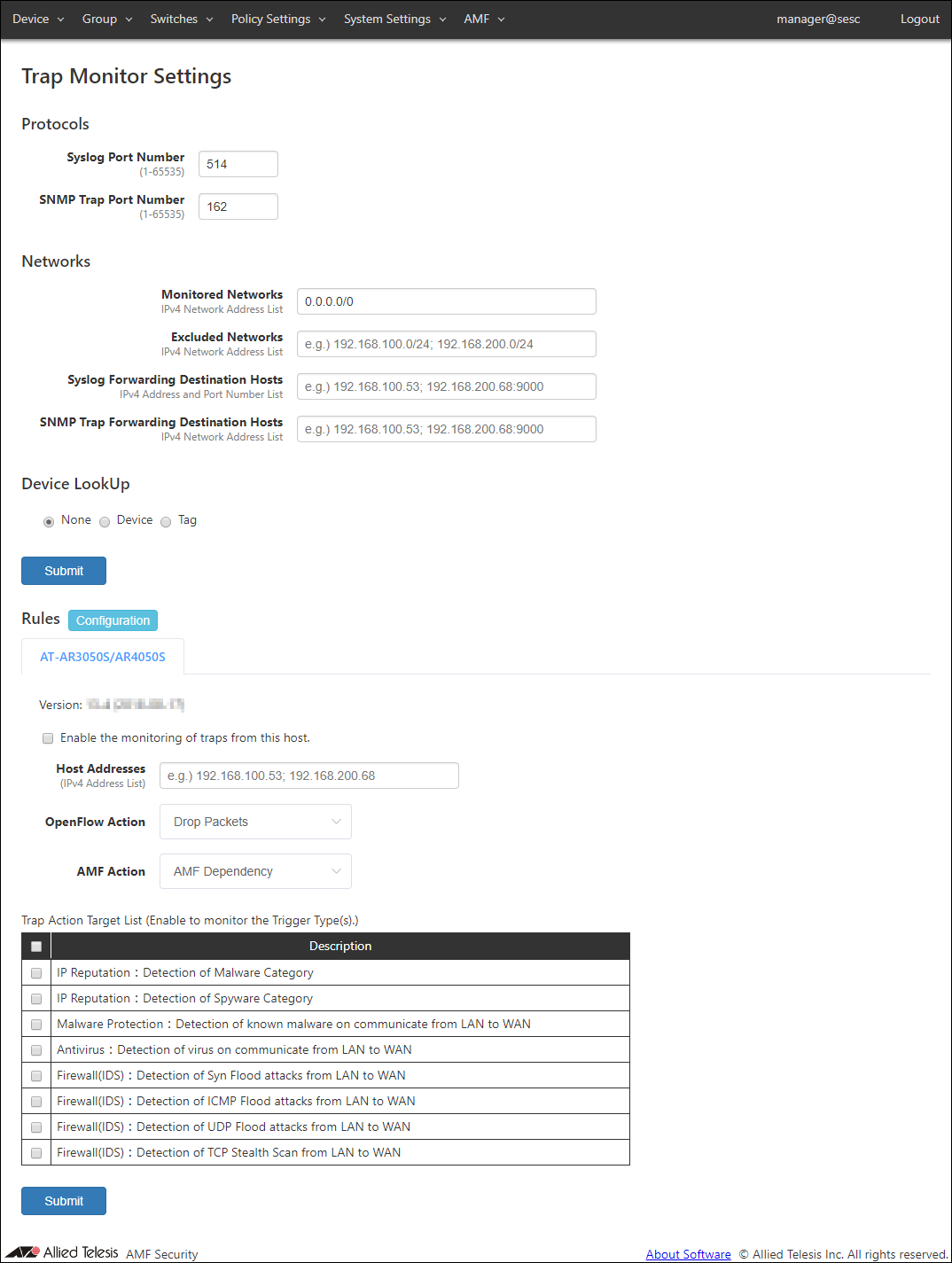

Trap Monitor Settings

This page lets you configure various parameters required for interaction with external applications.
You can also setup AMF Security to forward SNMP traps and syslog messages to other systems.

Note

Trap monitor only responds to specific set of log messages and SNMP traps. You cannot define actions for arbitrary messages and traps.

◼ Protocols

Table 49: Configurable fields

Item Name	Description
Syslog Port Number	Listening port number to receive syslog messages. Valid range is 1 to 65535. Default is 514.
SNMP Trap Port Number	Listening port number to receive SNMP traps. Valid range is 1 to 65535. Default is 162.

Note

AMF Security is using several ports internally. Refer to Appendix's TCP or UDP port used by AMF Security for the ports used by AMF Security.

◼ Networks
Specify the monitored or unmonitored network, Syslog message, and SNMP Trap transfer destination host.
If Monitored Networks and Excluded Networks overlap, Exclude Networks have precedence.

Note

Some external applications do not respect settings of Monitored Networks and Excluded Networks.

Table 50: Configurable fields

Item Name	Description
Monitored Networks	IPv4 networks to monitor using syslog and trap messages. Multiple networks can be specified by separating each network by a semicolon (;). If this field is empty or 0.0.0.0/0 is specified, all networks are monitored. Default is 0.0.0.0/0.
Excluded Networks	IPv4 networks not to monitor. Multiple networks can be specified by separating each network by a semicolon (;).
Syslog Forwarding Destination Hosts	Specify a host to which AMF Security forwards the received syslog messages. The forwarding destination should be in the form of "A.B.C.D:P" where the A.B.C.D is an IPv4 address and P is a port number. Multiple hosts can be specified by separating each address by a semicolon (;). A colon (:) and a port number can be omitted if the host is listening on the default syslog port (514). Source IPv4 address of the forwarded messages are the address of AMF Security.
SNMP Trap Forwarding Destination Hosts	Specify a host to which AMF Security forwards the received trap messages. The forwarding destination should be in the form of "A.B.C.D:P" where the A.B.C.D is an IPv4 address and P is a port number. A colon (:) and a port number can be omitted if the host is listening on the default trap port (162). Multiple hosts can be specified by separating each address by a semicolon (;). Source IPv4 address of the forwarded messages are the address of AMF Security.

◼ Device Lookup
Specify a target range of the action to notify.

Table 51: Configurable fields

Item Name	Description
None	Notify actions on MAC address.
Device	Notify actions on Device.
Tag	Notify actions on Device Tag.

Note

Device Lookup is not supported for AMF Application Proxy's IP-Filter action.

Table 52: Buttons

Item Name	Description
Submit	Save the settings.

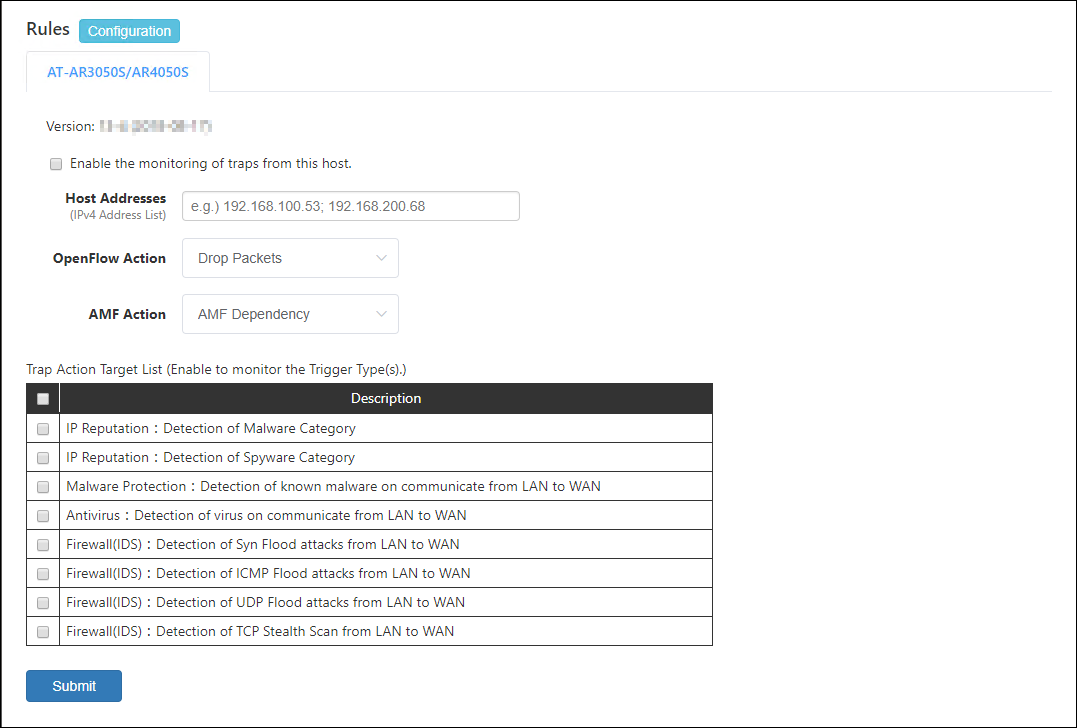

◼ Rules
Trap monitor rules can be updated and added through trap monitor rule files.
By default, trap monitor rules for the UTM functions of AT-AR3050S/AT-AR4050S routers are installed.

Note

Trap monitor rule files are provided by our "AMF-SEC Technology Partner Program". Contact our sales engineer for the Technology Partner Program.

• AT-AR3050S/AR4050S
  This tab lets you configure trap monitor rules for the UTM functions of AT-AR3050S/AT-AR4050S routers.




  To receive and monitor syslog messages from AT-AR3050S/AT-AR4050S routers, check "Enable the monitoring of traps from this host.".
  Then, check events which you want to monitor in the "Trap Action Target Trigger" table.


  • IP Reputation：Detection of Malware Category
    Block traffic from a device when AMF Security receives a syslog message indicating that the IP reputation feature on the router detects the device tries to communicate with a destination classified as Malware category (Malware C&C server (CnC), Malware-infected host (Bot) or Mobile C&C Server (Mobile_CnC)).


  • IP Reputation：Detection of Spyware Category
    Block traffic from a device when AMF Security receives a syslog message indicating that the IP reputation feature on the router detects the device tries to communicate a destination classified as Spyware category (drop site (Drop), Spyware C&C server (SpywareCnC) or Mobile Spyware C&C server (Mobile_Spyware_CnC)).


  • Malware Protection：Detection of known malware on communicate from LAN to WAN
    Block traffic from a device when AMF Security receives a syslog message indicating that the malware protection feature on the router detects the known malware on the device.


  • Antivirus：Detection of virus on communicate from LAN to WAN
    Block traffic from a device when AMF Security receives a syslog message indicating that the anti-virus feature on the router detects the known virus on the device.


  • Firewall(IDS)：Detection of Syn Flood attacks from LAN to WAN
    Block traffic from a device when AMF Security receives a syslog message indicating that the firewall's IDS feature on the router detects the SYN Flood attack from the device.


  • Firewall(IDS)：Detection of ICMP Flood attacks from LAN to WAN
    Block traffic from a device when AMF Security receives a syslog message indicating that the firewall's IDS feature on the router detects the ICMP Flood attack from the device.


  • Firewall(IDS)：Detection of UDP Flood attacks from LAN to WAN
    Block traffic from a device when AMF Security receives a syslog message indicating that the firewall's IDS feature on the router detects the UDP Flood attack from the device.


  • Firewall(IDS)：Detection of TCP Stealth Scan from LAN to WAN
    Block traffic from a device when AMF Security receives a syslog message indicating that the firewall's IDS feature on the router detects the TCP Stealth Scan attack from the device.



  Note

  To use those rules, you also have to configure AT-AR3050S/AT-AR4050S. Refer to the AT-AR3050S/AT-AR4050S's documentation for more details.





  Table 53: Buttons

  Item Name	Description
  Value	Open the Rule Setup page.





  Table 54: Displayed columns

  Item Name	Description
  Version	Version of the Trap Monitor Rules





  Table 55: Configurable fields

  Item Name	Description
  Enable the monitoring of traps from this host.	If you want to monitor the device by receiving Syslog message from AT-AR3050S or AT-AR4050S, check the check box.
  Host Addresses	IPv4 address of AT-AR3050S/AT-AR4050S routers. Multiple hosts can be specified by separating each address by a semicolon (;). Default is unspecified (empty) which means that AMF Security accepts syslog messages from any IPv4 address.
  OpenFlow Action	Specify an OpenFlow action to run when the event occurs. Drop Packets: Block traffic from the device at the layer two (MAC) level. Quarantine: Move the device to the quarantine network. Log-Only: Record the device information.
  AMF Action	An action to be taken on the AMF network deploying AMF Application Proxy feature. Drop Packets: Block traffic from the device at the layer two (MAC) level. Link-Down: Shutdown the port where the device is connected. Quarantine: Move the port where the device is connected to the quarantine VLAN. AMF Dependency: AMF Security does not specify an action and lets AMF devices determine its action. IP-Filter: Block traffic from the device at the layer 3 (IP) level. Log-Only: AMF Security does not specify an action and records the device information.




  Table 56: Buttons

  Item Name	Description
  Page Bottom
  Submit	Save the settings.

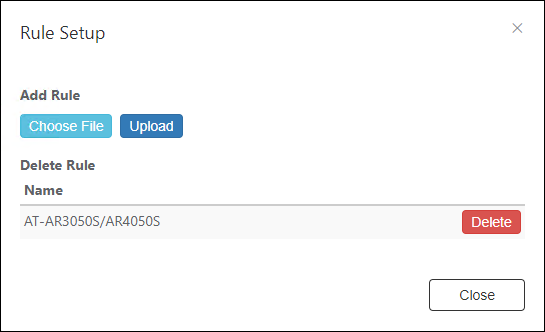

Rules

Table 57: Displayed columns

Item Name	Description
Name	Name of the Trap Monitor Rules

Table 58: Buttons

Item Name	Description
Choose File	Select the rule settings file to upload.
Upload	Upload the selected rule settings file.
Delete	Delete the registered rule settings.
Close	Go back to the Trap Monitor Settings page.

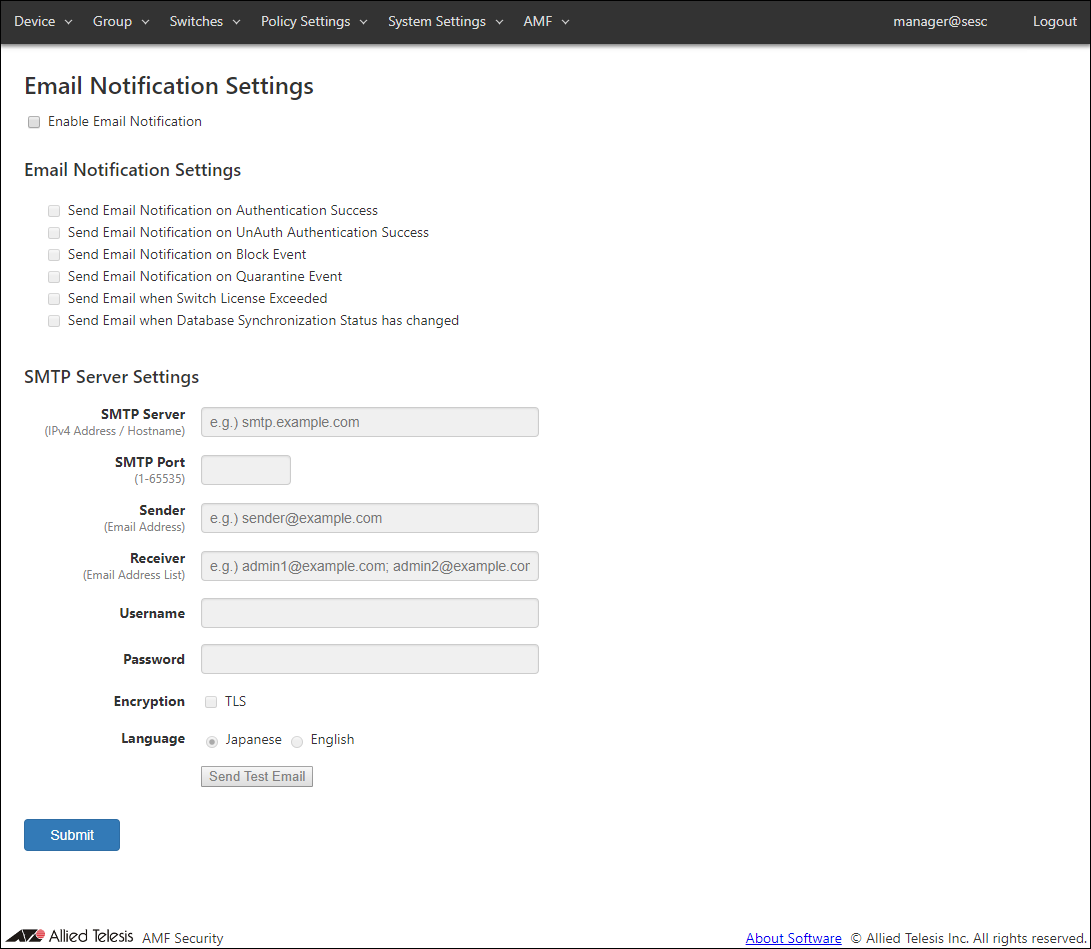

Email Notification Settings

This page lets you configure Email Notifications.
You can configure AMF Security to notify an administrator with an email when an event such as device authentication or block happens.
AMF Security also sends emails to forward the contents of syslog messages and SNMP traps it receives.

Note

Email notification of syslog and trap messages are always enabled and cannot be disabled.

Note

When changing the Email Notification Settings, the connections with the connected OpenFlow Switch is temporarily disconnected.

AMF Security queues the Notification Emails by the following rules and tries to resend them upon failure.

• When an event occurs, AMF Security queues up to 100 emails for the event in the first 10 seconds after the event.

• Queued emails are sent out as a single email after 10 seconds.

• If 100 or more events occur in 10 seconds after the first event, AMF Security queues them too.

• A Queue is created for each event types of Email Notification Settings.

• AMF Security attempts up to four retries, i.e. AMF Security tries to send an email up to 5 times.


To enable Email Notifications, check the "Enable Email Notification" on the page.

◼ Email Notification Settings
You can enable or disable email notification for each event with checkboxes.

• Send Email Notification on Authentication Success

• Send Email Notification on UnAuth Authentication Success

• Send Email Notification on Block Event

• Send Email Notification on Quarantine Event

• Send Email when Switch License Exceeded

• Send Email when Database Synchronization Status has changed


Note

"Send Email Notification on Block Event" or "Send Email Notification on Quarantine Event" is checked, AMF Security also sends notification email when a device is blocked or quarantined by AMF Application Proxy.

◼ SMTP Server Settings

Table 59: Configurable fields

Item Name	Description
SMTP Server	IPv4 address of a SMTP server which AMF Security uses to send out emails.
SMTP Port	Listening port of the SMTP server.
Sender	Mail address of the sender.
Receiver	Mail address of the recipient. Multiple addresses can be specified by separating them with a semicolon (;).
Username	Username for SMTP authentication.
Password	Password for SMTP authentication.
Encryption	Check this to use TLS connection to the SMTP server.
Language	Select a language used in emails.

Note

AMF Security is using several ports internally. Refer to Appendix's TCP or UDP port used by AMF Security for the ports used by AMF Security.

Note

If your browser is configured to use Japanese, some part of emails is written in Japanese even if Language setting for Email Notification is English. If both browser and Email Notification are configured to use English, mail body is written in English. Note that strings contained in authentication data or messages received from an external application are left unchanged.

Note

When you want AMF Security to send notification emails when a device is blocked by the AMF Application Proxy with "Drop Packets", "Link-Down" or "IP-Filter" action, check "Send Email Notification on Block Event" .

Table 60: Buttons

Item Name	Description
SMTP Server Settings
Send Test Email	Send a test email.
Page Bottom
Submit	Save the SMTP server settings.

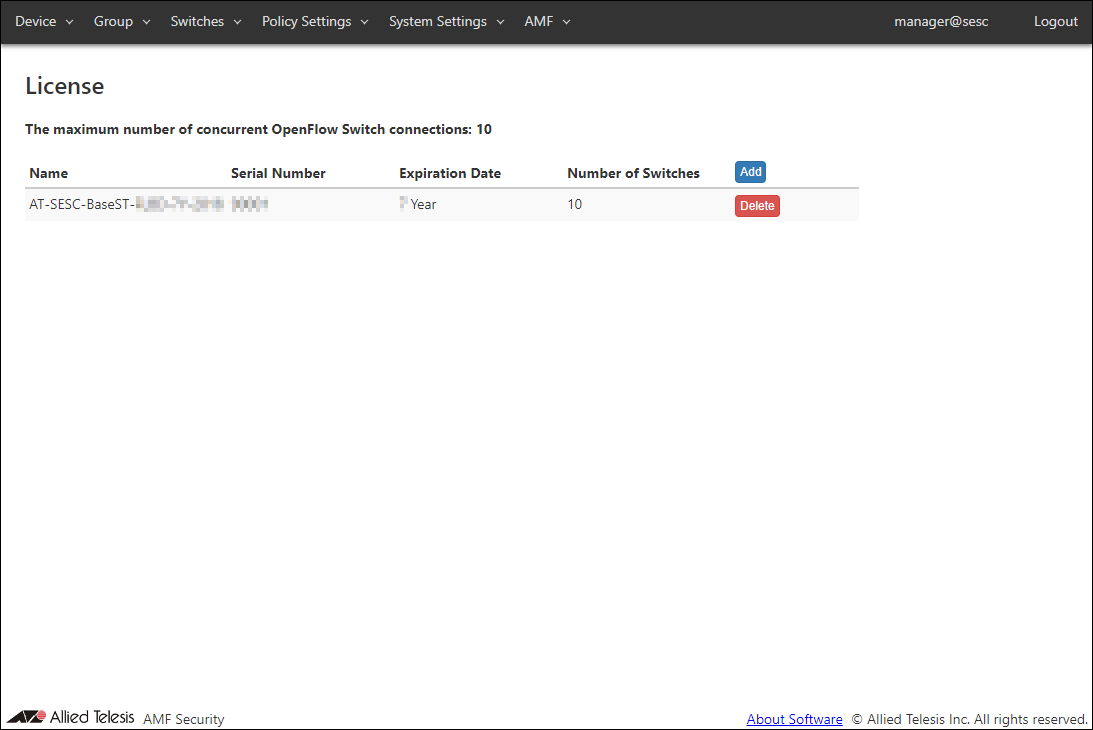

Licenses

This section lets you manage licenses for AMF Security.
There are two types of licenses: "Base" and "Addon".

• You always need the Base license to run AMF Security.
  OpenFlow and AMF Application Proxy do not work until the base license is installed.

• The Addon license is for adding an OpenFlow switch. AMF Application Proxy works with a Base license only, no Addon license for nodes is required.
  Although you can install Addon licenses before installing the Base license, AMF Security does not work until the Base license is installed.


Note

Purchase a license to use OpenFlow.

Note

After registering the basic license, if you delete or add the basic license during operation of the OpenFlow and AMF Application Proxy network, OpenFlow and AMF Application Proxy may not operate normally.
Therefore, disconnect AMF security from the operating network before removing or adding a registered base license.

If the base license is removed or added during operation and AMF Application Proxy does not work properly, restart AMF security.

Table 61: Displayed columns

Item Name	Description
The maximum number of concurrent OpenFlow Switch connections	The maximum number of OpenFlow Switches which can be supported by the installed licenses.
Name	Name of the license.
Serial Number	Internal serial number of the license.
Expiration Date	Displays the license years.
Number of Switches	Number of OpenFlow Switches supported by the license.

Table 62: Buttons

Item Name	Description
Add	Add a license. In the dialog, enter the Serial Number and Authentication Key shown on the license certificate and click the "Submit" button.
Delete	Delete the license.

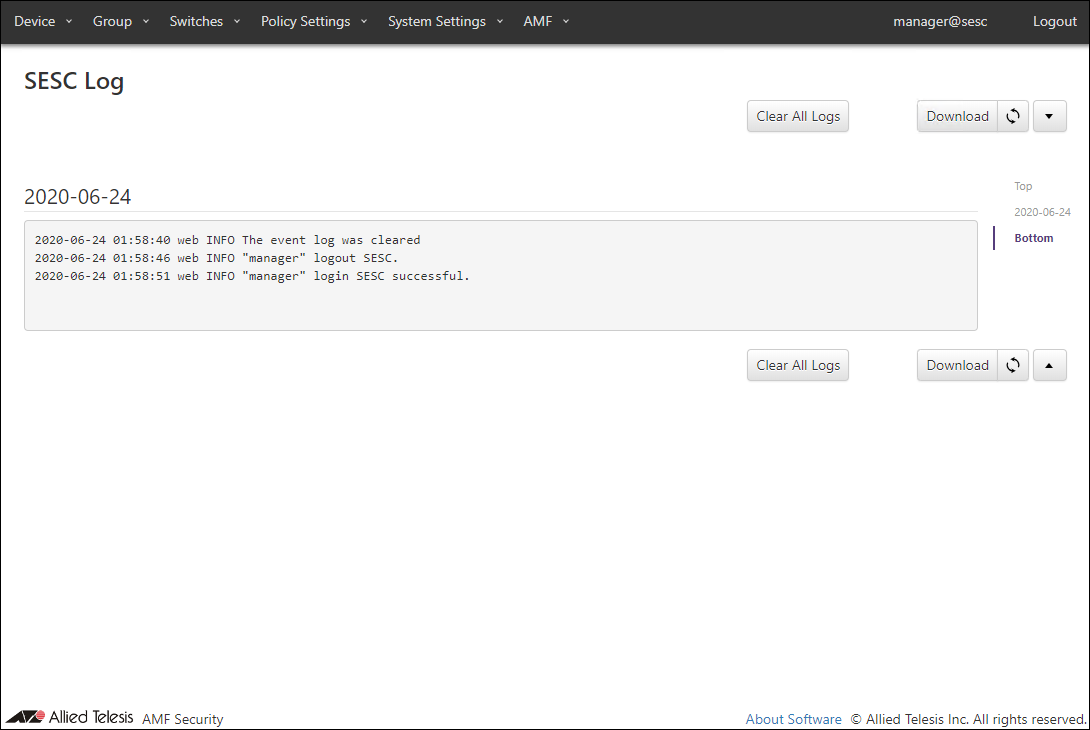

SESC Log

This page shows log messages generated by AMF Security service. The latest 1000 messages are displayed in this page.
You can view messages for a specific date by selecting a date at the right side of the page.

Table 63: Buttons

Item Name	Description
Clear All Logs	Clear all log messages.
Download	Download the latest log messages.
Refresh	Refresh SESC Log page.

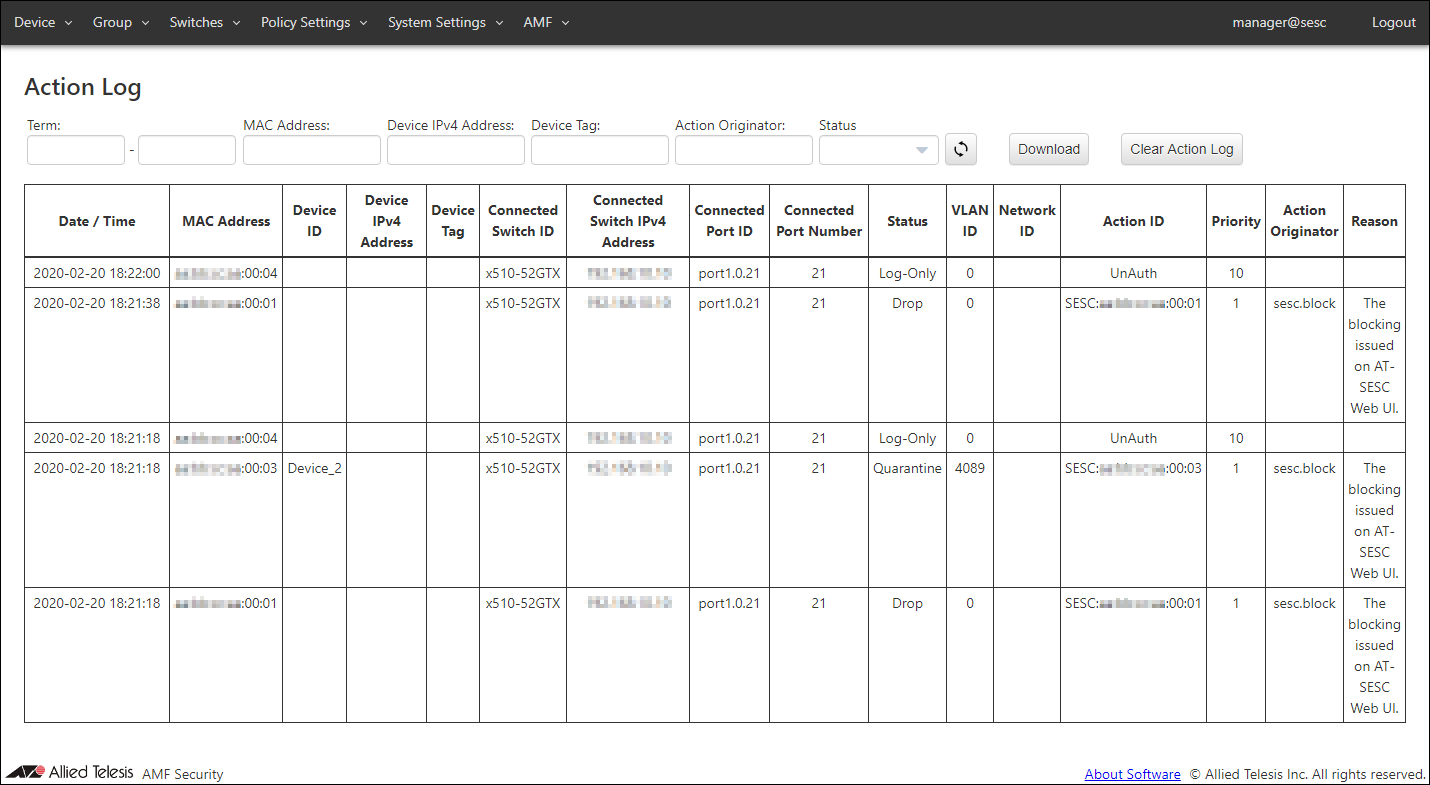

Action Log

This page shows AMF Security services' log messages related to actions.
It is possible to filter messages by each field's content.

Note

Depending on the specifications of the Web browser, it may not be possible to display all action logs on this page. In that case, download and check the action log.

Table 64: Displayed columns

Item Name	Description
Date / Time	Date / Time the action was applied to a device.
MAC Address	MAC address of the device.
Device ID	Device ID
Device IPv4 Address	IPv4 address of the device.
Device Tag	Device Tag
Connected Switch ID	ID of the switch to which the device is connected.
Connected Switch IPv4 Address	IPv4 address of the connected switch
Connected Port ID	ID of the port to which the device is connected.
Connected Port Number	Port number of the port to which the device is connected.
Status	Type of action applied to the device.
VLAN ID	VLAN ID to which the device belongs
Network ID	Network ID to which the device belongs
Action ID	ID of the action applied to the device
Priority	Priority of the action applied to the device
Action Originator	Originator of the action applied to the device
Reason	Reason of the action applied to the device.

Table 65: Buttons

Item Name	Description
Refresh	Refresh the Action Log page.
Download	Download the latest log messages.
Clear Action Log	Deletes action logs.

Table 66: Target columns for search, filter and sort operations

Item Name	Search	Filter	Sort
Duration	×	−	−
MAC Address	×	−	−
Device IPv4 Address	×	−	−
Device Tag	×	−	−
Action Originator	×	−	−
Status	−	×	−

---

(C) 2021 Allied Telesis, Inc. All rights reserved.

C613-04095-00 Rev A

25 Mar 2021 14:11
