User Guide: AMF Security Controller version 2.1.0

AMF

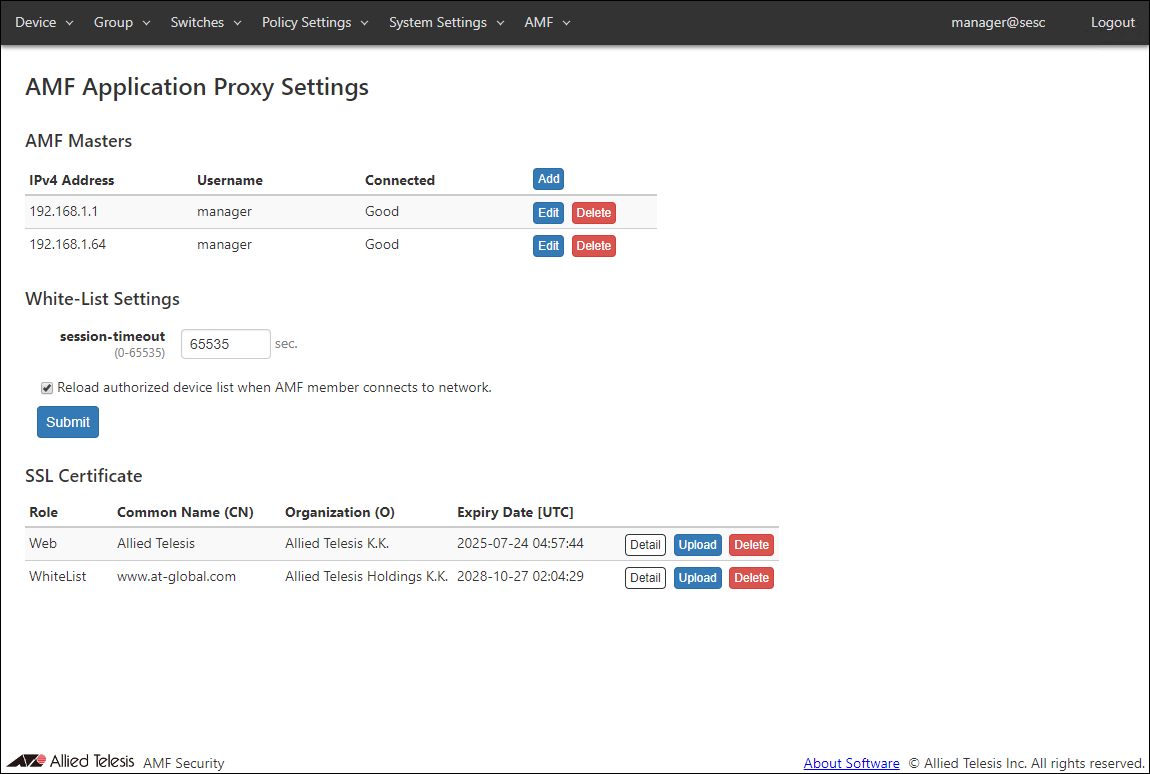

AMF Application Proxy Settings

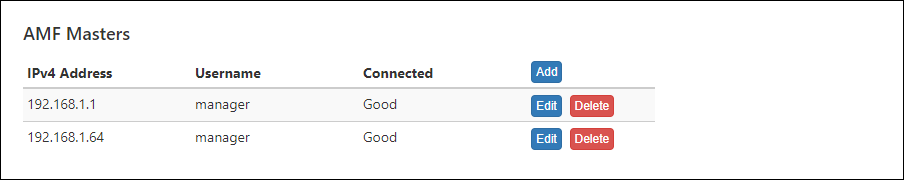

AMF Masters

Register the AMF Master in AMF Security. It also shows a list of registered AMF Masters.
Note
With the following settings, the connection with connected OpenFlow Switch or AMF Master is temporarily disconnected.
・AMF Master
・White-List Settings
・Uploading or deleting the SSL Certificate of the Web server


Table 1: Displayed columns
Item Name Description
IPv4 Address IPv4 address of AMF Master using AMF Application Proxy.
Username Username of a level 15 (privileged) account on the AMF Master.
Connected Displays the connection status with the AMF Master, Good, Error, Checking, or Disconnected.
Disconnected is displayed when the base license is not registered.

Table 2: Buttons
Item Name Description
Add Open Edit AMF Master dialog to register a new AMF Master.
Edit Open the Edit AMF Master dialog to update AMF Master information.
Delete Delete information of the selected AMF Master.

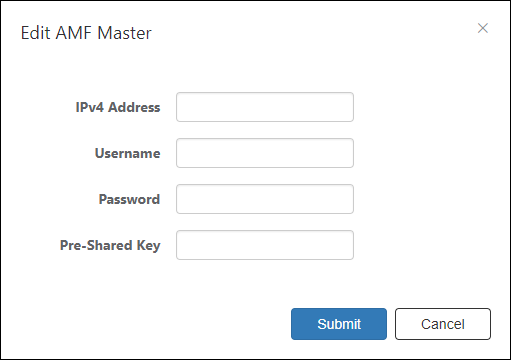

Edit AMF Master

This dialog lets you add or edit information of AMF Master.


Table 3: Sample Configuration Data
Item Name Description
IPv4 Address Enter an IPv4 address of AMF Master using AMF Application Proxy.
Then enter the username and password below.
Username Enter a username of a level 15 (privileged) account on the AMF Master.
Password Enter a password for the above username.
Pre-Shared Key Enter a pre-shared key used between the AMF Master and the Whitelist Server (AMF Security).
Note
The same privilege level 15 (privilege level) account must be set up for all AMF Members.

Table 4: Buttons
Item Name Description
Bottom of the dialog
Submit Register a new AMF Master or update information of an existing AMF Master.
Cancel Cancel the operation for registering or updating AMF Master information.
Note
When you finish this configuration, the AMF Master (proxy node) is contacted periodically (every 30 seconds) in order to acquire edge node information.

It is recommended that the AMF Master account (Username and Password) set for AMF Security be different from the user account used for AMF Member console connection. Create a user account with authority level 15 in advance by AMF Master and AMF Member.
When sharing the user account used for the console connection of AMF Master and AMF Member with the account set in AMF Security, set the lockout time for login failure of AMF Master and AMF Member to less than 5 minutes (use "aaa local authentication attempts lockout-time" command). Please note that the user is not able to log in under the following conditions and operations. - Lockout time for AMF Master and AMF Members when login fails is set to 5 minutes or more - Share the AMF Master and AMF Member CLI connection account with the account set in AMF Security. If the above two conditions are met and the account is locked out due to consecutive failures to log in to the AMF Master and AMF Members, or if the AMF Master account setting is incorrect in AMF Security, The node information of the AMF network cannot be obtained from AMF Security, and the lockout timer is continuously updated by polling from AMF Security, so that the user cannot log in.

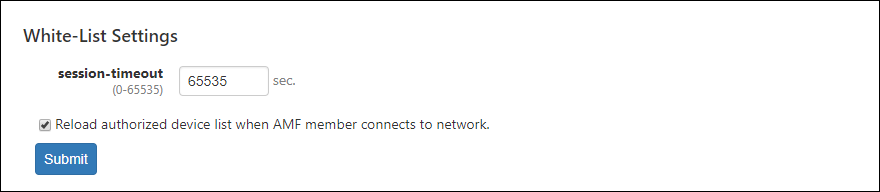

White-List Settings


Table 5: Sample Configuration Data
Item Name Description
session-timeout Specify a timer value (in seconds) to be configured on the switch when a device is successfully authenticated.
When the timer expires, the device is reset to unauthenticated state.
Valid range is 0 to 65535. Default is 65535. When set to zero, nodes are always in authenticated state because no timer is configured on switches.

This value is used when a security policy for a device does not have Schedule. This value may be preceded by a Schedule's End Date / Time.
This value is used as it is when the interval between the successful authentication and a scheduled End Date / Time is less than 65535 seconds. If the interval between the successful authentication and a scheduled End Date / Time is larger than or equals to 65535 seconds, actual timeout is set to 65535 seconds.
Reload authorized device list when AMF member connects to network. The node information authenticated by the AMF Application Proxy displayed on the Device > Active Device List page is reloaded when AMF Security is restarted.

To use this feature, your Proxy Node and Edge Nodes must have AlliedWare Plus firmware version 5.4.9-1.x or later installed. Also, enable the "service http" command on both the Proxy Node and the Edge Nodes.

Table 6: Buttons
Item Name Description
Submit Save the settings.

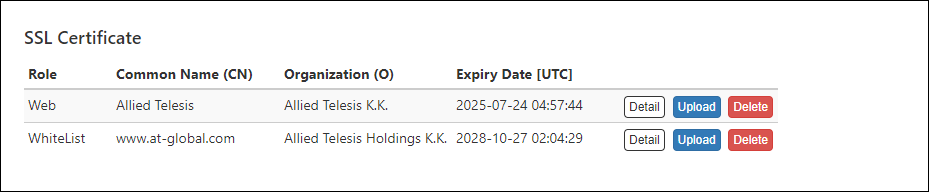

SSL Certificate

Register the SSL server certificate of the Web server (AMF Security) and the SSL server certificate of the whitelist authentication server installed in AMF Security.
If you want external applications to interact with AMF Security via HTTPS, you may have to install an SSL server certificate issued by a trusted certificate authority (CA).
If you want to encrypt control session between AMF Master and Whitelist Server (AMF Security), upload an SSL server certificate issued by a trusted certificate authority (CA).

"SSL Certificate" section shows a summary of the installed SSL server certificate.

Use the method best suited for your needs to get the certificate.

Table 8: Displayed columns
Item Name Description
Role Displays Web (Web server) or WhiteList (Authentication server).
Common Name(CN) Displays the common name of the web server (AMF Security) or authentication server (AMF Security).
Organization(O) Displays the name of the organization to which the Web server (AMF Security) or authentication server (AMF Security) belongs.
Expiration Date [UTC] Expiration date of the certificate.

Table 9: Buttons
Item Name Description
Detail The detailed information of the registered SSL server certificate is displayed.
Upload Open the Upload SSL Certificate dialog to register the SSL Certificate with AMF Security.
Delete Delete the installed SSL server certificate and restore the default certificate which is self-signed by AMF Security.
Note
After setting the AMF master, AMF Security accepts both unencrypted and encrypted sessions. You cannot disable one of them.

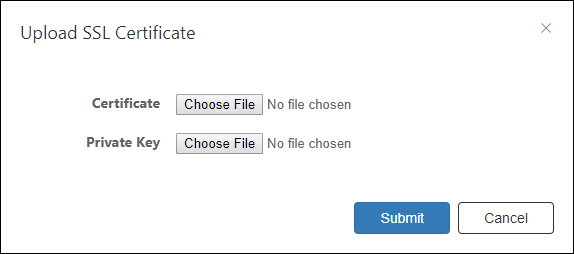

Upload SSL Certificate

This dialog lets you upload your own SSL Certificate for the White-list Authentication Server.


Table 10: Configurable fields
Item Name Description
Certificate Click the "Choose File" button and select the SSL Certificate to upload.
Private Key Click the "Choose File" button and select the SSL private key to upload.

Table 11: Buttons
Item Name Description
Submit Import the specified private key and certificate.
Cancel Cancel the operation for importing SSL Certificate.

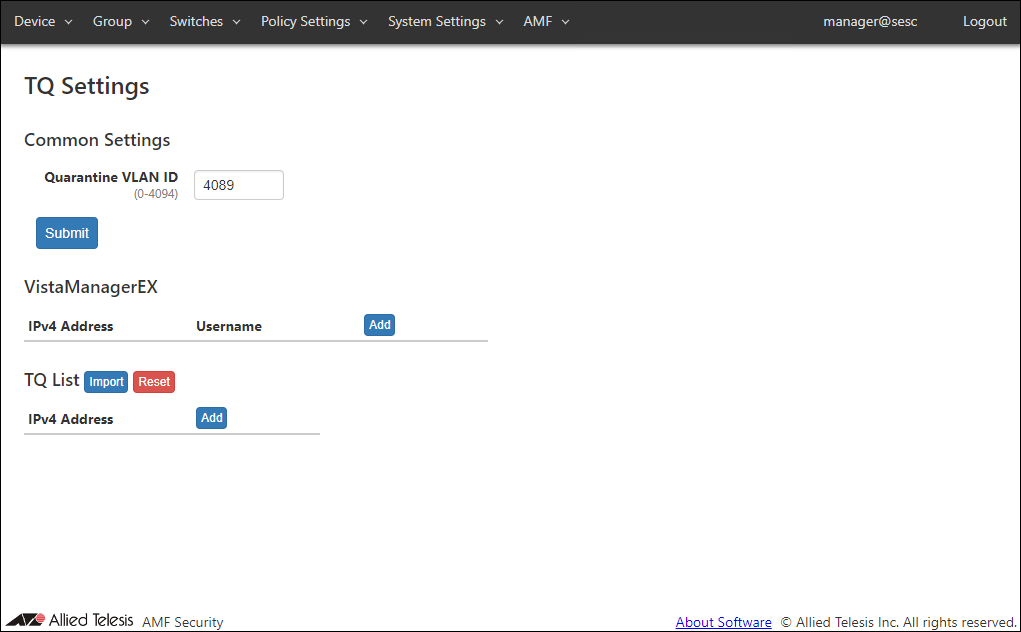

TQ Settings (not supported)

Note
Do not register this page as it is not supported.
