User Guide: AMF Security Controller version 2.1.0

Controlling Devices with AMF Application Proxy




Configuring AMF Application Proxy

In this section, this is an example of setting the AMF Application Proxy.

For each device connected to the AMF Member, AMF Security performs authentication and assigns an appropriate VLAN.
If AMF Security is configured to work with external applications, AMF Security also performs the action defined on the System Settings > Trap Monitor Settings page when it's notified of a suspected node by the application.

Note
To use this function, the feature license is required on the AMF master side. AMF Cloud and SwitchBlade come with the feature license as standard, and other AMF Master devices require an optional AMF Application Proxy license. Please check our website for details.

◼ Configuration

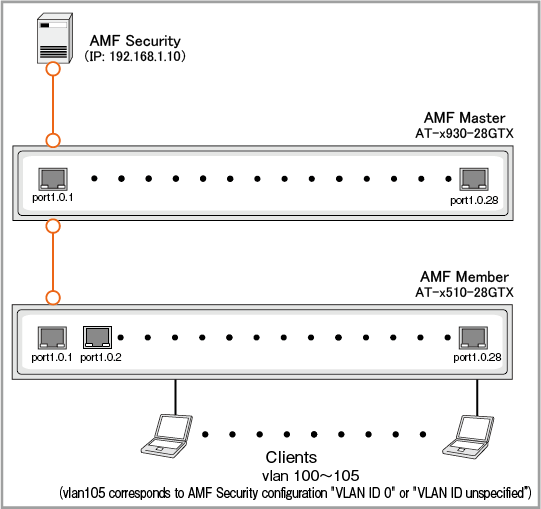

As an example, configure the following network:

◼ Configuring AMF Security

Table 1: Sample Configuration Data
Item Name Value
IPv4 address 192.168.1.10
AMF Master IP Address 192.168.1.1
AMF Master Username manager
AMF Master Password friend
Pre-shared key (between AMF Security and AMF Master) password

◼ Device Authentication Data to register on AMF Security

Table 2: Sample Configuration Data
Item Name Value
Device1
Device ID Device1
MAC Address 00:00:00:00:00:01
VLAN to assign VLAN100
Device2
Device ID Device2
MAC Address 00:00:00:00:00:02
VLAN to assign VLAN101
Device3
Device ID Device3
MAC Address 00:00:00:00:00:03
VLAN to assign None

◼ AMF Master Configuration

Table 3: Sample Configuration Data
Item Name Value
Username manager
Password friend
Hostname AMF-Master
AMF Network Name AMF001
IP Address 192.168.1.1
AMF Security IP Address 192.168.1.10
Pre-shared key (between AMF Security and AMF Master) password

◼ AMF Member Configuration

Table 4: Sample Configuration Data
Item Name Value
Hostname AMF-Member
AMF Network Name AMF001
AMF Actions Drop Packets
Note
In this setting example, the account (Username and Password) uses the default “manager and friend”. However, it is recommended that you create a user account with a privilege level of 15 on AMF Master and AMF Member and separate it from the user account used for console connection.


Configuring AMF Master

The case of using AT-x930-28GTX is explained as an example.
Refer to the AlliedWare Plus Product's command reference manual for the commands described below.
  1. Configure the hostname.
      awplus(config)# hostname AMF-Master

  2. Configure the AMF network name.
      AMF-Master(config)# atmf network-name AMF001

  3. Enable AMF Master functionality.
      AMF-Master(config)# atmf master

  4. Enable GUI support function for AMF Security.
      AMF-Master(config)# atmf topology-gui enable

  5. Enable AMF Application Proxy.
      AMF-Master(config)# service atmf-application-proxy

  6. Configure the AMF Application Proxy Whitelist server (AMF Security)'s IP address and a pre-shared key.
      AMF-Master(config)# application-proxy whitelist server 192.168.1.10 key password

  7. Create VLANs for packet forwarding.
      AMF-Master(config)# vlan database
      AMF-Master(config-vlan)# vlan 100-105

  8. Assign the VLANs to a port and configure it as an AMF link to the AMF Member.
      AMF-Master(config)# interface port1.0.1
      AMF-Master(config-if)# switchport mode trunk
      AMF-Master(config-if)# switchport trunk allowed vlan add 100-105
      AMF-Master(config-if)# switchport atmf-link

  9. Assign an IP address to vlan1 for communicating with AMF Security.
      AMF-Master(config)# interface vlan1
      AMF-Master(config-if)#ip address 192.168.1.1/24
AMF Master configuration is done.


Configuring AMF Members

The case of using AT-x510-28GTX is explained as an example.
Refer to the AlliedWare Plus Product's command reference manual for the commands described below.
  1. Configure the hostname.
      awplus(config)# hostname AMF-Member

  2. Configure the AMF network name.
      AMF-Member(config)# atmf network-name AMF001

  3. Enable AMF Application Proxy.
      AMF-Member(config)# service atmf-application-proxy

  4. Create VLANs for packet forwarding.
      AMF-Member(config)# vlan database
      AMF-Member(config-vlan)# vlan 100-105

  5. Assign the VLANs to a port and configure it as an AMF link to the AMF Master.
      AMF-Member(config)# interface port1.0.1
      AMF-Member(config-if)# switchport mode trunk
      AMF-Member(config-if)# switchport trunk allowed vlan add 100-105
      AMF-Member(config-if)# switchport atmf-link

  6. Assign a VLAN to device ports.
      AMF-Member(config)interface port1.0.2-1.0.28
      AMF-Member(config-if)# switchport access vlan 105
    This VLAN is used by the devices which are not assigned a VLAN by AMF Security.

  7. Enable AMF Application Proxy Whitelist on device ports.
      AMF-Member(config-if)# application-proxy whitelist enable
    Note
    For the target port, the default setting of the authentication suppression period (quietPeriod) after authentication failure is 60 seconds. To shorten the authentication suppression period, use the "auth timeout quiet-period" command.

  8. Enable AMF Application Proxy Whitelist's session timeout on the device ports.
    With the session timeout enabled, authentication state for a device is deleted when the time configured on the AMF > AMF Application Proxy Settings page has passed after the device was successfully authenticated.
    When the session timeout is set to 0, authentication state of a device is not deleted due to the time passed since a successful authentication.
      AMF-Member(config-if)# auth session-timeout
    Note
    Make sure to configure the session timeout when you are going to use schedule-based authentication.

  9. Set the authentication mode for the device ports to "Multi-Supplicant".
      AMF-Member(config-if)# auth host-mode multi-supplicant
    When the device ports are in the default "Single-Host" mode, only the first authenticated device is allowed.

  10. Enable dynamic vlan on the device ports.
      AMF-Member(config-if)# auth dynamic-vlan-creation type multi
    Note
    If the device may move to another port, disable ingress filtering on all ports involved in the device movement. (Specify "disable" in the "ingress-filter" parameter of the "switchport mode" command.)
    If ingress filtering is enabled, device information remains on the port before the move, and you are not able to authenticate on the destination port.

    When dynamic vlan is not enabled, a vlan configured on the device ports is used for authenticated devices even if AMF Security assigned a specific vlan to each device.

  11. Set AMF Application Proxy's blocking action to 'Drop'.
      AMF-Member(config-if)# application-proxy threat-protection drop
AMF Member configuration is done.


Configuring AMF Security

  1. Registering AMF Master
    Register the AMF Master on the AMF > AMF Application Proxy Settings page.
    Click "Add" in "AMF Masters" section.

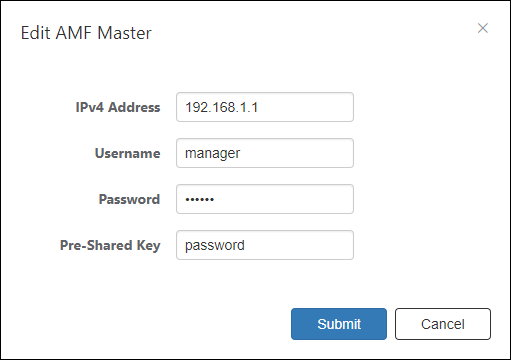

    Enter the AMF Master's IP address, username, password and pre-shared key, check all boxes and click "Submit".

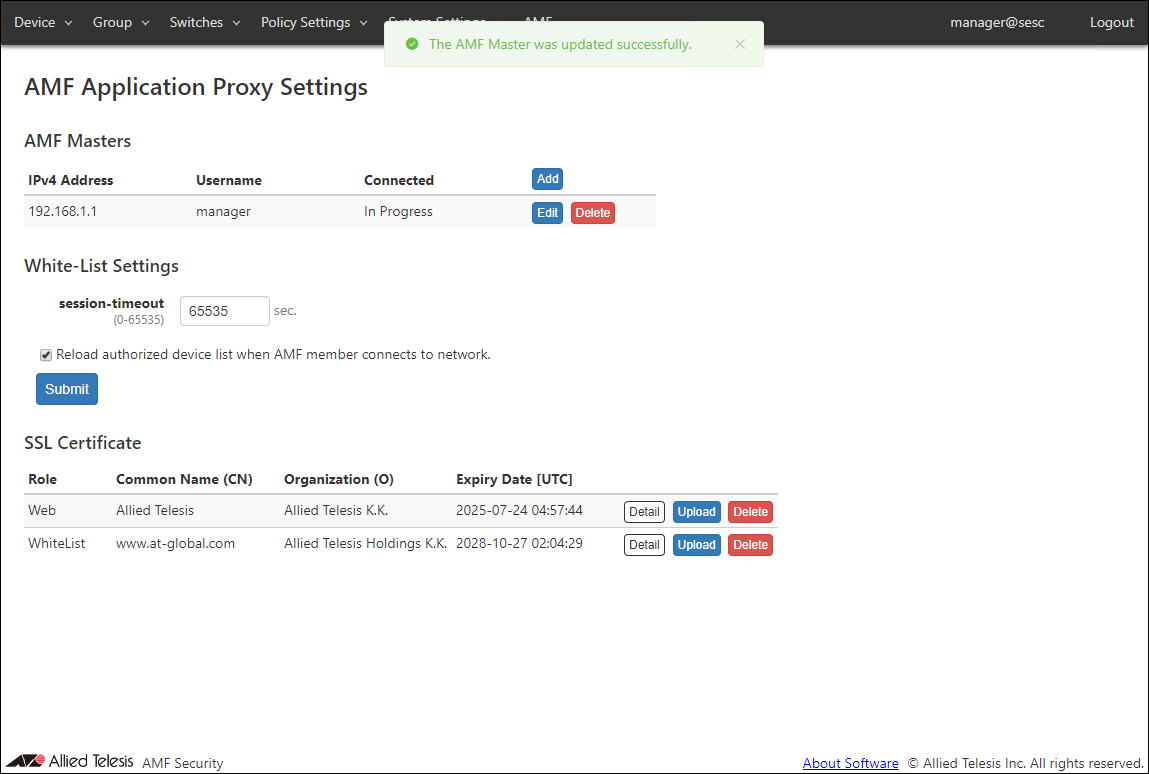

    You can view the registered AMF Master on the AMF > AMF Application Proxy Settings page.


  2. Registering Network
    Open Add Network page from the Policy Settings > Network List page to register a network to which devices is assigned.

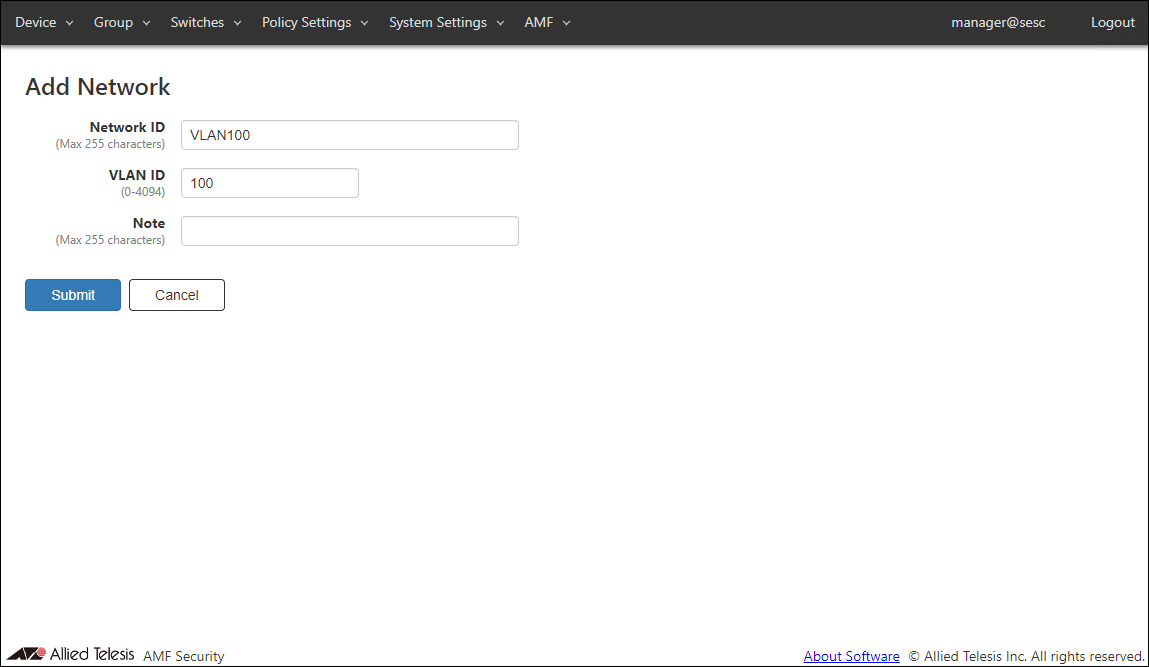

    Enter a Network ID and a VLAN ID, then click "Submit".

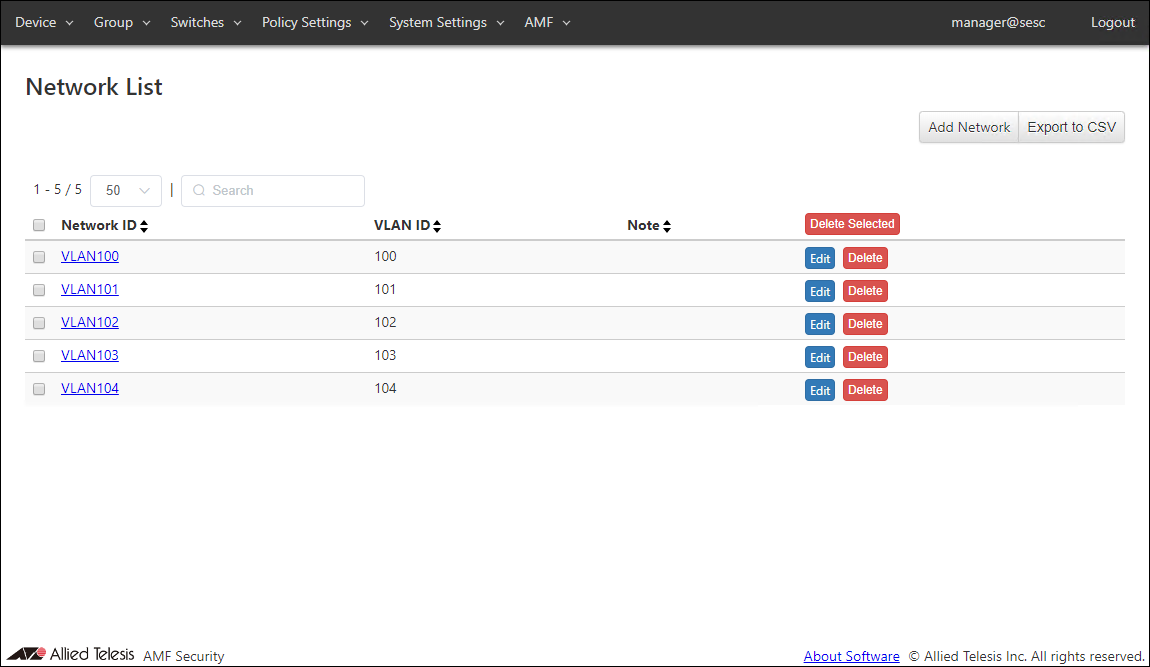

    You can view the added network on the Policy Settings > Network List page. Repeat this process until you add all required networks.


  3. Registering Device
    Open Add Device page from the Device > Device List page to register devices.

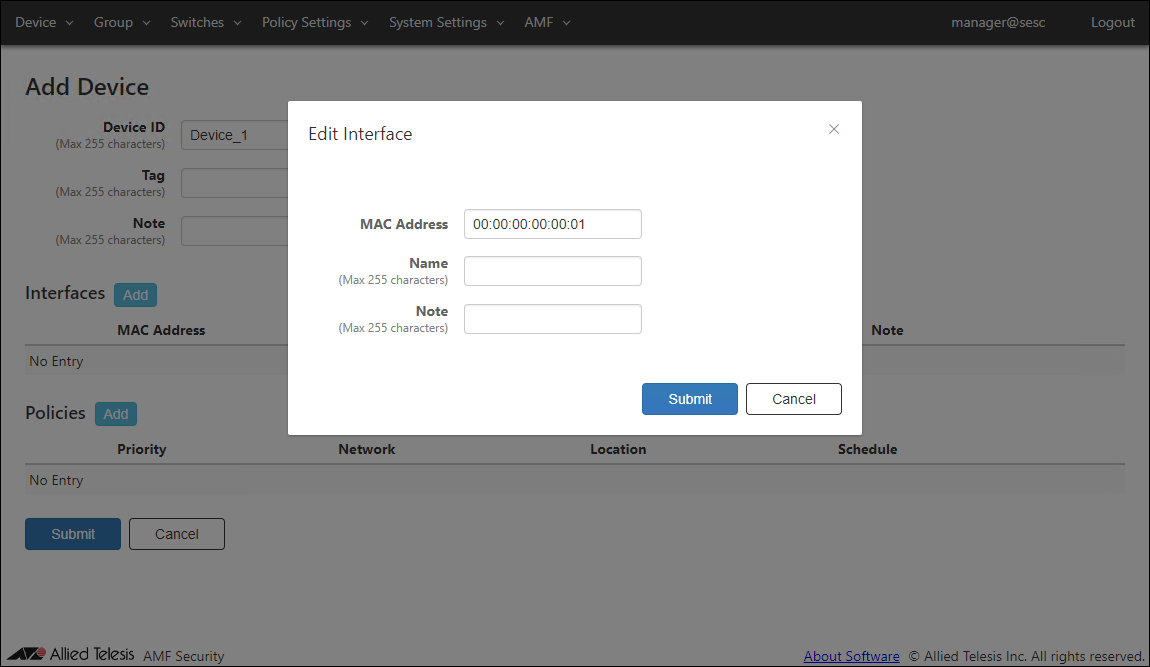

    Enter a device ID, then click the "Add Interface" button to open the "Edit Interface" dialog.
    Enter the device's MAC address and click "Submit".

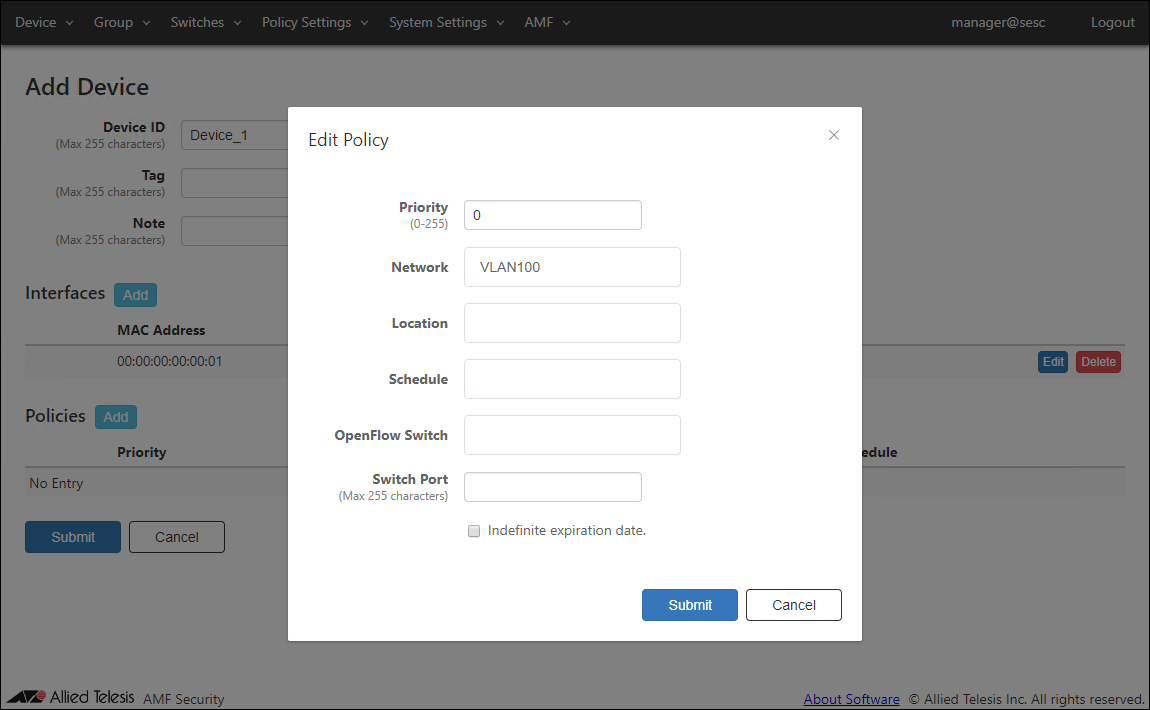

    Click "Add" in "Policies" section to specify a network to assign to the device.
    Enter a priority, select a network to assign and click "Submit".

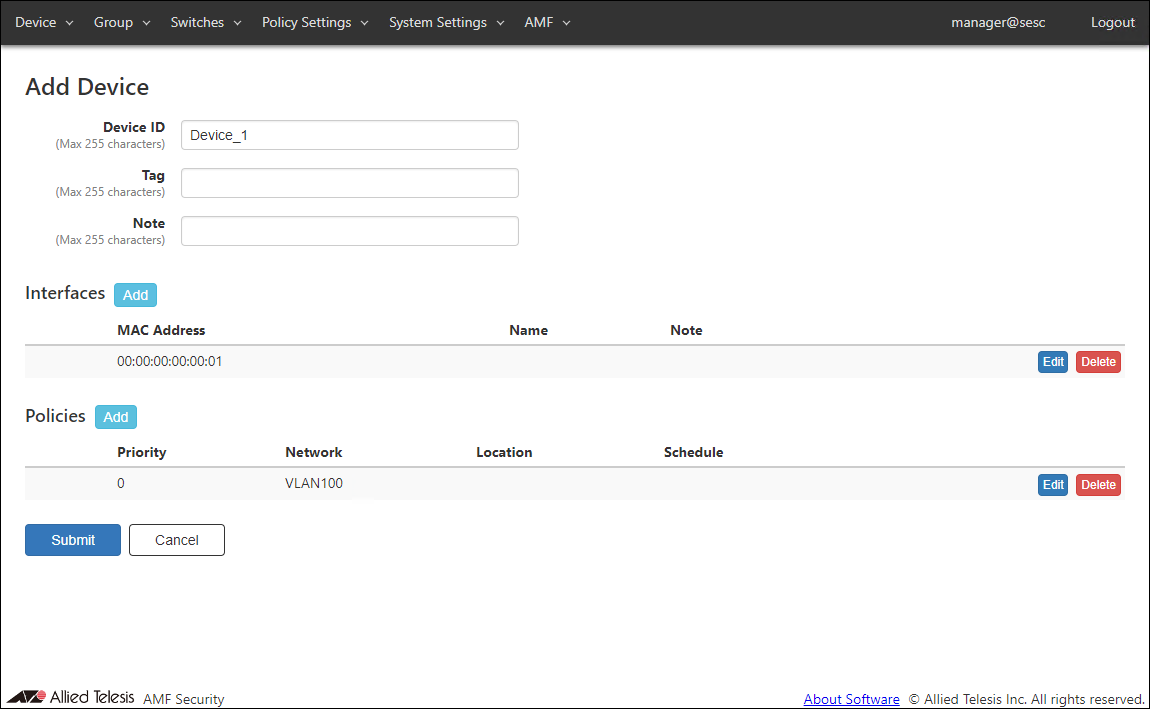

    Once the interface and the policy are added, click "Submit" to register the device.

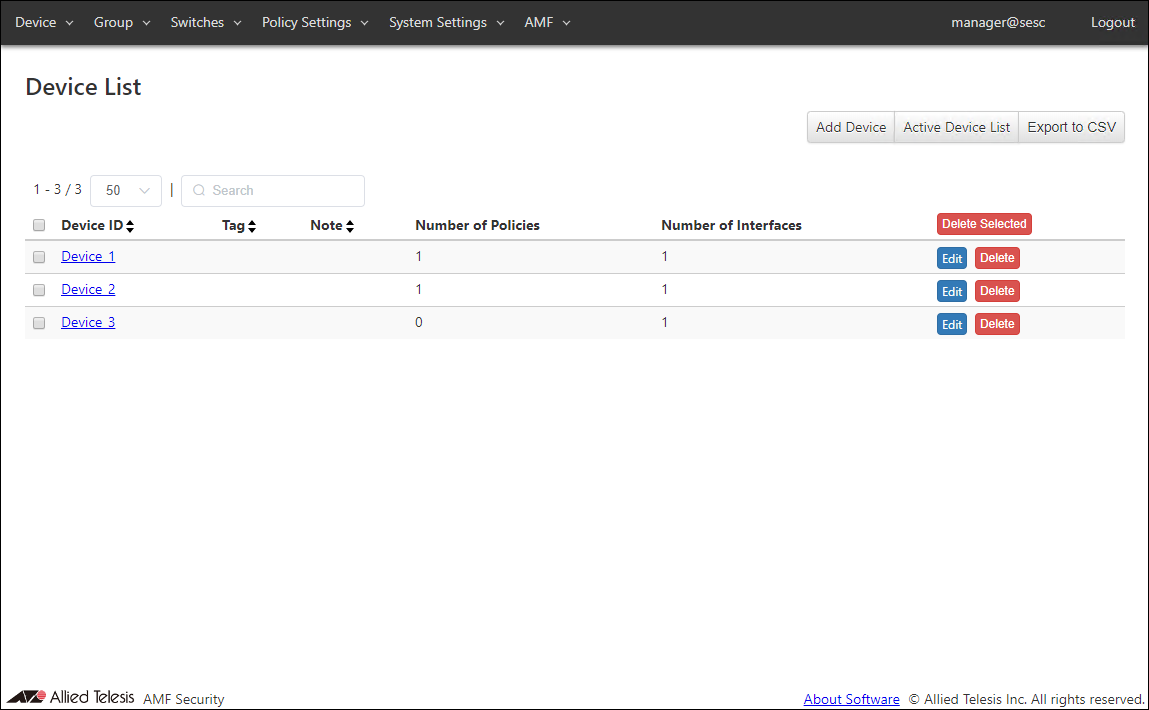

    You can view the added device on the Device > Device List page. Repeat this process until you add all devices.


  4. Registering AMF Members
    Connect the AMF Security, the AMF Master and the AMF Member to the network.

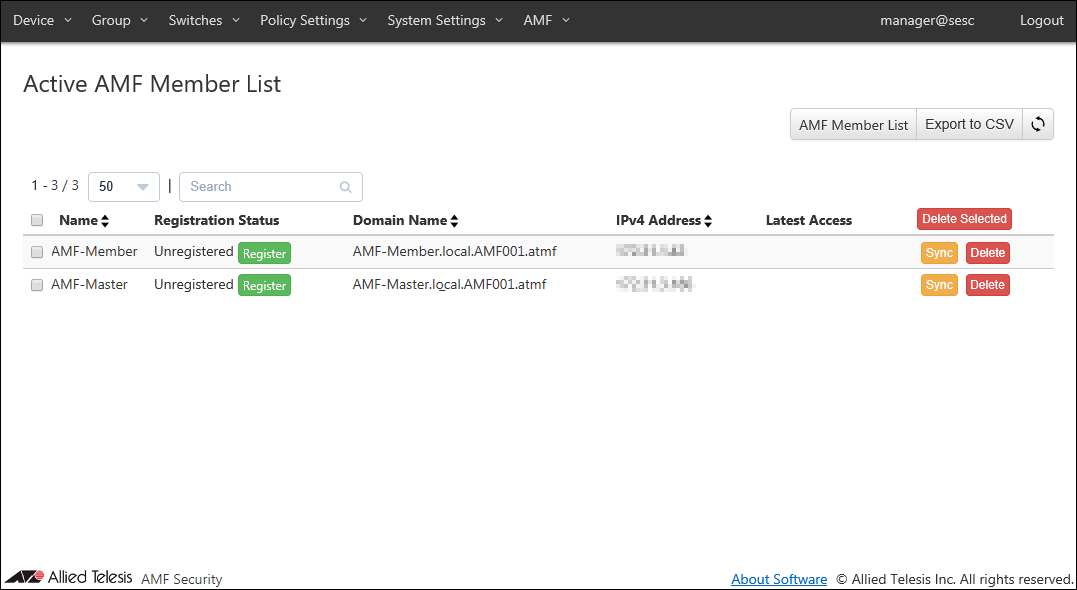

    Once the connection between AMF Security and the AMF Master is established, connected AMF nodes are displayed on the Switches > Active AMF Member List page.

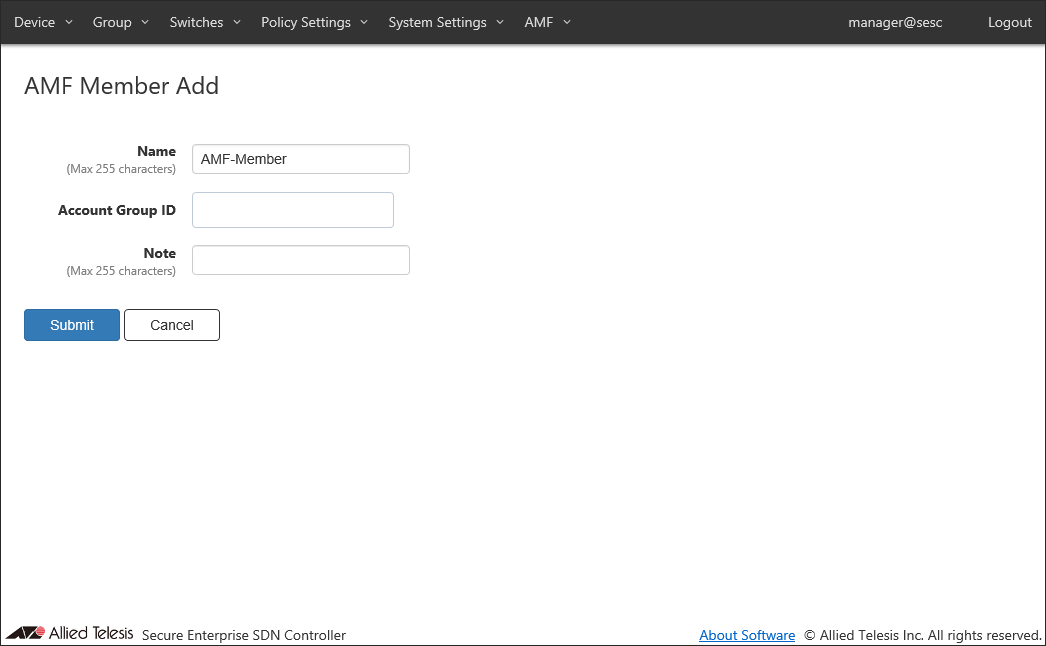

    Click "Register" in "Register Status" column to open AMF Member Add page.
    If the default name looks good, just click "Submit".
    Note
    Name must be the same as the host name of AMF Member. This is because AMF Member is managed by the host name of AMF Member.

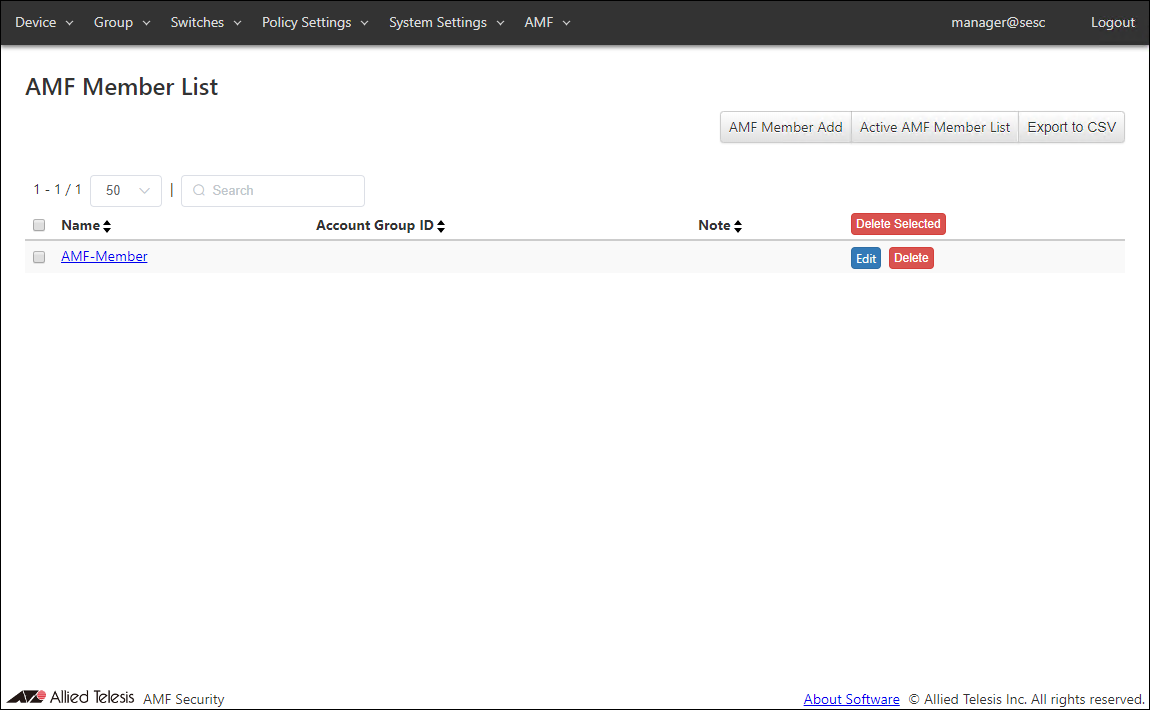

    You can view the added AMF Member on the Switches > AMF Member List page.

    Note
    If you are not using location-based authentication, you do not have to register AMF Members.
AMF Security configuration is done.

AMF Security authenticates devices connected to the AMF Member using the registered authentication data.

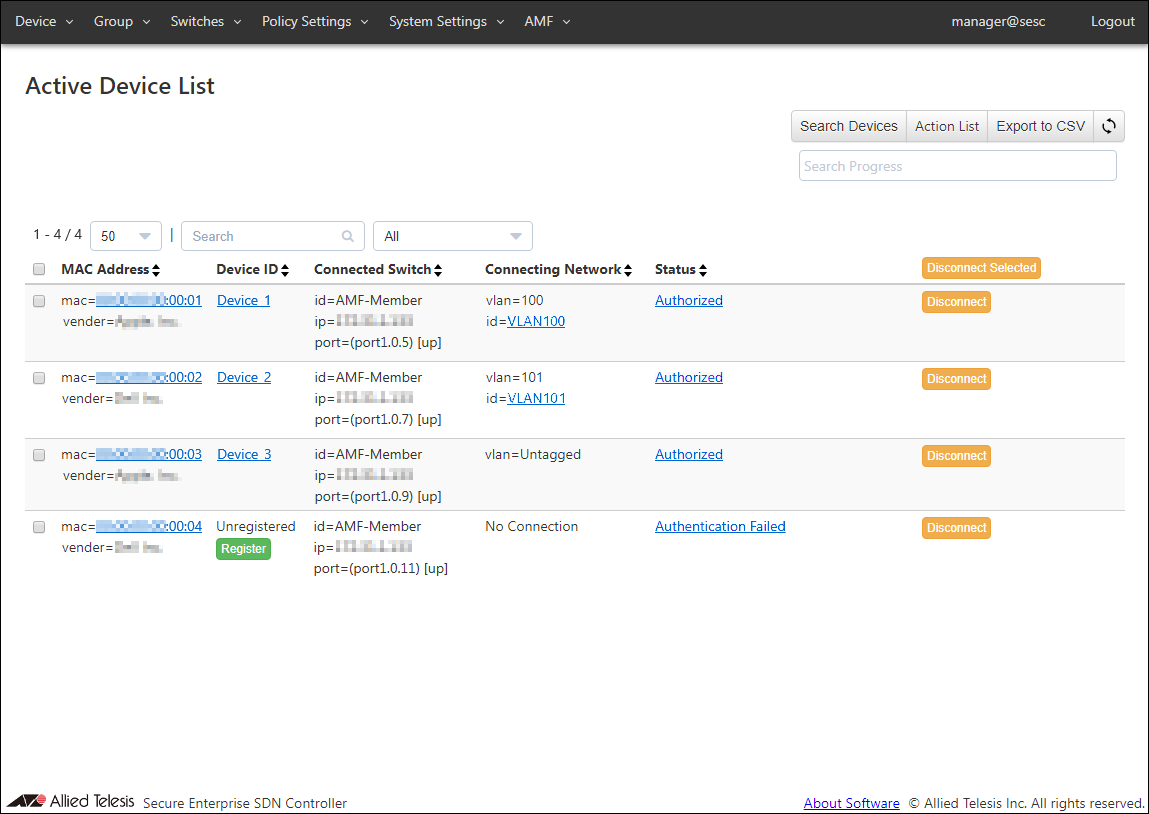

You can view the authentication results on the Device > Active Device List page.



AMF Master Configuration (AT-x930-28GTX)



AMF Member Configuration (AT-x510-28GTX)
