Network

Screen Reference > Network Tree > Network

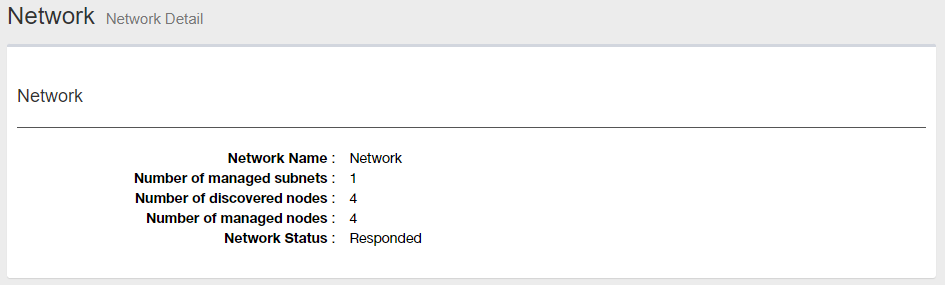

Network Details

You can open the Network Details page by clicking "Network" in the node attributes section on the Device Tree View page.
"Network Details" page shows node attributes.

Node Attributes

Table 1: Network Node Attributes
Item Name	Contents
Subnet Name	"Network"
Monitored Subnets	Shows the number of monitored subnets in the network.
Number of discovered nodes	Shows the number of devices in the network.
Number of managed nodes	Shows the number of detected devices which are monitored. Note The maximum number of devices SNMP Plug-in can monitor is 1000.
Status	Shows the status of the network.
