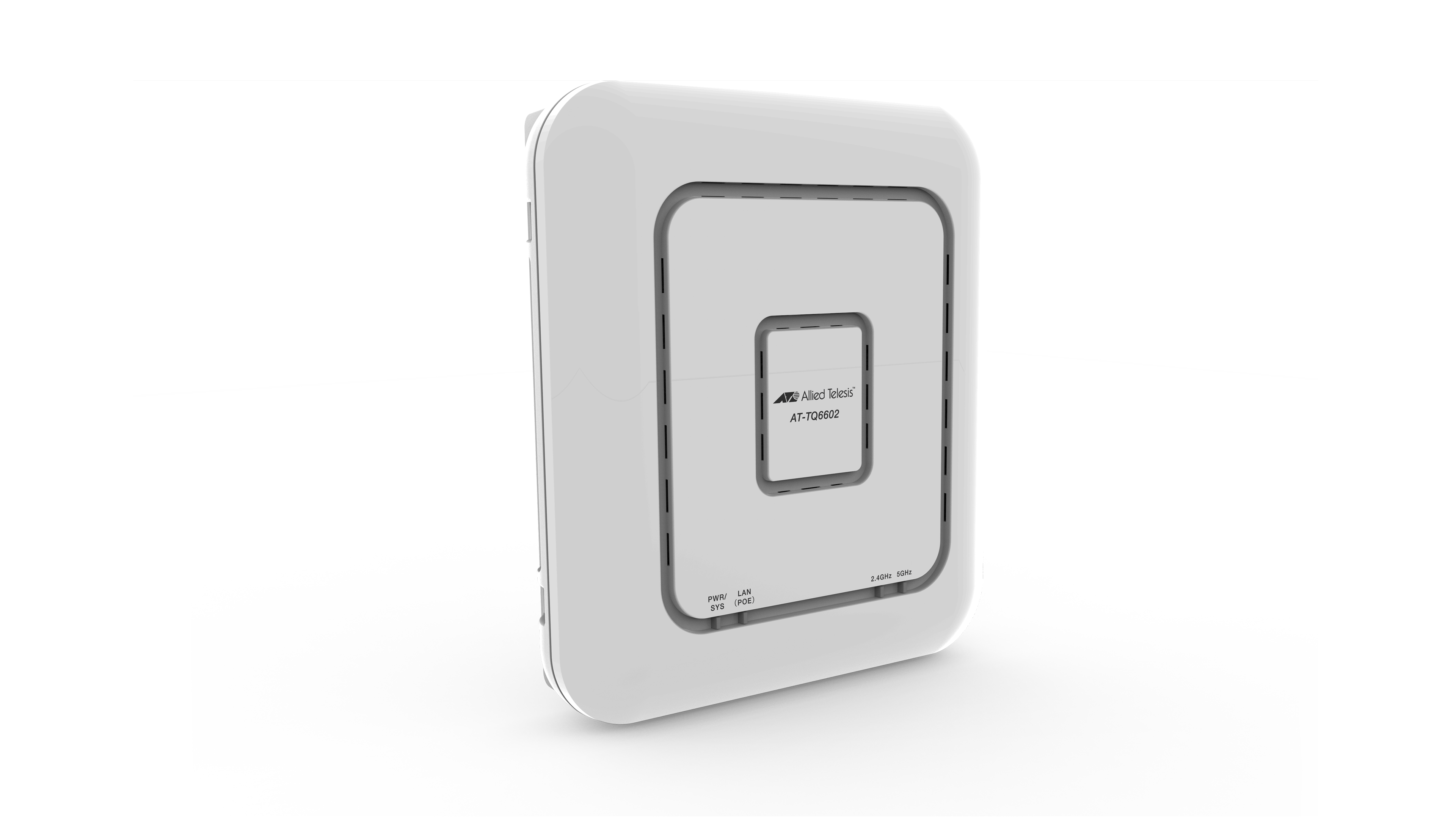

TQ6602
Very High Performance Hybrid Wi-Fi 6 (4x4) Wireless Access Point providing 3.55Gbps capacity
The Allied Telesis Enterprise-class TQ6602 Hybrid Wireless Access Point features Wi-Fi 6 technology with 4 spatial streams to deliver a raw capacity of 3.550 Gigabits. Multi-Gigabit uplink ports ensure maximum wireless network performance and eliminate bottlenecks.
Key Features
- 802.11ax (Wi-Fi 6) delivers four times the performance of the previous Wi-Fi standard, enabling immersive-experience applications and future capacity for connected IoT devices
- A multi-gigabit uplink port (1/2.5/5G) removes bottlenecks and supports high-speed wireless
- Bi-directional Multi-user MIMO technology simultaneously communicates with multiple clients at once, reducing contention and improving capacity and throughput
- Hybrid operation for simultaneous multi-channel and single-channel (Channel Blanket) operation, provides maximum performance and seamless roaming
- Autonomous Wave Control™ (AWC) automatically optimizes wireless coverage and connectivity for a superior user experience
- Plug-and-play network growth using wireless uplinks with AWC Smart Connect*
- Centralized management and monitoring of your Wi-Fi network with AWC in Vista Manager, or use the web-based GUI for easy standalone AP management
- Virtual APs with Multiple SSIDs for flexible deployment
- Captive Portal for easy user access management
- * This feature will be supported in a future firmware release
Specifications
Physical
| Product | Width x Depth x Height | Weight | 100M/1G/2.5G/5G (RJ-45) Copper Ports |
|---|---|---|---|
| TQ6602 | 205 x 225 x 51 mm (8.07 x 8.86 x 2.01 in) |
1.6 kg (3.52 lb) | 1 (PoE-in port) |
Power Characteristics
| Product | Power Supply | Average Power Consumption | Maximum Power Consumption | Max Heat Dissipation |
|---|---|---|---|---|
| TQ6602 | 100-240VAC | 16W | 20W | 70 BTU/h |
| PoE | 16W | 21W | 76 BTU/h |
Ordering Information
AT-TQ6602-xx
Enterprise-Class Wi-Fi 6 Wireless Access
Point with 2 radios and embedded antenna
(1) Please check the Compliance section on page 2 of the datasheet to see which countries are certified to use this access point.
(2) To order this access point for use in Japan, please see the Japanese datasheet.
AT-PWRADP-01
AC adapter
AT-6101GP-yy
Gigabit Ethernet PoE+ (802.3at) injector
AT-7101GHTm-yy
Multi-Gigabit Ethernet PoE++ (802.3bt) injector
AT-BRKT-CONV-AP1
Replacement bracket converter for the TQ6602 AP
Wireless Management Licenses
Wireless management of the TQ6602 is available from the Vista Manager EX network management platform, and from Vista Manager mini running on our SwitchBlade x908 GEN2, x950, x930, x550, x530 Series switches or AR4050S UTM firewall.
| Platform | License Name | Description | Max Supported APs |
|---|---|---|---|
| Vista Manager EX | AT-FL-VISTA-BASE-1/5YR | Vista Manager EX network monitoring and management software license | NA |
| Vista Manager EX (Windows) | AT-FL-VISTA-AWC10-1/5YR(3) | Vista Manager AWC plug-in license for managing up to 10 access points | 3000 |
| Vista Manager EX (Windows) | AT-FL-VISTA-CB10-1/5YR-2022(4), (7) | Vista Manager AWC-Channel Blanket and AWC-Smart Connect license for managing up to 10 access points(7) | 3000 |
| Vista Manager EX (Virtual (VRT)) | AT-FL-VISTA-AWC10-1/5YR(3) | Vista Manager AWC plug-in license for managing up to 10 access points | 500 |
| Vista Manager EX (Virtual (VRT)) | AT-FL-VISTA-CB10-1/5YR-2022(4), (7) | Vista Manager AWC-Channel Blanket and AWC-Smart Connect license for managing up to 10 access points(7) | 500 |
| Vista Manager EX (Network Appliance) | AT-FL-VISTA-AWC10-1/5YR(3) | Vista Manager AWC plug-in license for managing up to 10 access points | 500 |
| Vista Manager EX (Network Appliance) | AT-FL-VISTA-CB10-1/5YR-2022(4), (7) | Vista Manager AWC-Channel Blanket and AWC-Smart Connect license for managing up to 10 access points | 500 |
| SwitchBlade x908 GEN2 | AT-SW-AWC10-1/5YR(5) | Cumulative Autonomous Wave Controller (AWC) license for up to 10 access points | 305 |
| SwitchBlade x908 GEN2 | AT-SW-CB10-1/5YR-2022(6), (7) | Vista Manager AWC-Channel Blanket and AWC-Smart Connect license for managing up to 10 access points | 300 |
| x950 Series | AT-SW-AWC10-1/5YR(5) | Cumulative Autonomous Wave Controller (AWC) license for up to 10 access points | 185 |
| x950 Series | AT-SW-CB10-1/5YR-2022(6), (7) | Vista Manager AWC-Channel Blanket and AWC-Smart Connect license for managing up to 10 access points | 180 |
| x930 Series | AT-SW-AWC10-1/5YR(5) | Cumulative Autonomous Wave Controller (AWC) license for up to 10 access points | 125 |
| x930 Series | AT-SW-CB10-1/5YR-2022(6), (7) | Vista Manager AWC-Channel Blanket and AWC-Smart Connect license for managing up to 10 access points | 120 |
| x550 Series | AT-SW-AWC10-1/5YR(5) | Cumulative Autonomous Wave Controller (AWC) license for up to 10 access points | 45 |
| x550 Series | AT-SW-CB10-1/5YR-2022(6), (7) | Vista Manager AWC-Channel Blanket and AWC-Smart Connect license for managing up to 10 access points | 40 |
| x530 Series | AT-SW-AWC10-1/5YR(5) | Cumulative Autonomous Wave Controller (AWC) license for up to 10 access points | 45 |
| x530 Series | AT-SW-CB10-1/5YR-2022(6), (7) | Vista Manager AWC-Channel Blanket and AWC-Smart Connect license for managing up to 10 access points | 40 |
| AR4050S UTM Firewall | AT-RT-AWC5-1/5YR(5) | Cumulative Autonomous Wave Controller (AWC) license for up to 5 access points | 25 |
| AR4050S UTM Firewall | AT-RT-CB5-1/5YR-2022(6), (7) | AWC Channel Blanket and AWC Smart Connect license for up to 5 access points | 5 |
(3) The AWC plug-in requires an AWC license, and a Vista Manager EX base license to operate on Vista Manager EX
(4) Channel Blanket and Smart Connect require an AWC-CB license, an AWC license, and a Vista Manager EX base licenses to operate on Vista Manager EX
(5) 5 APs can be managed for free. Purchase one license per 10 additional APs on switches, or one license per 5 additional APs on the AR4050S Firewall
(6) Channel Blanket and Smart Connect are not available as a free service. Both an AWC-CB license and an AWC license are required for Channel Blanket and Smart Connect to operate. Purchase one AWC-CB license per 10 APs on switches, or one license to manage 5 APs on the AR4050S Firewall. This feature is supported on TQ6602, TQ5403, and TQ5403e access points
(7) AWC-SC Supported in a future firmware release
