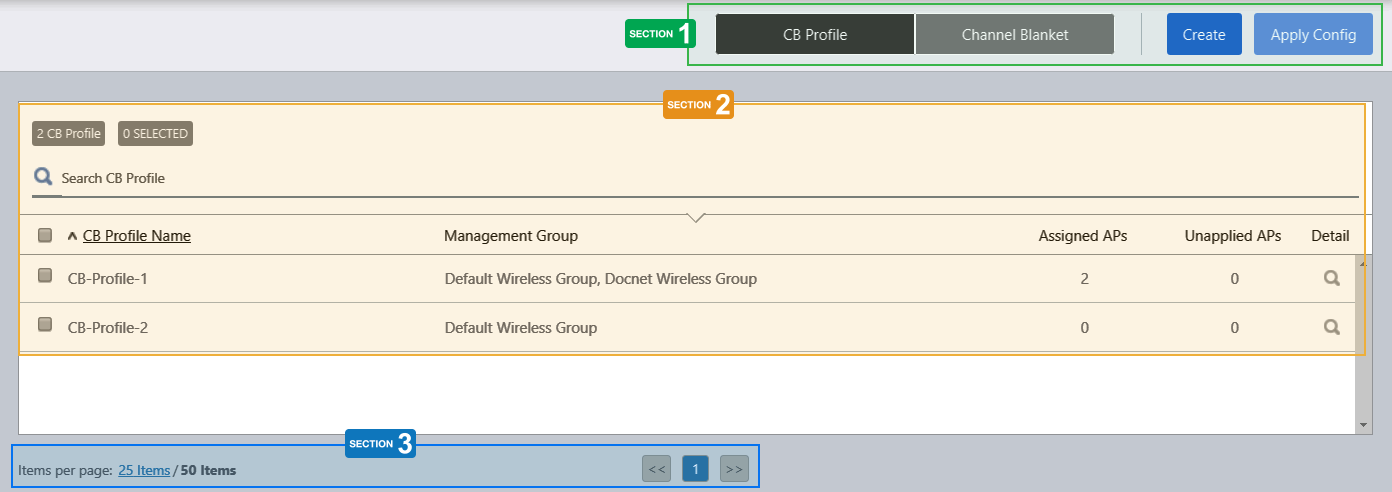

CB Profile

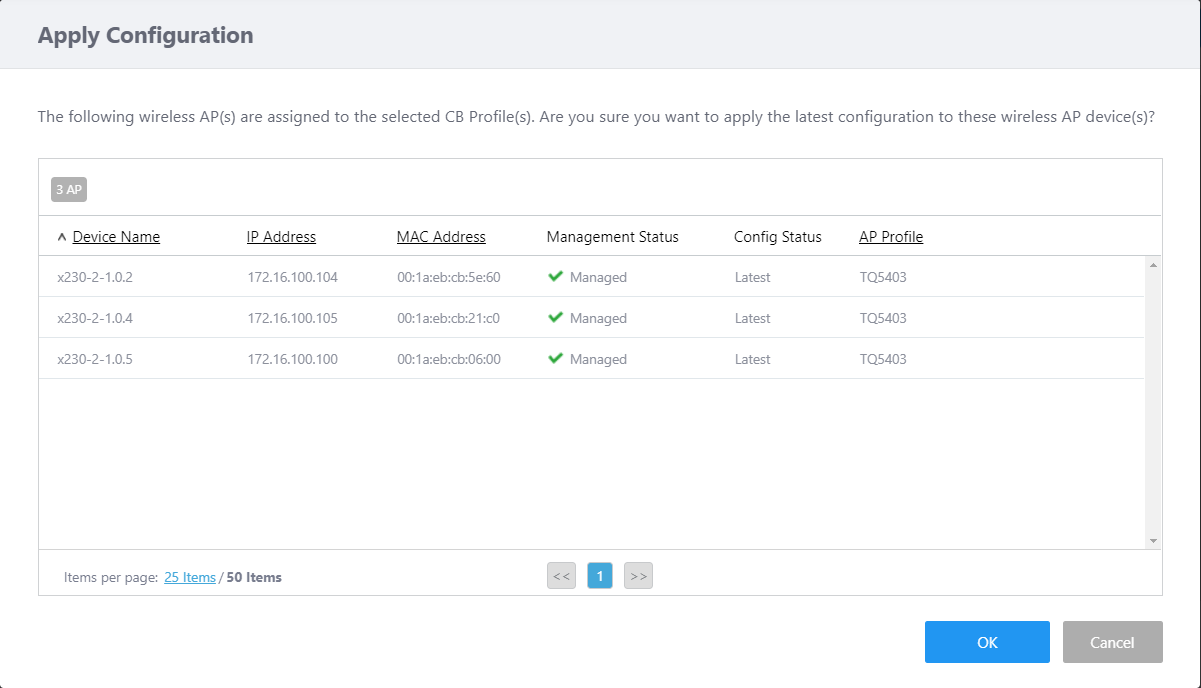

• X AP:
  Shows the number of APs to which the CB Profile is applied.


• Device Name:
  Shows the name of the AP. If the AP was added from the Guest Device list, the guest device name is displayed.


• IP Address:
  Shows the AP's IP address.
  If the Management Status is "Waiting", "Retrieving" is shown.


• MAC Address:
  Shows the device's MAC address.
  If the Management Status is "Waiting", "Retrieving" is shown.


• Management Status:
  Shows the Management Status of the AP.

  • Unmanaged:
    The AP is not managed because one of the IP address, MAC address or AP Profile is not configured.


  • Discovering:
    The AWC Plug-in is searching for the AP.


  • Applying:
    The AWC Plug-in is applying a configuration update to the AP.


  • Managed:
    The AP is being managed by the AWC Plug-in.


  • Waiting:
    The AP was provisioned by AMF configuration and has just been assigned an AP Profile.
    Or, the AP was provisioned to use DHCP to register IP/MAC addresses to the AWC Plug-in, and has just been assigned an AP Profile.


  • Failed:
    The AP is no longer managed by the AWC Plug-in.


  • Not Authenticated:
    The AP cannot be managed because the number of managed APs reached the maximum number allowed by the registered Wireless AP licenses.
    Alternatively, the AP cannot be managed because the AP belongs to a Channel Blanket or Smart Connect network, but the number of managed APs has reached the maximum number allowed by the registered Channel Blanket / Smart Connect licenses.



• Config Status:
  Shows the configuration status of the AP.

  • Not Configured:
    The AP is not fully configured.


  • Not Applied:
    The configuration has not been applied to the AP by the AWC Plug-in.


  • Latest:
    The latest configuration has been applied to the AP.


  • Pending:
    The AP has an out-of-date configuration and is pending a newer configuration.



• AP Profile / SC Profile:
  Shows the associated AP Profile.
  When using AWC-SC, if all APs belong to Management Groups with Smart Connect Profiles assigned, each row of this column shows the SC Profile name assigned to the Management Group, regardless of whether the AP supports AWC-SC or the feature is enabled on it.


• "OK" button:
  Applies the changes of the AP profile and SC profile to the AP.
  It also applies pending AP-specific configuration updates to APs.


• "Cancel" button:
  Cancels applying configuration changes to the AP.


Note

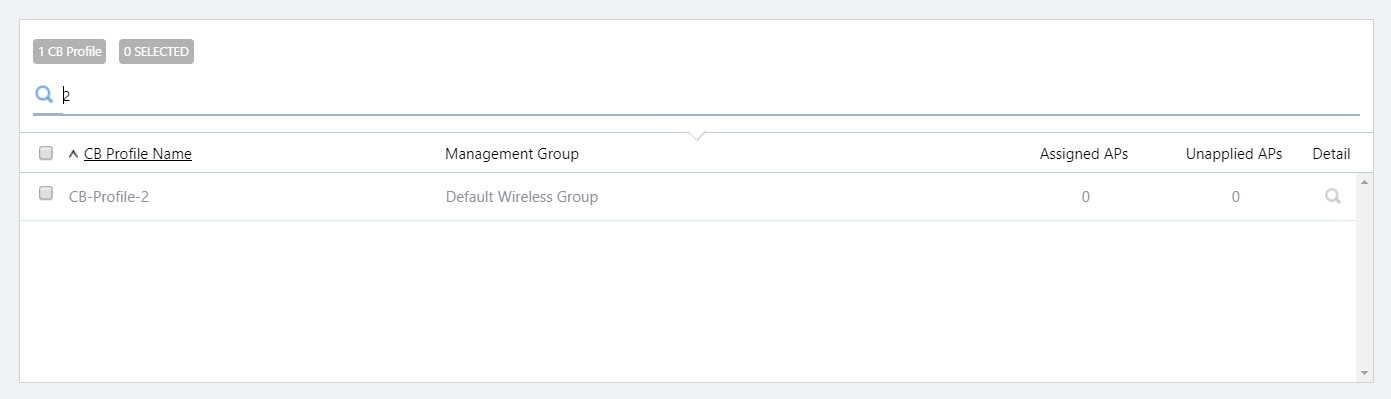

The search is case-sensitive.
