Device Search

Screen Reference > Device Search

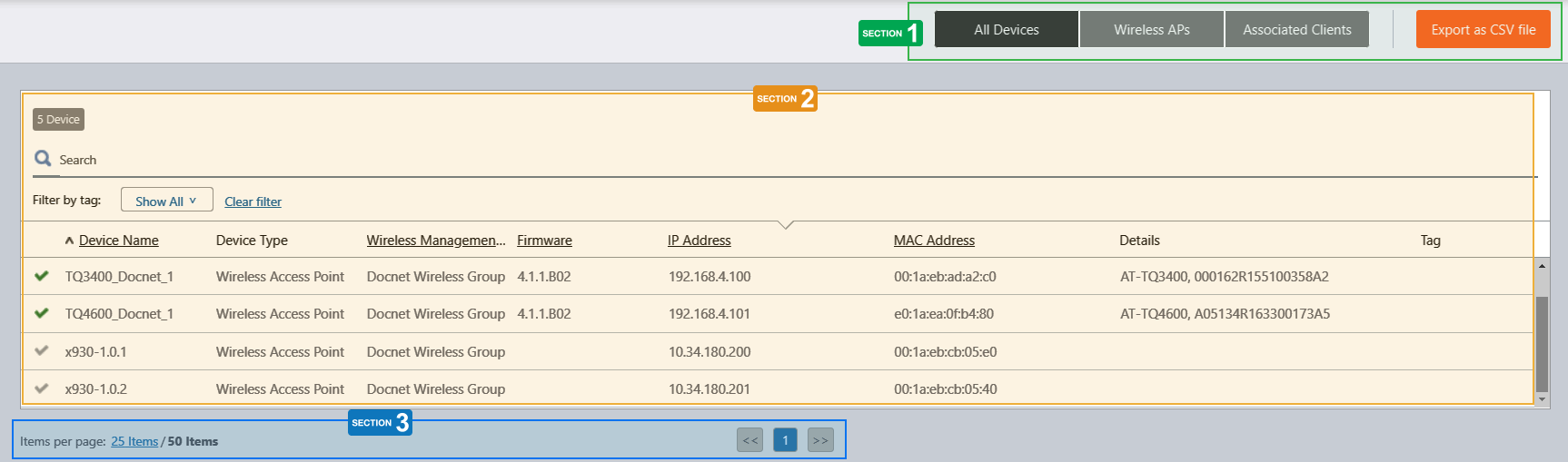

The Device Search page shows you the wireless APs in the AWC Plug-in's database, and wireless clients connecting to the APs. It also lets you filter or search the device list by using keywords.
The wireless client information is updated every 15 minutes when the plug-in retrieves information from managed APs.
If you want to see the latest information, run the manual polling and reload the browser.

Note
The Device Search screen cannot search for strings that contain delimiters such as "," and "|".

Note
The IP Address column is sorted lexicographically.

Section 1

Table 1
Item Name	Description
"All Devices" button	Shows both wireless APs and clients.
"AP List" button	Shows wireless APs only.
"Associated Clients Clients" button	Shows wireless clients only. To see the latest information, run the manual polling and reload the browser.
"Export as CSV file" button	Export the displayed list to a file in CSV format. The CSV filename is in the format of "vista _devices_YYYYMMDD-hhmmss.csv".

Section 2

Table 2: Device List
Item Name	Description
X devices	Shows the number of devices in the list.
"Search" box	Filter entries in the list by entering a partial string in the search box. The search field lets you enter a partial string to match. The screen displays entries with that string in one of the following fields: "Device Name", "Device Type", "Management Group", "IP address", "MAC address" or "Others". To remove the filter, delete the string from the search field and press enter. Note The search is case-sensitive.
Filter by tag	Lets you filter devices by tag. Clicking tags uses tags to filter the list. Clicking them again removes the filter. Clicking "Clear filter" removes the filter for all tags.
Tags (Filter)	Shows a list of tags that are attached to the devices.
Device Name	Shows additional information depending on the device type. Wireless AP: The device name that was specified when it was added, or the guest device name for an AP that was added from the guest device list. Wireless Client: MAC Address
Model	Shows whether the device is a Wireless AP or Client.
Management Group	Shows the Management Group which the device belongs to.
Firmware	Shows the firmware version of the wireless AP.
IP Address	Shows the AP's IP address.
MAC Address	Shows the device's MAC address.
Details	Shows additional information depending on the device type. Wireless AP: Shows the model name and a serial number. Wireless Client: Shows the MAC address and SSID of the AP which the device is connecting to.
Tag	Shows the tags attached to the device.

Section 3

Table 3
Item Name	Description
Items per page	Specifies the number of items per page.
<<	Goes to the first page of the list.
(Page Number)	Shows the current page number in the list.
>>	Goes to the last page of the list.

C613-04144-00 Rev A

04 Jul 2023 13:01
