IDS/IPS Report

Screen Reference > Wireless Monitoring > IDS/IPS Report

This page shows the Wireless Intrusion Detection/Prevention System (IDS/IPS) Report. The report lists the neighbor APs and wireless clients that the managed APs detected, whether each detected neighbor AP or client is a "Rogue", and the history of intrusion prevention against rogue clients. Detection of neighbor APs and clients is attempted at 5 minute intervals.
IDS/IPS can be configured on the Screen Reference > Wireless Configuration > IDS/IPS Settings page.
Refer to Supported Functions per AP Model > Wireless Configuration" > "Configure IDS/IPS Settings for APs that support this function.

Note
When a neighbor AP or client is detected by multiple managed APs, it is shown as a rogue if at least one managed AP decides it is a rogue.

Wireless IDS Report

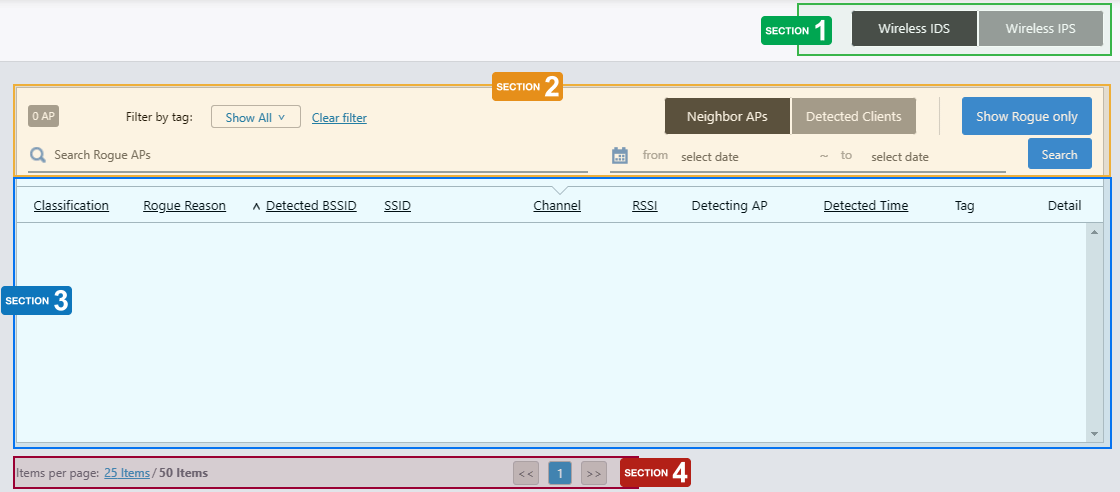

Neighbor Wireless AP List View

Section 1

Table 1
Item Name	Description
"Wireless IDS" / "Wireless IPS" buttons	Switch between the IDS and IPS report pages.

Section 2

Table 2
Item Name	Description
X AP	Shows the number of detected APs.
"Neighbor APs" / "Detected Clients" buttons	Switch between the "Neighbor APs" and "Detected Clients" views.
"Show Rogue Only" button	Shows only "rogue" APs. To show all APs again, click the "Show All APs" button.
Search Rogue AP	Lets you filter the list of detected rogue APs. The Search field lets you enter a partial string to match. The screen displays entries with that string in one of the following fields: "Detected BSSID" or "SSID". To remove the filter, delete the string from the Search field and press Enter. Note The search is case-sensitive. Note The "Search Rogue AP" search box is cleared whenever you change either of the "from" or "to" date fields.
Time Period (from/to)	Lets you filter detected AP reports by a specified time period. If you specify one or both of "from" and "to" and click "Search", the list will only show entries with a "Detection Time" within the specified time period. You can enter a date in "YYYY-MM-DD hh:mm" format. Alternatively, you can select a day on the calendar that appears when you click the field. To reset the time period, click the "x" mark in the field or click "Clear Date/Time" at the bottom of the calendar control. Note The "Search Rogue AP" search box is cleared whenever you change either of the "from" or "to" date fields.
"Search" button	Shows only entries with a "Detection Time" within the specified time period.
Filter by tag	Lets you filter APs by tags.

Section 3

Shows the list of detected neighbor APs. The list's contents depend on the "IDS Report History" configuration in the "Data Retention Period Configuration" section of the System Setting page.

When "IDS Report History" is set to "Save only latest":
The list shows only the latest data for each detected AP.
When "IDS Report History" is set to "Set Retention Period":
The list shows all the data for each detected AP.

Table 3: Neighbor Wireless AP List
Item Name	Description
Classification	Shows the category AWC has applied to the detected AP.
Rogue Reason	Shows the reason to consider the detected neighbor AP a rogue.
Detected BSSID	Shows the BSSID of the detected AP.
SSID	Shows the SSID of the detected AP.
Channel	Shows the channel of the detected AP.
RSSI	Shows the received signal strength of the detected AP.
Detecting AP	Shows the name of the AP that detected the neighbor AP.
Detected Time	Shows the date and time when the managed AP detected the neighbor AP.
Tag	Shows tags added to the AP.

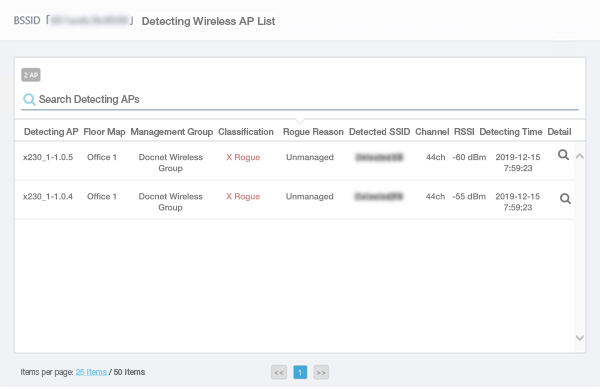

Detail (magnifying glass icon)	Shows a list of APs that detected the neighbor AP. The Detecting AP List page lists the managed APs that detected the neighbor AP. Therefore, the "Neighbor Wireless AP List" and "Detecting AP List" pages may display different information. The list's contents depend on the "IDS Report History" configuration in the "Data Retention Period Configuration" section of the System Setting page. When "IDS Report History" is set to "Save only latest": The list shows managed APs that detected the neighbor AP within the last day. It shows only the latest data for each detected AP. When "IDS Report History" is set to "Set Retention Period": The list shows managed APs that detected the neighbor AP within the configured retention period. It shows all the data for each detected AP. List of Wireless APs that detected BSSID "XX:XX:XX:XX:XX:XX": "XX:XX:XX:XX:XX:XX" is the BSSID of the detected neighbor AP. X AP: Shows the number of detected APs. Search Detecting APs: Filter entries in the list by entering a partial string in the search box. The Search field lets you enter a partial string to match. The screen displays entries with that string in one of the following fields: "Detecting AP", "Management Group" or "Detected SSID". To remove the filter, delete the string from the Search field and press Enter. Note The search is case-sensitive. Detecting AP: Shows the name of the managed AP that detected the neighbor AP. Floor Map: Shows the name of a floor map where the detecting AP is placed. Management Group: Shows the name of the management group to which the detecting AP belongs. Classification: Shows the category AWC has applied to the detected AP. Rogue Reason: Shows the reason to consider the detected neighbor AP a rogue. Detected SSID: Shows the SSID of the detected AP. Channel: Shows the channel of the detected AP. Received Signal Strength: Shows the received signal strength of the detected AP. Detection Time: Shows the date and time when the managed AP detected the neighbor AP. Details (magnifying glass icon): Shows the "Wireless AP Status Detail" page for the detecting AP. Number of Items on the page Specifies the number of items per page. <<: Goes to the first page of the list. Page Number: Shows the current page number in the list. >>: Goes to the last page of the list.

Section 4

Table 4
Item Name	Description
Items per page	Specifies the number of items per page.
<<	Goes to the first page of the list.
(Page Number)	Shows the current page number in the list.
>>	Goes to the last page of the list.

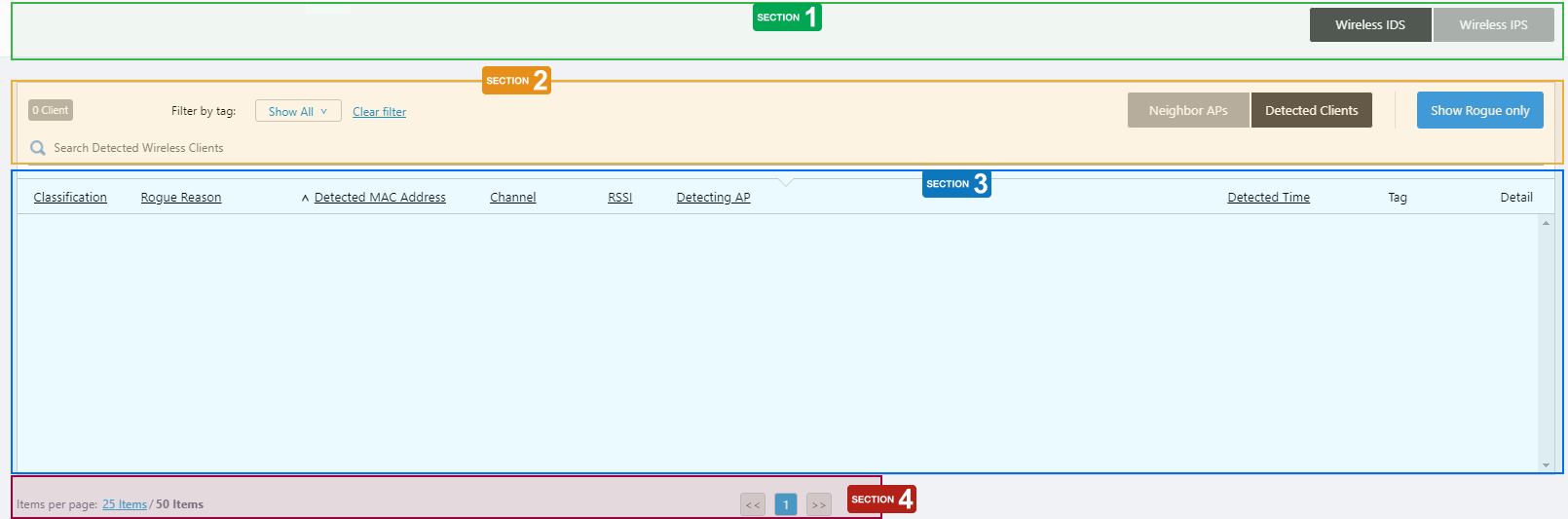

Detected Wireless Client View

Section 1

Table 5
Item Name	Description
"Wireless IDS" / "Wireless IPS" buttons	Switch between the IDS and IPS report pages.

Section 2

Table 6
Item Name	Description
"Neighbor APs" / "Detected Clients" buttons	Switch between the "Neighbor APs" and "Detected Clients" views.
"Show Rogue Only" button	Shows only "rogue" APs. To show all APs again, click the "Show All APs" button.
X Client	Shows the total number of detected clients.
Search Detected Wireless Client	Lets you filter the list of wireless clients. The Search field lets you enter a partial string to match. The screen displays entries with that string in one of the following fields: "Detected MAC Address" or "Detecting AP". To remove the filter, delete the string from the Search field and press Enter. Note The search is case-sensitive.
Filter by tag	Lets you filter APs by tags.

Section 3

Table 7: Detected Wireless Client List
Item Name	Description
Classification	Shows the category that AWC has applied to the detected AP.
Rogue Reason	Shows the reason to consider the detected wireless client a rogue.
Detected MAC Address	Shows the MAC address of the detected wireless client.
Channel	Shows the channel of the detected wireless client.
RSSI	Shows the received signal strength of the detected wireless client.
Detecting AP	Shows the name of the AP that detected the wireless client.
Detected Time	Shows the date and time when the managed AP detected the wireless client.
Tag	Shows tags added to the AP.

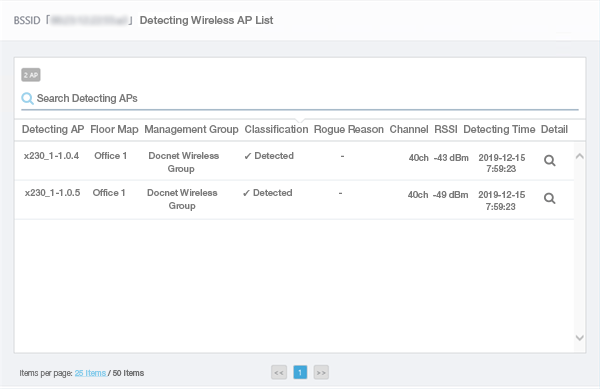

Detail (magnifying glass icon)	Shows a list of APs that detected the neighbor AP. Note The Detecting AP List page lists managed APs that detected the wireless client within the last day. List of Wireless APs that detected BSSID "XX:XX:XX:XX:XX:XX": "XX:XX:XX:XX:XX:XX" is the BSSID of the detected neighbor AP. X AP: Shows the number of detected APs. Search Detecting APs: Filter entries in the list by entering a partial string in the search box. The Search field lets you enter a partial string to match. The screen displays entries with that string in one of the following fields: "Detecting AP", "Floor Map" or "Management Group". To remove the filter, delete the string from the Search field and press Enter. Note The search is case-sensitive. Detecting AP: Shows the name of the managed AP that detected the wireless client. Floor Map: Shows the name of the floor map on which the detecting AP is placed. Management Group: Shows the name of the management group to which the detecting AP belongs. Classification: Shows the category that AWC has applied to the detected AP. Rogue Reason: Shows the reason to consider the detected wireless client a rogue. Channel: Shows the channel of the detected wireless client. Received Signal Strength: Shows the received signal strength of the detected wireless client. Detection Time: Shows the date and time when the managed AP detected the wireless client. Details (magnifying glass icon): Shows the "Wireless AP Status Detail" page for the detecting AP. Number of Items on the page Specifies the number of items per page. <<: Goes to the first page of the list. Page Number: Shows the current page number in the list. >>: Goes to the last page of the list.

Section 4

Table 8
Item Name	Description
Items per page	Specifies the number of items per page.
<<	Goes to the first page of the list.
(Page Number)	Shows the current page number in the list.
>>	Goes to the last page of the list.

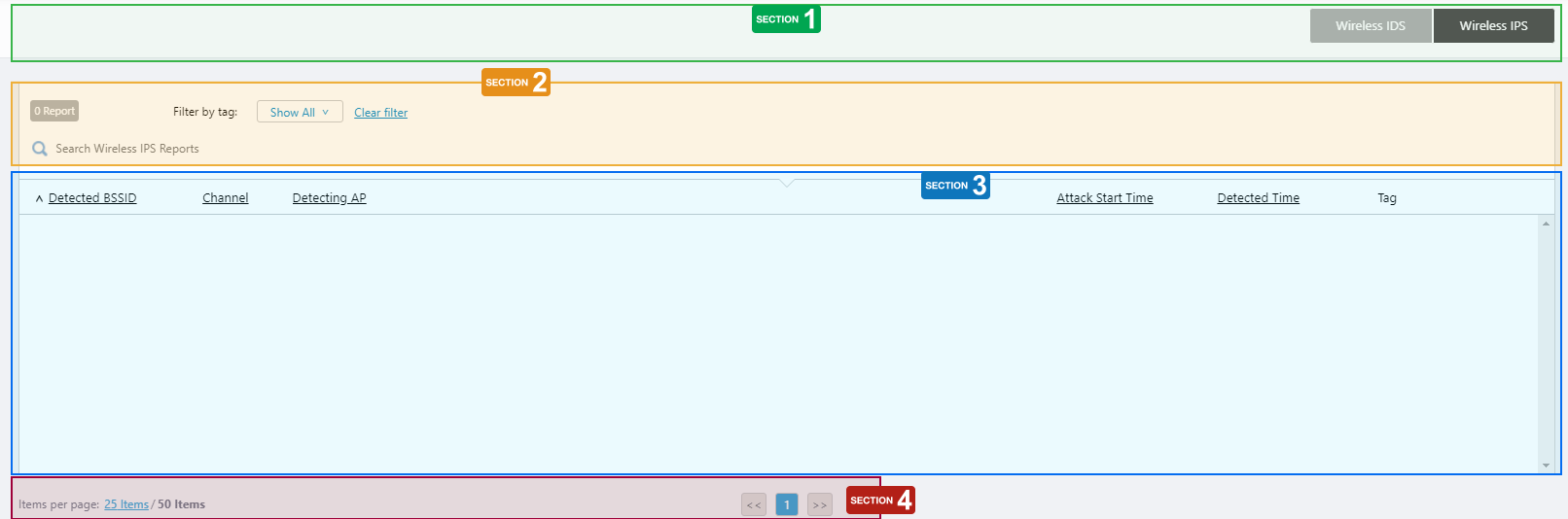

Wireless IPS Report

Section 1

Table 9
Item Name	Description
"Wireless IDS" / "Wireless IPS" buttons	Switch between the IDS and IPS report pages.

Section 2

Table 10
Item Name	Description
X AP	Shows the number of detected APs.
Search Wireless IPS Report	Filter entries in the list by entering a partial string in the search box. The Search field lets you enter a partial string to match. The screen displays entries with that string in one of the following fields: "Detected BSSID" or "Detecting AP". To remove the filter, delete the string from the Search field and press Enter. Note The search is case-sensitive.
"Search" button	Shows only clients that have the matching string in one of the "Detected BSSID" or "Detecting AP" fields.
Filter by tag	Lets you filter APs by tags.

Section 3

Table 11: Wireless IPS Report
Item Name	Description
Detected BSSID	Shows the BSSID of the detected rogue wireless client.
Channel	Shows the channel of the detected rogue wireless client.
Detecting AP	Shows the name of the managed AP that detected the rogue wireless client.
Attack Start Time	Shows the date and time when the managed AP began a deauthentication attack on the rogue wireless client. During the attack, the managed AP tries to disconnect wireless clients from the network by periodically sending IEEE 802.11 "De-authentication" management frames to the rogue client.
Detected Time	Shows the date and time when the managed AP detected the rogue wireless client.
Tag	Shows tags added to the AP.

Section 4

Table 12
Item Name	Description
Items per page	Specifies the number of items per page.
<<	Goes to the first page of the list.
(Page Number)	Shows the current page number in the list.
>>	Goes to the last page of the list.
