Switches

References > Switches

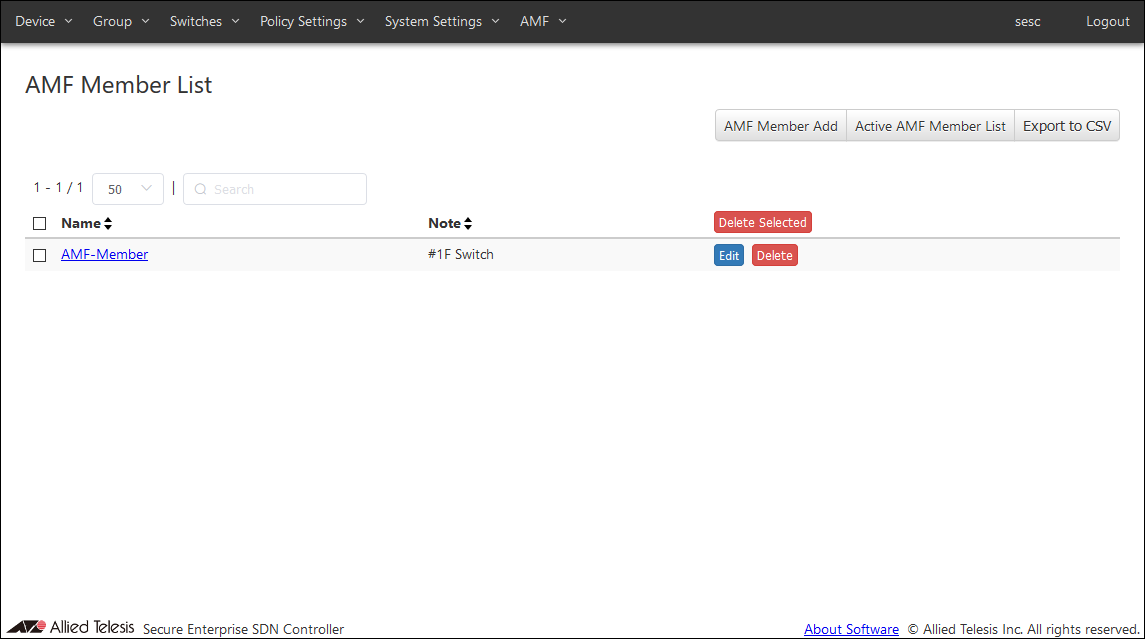

AMF Member List

This page shows a list of AMF Members registered on AMF Security mini.

Table 1: Target columns for search and sort operations
Item Name	Search	Sort
Name	×	×
Note	×	×

Table 2: Displayed columns
Item Name	Description
Name	Name of a registered AMF Member
Note	Arbitrary string (comment) for the AMF Member.

Table 3: Buttons
Item Name	Description
Page Top
AMF Member Add	Open the AMF Member Add page.
Active AMF Member List	Open the Active AMF Member List page.
Export to CSV	Start downloading of a list of AMF Members in CSV format.
AMF Member List
Heading Row
Delete Selected	Delete authentication information of the checked AMF Members.
Each Row
Edit	Open the AMF Member Update page for the selected AMF Member.
Delete	Delete information of the selected AMF Member.

Note
Refer to CSV File in Appendix for CSV Files.

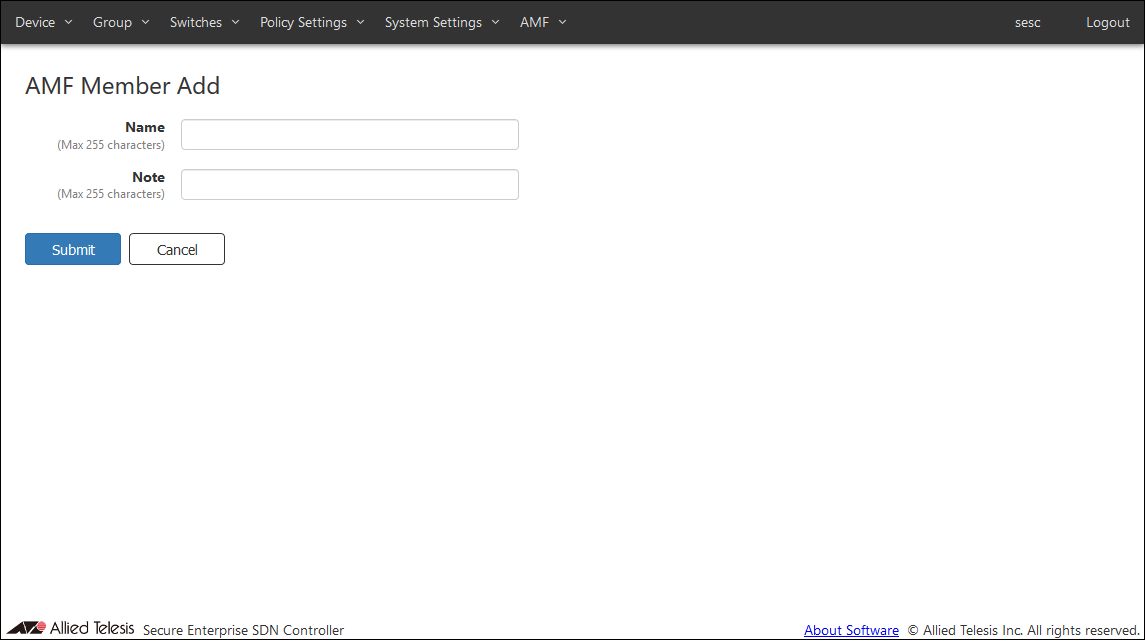

AMF Member Add

This page lets you register a new AMF Member.

Table 4: Sample Configuration Data
Item Name	Description
Name	Name of the AMF Member. The Name cannot be the one already used in the Switches > AMF Member List page. Max 255 characters. Can use alphanumeric, hyphen (-) and underscore (_).
Note	Arbitrary string (comment) for the AMF Member. Max 255 characters.

Note
Name must be the same as the host name of AMF Member. This is because AMF Member is managed by the host name of AMF Member.

Note
Since the name of the AMF Member cannot be registered twice, make sure that the host name of the AMF Member is also unique.

Table 5: Buttons
Item Name	Description
Page Bottom
Submit	Register information of the AMF Member.
Cancel	Cancel the operation for adding a new AMF Member.

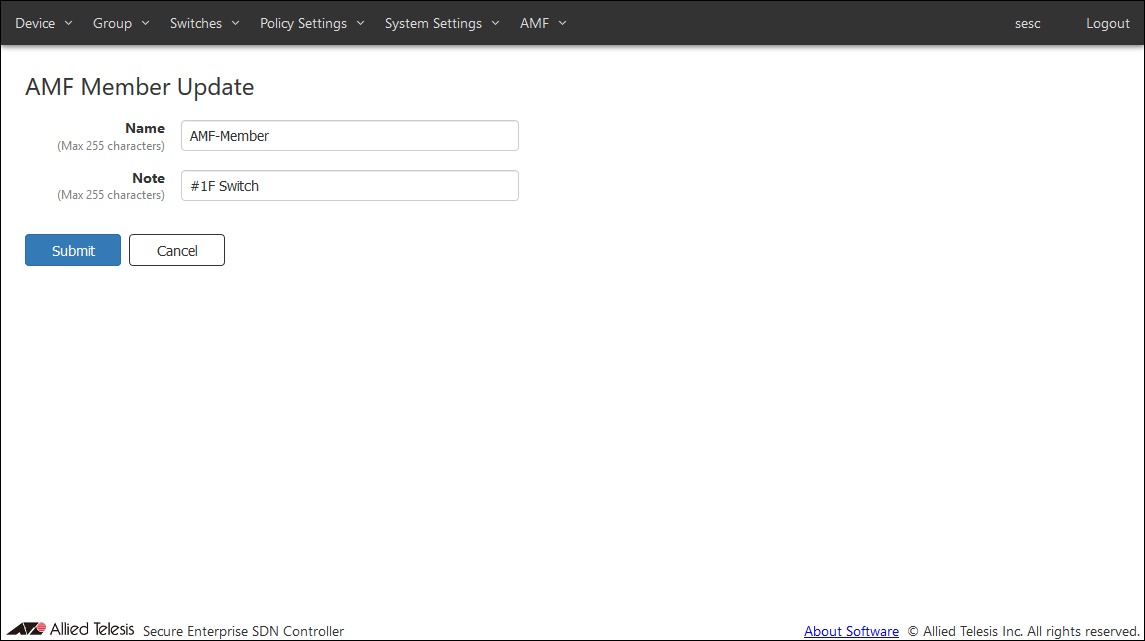

AMF Member Update

This page lets you update the information of an existing AMF Member.

Table 6: Sample Configuration Data
Item Name	Description
Name	Name of the AMF Member. The Name cannot be the one already used in the Switches > AMF Member List page. Max 255 characters. Can use alphanumeric, hyphen (-) and underscore (_).
Note	Arbitrary string (comment) for the AMF Member. Max 255 characters.

Note
Name must be the same as the host name of AMF Member. This is because AMF Member is managed by the host name of AMF Member.

Table 7: Buttons
Item Name	Description
Page Bottom
Submit	Update information of the selected AMF Member.
Cancel	Cancel the operation for updating the AMF Member information.

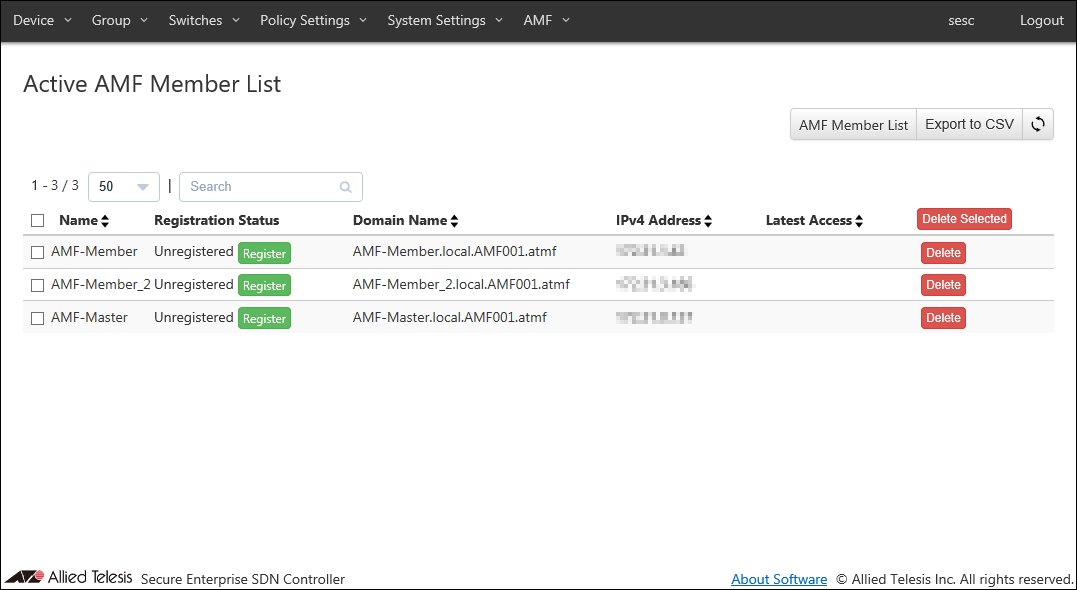

Active AMF Member List

This page shows a list of AMF Members which have established connections with AMF Security mini.

Table 8: Target columns for search, filter and sort operations
Item Name	Search	Filter	Sort
Name	×	−	×
Registration Status	×	−	×
Domain Name	×	−	×
IPv4 Address	×	−	×
Latest Access	×	−	×

Table 9: Displayed columns
Item Name	Description
Name	Name of the AMF Member (An identifier used by AMF Security mini)
Registration Status	Registration status of the AMF Member Click the "Register" button to open the AMF Member Add page. If the AMF Member is not registered, a text "Unregistered" and the "Register" button are displayed.
Domain Name	Domain name of the AMF Member.
IPv4 Address	IPv4 address of the AMF Member.
Latest Access	Displays the date and time when AMF Security mini and AMF Member last communicated.

Note
If the "application-proxy whitelist advertised-address" is not set for the AMF Member, the IP Address of the AMF management VLAN is displayed. If the "application-proxy whitelist advertised-address" is set for the AMF Member, the primary IPv4 Address of the specified interface is displayed, but no inquiry has been received regarding the availability of terminals under the corresponding AMF Member shows the IP Address of the AMF management VLAN.

Table 10: Buttons
Item Name	Description
Page Top
AMF Member List	Open the AMF Member List page.
Export to CSV	Start downloading of a list of Active AMF Members in CSV format.
Active AMF Member List
Heading Row
Delete Selected	Delete authentication information of the checked AMF Members.
Each Row
Submit	Open the AMF Member Update page for the selected AMF Member.
Delete	Delete information of the selected AMF Member.

Note
Refer to CSV File in Appendix for CSV Files.
