Floor Map Detail [Wireless Client View]

Screen Reference > Wireless Monitoring > Floor Map Detail [Wireless Client View]

Wireless Client Association View

Wireless Client List (Detail)

Client Definition List

Wireless Client Detail

Wireless Client Log Detail

If you select "Wireless Client View" from the dropdown menu on Floor Map Details, the screen switches to the Wireless Client View screen.
List all connected/disconnected/failed clients for all wireless bands on the floor and see the APs to which the connected wireless clients belong.
If an individual radio band is selected from the radio band drop-down list in the header, the heatmap can also be displayed in a format that matches the "drawing mode" of the floor map control.
For more information on the heatmap view format for each drawing mode, see "Floor map details [radio status view]".

Note
When the heat map view is enabled, screen rendering may take some time.
Adjust the update interval of the "Floor MAP (Wireless Client)" in the "User management" screen accordingly.

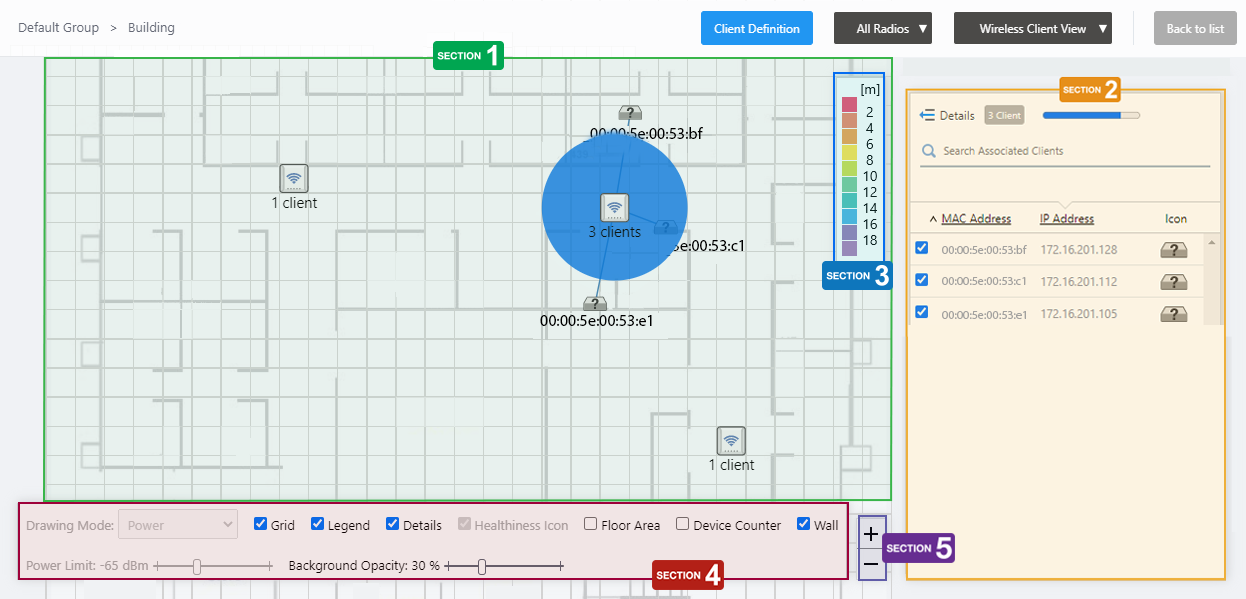

Wireless Client Association View

This view uses a link line to show an association between a client and an AP.

Section 1

Table 1: Floor Map
Item Name	Description
Floor Map Name	Shows the floor map name.
"Client Definition" button	Shows the Client Definition List dialog box.
Radio dropdown menu	Select which radio band information to display from Radio 1, Radio 2, Radio 3, or "All Radios". The default is "All Radios". If you select "All Radios", wireless client information for all bands (Radio 1, Radio 2, and Radio 3) will be displayed.
View Selection dropdown menu	Lets you change what information is displayed on the Floor Map Details screen. Wireless Status View Wireless Client Smart Connect View Rogue AP View Add AP to Map Edit Wall
Floor Map (Background)	The map image specified when you created the map is shown.
Wireless AP Icon	The AP icon placed on the floor map is displayed. Below the icon, the number of wireless clients that are associated, have been disassociated within 5 minutes, and have failed to associate within 5 minutes are displayed in the "x/x/x client" format. When you click an AP icon, only clients associated to the AP are displayed in the associated client list.
Wireless Client icon	Represents an associated client. Clients checked on the list will be displayed on the floor map. The position where the client icon is displayed does not indicate the client's actual geographical location on the floor. If a custom icon is defined to the MAC address of the wireless client on the "Group" list in the Vista Manager EX's "Asset Management" screen, the icon will be displayed. If a custom icon is not defined to the MAC address, by default, the Vista Manager EX's unidentified device icon (with a question mark) will be applied. If the client does not yet appear on the Vista Manager EX's "Network Map" (for example, right after the client connects to the AP), a note PC icon will be applied temporarily.

Section 2

Table 2: Floor Map Wireless Client List
Item Name	Description
Details	You can click here to see client details such as Hostname, Username (based on WPA Enterprise), Duration, Client Name, Notes, SSID, Associating AP, and RSSI, in addition to the items displayed by default (MAC and IP addresses). Clicking this again returns you to the default non-detailed view.
X Client	Shows the number of clients connected to the AP that is selected on the floor map.
Refresh Timer	Shows the status of the timer that automatically refreshes the page with the blue progress bar. The list is updated at the interval set for "Floor Map (Wireless Client)" in the "Refresh Rates" in the User Management menu (default: 5 seconds). You can also specify whether to pause or resume automatic updates by clicking Resume/Pause automatic update button on the right, or force the wireless client list to be updated by clicking the Manual update button.
Search Wireless Clients	Entries in the list can be filtered by entering a partial string in the search box. The Search field lets you enter a partial string to match. The screen displays entries with that string in one of the following fields: "MAC Address", "IP Address", "SSID" or "Associating AP". To remove the filter, delete the string from the search field and press enter. Note The search is case-sensitive.
Filter by tag	Narrow down the list of wireless clients by client status. Associated: Lists the wireless clients that are currently associated. When selected, it is displayed in green. Disassociated: Lists wireless clients that have disassociated within 5 minutes. When selected, it is displayed in blue. Failed: Lists wireless clients that have failed to associate within 5 minutes. When selected, it is displayed in red.
Checkbox	Lets you select wireless clients to be shown on the floor map. When you select a client, an icon and the MAC address of the client are shown near the AP with which the client is associated.
MAC Address	Shows the MAC address of the wireless client. The background color of the MAC address also indicates the status of the wireless client. Green: Indicates the clients that are currently associated. Blue: Indicates the clients that have disassociated within 5 minutes. Red: Indicates the clients that have failed to associate within 5 minutes.
IP Address	Shows the IP address of the wireless client.
Icon	Displays the wireless client icon shown on the floor map. If the wireless client is currently associated: If a custom icon is defined for the MAC address of the relevant wireless client in the "Asset Management" screen of Vista Manager EX, the custom icon will be applied. If a custom icon is not defined to the MAC address, by default, the Vista Manager EX's unidentified device icon (with a question mark) will be applied. If the client does not yet appear on the Vista Manager EX's "Network Map" (for example, right after the client connects to the AP), a note PC icon will be applied temporarily. Disassociated wireless client is also represented by a laptop icon with a red X in the upper left corner.
Details	The "Wireless Client Detail" screen will appear in a new tab or window in your web browser.

Section 3

Shows the legend for the Associated Client View.
The legend can be made invisible or visible by using the checkbox in the floor map control section at the bottom of the page.

Section 4

In the Wireless Client View, "Healthiness Icon", and "Power Limit" are irrelevant and disabled.
The heatmap display in "Drawing Mode" is only reflected when an individual radio band is selected in the radio band drop-down list in the header.

Table 3: Floor Map Control
Item Name	Description
Drawing Mode	Lets you select what to show on the heatmap. The options are: Comfort Level, Power (signal strength) and Channel. The default is "Comfort Level".
Grid	Lets you enable or disable grid lines on the floor map. Checking this shows grid lines on the floor map.
Legend	Lets you enable or disable the legend. Check to display.
Details	Whether to display the Wireless Client List. Check to display.
Floor Area	This item is not supported.
Wall	If walls have been created on the floor map (using the Edit Wall page), lets you choose whether to display the walls. Check to display.
Opacity	Specify the opacity of the floor map background image.

Section 5

Zoom In/Out buttons.
You can zoom in (+) or zoom out (-) of the floor map display. You can also use the mouse wheel scroll to zoom in or out.

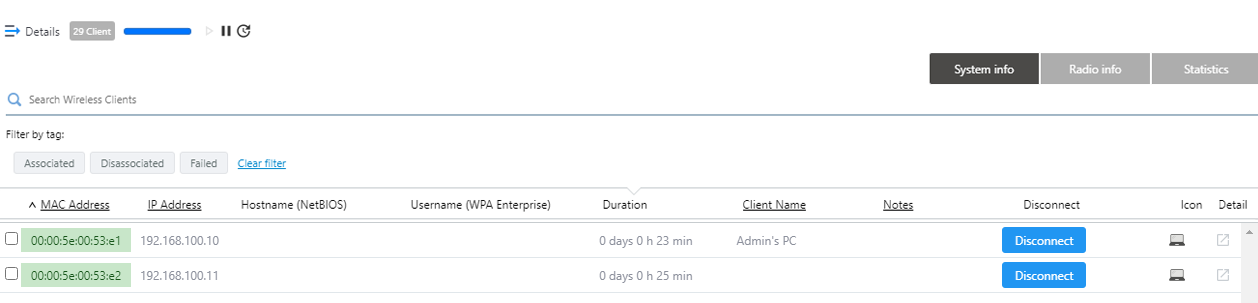

Wireless Client List (Detail)

Clicking "Details" at the top of the client list in the "Wireless Client View" extends the list to show additional information including system information, wireless information and statistics.

Table 4: Wireless Client History List (Detail)
Item Name	Description
Details	Clicking this shows extra data, including the SSID, Associated AP and connection Duration, in addition to the default items (IP and MAC addresses). Clicking this again returns you to the default non-detailed view.
X Client	Shows the number of clients connected to the AP that is selected on the floor map.
Refresh Timer	Shows the status of the timer that automatically refreshes the page with the blue progress bar. The list is updated at the interval set for "Floor Map (Wireless Client)" in the "Refresh Rates" in the User Management menu (default: 5 seconds). You can also specify whether to pause or resume automatic updates by clicking Resume/Pause automatic update button on the right, or force the wireless client list to be updated by clicking the Manual update button.
"System Info" / "Wireless Info" / "Statistics" buttons	Switches the contents of the list.
System Info
Search Wireless Clients	Entries in the list can be filtered by entering a partial string in the search box. The Search field lets you enter a partial string to match. The screen displays entries with that string in one of the following fields: "MAC Address", "IP Address", "SSID" or "Associating AP". To remove the filter, delete the string from the search field and press enter. Note The search is case-sensitive.
Filter by tag	Narrow down the list of wireless clients by client status. Associated: Lists the wireless clients that are currently associated. When selected, it is displayed in green. Disassociated: Lists wireless clients that have disassociated within 5 minutes. When selected, it is displayed in blue. Failed: Lists wireless clients that have failed to associate within 5 minutes. When selected, it is displayed in red.
Checkbox	Lets you select wireless clients to be shown on the floor map. When you select a client, an icon and the MAC address of the client are shown near the AP with which the client is associated. A selection made through the detailed list view will remain when you go back to default (simpler) client list view.
MAC Address	Shows the MAC address of the wireless client. The background color of the MAC address also indicates the status of the wireless client. Green: Indicates the clients that are currently associated. Blue: Indicates the clients that have disassociated within 5 minutes. Red: Indicates the clients that have failed to associate within 5 minutes.
IP Address	Shows the IP address of the wireless client.
Hostname (NetBIOS)	Shows the NetBIOS host name of the wireless client.
Username (WPA Enterprise)	Shows the RADIUS username when using WPA Enterprise.
Duration	Shows the time duration for which the client has been connected to the AP. Note Make sure that the clock on the computer for browsing is set to the same date and time as the Vista Manager EX server settings. If you set a different time, the duration of wireless clients may not be displayed correctly.
Client Name	Shows the Client Name if defined in the "Client Definition List" dialog box.
Notes	Shows any comments entered in the "Client Definition List" dialog box.
Disconnect	Disassociates the wireless client connection. If the AP which the client is associated to supports instant disassociation, the "Disconnect" button will be shown. By clicking "Disconnect", you can immediately kick out the wireless client. Note You cannot select and disconnect multiple clients simultaneously. Please click the "Disconnect" button of each client. Note The feature is supported with TQ5403, TQ5403e, and TQm5403 firmware version 6.0.1-1.x or later; with TQ1402 and TQm1402 firmware version 6.0.0-0.x or later; or TQ6602 firmware version 7.0.0 or later. Note If the client device is set to connect automatically to the SSID, the client will be associated soon again after the disassociation. If you want to deny a specific client device permanently, consider using another authentication method such as MAC Access Control.
Icon	Displays the wireless client icon shown on the floor map. If the wireless client is currently associated: If a custom icon is defined for the MAC address of the relevant wireless client in the "Asset Management" screen of Vista Manager EX, the custom icon will be applied. If a custom icon is not defined to the MAC address, by default, the Vista Manager EX's unidentified device icon (with a question mark) will be applied. If the client does not yet appear on the Vista Manager EX's "Network Map" (for example, right after the client connects to the AP), a note PC icon will be applied temporarily. Disassociated wireless client is also represented by a laptop icon with a red X in the upper left corner.
Details	The "Wireless Client Detail" screen will appear in a new tab or window in your web browser.
Radio info
MAC Address	Shows the MAC address of the wireless client.
SSID	Shows the SSID the client is associated with.
Associating AP	Shows the device name of the AP the client is associated with.
RSSI	Shows the RSSI (Received Signal Strength Indicator) of the wireless client.
Noise	Shows the strength of the noise that is interfering with the client communication.
SNR	Shows the Signal to Noise Ratio. A larger SNR means there is less noise influence.
Details	The "Wireless Client Detail" screen will appear in a new tab or window in your web browser.
Statistics
MAC Address	Shows the MAC address of the wireless client.
Tx Packets	Shows the number of the packets sent to the client.
Tx Bytes	Shows the total size of the packets sent to the client.
Tx Drop Packets	Shows the number of discarded packets to be sent to the client.
Tx Drop Bytes	Shows the number of discarded bytes to be sent to the client.
Rx Packets	Shows the number of the packets received from the client.
Rx Bytes	Shows the total size of the packets received from the client.
Rx Drop Packets	Shows the number of received packets which were discarded.
Rx Drop Bytes	Shows the number of received bytes which were discarded.
Details	The "Wireless Client Detail" screen will appear in a new tab or window in your web browser.

Note
"Noise Level", "SNR", "Transmit Packets Discarded", "Transmit Bytes Discarded", "Received Packets Discarded" and "Received Bytes Discarded" are not supported in this version.

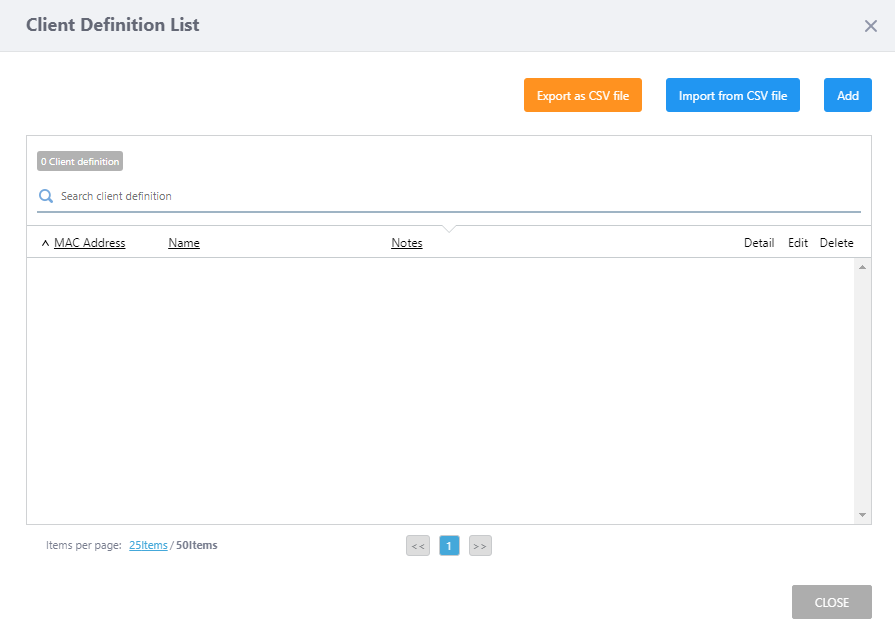

Client Definition List

With this list, you can define display names and notes for specific clients to help with identification in the Wireless Client View.
The client names will be used only in the Wireless Client View. The Management Log screen will not be affected.

Section 1

Table 5
Item Name	Description
"Export as CSV file" button	Exports registered client definition to a CSV (Comma-Separated Values) format file.

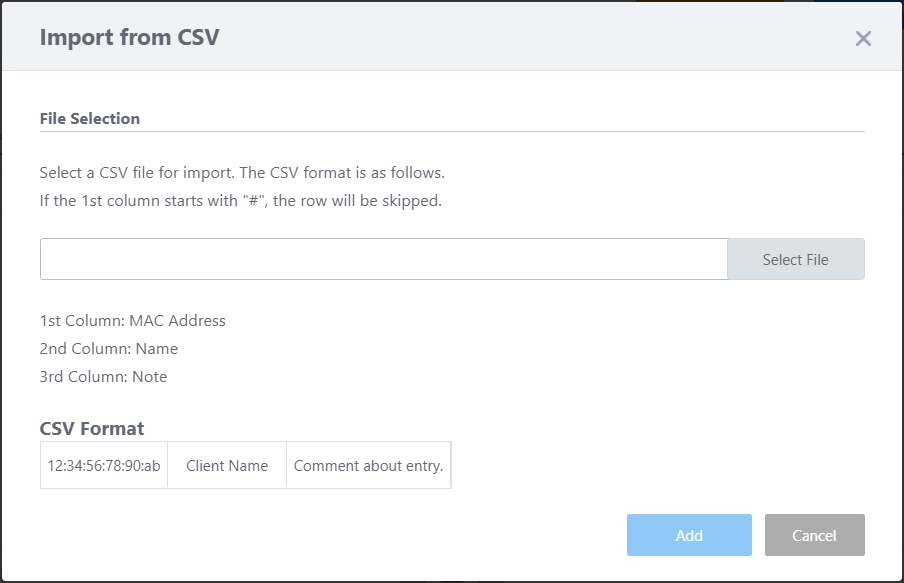

"Import from CSV file" button	The "Import from CSV" dialog box will appear. "Select File" button: Opens a file dialog box to specify a CSV file. The CSV file must contain the following data: * Lines starting with "#" are ignored. 1st column: MAC Address 2nd column: Client Name 3rd Column: Note Note Only CSV format is supported for import. "Add" button: Register client definitions from the specified CSV file. "Cancel" button: Don't import from a CSV file.

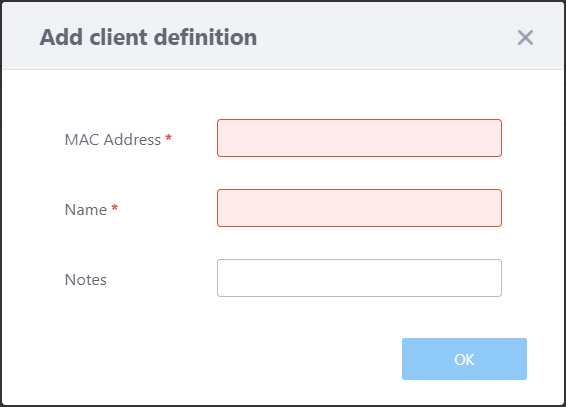

"Add" button	Shows the "Add client definition" dialog box. MAC Address: Enter the MAC address of the client. Name: Enter a display name to show in the "Wireless Client View". Should be 1 to 255 characters in length, with alphabets, numbers and symbols (including spaces). Notes: Enter a comment. Should be no more than 1000 characters in length, with alphabets, numbers and symbols (including spaces). "OK" button: Saves the client definition. "x" button: Stops the client definition.

Section 2

Table 6: Client Definition List
Item Name	Description
X Client definition	Shows the total number of client definition entries.
Search client definition	Lets you search client definition entries. The Search field lets you enter a partial string to match. The screen displays entries with that string in one of the following fields: "MAC Address", "Name" or "Notes". To remove the filter, delete the string from the search field and press enter. Note The search is case-sensitive.
MAC Address	Shows the defined MAC address.
Client Name	Shows the defined display name of the client.
Notes	Shows any comments you entered about the client definition.
"Details" button	The "Wireless Client Detail" screen will appear in a new tab or window in your web browser.
Edit (pencil icon)	Shows the "Add client definition" dialog box. MAC Address: Enter the MAC address of the client. Name: Enter a display name to show in the "Wireless Client View". Should be 1 to 255 characters in length, with alphabets, numbers and symbols (including spaces). Notes: Enter a comment. Should be no more than 1000 characters in length, with alphabets, numbers and symbols (including spaces). "OK" button: Saves the client definition. "x" button: Stops the client definition.
Delete (trashbin icon)	Deletes the client definition.

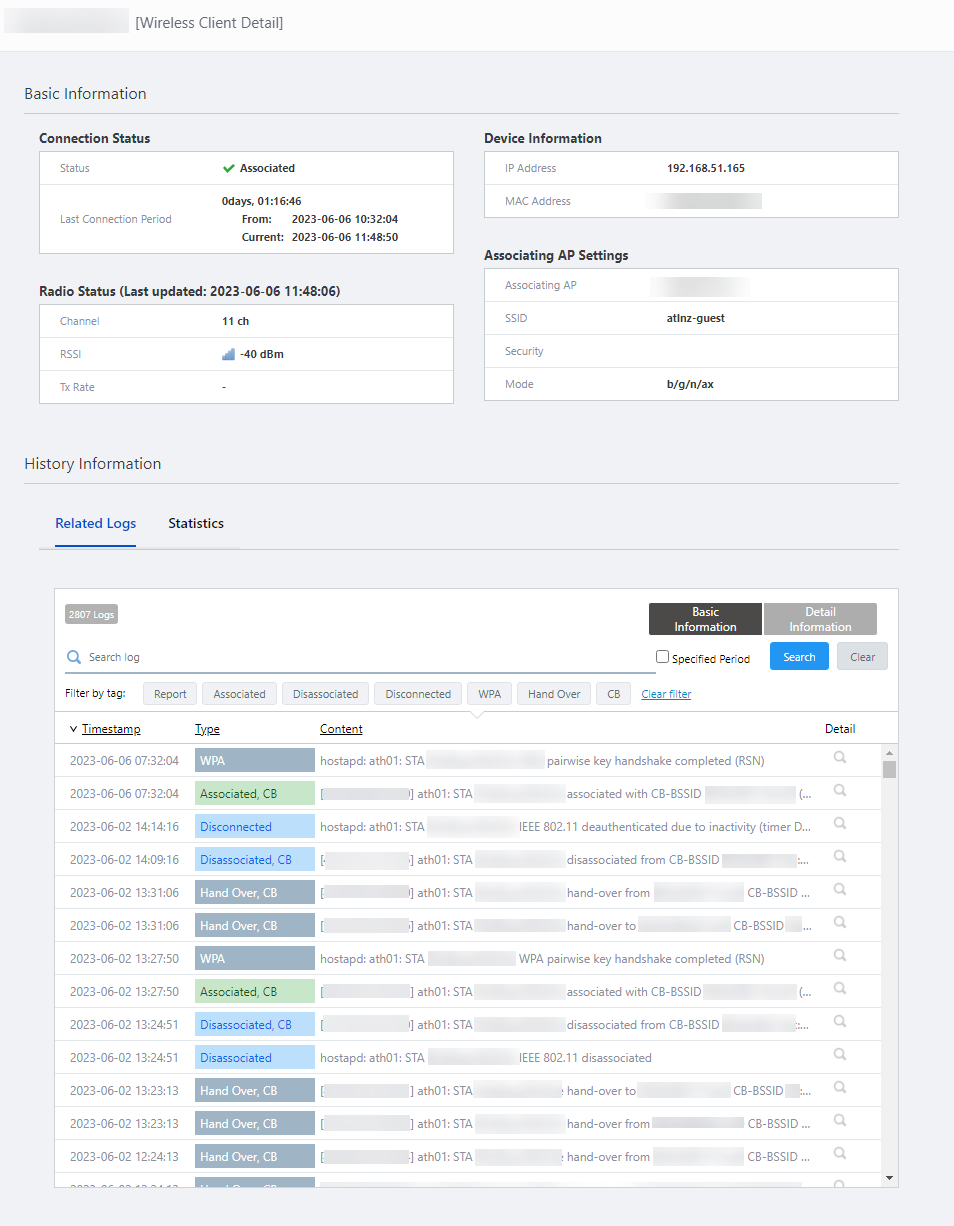

Wireless Client Detail

Displays information about wireless clients that have associated with the managed AP or failed to associate to the managed AP.

Note
Items of Basic Information, except for Connection Status, are displayed only when the wireless client is currently connected.

Table 7: Wireless Client Detail
Item Name	Description
Basic Information

Connect Status

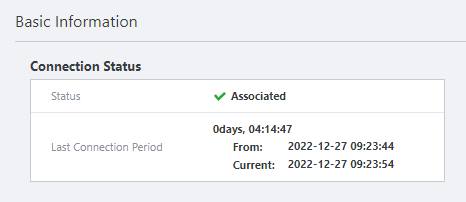

Status	Displays the current status (at the time the screen is displayed) of the wireless client in question.
Last Connection Period	Displays the elapsed time for connection, connection start/end date and time when the wireless client was last connected to the managed AP.
Radio Status (Last updated: YYYY-MM-DD hh:mm:ss)
Channel	Displays connected channel.
RSSI	Displays the Received Signal Strength Identifier (RSSI, in dBm) from the client.
Tx Rate	Displays the data transmission rate (in kbps or Mbps) of the wireless client.
Device Information
IP Address	Shows the client's IP address.
MAC Address	Shows the device MAC address.
Associating AP Settings
Associating AP	Shows the name of the AP that the wireless client is associating.
SSID	Shows the connected SSID.
Security	Shows the security method of the wireless connection.
Mode	Shows the radio mode of the wireless connection.

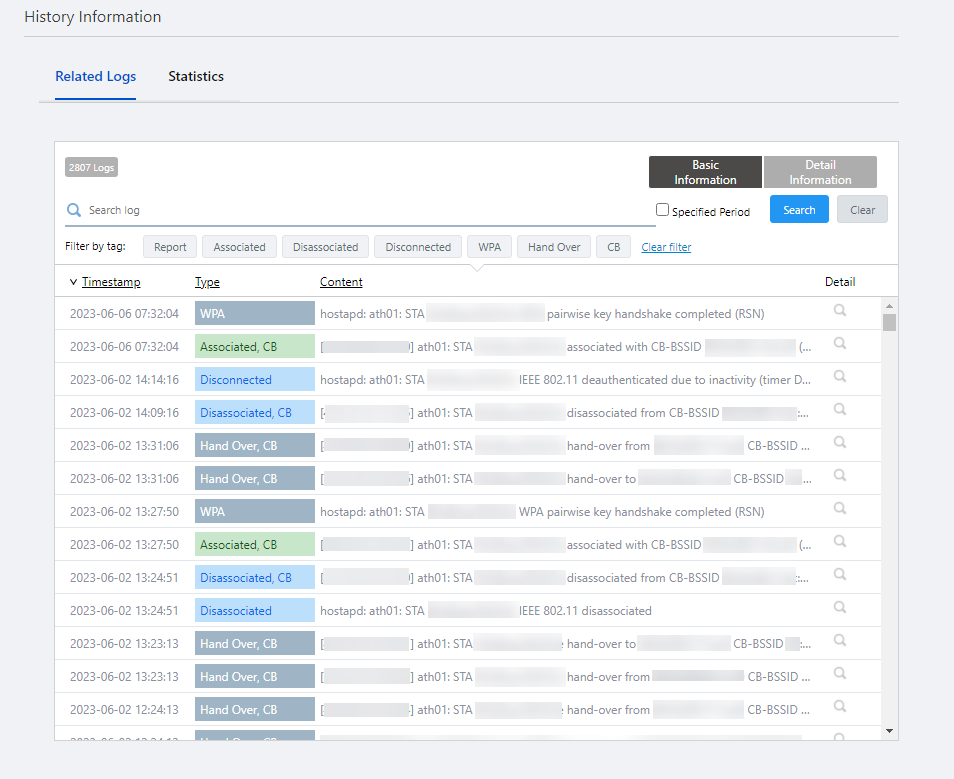

History Information

Related Logs
X Logs	Displays the current number of relevant logs for the AP in question to be displayed.
Basic Information / Detail Information	Switches the contents of the list.
Search Log	Filter entries in the list by entering a partial string in the search box. The search field lets you enter a partial string to match. The screen displays entries with that string in one of the following fields: "Timestamp", "Type" or "Content". To remove the filter, delete the string from the search field and press enter.
Specified period	Check this box if you want to specify a specific period in the log history to be displayed in the list. When checked, you can specify the start and end date and time of the specified period using the calendar control or manually. Specify the period and click the "Search" button to reflect it in the list.
"Search" button	Searches the history of logs that match the criteria for the "Specified Period".
"Clear" button	Clears the filtering criteria entered in "Search log" or by "Specified Period".
Filter by tag	Lets you narrow down the events by their types, "Management Status", "Apply Configuration", "Maintenance", "AWC Calculation", "Report", "AWC System", "Wireless AP Unit", "Failed", "Associated", "Disassociated", "Multiple Connection Request", "WPA", "IEEE 802.1x", "RADIUS", "Handover", "DFS", "CB", "SC", "Captive Portal", or "Others". If multiple items are specified, logs matching any of the filters will be displayed (OR search). By clicking "Clear filter", the filter will be back to unspecified.
Related Logs: Basic Information
Timestamp	Shows the date and time when the event occured.
Type	Shows the event type.
Content	Shows the content of the log entry.
Details	"Wireless AP Log Detail" dialog box will be displayed.
Related Logs : Detail Information
Timestamp	Shows the date and time when the event occured.
Type	Shows the event type.
SSID	Displays the SSID of the VAP from which the association or disassociation took place.
BSSID	Displays the BSSID of the VAP from which the association or disassociation took place.
Model Name	Displays the model name of the managed AP that detected the event.
Floor Map	Displays the name of the floor map where the managed AP that detected the event is located.
Details	"Wireless AP Log Detail" dialog box will be displayed.
Statistics Information
Wireless Connection Log Graph	The graph shows the number of wireless connection-related logs associated with the wireless client in question, as a stacked bar graph of connections, disconnections, and connection failures. By default, the period displays daily graphs for the last 5 days. Clicking on any of the date bars in the graph will display an hourly graph for that day, and clicking on any of the hour bars in the graph will display a five-minute basis graph for that hour. To return to a graph with a longer time period than the one currently displayed, click on the time period in the upper left corner of the graph.
Traffic Graph	The number of bytes received by wired connection (upper vertical axis), and the number of bytes sent by wireless connection (lower vertical axis), are displayed in a stacked bar graph. By default, the period displays daily graphs for the last 5 days. Clicking on any of the date bars in the graph will display an hourly graph for that day, and clicking on any of the hour bars in the graph will display a five-minute basis graph for that hour. To return to a graph with a longer time period than the one currently displayed, click on the time period in the upper left corner of the graph.

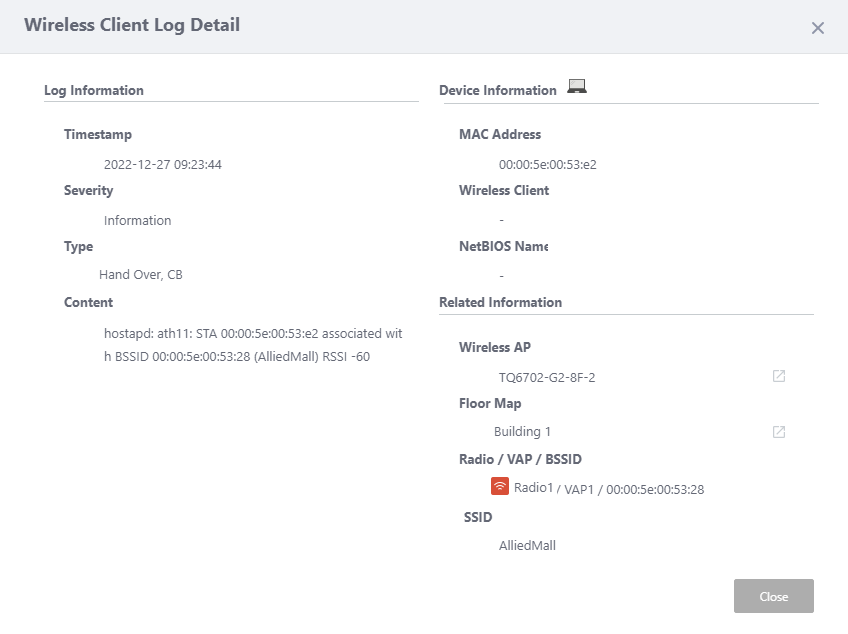

Wireless Client Log Detail

Displays the selected log details for wireless client.

Table 8: Wireless Client Log Detail
Item Name	Description
Log Information
Timestamp	Shows the date and time when the log entry was received.
Importance	Shows the importance of the log.
Type	Shows the event type.
Content	Shows the content of the log.
Device Information
Wireless Client icon	Displays the icon used to represent the wireless client on the floor map.
MAC Address	Shows the MAC address of the wireless client.
Client Name	Shows the Client Name if defined in the "Client Definition List" dialog box.
NetBIOS Name	Shows the NetBIOS host name of the wireless client.
Related Information
Wireless AP	Shows the name of the AP which recorded the Log.
"Wireless AP Detail" button	Display the Wireless AP Detail screen for the relevant AP in a new tab or window in your web browser.
Floor Map	Displays the name of the floor map where the AP is located.
Floor Map Detail button	Displays the Floor Map Details [Wireless Status View] screen of the floor map where the relevant AP is located in a new tab or window in your web browser.
Radio / VAP / BSSID	Displays the Radio, VAP number, and BSSID of the relevant VAP for which the wireless client has associated, disassociated, or failed.
SSID	Displays SSIDs of VAP to which the corresponding wireless client has associated, disassociated, or failed.
