AWC History

Screen Reference > Wireless Monitoring > AWC History

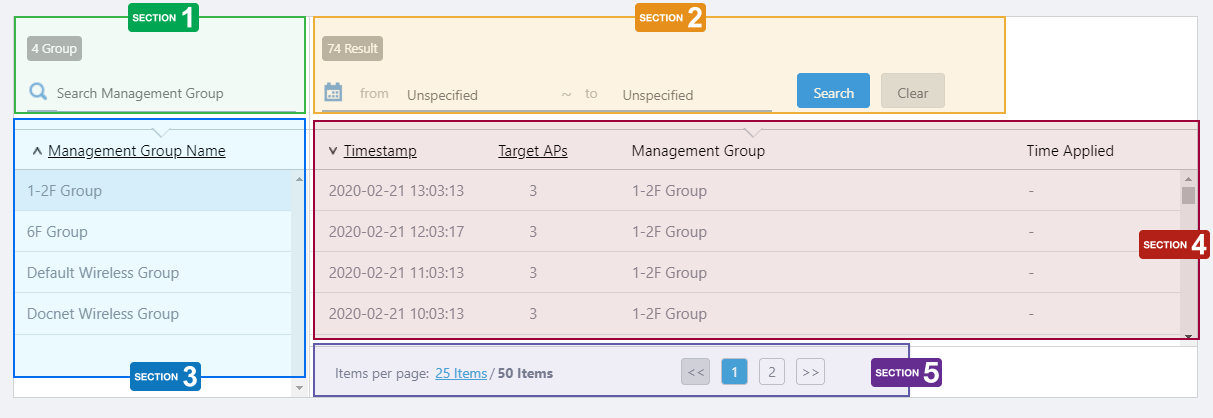

This page shows past AWC calculations.
Refer to Operation Reference > Autonomous Wave Control (AWC) > Use AWC for more details.

Section 1

Table 1
Item Name	Description
X Group	Shows the number of Management Groups.
Search Management Group	Lets you filter the list of management groups. The search field lets you enter a partial string to match. The screen displays entries with that string in their name. To remove the filter, delete the string from the search field and press enter. Note The search is case-sensitive.

Section 2

Table 2
Item Name	Description
X Result	Shows the number of AWC Calculations.
from ... to	Lets you filter calculation results by specifying a range of date/times.
"Search" button	To filter the calculation results, click this button after entering "from ... to" dates.
"Clear" button	Clear the search results and show all entries.

Section 3

Table 3: Management Group List
Item Name	Description
Management Group	Shows a list of Management Groups. Clicking a Management Group shows its AWC calculation history.

Section 4

Shows AWC calculation history.
Clicking an entry in the history opens a dialog box which shows calculated channel and transmit power for each AP. Refer to Operation Reference > Autonomous Wave Control (AWC) > View AWC Calculation Result for more details.

Table 4: Calculation Results List
Item Name	Description
Timestamp	Shows the date/time when the AWC calculation was performed.
Target APs	Shows the number of APs for which the AWC calculation was performed.
Management Group	Shows the Management Group for which the AWC calculation was performed.
Application Date/Time	Shows the date/time when the AWC calculation results were applied to APs. This entry only appears in the row of the calculation that AWC used when applying the AWC calculation results.

Section 5

Table 5
Item Name	Description
Items per page	Specifies the number of items per page.
<<	Goes to the first page of the list.
(Page Number)	Shows the current page number in the list.
>>	Goes to the last page of the list.
