AWC Settings

Screen Reference > Wireless Configuration > AWC Settings

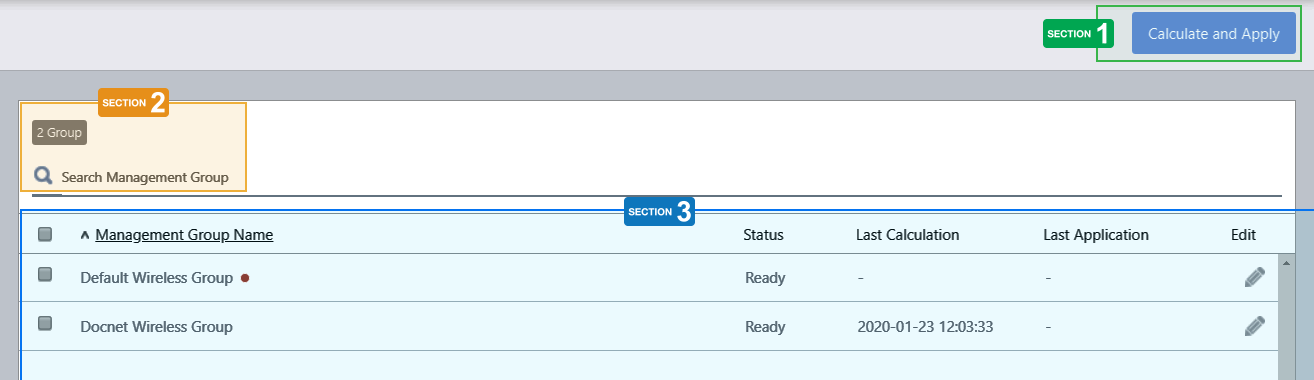

This page allows you to view and configure AWC (Autonomous Wave Control) functions.
On the page, you can tune detailed AWC calculation parameters such as the cover area for transmit power, the influence of unmanaged APs on the channel, and timing for calculation and application.

Section 1

Table 1
Item Name	Description
"Calculate and Apply" button	Perform AWC Calculation and apply the results to APs in the selected Management Groups.

Section 2

Table 2
Item Name	Description
X Group	Shows the number of Management Groups.
Search Management Group	Lets you filter the list of management groups. The search field lets you enter a partial string to match. The screen displays entries with that string in their name. To remove the filter, delete the string from the search field and press enter. Note The search is case-sensitive.

Section 3

Table 3: AWC Settings List per Management Group
Item Name	Description
Management Group	Shows the Management Group name.
Status	Shows the status of AWC Calculation for the Management Group.
Last Calculation	Shows the last date/time when the AWC performed calculation.
Last Application	Shows the last date/time when the AWC applied the calculation results to APs.
Edit (pencil icon)	Lets you edit the AWC settings for the Management Group.
