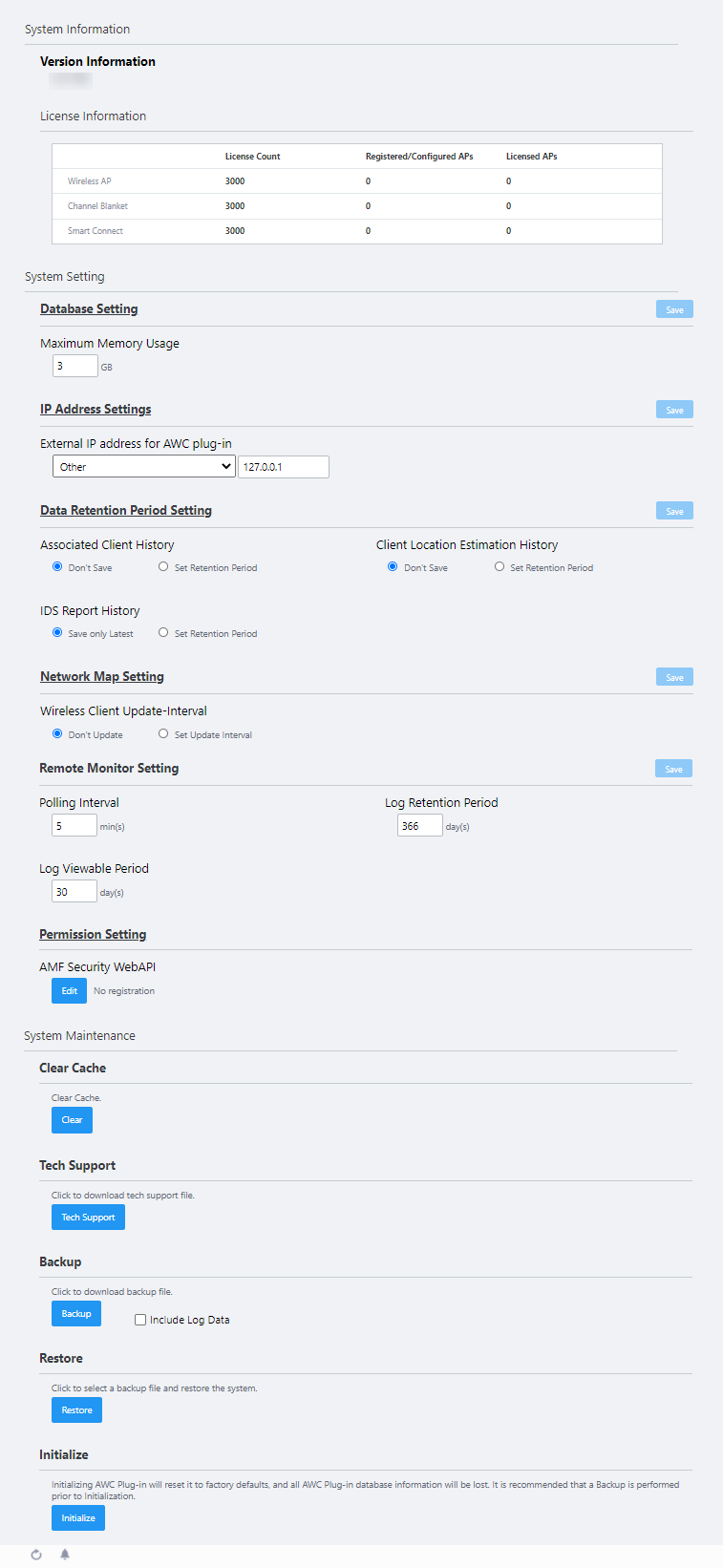

System Setting

• Wireless AP:
  Shows the number of APs allowed by the wireless LAN controller license and the number of APs which are being managed by the AWC Plug-in.

  • License count:
    Shows the number of APs which are allowed to be managed by the installed wireless LAN controller license.


  • Registered/Configured APs:
    Shows the number of APs which have been added to the AWC Plug-in's management database.


  • Licensed APs:
    Shows the number of APs which are being managed by the AWC Plug-in.



• Channel Blanket:
  Shows the number of APs allowed by the channel blanket license and the number of APs which are operating in the AWC Plug-in's channel blankets.

  • License count:
    Shows the number of APs which are allowed to be managed by the installed channel blanket license.


  • Registered/Configured APs:
    Shows the number of APs which have been added to the AWC Plug-in's channel blankets.


  • Licensed APs:
    Shows the number of APs which are operating in the AWC Plug-in's channel blankets.



• Smart Connect:
  Shows the number of APs allowed by the Smart Connect license and the number of APs which are operating in the AWC Plug-in's Smart Connect networks.

  • License count:
    Shows the number of APs which are allowed to be managed by the installed Smart Connect license.


  • Registered/Configured APs:
    Shows the number of APs which have been added to the AWC Plug-in's Smart Connect networks.


  • Licensed APs:
    Shows the number of APs which are operating in the AWC Plug-in's Smart Connect feature.


Note

Changing the maximum memory amount is not supported in the AWC Plug-in for VST-VRT. Use the default setting.

Note

To manage the wireless AP, set this value to be the same as the IP address of the AWC Plug-in server (the "Wireless Controller" application in the VST-VRT configuration screen). After registering the AWC Plug-in and after assigning a new IP address to the AWC Plug-in server, be sure to change it to the same IP address as the AWC Plug-in server.

• Don't Save:
  The AWC Plug-in does not retain associated client history. Clients are not shown on the Floor Map's client history screen.


• Set Retention Period:
  The AWC Plug-in retains associated client histories within the specified period. The range for the retention period can be from 1 to 31 days.


Note

When you change this setting, the associated client history is initialized.

Note

The Data Retention Period Setting can be set up to 31 days on the screen, but the operation with the period up to 14 days is supported.

Note

When you use Associated Client History with the following wireless APs, please set the log severity of the wireless AP to "information(6)" or higher. If the log severity is set to "debug(7)", this feature will not work.
The default value of the log severity of these wireless APs is "information(6)", so if the wireless APs are not configured for logging, this function can still be used.

Affected wireless APs: AT-TQ1402/5403/5403e/6602, AT-TQm1402/5403

The log severity can be set in the Severity of the Syslog client in the AP Profile.
If you want to use the Associated Client History View with the log function of the Syslog Client disabled, please change "Syslog Client" to "Enable" and "Severity" to "6 : informational" in the AP Profile (the Syslog server IP address/host name can be a fictitious address), apply this AP common setting to the wireless AP, and then set "Syslog Client" to "Disable" in the AP Profile and apply it again. Translated with www.DeepL.com/Translator (free version)

• Don't Save:
  The AWC Plug-in does not retain estimated client location information. Clients are not shown on the Floor Map's associated client location estimation history screen. The device counter in the Floor Map Associated Client View will also not count the number of clients of which the locations are estimated.


• Set Retention Period:
  The AWC Plug-in retains client location estimation histories within the specified period. The range for the retention period can be from 1 to 31 days.


Note

When you change this setting, the client location estimation history will be initialized.

Note

The Data Retention Period Setting can be set up to 31 days on the screen, but the operation with the period up to 14 days is supported.

Note

When this feature is enabled, the maximum number of wireless APs that can have CB Profiles applied is 500 over the entire system.

• Save only latest:
  The AWC Plug-in only retains neighbor AP information that has been detected within the last day. Rogue APs are not shown in the Floor Map's Rogue AP View.


• Set Retention Period:
  The AWC Plug-in retains neighbor AP information that has been detected during the specified period. The range for the retention period can be from 1 to 31 days.


Note

When you change this setting, the IDS report information is initialized.

Note

The Data Retention Period Setting can be set up to 31 days on the screen, but the operation with the period up to 14 days is supported.

• Don't Update:
  The AWC Plug-in does not refresh client information automatically.


• Set Update Interval:
  The AWC Plug-in refreshes client information automatically. The range for refresh interval can be from 1 to 9999 minutes. The update interval for links between AWC-SC APs on the Network Map also depends on this setting. It is set to 1 minute by default.


Note

This item is not supported.

Note

This button is for the maintenance by our service staff. Do not click.
