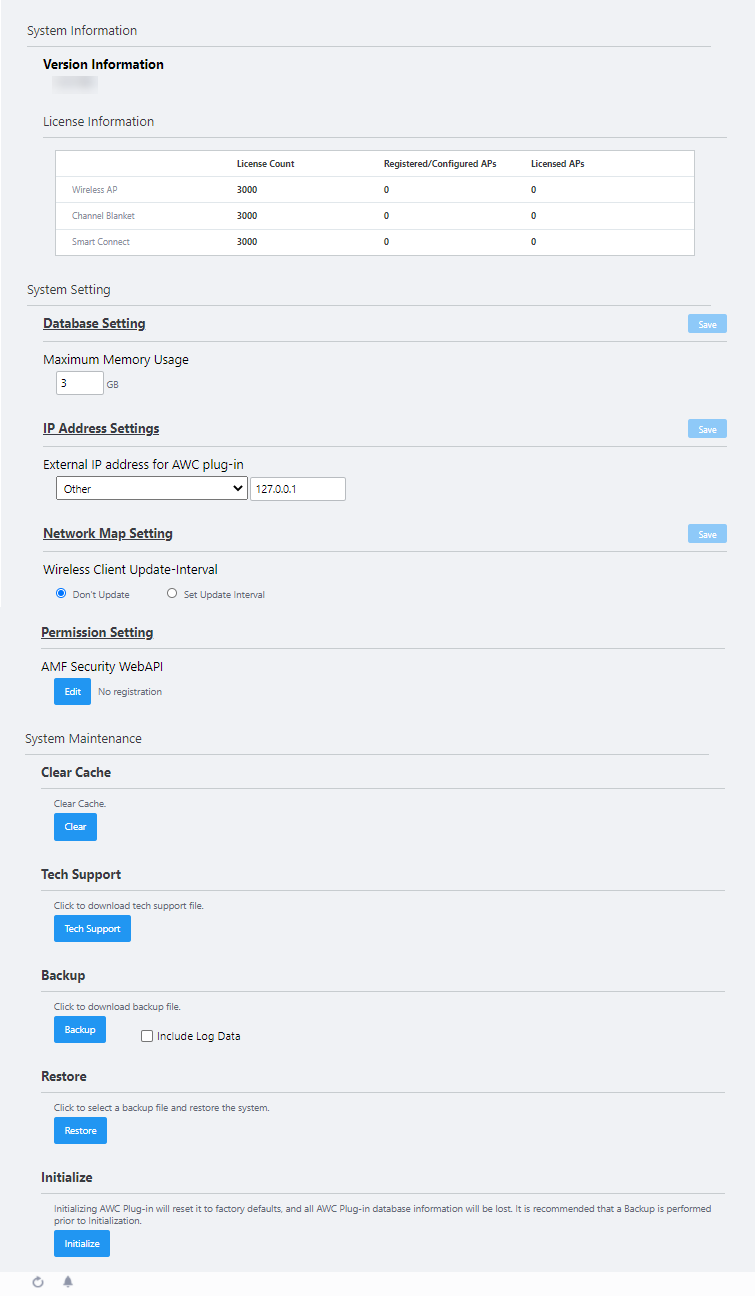

System Setting

• Wireless AP:
  Shows the number of APs allowed by the wireless LAN controller license and the number of APs which are being managed by the AWC Plug-in.

  • License count:
    Shows the number of APs which are allowed to be managed by the installed wireless LAN controller license.


  • Registered/Configured APs:
    Shows the number of APs which have been added to the AWC Plug-in's management database.


  • Licensed APs:
    Shows the number of APs which are being managed by the AWC Plug-in.



• Channel Blanket:
  Shows the number of APs allowed by the channel blanket license and the number of APs which are operating in the AWC Plug-in's channel blankets.

  • License count:
    Shows the number of APs which are allowed to be managed by the installed channel blanket license.


  • Registered/Configured APs:
    Shows the number of APs which have been added to the AWC Plug-in's channel blankets.


  • Licensed APs:
    Shows the number of APs which are operating in the AWC Plug-in's channel blankets.



• Smart Connect:
  Shows the number of APs allowed by the Smart Connect license and the number of APs which are operating in the AWC Plug-in's Smart Connect networks.

  • License count:
    Shows the number of APs which are allowed to be managed by the installed Smart Connect license.


  • Registered/Configured APs:
    Shows the number of APs which have been added to the AWC Plug-in's Smart Connect networks.


  • Licensed APs:
    Shows the number of APs which are operating in the AWC Plug-in's Smart Connect feature.


Note

Changing the maximum memory amount is not supported in the AWC Plug-in for VST-VRT. Use the default setting.

Note

To manage the wireless AP, set this value to be the same as the IP address of the AWC Plug-in server (the "Wireless Controller" application in the VST-VRT configuration screen). After registering the AWC Plug-in and after assigning a new IP address to the AWC Plug-in server, be sure to change it to the same IP address as the AWC Plug-in server.

• Don't Update:
  The AWC Plug-in does not refresh client information automatically.


• Set Update Interval:
  The AWC Plug-in refreshes client information automatically. The range for refresh interval can be from 1 to 9999 minutes. The update interval for links between AWC-SC APs on the Network Map also depends on this setting. It is set to 1 minute by default.


• "Edit" button:
  Displays "Permission Setting (AMF Security WebAPI) dialog box.

  ◼ Permission Setting (AMF Security WebAPI) dialog box
  When the AMF Security server (AT-SESC or AMF Security mini) receives a threat event, it queries the AWC plug-in for the MAC address from the IP address of the threat device via Web API.
  Register the IP address of the AMF Security server that you want to allow access to in order to respond only to inquiries from legitimate AMF Security servers.
  AMF Security Server IP addresses can be registered up to 1,024 entries.


  • Permitted IP Address:
    Enter the IP address of the AMF Security server to grant access to.

  • "Add" button:
    Add the IP address to the list.

  • "Clear" button:
    Clear the Permitted IP address field.

  • IP Address list

    • X IP Address:
      Shows the number of IP address entries registered to the list.

    • Search IP address:
      Search for a particular IP address.
      Enter a partial string to match. The list shows entries with that string in the "IP Address" field.
      To remove the filter, delete the string from the search field and press enter.

    • IP Address:
      Displays registered IP address of the AMF Security server (AT-SESC or AMF Security mini).

    • Delete (trashbin icon):
      Deletes the entry of AMF Security server IP Address.

  • "Save" button:
    Save changes of the permission setting and close the dialog box.

  • "Close" button:
    Discard changes of the permission setting and close the dialog box.


Note

This button is for maintenance purposes. For use by service staff only.
