Overview

Operation Reference > Channel Blanket > Overview

AWC-CB (AWC-Channel Blanket)
Required Licenses
Supported Wireless APs
Support Limits
Steps to Create a Hybrid Wireless System
Notes
Supported Functions on CB VAP per AP Model

AWC-CB (AWC-Channel Blanket)

AWC-CB (AWC-Channel Blanket) is a single-channel architecture. This means that multiple wireless APs use the same channel and form a single large virtual AP to provide network access to clients. The main difference between single-channel and multi-channel architectures is the use of the Wi-Fi channels. Multi-channel uses all available channels which are carefully managed to avoid interference, whereas single-channel uses one wireless channel to create a single "blanket" of wireless coverage, thereby eliminating interference.

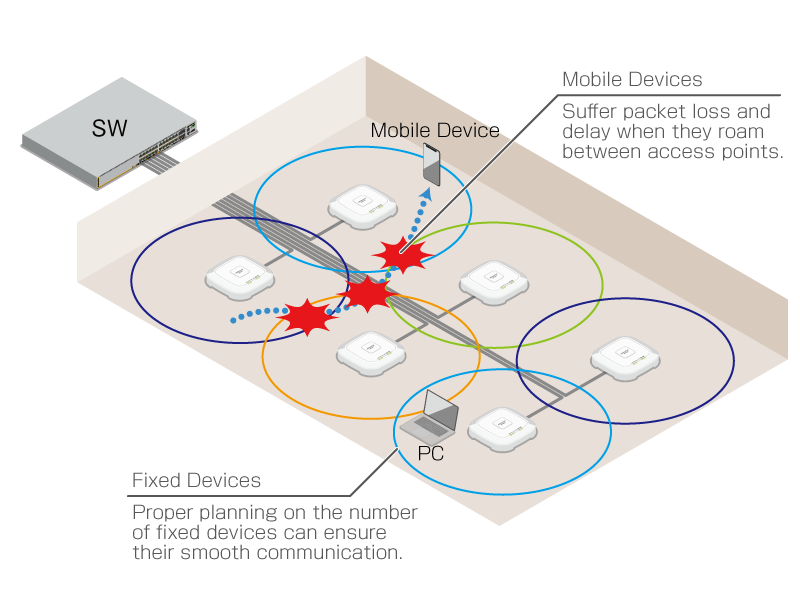

◼ Multi-channel Wireless Networks
In a conventional multi-channel wireless network, multiple wireless APs are configured to use different channels to cover a wider area than a single AP can cover.
With this configuration, there are complexities in channel planning, and problems such as packet loss, caused by inter-AP roaming, and slow traffic, caused by sticky clients. Sticky clients maintain their association with the AP that they are initially connected to, even once that AP is at a distance.

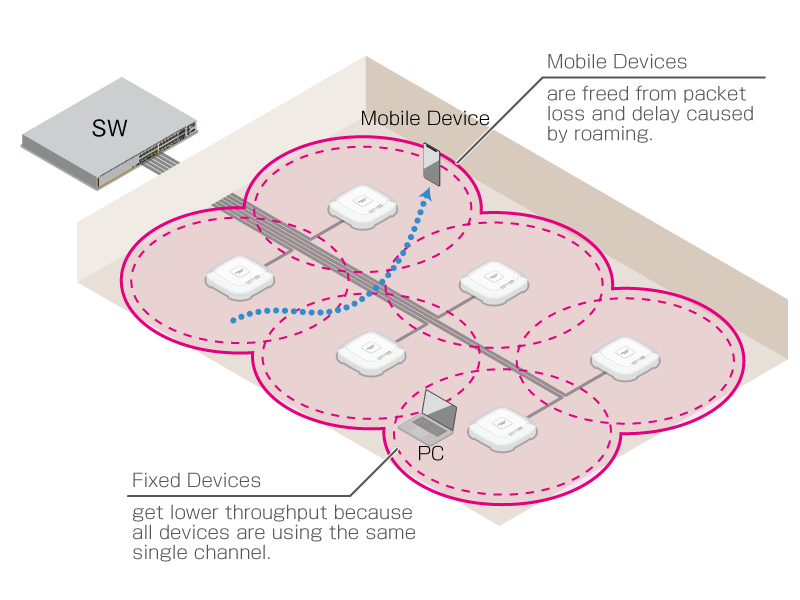

◼ Blanket Wireless Network
On the other hand, in a channel blanket (or blanket) wireless network, multiple wireless APs use the same channel and form a single large virtual AP to provide network access to clients. In this configuration, communications can be more stable, without roaming causing packet loss and sticky clients, because only a single channel is used. This also removes the need for complex channel planning.
However, because all clients send and receive traffic on the same channel, only a single AP can transmit at a given moment, therefore downlink throughput will decrease.
AWC-CB uses patented "Multi-Communication Technology" to let multiple clients on a blanket network send/receive data simultaneously using separate APs, as long as they do not interfere with each other.

The following table shows the differences between multi-channel and blanket wireless networks.
Table 1: Comparison between Multi-channel and Blanket Wireless Networks
  Multi-channel (Conventional) Blanket
Roaming POOR...
Depending on clients 		GOOD
Zero Time
Easy Deployment NOT GOOD...
Complex channel planning is required 		GOOD
Because of using a single channel,
channel planning is not required
Throughput OKAY
By limiting the number of clients per cell
high throughput can be achieved. 		POOR...
Because of using a single channel,
throughput decreases with more clients

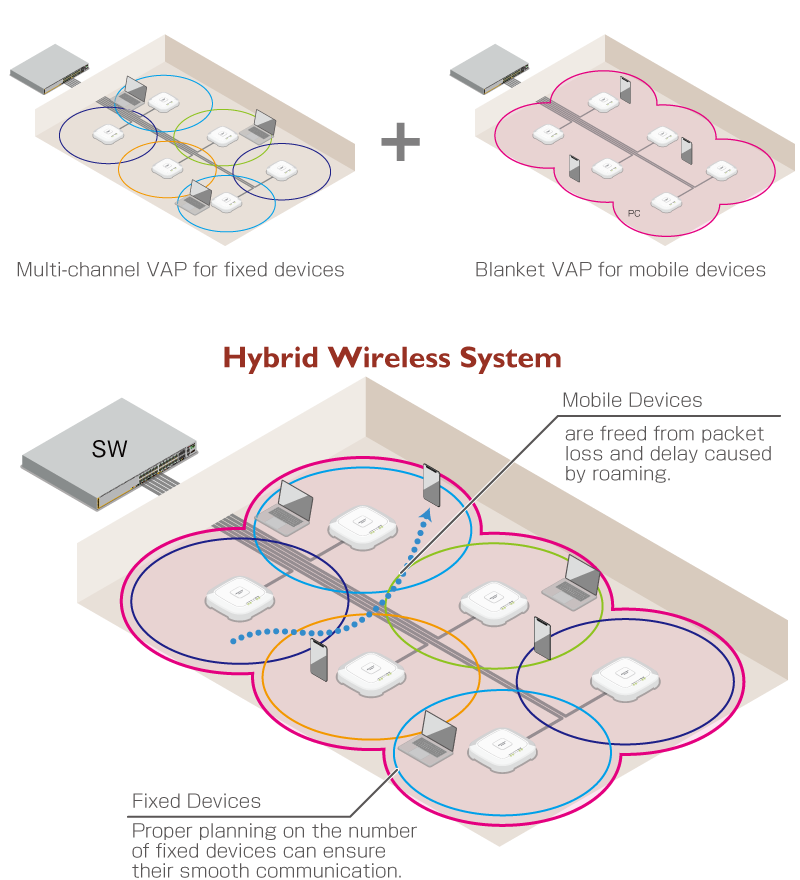

◼ Hybrid Wireless System
With AWC-CB, it is possible to easily build a hybrid wireless network, which combines the strengths of both multi-channel and blanket networks. Multi-channel and blanket networks can be configured on a single AP, where the multi-channel networks are defined as ordinary VAPs in an AP Profile and the blanket networks are defined as VAPs in a CB Profile.
For example, by assigning static, high-throughput stations such as PCs to multi-channel VAPs and putting mobile, low-throughput devices in blanket VAPs, your network as a whole can be utilized and managed more efficiently.

Note
Because a channel blanket controls multiple APs as a single large virtual AP, individual APs in the channel blanket transmit beacon signals in turn. Some clients may appear to have unstable signal strength, due to receiving beacon signals from wireless APs other than the wireless AP that they are connected to. This does not cause any problems with network traffic quality.

Required Licenses

The following licenses are required to use AWC-CB functions with the AWC Plug-in:
For the Wireless Channel Blanket license, you might need more than one license, depending on how many APs you want to operate in AWC-CB (AWC-Channel Blanket) mode. A single Wireless Channel Blanket license lets you operate 10 APs in AWC-CB mode. Adding more licenses increases the number of APs which can operate in AWC-CB mode.
For example, the following licenses are needed when you run 40 APs in a multi-channel wireless network and 25 APs in a channel blanket network.
Table 2: An example of required licenses
  Multi-channel AWC-CB Total
Number of APs 40 25 65
Vista Manager EX License 1 1
Wireless LAN Controller License (10 APs) 4
(Max 40) 		3
(Max 30) 		7
Wireless Channel Blanket License (10 APs) - 3
(Max 30) 		3

Supported Wireless APs

The following AP models support AWC-CB.
Note
Model groups, TQ5403 and TQ5403e, AT-TQ6602, TQ6602 GEN2 and TQ6702 GEN2, cannot be mixed.
The combination of TQ5403 and TQ5403e, or, TQ6602 GEN2 and TQ6702 GEN2 can be used.

Support Limits

The number of CB Profiles, channel blankets, APs per channel blanket, VAPs per channel blanket, and wireless clients that can be supported are:

Steps to Create a Hybrid Wireless System

To build a hybrid wireless system, follow the steps below.

◼ Build from scratch (with new wireless APs)
  1. Physically install the APs.
  2. Add the APs to the AWC Plug-in's management database.
    Add them on the AP Settings page.
  3. Place the APs on floor maps.
    Create floor maps and place APs on them on the Floor Map page.
    If you select APs from a list of APs in a management group at step 6, you do not need to create floor maps. However, it is recommended that you create floor maps if you have a lot of APs in a single management group.
  4. Next, create the AP profile.
    Create an AP Profile on the AP Profile page. Then configure general, system, wired network, wireless network and multi-channel VAPs.
  5. Create a CB Profile, which bundles together the common settings for a blanket network.
    Create a CB Profile on the CB Profile page. Then configure CB VAPs (VAPs for blanket networks) in addition to the profile name and management group.
  6. Create a channel blanket which you want to apply the CB Profile to.
    Create a channel blanket on the CB Profile page and select member APs.
    Member APs can be selected visually on floor maps, or can be selected on a list of APs in a management group.
    Refer to Create Channel Blanket for more details.
  7. Apply the AP Profile to the APs.
    The APs remain unmanaged until you apply an AP Profile to them.
    Once the AP Profile is applied to the APs on the AP Settings page, the APs' status changes to "Managed" and both multi-channel and blanket networks are made operational.

◼ Re-configure existing APs
  1. Create a CB Profile, which bundles together the common settings for a blanket network.
    Create a CB Profile on the CB Profile page. Then configure CB VAPs (VAPs for blanket networks) in addition to the profile name and management group.
  2. Create a channel blanket which you want to apply the CB Profile to.
    Create a channel blanket on the CB Profile page and select member APs.
    Member APs can be selected visually on floor maps, or can be selected on a list of APs in a management group.
    Refer to Create Channel Blanket for more details.
  3. Apply changes to the APs.
    Once the CB Profile is applied to the APs on the CB Profile page, the blanket network becomes operational in addition to the existing multi-channel networks.
    Refer to Apply CB Profile for more details.

Notes

Please note the following items when you are configuring VAPs:

◼ Notes

◼ Per Network
When using the channel blanket feature, please note the following for switches on the subnet where the wireless AP is located.

◼ Per Management Group
When using the channel blanket function, please note the following in the management groups to which the relevant APs belong

◼ Per AP
When using the channel blanket function, please note the following in the AP profiles and individual settings that apply to the relevant APs.

◼ Per Radio
When using the channel blanket function, please note the following points in the applicable AP profiles and CB profiles for the radio bands (Radio 1/Radio 2/Radio 3) that use channel blanket.

◼ Per CB VAP
When using the channel blanket feature, please note the following in the CB profiles to be applied.

Supported Functions on CB VAP per AP Model

CB VAPs (VAPs for a channel blanket) are configured in a CB Profile.
CB VAPs and multi-channel VAPs (ordinary VAPs) have different supported functions, as shown below.
Table 3: Supported functions on Multi-channel and Blanket VAPs
Item Name TQ Comment
5403/5403e 6602 6602 GEN2
6702 GEN2
Multi-channel VAP Blanket (CB) VAP Multi-channel VAP Blanket (CB) VAP Multi-channel VAP Blanket (CB) VAP
Radio N Y N Y N Y
VAP N Y N Y N Y This item refers to the VAP number that is overwritten by the CB VAP.
Channel N Y N Y N Y
VAP Status Y Y Y Y Y Y
VLAN ID Y Y Y Y Y Y
SSID Y Y Y Y Y Y
  Broadcast SSID Y Y Y Y Y Y
Security None Y Y Y Y Y Y
Static WEP Y Y Y N Y N This can be configured only on VAP1 of each radio. Do not use a mode that contains IEEE 802.11n in the AP profile of APs using channel blanket.
  Key Length 64bit Y Y Y N Y N
128bit Y Y Y N Y N
Key Type ASCII Y Y Y N Y N
Hexadecimal Y Y Y N Y N
Key Index Y Y Y N Y N
Security Key (WEP Key) Y Y Y N Y N
WEP Authentication Method Open System Y Y Y N Y N
Shared Key Y Y Y N Y N
WPA Personal Y Y Y Y Y Y
  Security Key (WPA-PSK) Y Y Y Y Y Y
WPA versions WPA3 Y N Y N Y Y
WPA2 Y Y Y Y Y Y
WPA Y Y Y Y Y Y
Encryption Protocol CCMP Y Y Y Y Y Y
TKIP Y Y Y Y Y Y
Management Frame Protection Y Y Y Y Y Y
Broadcast Key Refresh Rate Y N Y N Y N TQ5403, TQ5403e and TQ6602 have the setting item, but are not supported.
WPA Enterprise Y Y Y Y Y Y
  RADIUS Server Primary IP Address Y Y Y Y Y Y
RADIUS Server Primary Secret Y Y Y Y Y Y
RADIUS Server Secondary IP Address Y Y Y Y Y Y
RADIUS Server Secondary Secret Y Y Y Y Y Y
RADIUS Server Port Number Y Y Y Y Y Y
Pre-authentication Y N Y N Y N Pre-Authentication is not supported on CB VAPs.
WPA versions WPA3 Y N Y N Y Y
WPA2 Y Y Y Y Y Y
WPA Y Y Y Y Y Y
Encryption Protocol GCMP Y N Y N Y Y
CCMP Y Y Y Y Y Y
TKIP Y Y Y Y Y Y
Management Frame Protection Y Y Y Y Y Y
Broadcast Key Refresh Rate Y N Y N Y N TQ5403, TQ5403e and TQ6602 have the setting item, but are not supported.
RADIUS Accounting Y N Y N Y N TQ5403, TQ5403e and TQ6602 have the setting item, but are not supported.
RADIUS Accounting Port Number Y Y Y Y Y N
Dynamic VLAN Y N Y N Y Y
Captive Portal Y N Y Y Y Y
  External RADIUS Y N Y Y Y Y
  Authentication Page Proxy Y N Y Y Y Y
RADIUS Server Primary IP Address Y N Y Y Y Y
RADIUS Server Primary Secret Y N Y Y Y Y
RADIUS Server Secondary IP Address Y N Y Y Y Y
RADIUS Server Secondary Secret Y N Y Y Y Y
RADIUS Server Port Number Y N Y Y Y Y
RADIUS Accounting Y N Y N Y N
  RADIUS Accounting Port Number Y N Y N Y N
Redirect type (after user is authenticated) Y N Y Y Y Y
Walled Garden Y N Y Y Y Y
DNS Proxy for Walled Garden N N N N Y Y
Virtual IP Address for Captive Portal Y Y* Y Y* Y Y* TQ5403/5403e will be supported with firmware version 6.0.2-0.1.
For any of TQ5403, TQ5403e, TQ6602, TQ6602 GEN2 and TQ6702 GEN2, the CB Profile do not have a individual setting item. The Virtual IP Address for Captive Portal set in the AP Profile will be applied.
Session Timeout Y N Y N Y Y
Session Timeout Action Y N Y N Y Y
Click-through Y N Y Y Y Y
  Authentication Page Proxy Y N Y Y Y Y
Redirect type (after user is authenticated) Y N Y Y Y Y
Walled Garden Y N Y Y Y Y
DNS Proxy for Walled Garden N N N N Y Y
Virtual IP Address for Captive Portal Y Y* Y Y* Y Y* TQ5403/5403e will be supported with firmware version 6.0.2-0.1.
For any of TQ5403, TQ5403e, TQ6602, TQ6602 GEN2 and TQ6702 GEN2, the CB Profile do not have a individual setting item. The Virtual IP Address for Captive Portal set in the AP Profile will be applied.
Session Timeout Y N Y N Y Y
Session Timeout Action Y N Y N Y Y
External Page Redirect Y N Y Y Y Y
  External Page URL Y N Y Y Y Y
RADIUS Server Primary IP Address Y N Y Y Y Y
RADIUS Server Primary Secret Y N Y Y Y Y
RADIUS Server Secondary IP Address Y N Y Y Y Y
RADIUS Server Secondary Secret Y N Y Y Y Y
RADIUS Server Port Number Y N Y Y Y Y
RADIUS Accounting Y N Y N Y N
  RADIUS Accounting Port Number Y N Y N Y N
Redirect type (after user is authenticated) Y N Y Y Y Y
Walled Garden Y N Y Y Y Y
DNS Proxy for Walled Garden N N N N Y Y
Virtual IP Address for Captive Portal Y Y* Y Y* Y Y* TQ5403/5403e will be supported with firmware version 6.0.2-0.1.
For any of TQ5403, TQ5403e, TQ6602, TQ6602 GEN2 and TQ6702 GEN2, the CB Profile do not have a individual setting item. The Virtual IP Address for Captive Portal set in the AP Profile will be applied.
Session Timeout Y N Y N Y Y
Session Timeout Action Y N Y N Y Y
MAC Access Control Y Y Y Y Y Y
  MAC Address List Y Y Y Y Y Y
  Selected List Y Y* Y Y* Y Y* * This item is not displayed on the CB VAP configuration page.
The MAC Address List that is selected for the AP Profile is applied to CB VAPs.
External RADIUS Y Y* Y Y* Y Y* TQ5403, TQ5403e firmware version 6.0.1-2.x or later; TQ6602 firmware version 7.0.1-0.1 or later; TQ6602 GEN2, TQ6702 GEN2 firmware version 8.0.2-1.1 or later is required.
  RADIUS Server Primary IP Address Y Y* Y Y* Y Y*
RADIUS Server Primary Secret Y Y* Y Y* Y Y*
RADIUS Server Secondary IP Address Y Y* Y Y* Y Y*
RADIUS Server Secondary Secret Y Y* Y Y* Y Y*
RADIUS Server Port Number Y Y* Y Y* Y Y*
User-Name Format Separator Y Y* Y Y* Y Y*
User-Name Format Letter Case Y Y* Y Y* Y Y*
User-Password Format Y Y* Y Y* Y Y*
User-Password Format Password Y Y* Y Y* Y Y*
Area Authentication Y Y Y N Y Y
Fast Roaming Y N Y N Y N TQ5403, TQ5403e and TQ6602 have the setting item, but are not supported.
  802.11r FT Y N Y N Y N
FT over DS Y N Y N Y N
Mobility Domain Y N Y N Y N
R0 key Lifetime Y N Y N Y N
AES Key Y N Y N Y N
802.11k RRM Y N Y N Y N
802.11v WNM Y N Y N Y N
Wireless Client Isolation Y* Y Y* Y Y* Y * For multi-channel VAPs, this is configured in the "Radio Configuration" section of an AP profile. For CB VAPs, the setting for the CB VAP is preferred. The setting in the AP profile is ignored.
Inactivity Timer Y N Y N Y N
Duplicate AUTH received Y Y* N N Y Y* TQ5403/5403e firmware version 6.0.1-6.1 or later is required to change the settings for this item in the CB VAP.
On CB profile for TQ6602 GEN2/TQ6702 GEN2, this item is fixed to "Ignore".
Association Advertisement Y Y Y Y Y Y
DTIM Period Y* Y Y* Y Y* Y * For multi-channel VAPs, this is configured in the "Radio Configuration" section of an AP profile.
RSSI Threshold N Y N Y N Y
Tx Power Y* Y Y* Y Y* Y * For multi-channel VAPs, this is configured on the AP-specific configuration page.
If the Tx Power is changed in the per-AP setting when using channel blanket, the per-AP setting takes precedence to CB Profile setting.
Proxy ARP Y Y Y Y Y Y
Force Power Save Disabled N Y N N N Y TQ6602 can be configured but is not supported.
