Floor Map Detail [Add AP to Map]

Screen Reference > Wireless Monitoring > Floor Map Detail [Add AP to Map]

In this view, you can place an AP on the floor map.

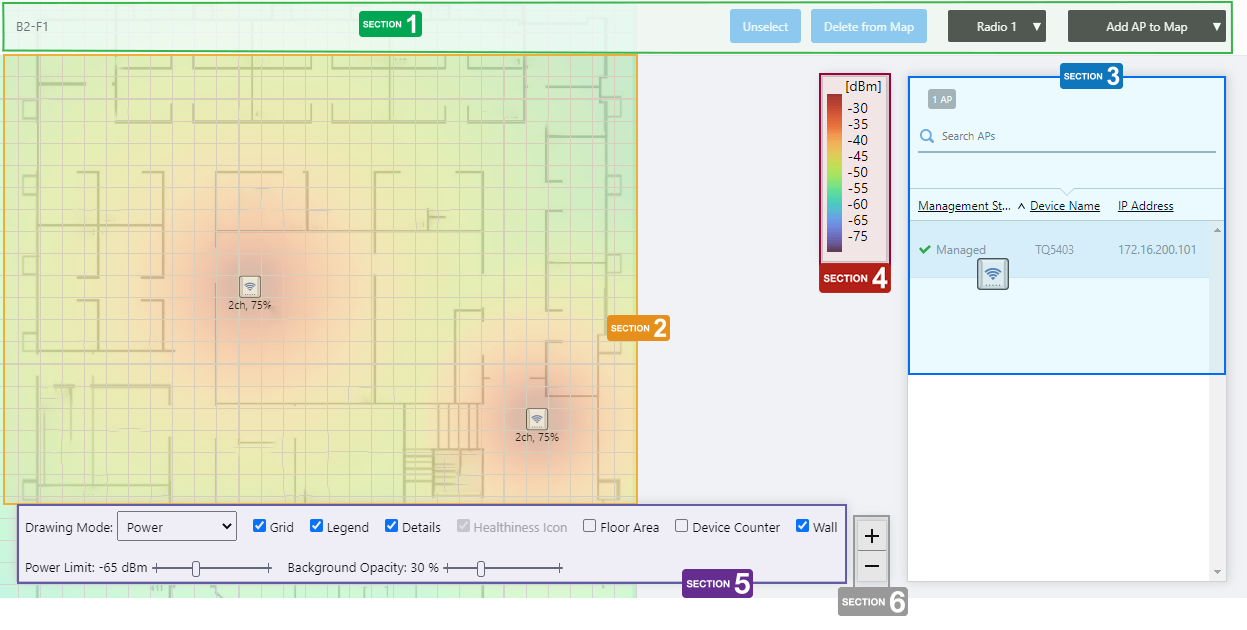

Section 1

Table 1: Floor Map Header
Item Name	Description
Management Group / Floor Map Group	The floor map name and the management group of the selected floor map will be displayed.
"Unselect" button	Deselects the currently selected (blue button) wireless APs.
"Delete from Map" button	Removes the currently selected (blue button) wireless APs from the map.
Radio dropdown menu	Select which radio band information to display from Radio 1, Radio 2, Radio 3, or "All Radios". The default is "All Radios". If you select "All Radios", wireless client information for all bands (Radio 1, Radio 2, and Radio 3) will be displayed.
View Selection dropdown menu	Lets you change what information is displayed on the Floor Map Details screen. Wireless Status View Wireless Client Smart Connect View Rogue AP View Add AP to Map Edit Area Edit Wall
"Back to list" button	Click to return to the Floor Map List screen.

Section 2

When you click the row of the AP you want to place on the Map from the list of unallocated APs in Section 3, the mouse pointer changes to the wireless AP icon.
By clicking on the grid of the floor map with the icon, you can place the AP on the floor map.
The status of the placed AP will be displayed on the floor map, depending on what you previously selected in the View Selection dropdown menu. If you selected "Smart Connect View" in the dropdown menu, you will see the AP's Smart Connect status, and if you selected a different view, the AP status will be drawn on the floor map according to the "Wireless Status View".
If you want to move an AP icon on the floor map, you can drag and drop it on the place you want it to move to.
To remove an AP icon on the floor map, click on it to select it (the selected icon will drawn with a blue circle behind it) and then click the "Delete from Map" button at the top right of the content section.
You can select multiple APs by clicking them one by one.
To deselect, click on the "Unselect" button at the top right of the content section.

The changes (placement, relocation, and removal) on the floor map are saved immediately.

Section 3

Shows the wireless AP list.
The list contains only the APs that belong to the same management group as the map, and that are not yet placed on any map.

Table 2: Floor Map Unallocated AP List
Item Name	Description
X AP	Displays the number of wireless APs under the management group to which the floor map belongs, that are not yet placed on any floor map.
Search Wireless AP	You can search for wireless APs not placed on the floor map. The Search field lets you enter a partial string to match. The screen displays entries with that string in one of the following fields: "Management Status", "Device Name", "IP address", or "AP Profile". To remove the filter, delete the string from the Search field and press Enter. Note The search is case-sensitive.
Device Name	Shows the name given to the AP.
Status Icon	When the AP is managed by the AWC Plug-in, a green checkmark is displayed. When the AP is not managed by the AWC Plug-in, a red triangle is displayed.
Management Status	Shows the management status of the AP.
IP Address	Shows the AP's IP address.

Section 4

Shows the legend of either the Wireless Status View or Smart Connect View.
The legend will be shown according to the immediately previous selection of the Views; the Smart Connect View legend for Smart Connect View, and the Wireless Status View legend for the others.

Section 5

The legend will be shown according to the immediately previous selection of the Views; the Smart Connect View legend for Smart Connect View, and the Wireless Status View legend for the others.

Table 3: Floor Map Control
Item Name	Description
Drawing Mode	The options in the Drawing Mode dropdown menu differ according to the immediately previous selection of the Views. If you chose Smart Connect View previously, the Drawing Mode dropdown comes with Topology and Traffic, and if you chose another view, the dropdown comes with Power and Channel.
Grid	Lets you enable or disable grid lines on the floor map. Checking this shows grid lines on the floor map.
Legend	Lets you enable or disable the legend. Check to display.
Details	Whether to display List of unallocated APs. Check to display.
Healthiness Icon	Whether to display the Healthiness Icon. This will work if you chose Smart Connect View from the View Selection dropdown menu immediately before, and you chose Topology from the Drawing Mode. Otherwise, this is irrelevant and disabled. Check to display.
Floor Area	If areas have been created on the floor map (using the Edit Area page), lets you choose whether to display the areas. Check to display.
Device Counter	On the top left of an area, indicates the number of registered APs that are arranged in the area.
Power Limit	You can set the lower limit of the wireless strength that is drawn on the heat map display, if you chose a view other than Smart Connect View from the View Selection dropdown menu immediately before.
Wall	If walls have been created on the floor map (using the Edit Wall page), this lets you choose whether to display the walls. Check to display.
Opacity	Specify the opacity of the floor map background image.

Section 6

Zoom In/Out buttons.
You can zoom in (+) or zoom out (-) of the floor map display. You can also use the mouse wheel scroll to zoom in or out.
