IE220-6GHX
Industrial Ethernet Layer 2+ Switch

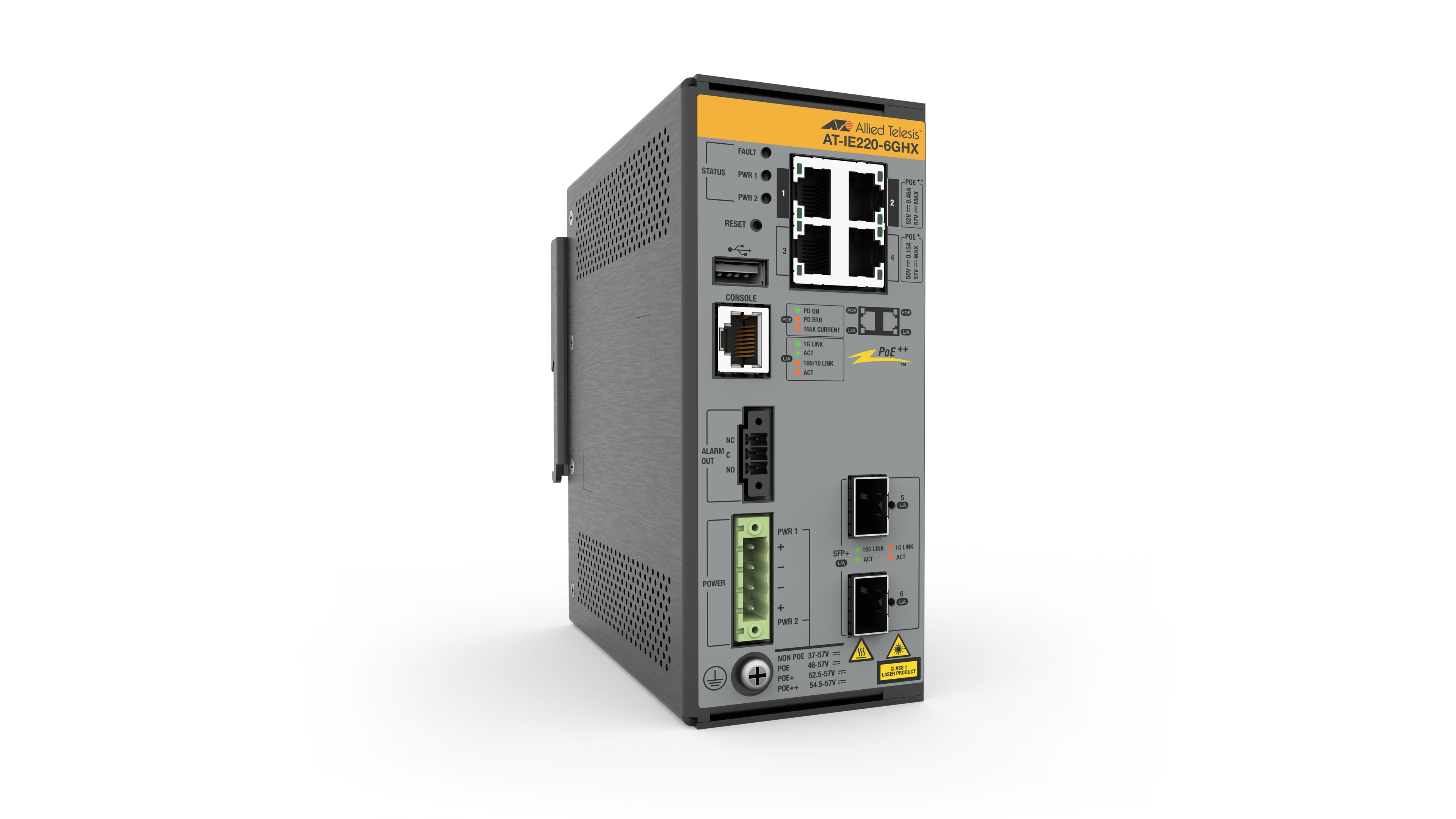

The Allied Telesis IE220-6GHX managed switch features 4x 10/100/1000T copper ports and 2x 1G/10G SFP+ uplinks. Built for enduring performance in harsh environments, this switch is ideal for OT networks and outdoor installations.
Specifications
| Product | 10/100/1000T (RJ-45) Copper Ports | 1/10G SFP Ports | Total Ports | PoE Enabled Ports | Switching Fabric | Forwarding Rate |
|---|---|---|---|---|---|---|
| IE220-6GHX | 4 | 2 | 6 | 2 x PoE++, 4 x PoE+ | 48Gbps | 37.7Mpps |
| IE220-10GHX | 8 | 2 | 10 | 2 x PoE++, 8 x PoE+ | 56Gbps | 41.7Mpps |
Physical
| Product | Width x Depth x Height | Weight | Enclosure | Mounting | Protection Rate |
|---|---|---|---|---|---|
| IE220-6GHX | 65 x 137 x 155 mm (2.56 x 5.39 x 6.12 in) | DIN rail: 1.57 kg (3.46 lbs) Wall mount: 1.45 kg (3.20 lbs) | Aluminium/Sheet Metal shell | DIN rail, wall mount | IP30 |
| IE220-10GHX | 65 x 137 x 155 mm (2.56 x 5.39 x 6.12 in) | DIN rail: 1.60 kg (3.53 lbs) Wall mount: 1.49 kg (3.28 lbs) | Aluminium/Sheet Metal shell | DIN rail, wall mount | IP30 |
Power Characteristics
| Product | Input Voltage(1) | Cooling | No PoE Load Max Power Consumption | No PoE Load Max Heat Dissipation | No PoE Load Noise | Full PoE Load(2) Max Power Consumption | Full PoE Load(2) Max Heat Dissipation | Full PoE Load(2) Noise |
|---|---|---|---|---|---|---|---|---|
| IE220-6GHX | 37~57V DC | Fanless | 17.4W | 59.5 BTU/hr | - | 204W | 80.3 BTU/hr | - |
| IE220-10GHX | 37~57V DC | Fanless | 18.5W | 63.3 BTU/hr | - | 266W | 87.78 BTU/hr | - |
(1) PoE sourcing equipment require:
48Vdc to enable IEEE802.3at Type 1 (PoE)
54Vdc to enable IEEE802.3at Type 2 (PoE+), IEEE802.3bt Type 3 (PoE++) and IEEE802.3bt Type 4 (PoE++)
(2) The Max Power consumption at full PoE load includes the powered device’s consumption and margin. The cooling requirements of the switch are smaller than the power draw, because most of the load is dissipated at the PoE powered device and along the cabling. Use these wattage and BTU ratings for facility capacity planning
Power over Ethernet Sourcing Characteristics
| Product | Enabled PoE Ports PoE+ | Enabled PoE Ports Hi-PoE | Enabled PoE Ports PoE++ | Max PoE Power Budget(3) | Max PoE Sourcing Ports PoE+ (30W) | Max PoE Sourcing Ports Hi-PoE (60W) | Max PoE Sourcing Ports PoE++ (60W) | Max PoE Sourcing Ports PoE++ (90W) |
|---|---|---|---|---|---|---|---|---|
| IE220-6GHX | 4 | 2 | 2 | 180W | 4 | 2 | 2 | 2 |
| IE220-10GHX | 8 | 4 | 4 | 240W | 8 | 4 | 4 | 2 |
(3) The PoE power budget is shared among all ports; we recommend configuring the dynamic PoE power allocation to optimize the power distribution
Ordering Information
The DIN rail and wall mount kits are included.
The management serial console cable is NOT included.
AT-IE220-6GHX-xx
4x 10/100/1000T, 2x 1G/10G SFP+,
Industrial Ethernet, Layer 2+ Switch
PoE++ Support
AT-IE220-10GHX-xx
8x 10/100/1000T, 2x 1G/10G SFP+
Industrial Ethernet, Layer 2+ Switch
PoE++ Support
Power Supplies
AT-DRB50-48-1
50W @48Vdc, Industrial AC/DC power supply,
DIN rail mount
AT-IE048-240-20
240W @48Vdc, Industrial AC/DC power supply,
DIN rail mount (5 years warranty)
AT-IE048-480-20
480W @48Vdc, Industrial AC/DC power supply,
DIN rail mount (5 years warranty)
AT-SDR120-48
120W @48Vdc, Industrial AC/DC power supply,
DIN rail mount
AT-SDR240-48
240W @48Vdc, Industrial AC/DC power supply,
DIN rail mount
AT-SDR480-48
480W @48Vdc, Industrial AC/DC power supply,
DIN rail mount
Feature Licenses
| Name | Description | Includes |
|---|---|---|
| AT-IE220-FL01 | IE220 Series Premium license | 10G uplink ports Hi-PoE sourcing PoE++ sourcing |
