Floor Map

Screen Reference > Wireless Monitoring > Floor Map

This page allows you to create floor maps to manage APs more efficiently.
Clicking a floor map panel shows its details.

Note
The page is periodically refreshed to display the latest information.

Note
Please do not use the automatic scroll feature of your mouse wheel on the page.

Note
Long floor map names may be truncated on the "Floor Map List" in the panel or list view and the "Floor Map Details" page.
To see an entire name, go to the "Floor Map List" > "List View" icon > "Pencil" icon > "Edit Floor Map" page.

Note
If you sort by IP address, the addresses in an AP list are sorted in lexicographical order.

Floor Map List

Section 1

Table 1: Floor Map List's command buttons
Item Name	Description
Management Group drop-down menu	You can narrow down the floor map to be displayed. The default is "All Management Groups".
Floor Map drop-down menu	You can select the floor map to be configured. The default is "All Floor Maps". When you select one of the floor maps, the display in the center of the contents section will switch from the floor map list view to the floor map detail view.
"Tag" button	Note The "Edit Tags" button cannot be used in Panel View. Edit tags in List View.
"Create" button	Opens the "Create Floor Map" dialog box. Refer to Operation Reference > Floor Map > Configure Floor Maps for more details.

Section 2

Table 2: Floor Map Panel
Item Name	Description

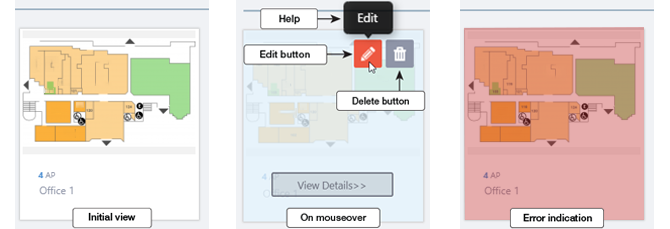

Floor Map Panels	Each floor map is shown as a panel. The name of the floor map and the number of APs placed on the map are shown below the panel. When an Admin user hovers over a panel, that panel will become half-opaque, and "Edit" (pencil) and "Delete" (trashbin) buttons will appear at the top right of the panel Clicking the panel opens the "Floor Map Details" page for the floor map. When a floor map panel is shown in red, one or more APs on the floor map has an issue and have gone out of management. Once all wireless APs are back in management again, the floor map panel will return to its normal state. "Edit" (pencil) button: Opens the "Edit Floor Map" dialog box to edit its name, image file, tags and notes. "Delete" (trashbin) button: Opens the "Delete Floor Map" dialog box to let you delete the floor map. "View Details >>": Moves to the "Floor Map Details" page. Comment Balloon (On mouse-over): Shows the notes for the floor map, if any.

Section 3

This page lists the floor maps that have been created on the AWC Plug-in.
The floor map information displayed depends on the type of information selected in the extended view of the floor map list described below. By default, the basic information is displayed.

Table 3: Floor Map List
Item Name	Description
Details	You can click to see information such as the number of Deployed APs, and Tags, in addition to the default items of Status, Floor Map Name, and Management Group Name. Floor Map Panel will not be displayed in the extended state of Floor Map List. Clicking Details again returns you to the default non-detailed view.
X Deployment Map	Shows the number of floor maps.
Search Floor Map	Entries in the list can be filtered by entering a partial string in the search box. The Search field lets you enter a partial string to match. The screen displays entries with that string in one of the following fields: "Floor Map Name", "Management Group Name" or "Tag". To remove the filter, delete the string from the search field and press enter. Note The search is case-sensitive.
Basic Information
Checkbox	Check this box if you want to select the floor map as the display target.
Status Icon	Overall status of the APs on the floor map is indicated by an icon. A green checkmark means everything is normal. A red triangle indicates some APs on the map have an issue.
Floor Map Name	Shows the name of the floor map.
Management Group	Shows Management Groups for the floor map.
Map Information
Checkbox	Check this box if you want to select the floor map as the display target.
Status Icon	Overall status of the APs on the floor map is indicated by an icon. A green checkmark means everything is normal. A red triangle indicates some APs on the map have an issue.
Floor Map Name	Shows the name of the floor map.
Width[m]	Displays the 2-D width set when the floor map was created (unit: m).
Length[m]	Displays the 2-D height set when the floor map was created (unit: m).

Click the "Detail" button to switch to the expanded view of the Floor Map list.

Table 4: Floor Map List Extended View
Item Name	Description
Details	Click to return to the list display of Status, Floor Map Name, and Management Group Name. The Floor Map Panels will also be displayed on the left side of the Contents section.
X Deployment Map	Shows the number of floor maps.
"Basic Information" / "Map Information" button	Switches the contents of the list.
Search Floor Map	Entries in the list can be filtered by entering a partial string in the search box. The Search field lets you enter a partial string to match. The screen displays entries with that string in one of the following fields: "Floor Map Name", "Management Group Name" or "Tag". To remove the filter, delete the string from the search field and press enter. Note The search is case-sensitive.
Basic Information
Checkbox	To edit tags for floor maps, use the checkbox to select the maps and click this button.
Status Icon	Overall status of the APs on the floor map is indicated by an icon. A green checkmark means everything is normal. A red triangle indicates some APs on the map have an issue.
Floor Map Name	Shows the name of the floor map.
Management Group	Shows Management Groups for the floor map.
Deployed APs	Shows the number of wireless APs placed on the floor map.
Tag	Shows tags added to the floor map.
"Edit" (pencil) button:	Lets you edit the floor map.
"Delete" (trashbin) button:	Lets you delete the floor map.
Map Information
Checkbox	To edit tags for floor maps, use the checkbox to select the maps and click this button.
Status Icon	Overall status of the APs on the floor map is indicated by an icon. A green checkmark means everything is normal. A red triangle indicates some APs on the map have an issue.
Floor Map Name	Shows the name of the floor map.
Width[m]	Displays the 2-D width set when the floor map was created (unit: m).
Length[m]	Displays the 2-D height set when the floor map was created (unit: m).
Origin X[m]	Displays the horizontal position of the origin (upper left) of the floor map image (unit: meter).
Origin Y[m]	Displays the vertical position of the origin (upper left) of the floor map image (unit: meter).
Ceiling Height[m]	Displays the height of the floor in the 3D floor map (unit: meter).
"Edit" (pencil) button:	Lets you edit the floor map.
"Delete" (trashbin) button:	Lets you delete the floor map.

Floor Map Detail Views and 3D Floor Map

You can select the floor map to be displayed from the management group drop-down menu and Floor Map drop-down menu in the header of the Floor Map list.
If you select multiple Floor Maps in the same management group, you can view the layered view of the Floor Maps in 3D.

3D Floor Map
s A 3D layered view of the floor map will be displayed in the following case:
- When a specific management group is selected in the management group drop-down menu at the top of the screen, a specific floor map is not selected in the Floor Map drop-down menu. Multiple floor maps are selected in the Floor Map list on the right side of the screen.
The 3D floor map view allows you to grasp the status of APs, the number of associated clients, and the connections of APs in the AWC-SC configuration across the floor maps in the same management group.
Floor Map Details
The floor map details will be displayed in the following cases:
- When you select a specific management group in the management group drop-down menu at the top of the screen, and then select a specific floor map with one of the following
  - Floor map drop-down menu at the top of the screen
  - Floor map panel in the center of the screen
You can monitor the status of APs, the number of associated clients, and the connections of APs in the AWC-SC configuration, as well as rogue APs detected by each managed AP.
You can also locate the APs on the floor map, edit the area, and edit the walls in the floor map detail view.
