System Management

References > System Management

The "System Management" page is divided into various setting pages such as "About", "Network Settings", and "Log Settings".

About

System Management > About

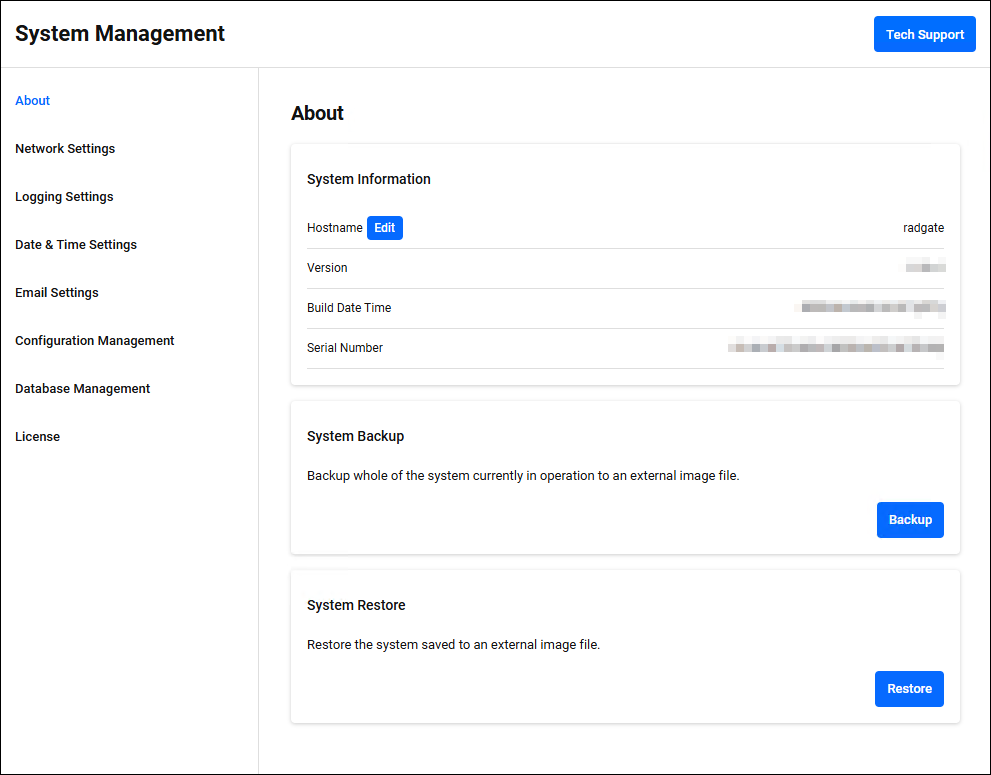

On the "About" page, you can view system information, change the Hostname, and backup and restore your system.

Table 1: Button Functions
Button Name	Description

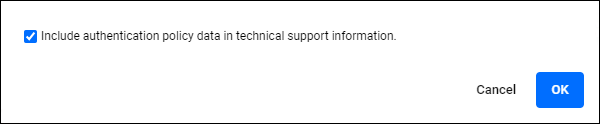

"Tech Support" button	A file for technical support is output. This is intended for cases where checking internal information is required, such as for troubleshooting, so consult our technical staff before using it. By default, the technical support information also includes authentication policy data. If you do not want to attach policy data, uncheck "Include authentication policy data in technical support information." in the dialog that appears after clicking the "Technical Support" button.

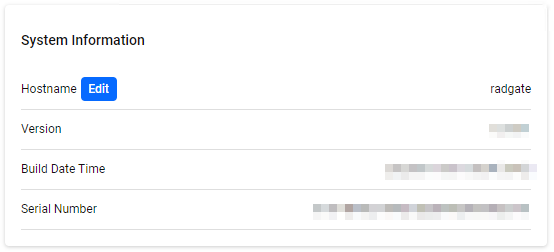

System Information

System Management > About > System Information

You can check the Serial Number etc. You can also change the Hostname of the node on which this system is running.

Table 2: System Information
Item Name	Description
Hostname	The Hostname of the node on which this system is running. The default Hostname is "radgate". Clicking the "Edit" button opens the Hostname dialog, where you can change the Hostname.
Version	The version of the AT-RADgate software currently running.
Build Date Time	This is the creation date and time of the currently running AT-RADgate software.
Serial Number	The Serial Number of this system. This is required when issuing an AT-RADgate license.

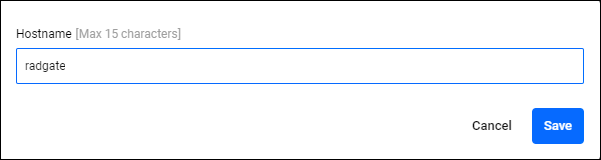

Hostname

In the "Hostname" dialog, you can change the Hostname.

Table 3: Hostname
Item / Button Name	Mandatory	Format	Description
Hostname	×	String (Max 15 characters)	The Hostname of the node on which this system is running. Only lowercase alphanumeric characters and hyphens are allowed (hyphens cannot start or end the name). If you save without entering anything, the default Hostname (radgate) is set.
"Cancel" button	−	−	Stop editing.
"Save" button	−	−	Save the settings.

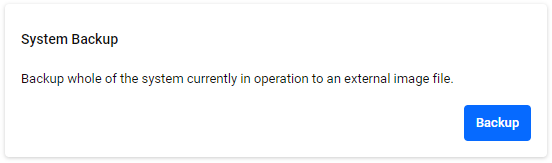

System Backup

System Management > About > System Backup

Save the entire currently running system to an external image file. You can use Restore to return your system to a saved state.

The downloaded file contains the following information:

System Serial Number (on the System Management > About page)
System settings (settings on the System Management page)
Administrator account information (Account Management page)
Authentication policy data (settings on each tab of the Policy Management page)
RADIUS Settings (Settings on the RADIUS Management page)
Event Log (Event Management page)
Software License (System Management > License page)

The downloaded file does not include the following information, so you need to reconfigure it after performing a system restore:

Windows Active Directory Configuration

Table 4: System Backup
Button Name	Description
"Backup" button	Perform a system backup.

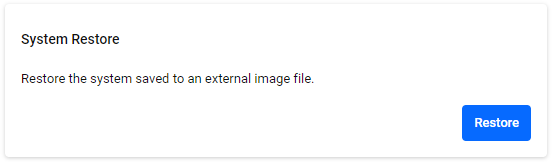

System Restore

System Management > About > System Restore

0se the external image file downloaded in System Backup to restore your system to a saved state.

Note
When you perform a system restore, the node on which AT-RADgate is running automatically reboots.

Table 5: System Restore
Button Name	Description
"Restore" button	Perform a system restore. When you click, a file selection dialog appears, so select the image file and upload it. Returns to a saved system state.

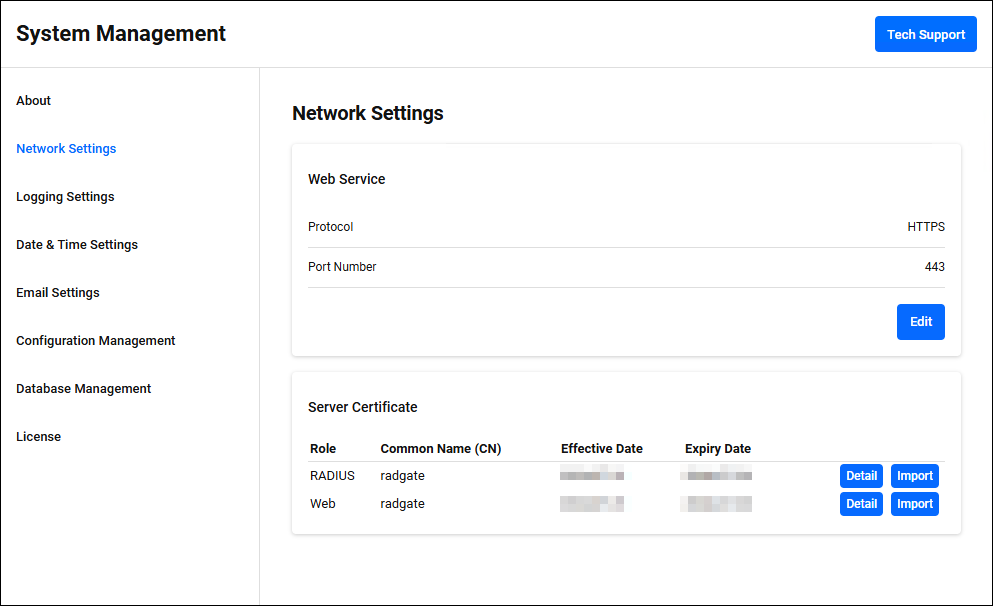

Network Settings

System Management > Network Settings

On the "Network Settings" page, you can configure Web services and Server Certificates (SSL Certificates).

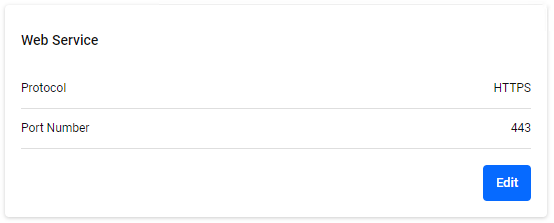

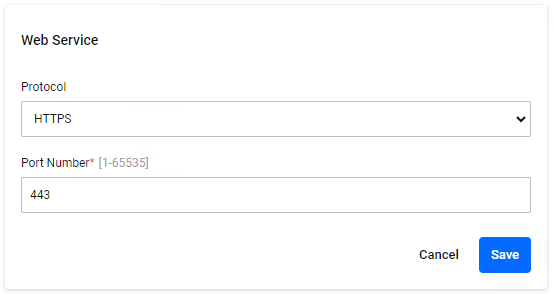

Web Service

System Management > Network Settings > Web Service

You can change the protocol and listening port number of the Web UI/Web API service. Click the "Edit" button at the bottom right to enter edit mode.
If you change the Web service settings, it automatically reconnects to the new Web service. In this case, your browser's security warning function may block your connection.

◼ Edit mode

Table 6: Web Service
Item / Button Name	Mandatory	Format	Description
Protocol	×	−	A web service communication protocol. You can choose HTTP or HTTPS.
Port Number	×	1-65535	The TCP port number that the Web service listens on. You cannot set a port number that is being used by other AT-RADgate services.
"Edit" button	−	−	Start editing.
"Cancel" button	−	−	Stop editing.
"Save" button	−	−	Save the settings.

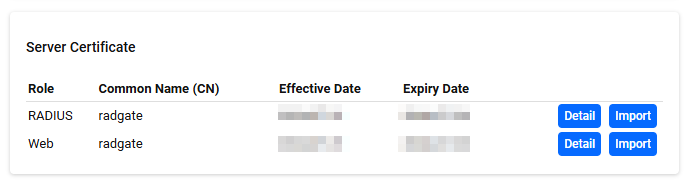

Server Certificate

System Management > Network Settings > Server Certificate

You can check and change the certificates used by each AT-RADgate service. Click the "Import" button on the right side of each service row to display a dialog box for uploading the certificate file.
If you have changed it from the default certificate, the "Delete" button appears. Clicking this button deletes the current certificate.

Table 7: Server Certificate
Item Name	Description
Roles	The service name for which the certificate is used.
Common Name (CN)	The value of the certificate's Common Name field.
Effective Date	The certificate's effective date.
Expiry Date	The expiration date of the certificate.

The services that use the certificate are as follows:

Table 8: Services that use certificates
Service Name	Description
Web	This is a service that provides Web UI/Web API. The certificate is used only if the protocol is set to HTTPS.
RADIUS	This is a service that provides RADIUS Authentication functionality. Use the certificate for EAP-PEAP authentication.

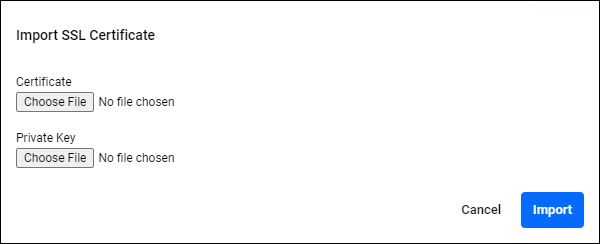

Import SSL Certificate

You can upload an SSL certificate file in PEM format. Select the certificate file and private key file and click the "Import" button. If you change the web certificate, a reconnection to the Web UI server is performed (even if you are using the HTTP protocol). In this case, your browser's security warning function may block your connection.

Logging Settings

System Management > Logging Settings

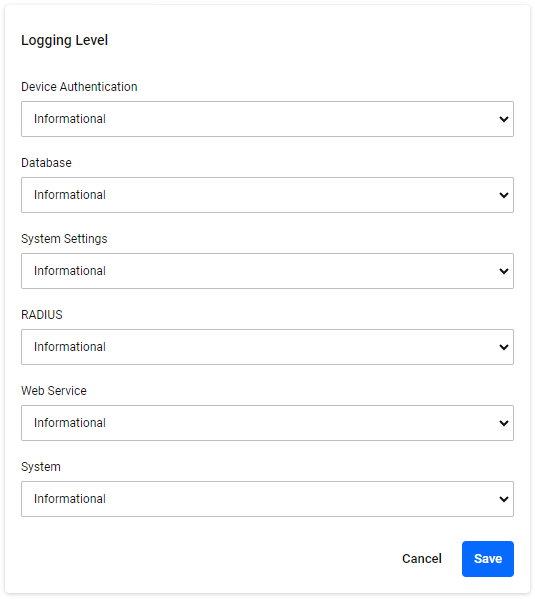

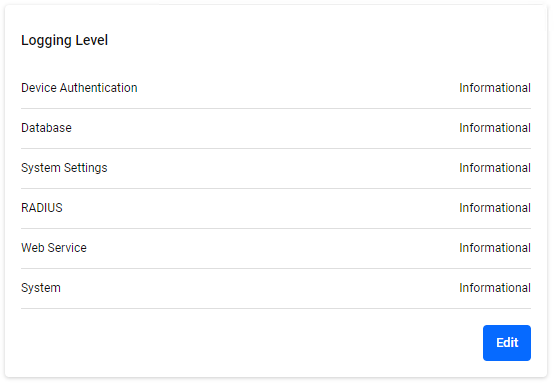

Logging Level

System Management > Logging Settings > Logging Level

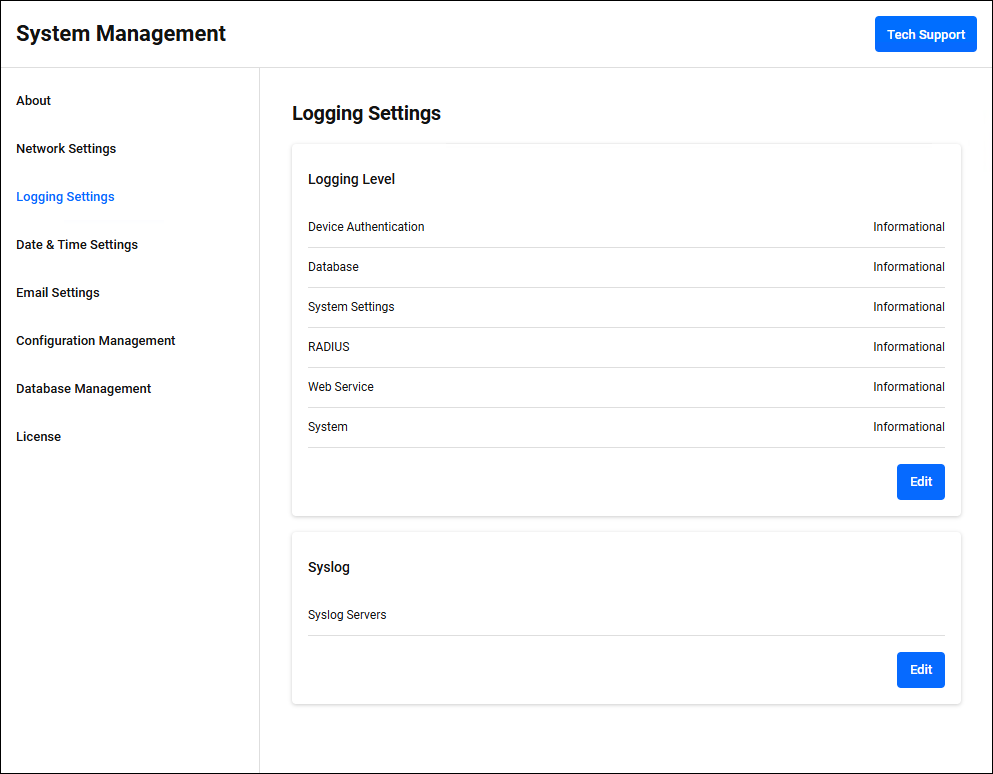

You can change the output suppression level for each event log. Each event log logs events with a greater importance, including the level set here. For information about log levels, refer to "Logging Level" in Event Management > Application Log. Click the "Edit" button at the bottom right to enter edit mode.

Note
If "Logging Level" is set to "Disabled," events are not recorded in the log and they are viewable on the Event Management > Application Log page.

◼ Edit mode

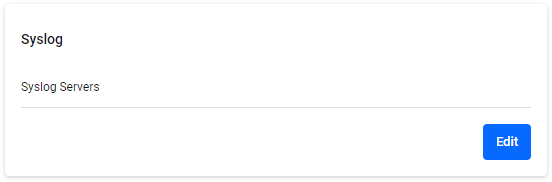

Syslog

System Management > Logging Settings > Syslog

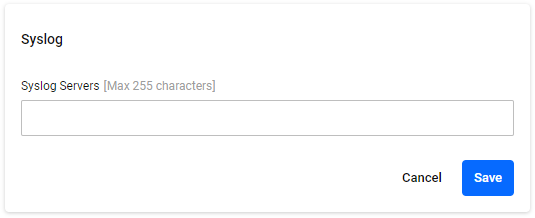

Event logs can be forwarded to an external Syslog server (UDP). Click the "Edit" button to enter edit mode.

◼ Edit mode

Table 9: Syslog Server
Item / Button Name	Mandatory	Format	Description
Syslog Servers	−	String (Max 255 characters)	A list of external Syslog servers to forward event logs to. Set it in the format "Hostname or IPv4 Address:port number" (e.g. 192.0.2.10:3000). If the port number is omitted, 514 is used. You can also register multiple servers by separating them with a space character. Refer the release notes for the number of servers that can be registered.
"Edit" button	−	−	Start editing.
"Cancel" button	−	−	Stop editing.
"Save" button	−	−	Save the settings.

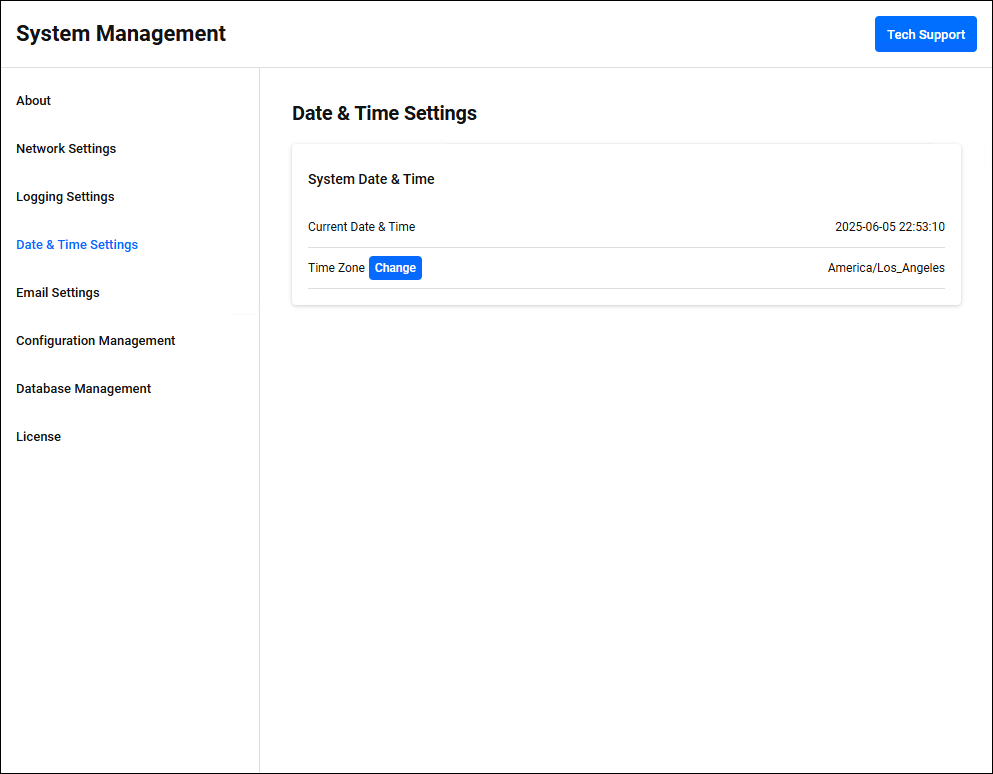

Date & Time Settings

System Management > Date & Time Settings

System Date & Time

System Management > Date & Time Settings > System Date & Time

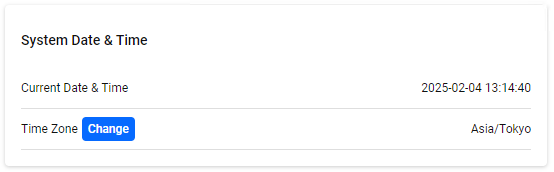

You can check the current time information and change the Time Zone. If you change the Time Zone, the node on which AT-RADgate is running is automatically restarted.

Table 10: System Date & Time
Item Name	Description
Current Date & Time	Displays the current time in local time for the set Time Zone.
Time Zone	Displays the current Time Zone in the format "Region/Time Zone". Clicking the "Change" button displays the Time Zone dialog, allowing you to change the Time Zone.

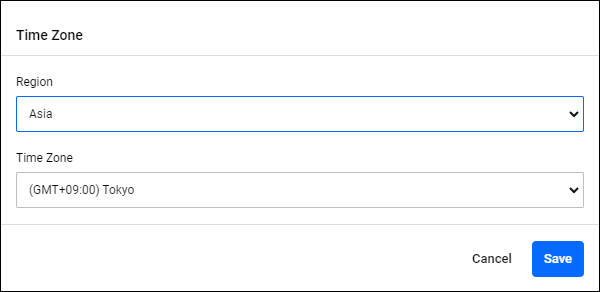

Time Zone

In the "Time Zone" dialog, you can change the Time Zone.

Table 11:Time Zone
Item / Button Name	Description
Region	Select your region from the dropdown list. The default is "Etc".
Time Zone	Select the Time Zone from the dropdown list. The default is "UTC".
"Cancel" button	Cancel the Time Zone change.
"Save" button	Save the Time Zone changes.

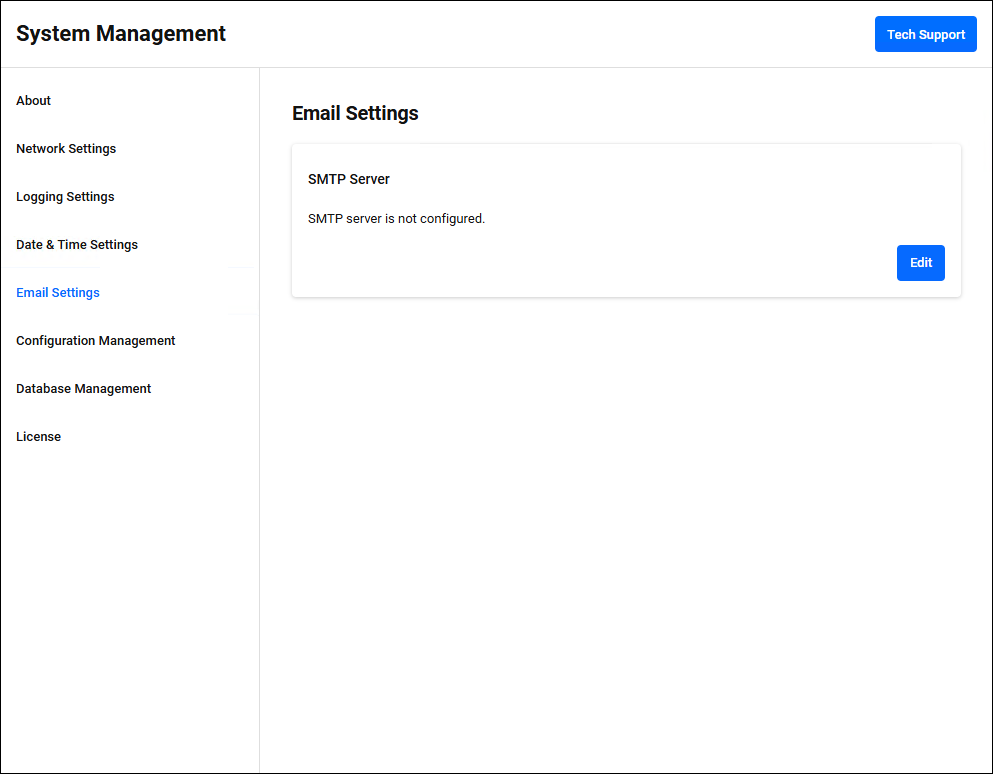

Email Settings

System Management > Email Settings

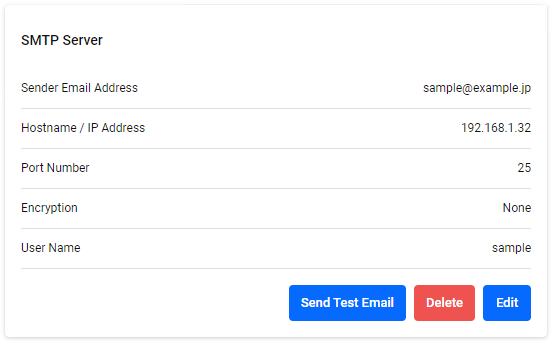

SMTP Server

System Management > Email Settings > SMTP Server

Configure the SMTP Server for sending emails. Click the "Edit" button to enter edit mode.
Allied Telesis recommends that you configure the SMTP Server settings as they are essential for features such as the administrator account password recovery function and license expiration warning.
If the SMTP Server is not registered, the message "SMTP server is not configured." is displayed. If registered, information about the currently registered SMTP Server is displayed.

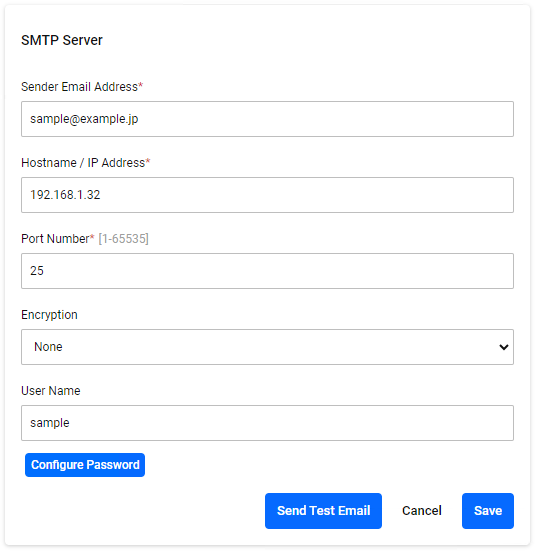

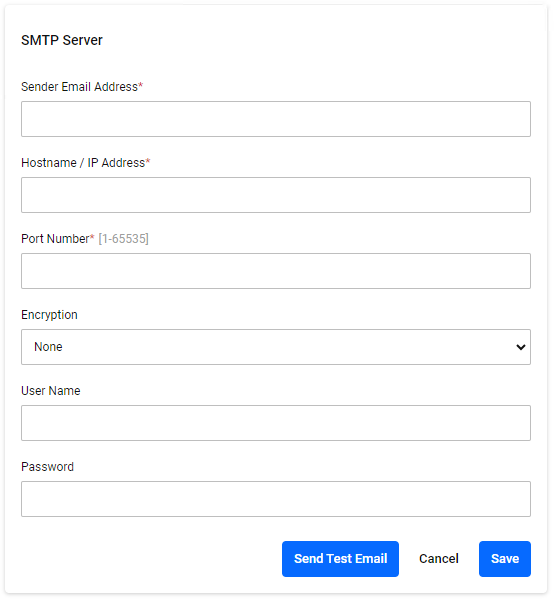

◼ Edit mode (unregistered)

◼ Edit mode (registered)

Table 12: SMTP Server
Item / Button Name	Mandatory	Format	Description
Sender Email Address	×	Email Address	This is the sender Email Address for emails sent using this SMTP Server.
Hostname / IP Address	×	FQDN/IPv4 Address	The Hostname or IPv4 Address of the SMTP Server.
Port Number	×	Integer (0-65535)	The TCP port number for the SMTP service.
Encryption	×	−	The encryption protocol to use. Choose from "None", "STARTTLS", or "SMTPS".
User Name	−	−	The username for the login account on the SMTP Server.
"Configure Password" button	−	−	Clicking this displays the "Password" and "Confirm Password" items, allowing you to change the password for the SMTP Server login account.
Password	−	−	The password for the login account on the SMTP Server.
"Send Test Email" button	−	−	Sends a test Email with the currently displayed settings. The Email Address entered in "Sender Email Address" is used as both the sender and destination of the email.
"Edit" button	−	−	Start editing.
"Delete" button	−	−	Deletes the currently registered SMTP Server settings.
"Cancel" button	−	−	Stop editing.
"Save" button	−	−	Save the settings.

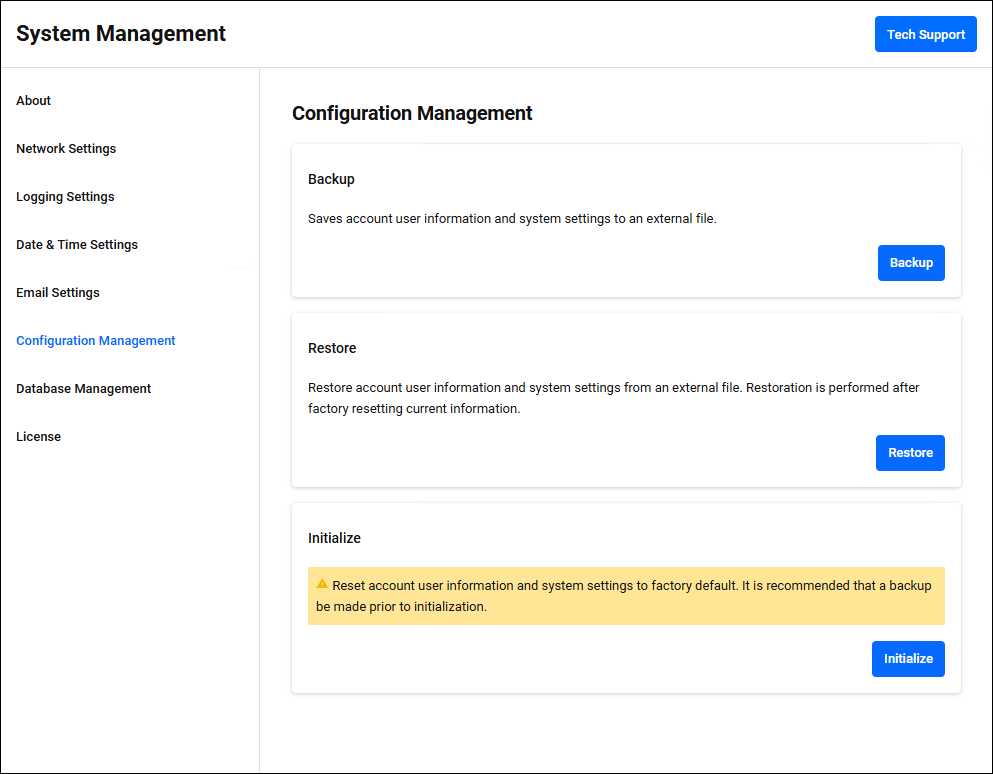

Configuration Management

System Management > Configuration Management

Backup

System Management > Configuration Management > Backup

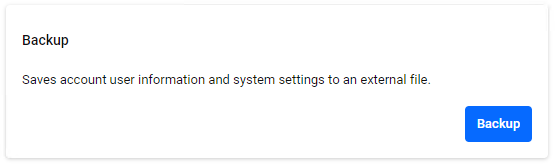

Saves administrator account information and system settings to an external file. Because the backup file does not contain information such as authentication policy data, it is not possible to completely restore the entire running system from this backup file.
To perform a complete system backup, use "System Backup" on the System Management > About page.

Restore

System Management > Configuration Management > Restore

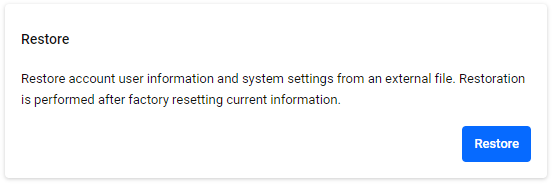

Restores administrator account information and system settings from an external file. The current information is returned to the factory default state and then restored.

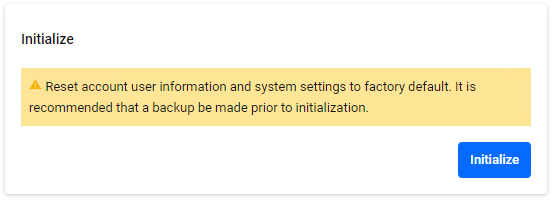

Initialize

System Management > Configuration Management > Initialize

Resets the administrator account information and system settings to the factory defaults.

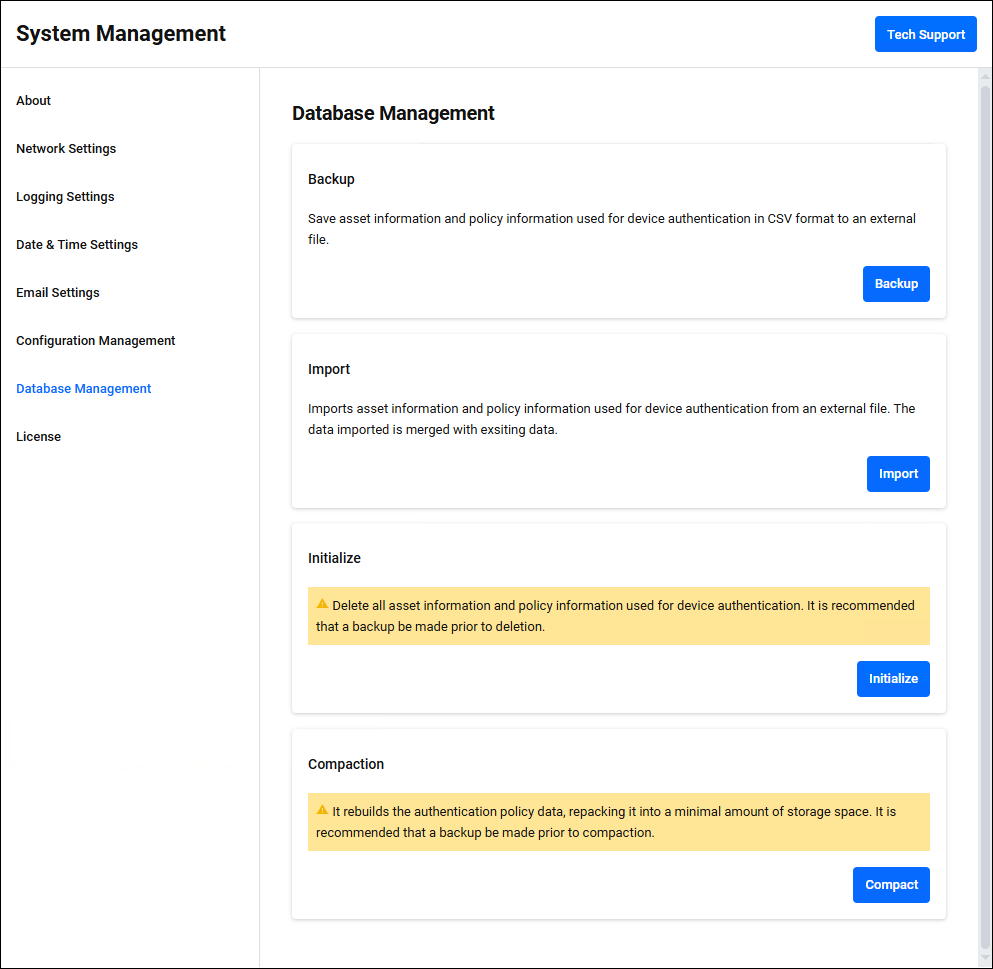

Database Management

System Management > Database Management

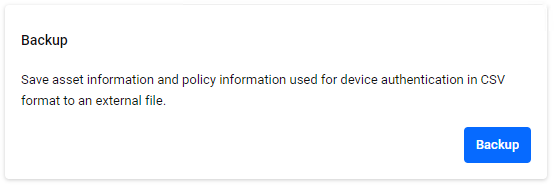

Backup

System Management > Database Management > Backup

Saves authentication policy data to an external file in CSV format.

Table 13: Backup
Button Name	Description
"Backup" button	Perform a backup of the authentication policy data.

Import

System Management > Database Management > Import

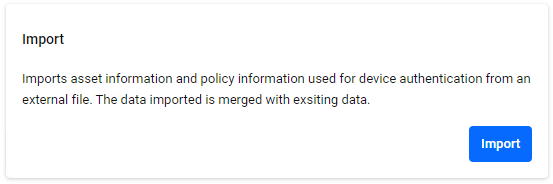

Imports authentication policy data from a CSV file. The imported data is merged with the current data.

Table 14: Import
Button Name	Description
"Import" button	Import the authentication policy data.

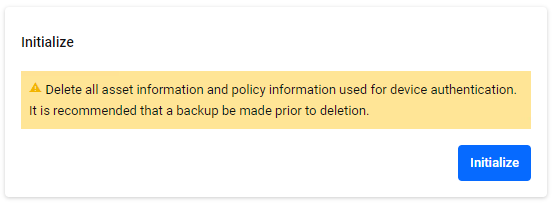

Initialize

System Management > Database Management > Initialize

Deletes all authentication policy data. Allied Telesis recommends that you backup your data before deleting it.

Table 15: Initialize
Button Name	Description
"Initialize" button	Initialize the authentication policy data.

Compaction

System Management > Database Management > Compaction

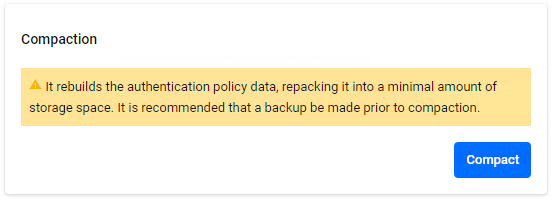

Optimize authentication policy data and free up storage space. Allied Telesis recommends that you make a backup before optimizing.

Table 16: Compaction
Button Name	Description
"Compact" button	Performs authentication policy data optimization.

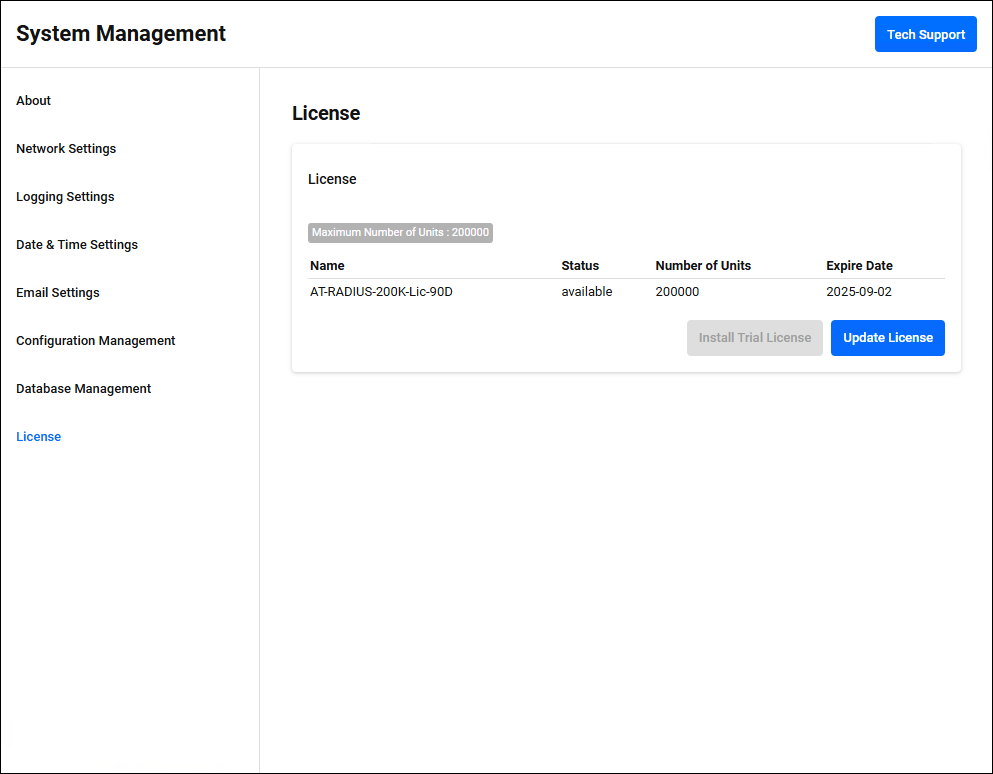

License

System Management > License

You can check and install the AT-RADgate software license (below is an example of when a trial license is installed).

Note
For information about licenses, refer to Accessing Management Interface > Installing Licenses.

Table 17: License
Item / Button Name	Description
Maximum Number of Units	The total number of units for all active licenses.
Name	The name of the license.
Status	The license status.
Number of Units	The number of units the license provides.
Expiry Date	The license expiration date.
"Install Trial License" button	Install a trial license.
"Update License" button	Install a new or updated license. When you click, a file selection dialog appears, so select the license file and upload it. The license information is updated.
