Authentication policy settings for each authentication method of port authentication

Quick Tour > Authentication policy settings for each authentication method of port authentication

---

---

Common port authentication methods using the RADIUS protocol include the following:

• MAC Address-based Authentication (hereinafter referred to as MAC-based Authentication)
  MAC-based Authentication authenticates each device based on its MAC Address. No special functionality is required on the supplicant side.


• IEEE 802.1X Authentication (hereinafter referred to as 802.1X Authentication)
  802.1X Authentication basically performs authentication on a per-user basis. The supplicant must support 802.1X.


• Web Authentication
  Web Authentication involves entering a user name and password into the supplicant's web browser, and authentication is performed on a per-user basis, similar to 802.1X Authentication.


To correctly build an authentication system using any authentication method, you must register an authentication policy in AT-RADgate.

How to register AT-RADgate authentication policy

This section describes how to register AT-RADgate settings (mainly authentication policies) in the following cases.

• MAC-based Authentication, 802.1X Authentication, Web Authentication

• Windows Active Directory Integration

• AlliedWare Plus series (including the AT-TQR Wi-Fi router) and the TQ series of Wireless LAN Access Points

• Intelligent Edge Security (IES)


MAC-based Authentication, 802.1X Authentication, Web Authentication

To register an authentication policy for each authentication method, follow the steps below.

• NAS

• User

• Supplicant Profile


The user authentication policy is to register the login name and password for 802.1X Authentication and Web Authentication, and the supplicant's MAC Address as the login name and password for MAC-based Authentication. When registering a MAC Address, the format (login name and password) must match the format sent by the NAS.

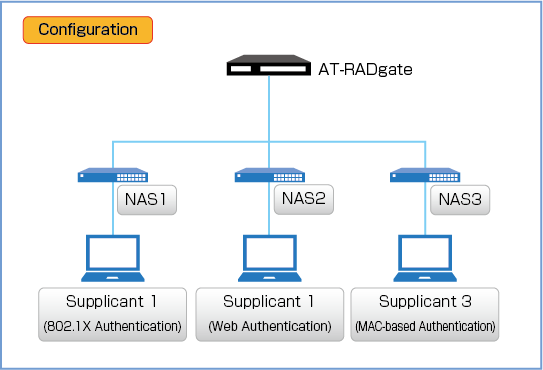

This setting assumes the following configuration. It is assumed that the basic settings for each product have been completed.
Note that it is assumed that the NAS has a dynamic VLAN function.


NAS and Supplicant information are below.

Registering NAS

Clicking the "Add" button in the upper right corner of the NAS > RADIUS Proxy page displays the Add NAS > RADIUS Proxy dialog.

Register NAS2 and NAS3 in the same way as NAS1.

Registering User

Configure the information for each supplicant. You specify the network (VLAN) to which each supplicant is connected, but the actual network specification is done in the "Supplicant Profile." Here, we use "Tag" to link "User" and "Supplicant Profile".

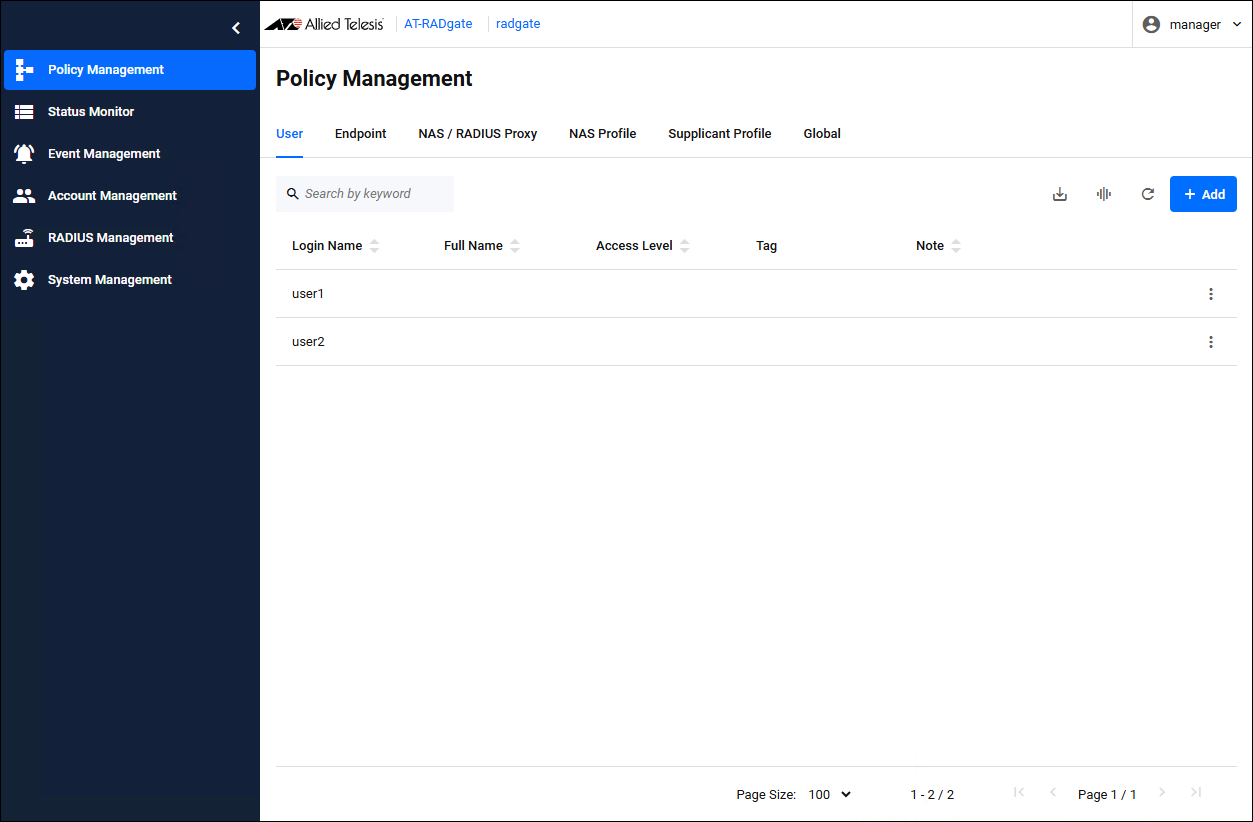

Click the "Add" button in the upper right corner of the Policy Management > User page to display the Add User dialog.

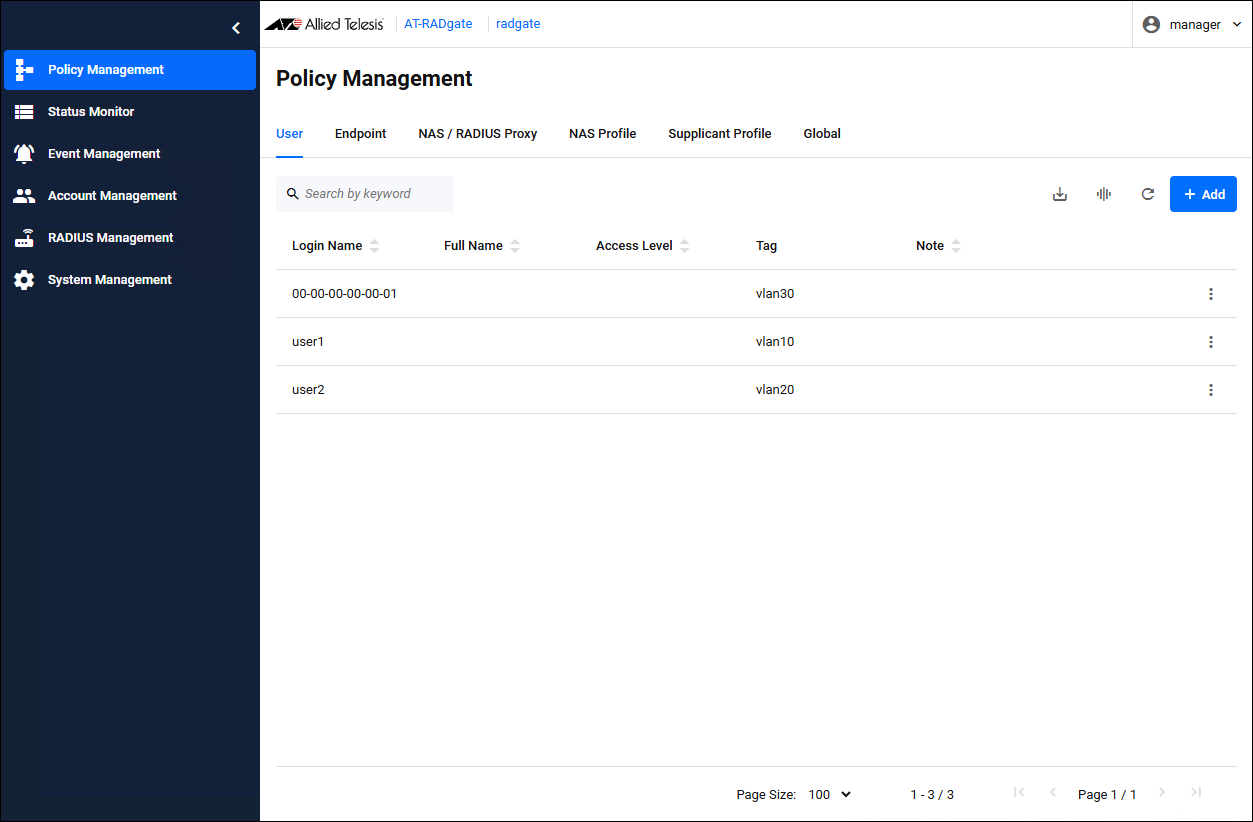

Register Supplicant 2 and Supplicant 3 in the same way as Supplicant 1.

Registering Supplicant Profile

Register Supplicant Profile and specify the network (VLAN) to which each supplicant connects.
As mentioned above, "Tag" is used to link "User" and "Supplicant Profile".

Note

In this case, the priorities would work as intended with the same number, but they are different numbers for clarity.

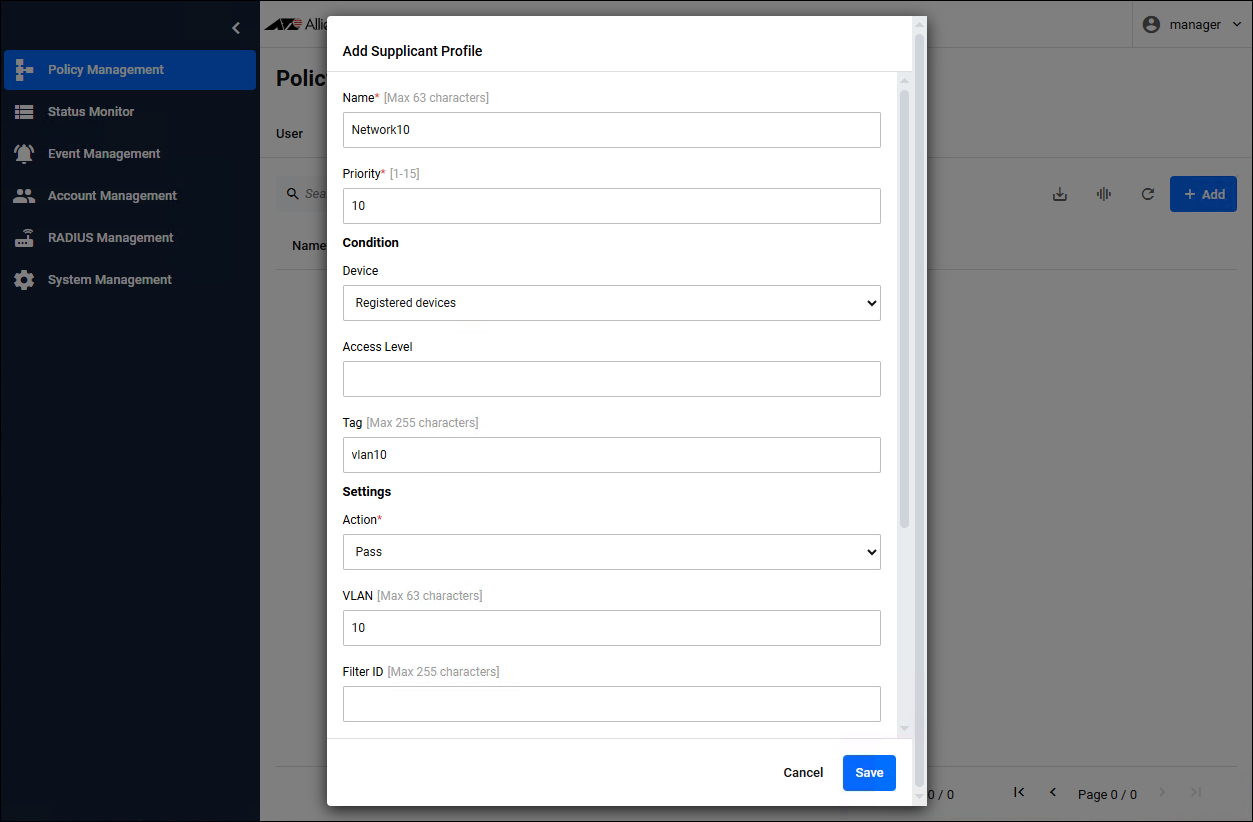

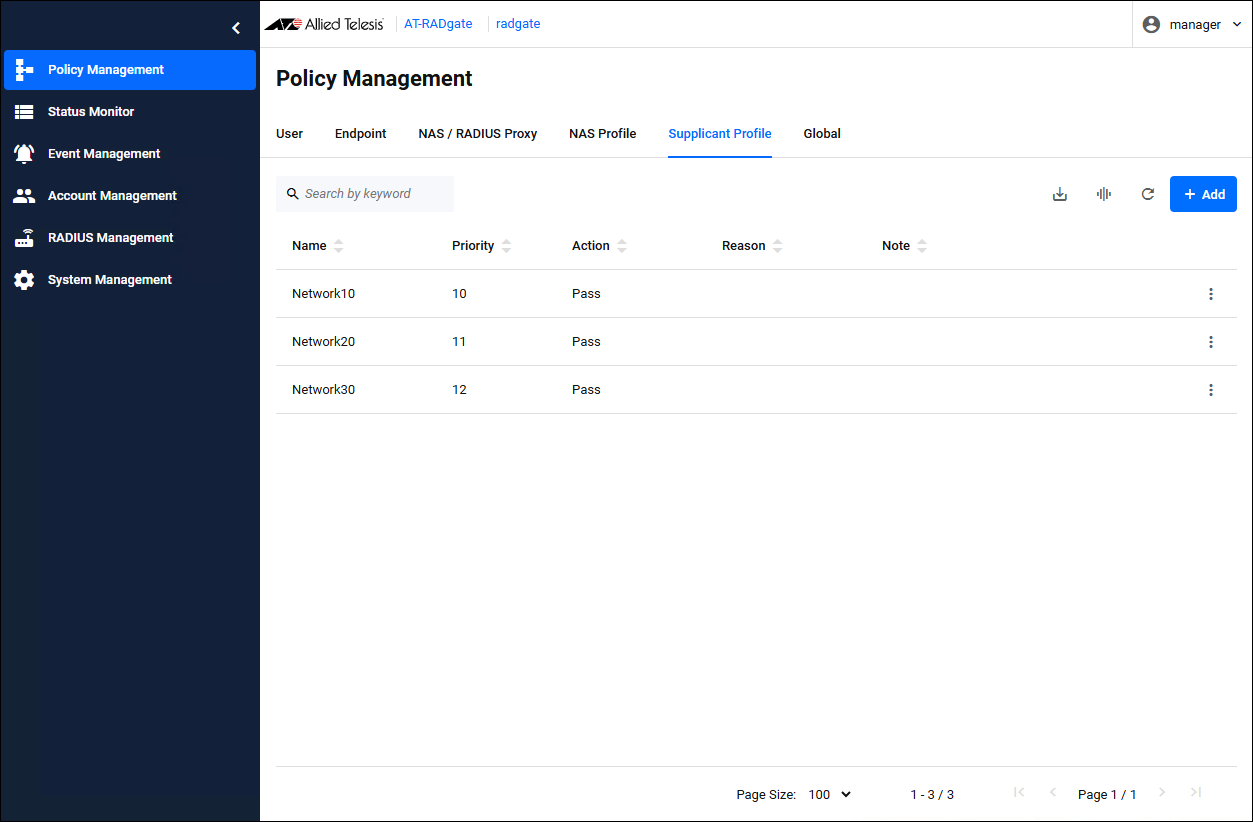

Click the "Add" button in the upper right corner of the Policy Management > Supplicant Profile page to display the Add Supplicant Profile dialog. Configure the Supplicant Profile for Supplicant 1.

　
Register Supplicant 2 and Supplicant 3 in the same way as Supplicant 1.

Configuration is complete.

Windows Active Directory Integration

During RADIUS Authentication, AT-RADgate can query Windows Server by linking with Windows Active Directory, instead of using its own user authentication policy, and perform user authentication using the Windows Server database.

Note

For available Windows Active Directory options, refer to the RADIUS Management > Active Directory Settings page.

Note

The networks to which supplicants authenticated by Windows Active Directory integration connect cannot be separated for each supplicant.

The setup process is as follows:

• Register Windows Active Directory settings on the AT-RADgate RADIUS Management page

• Register the NAS policy on the AT-RADgate Policy Management page

• Register the policy for the Supplicant Profile on the AT-RADgate Policy Management page

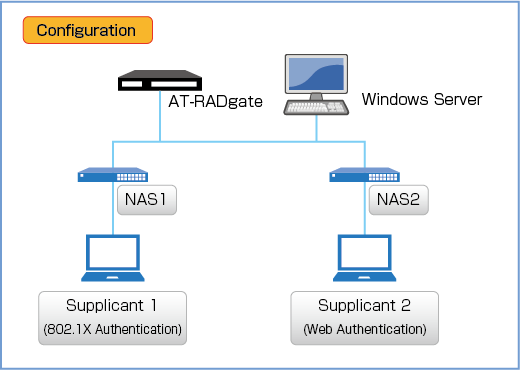

This setting assumes the following configuration. It is assumed that the basic settings for each product have been completed.
Note that it is assumed that the NAS has a dynamic VLAN function.


Information on Windows Server, NAS, and supplicants for each authentication method are below.

Note

Use the default setting of "CP1252" for this setting. This change is not supported in this version.

Windows Active Directory Configuration

Click the "Edit" button on the right of the RADIUS Management page to display the page for setting the AD domain information.

Enter the following information and click the "Join" button.

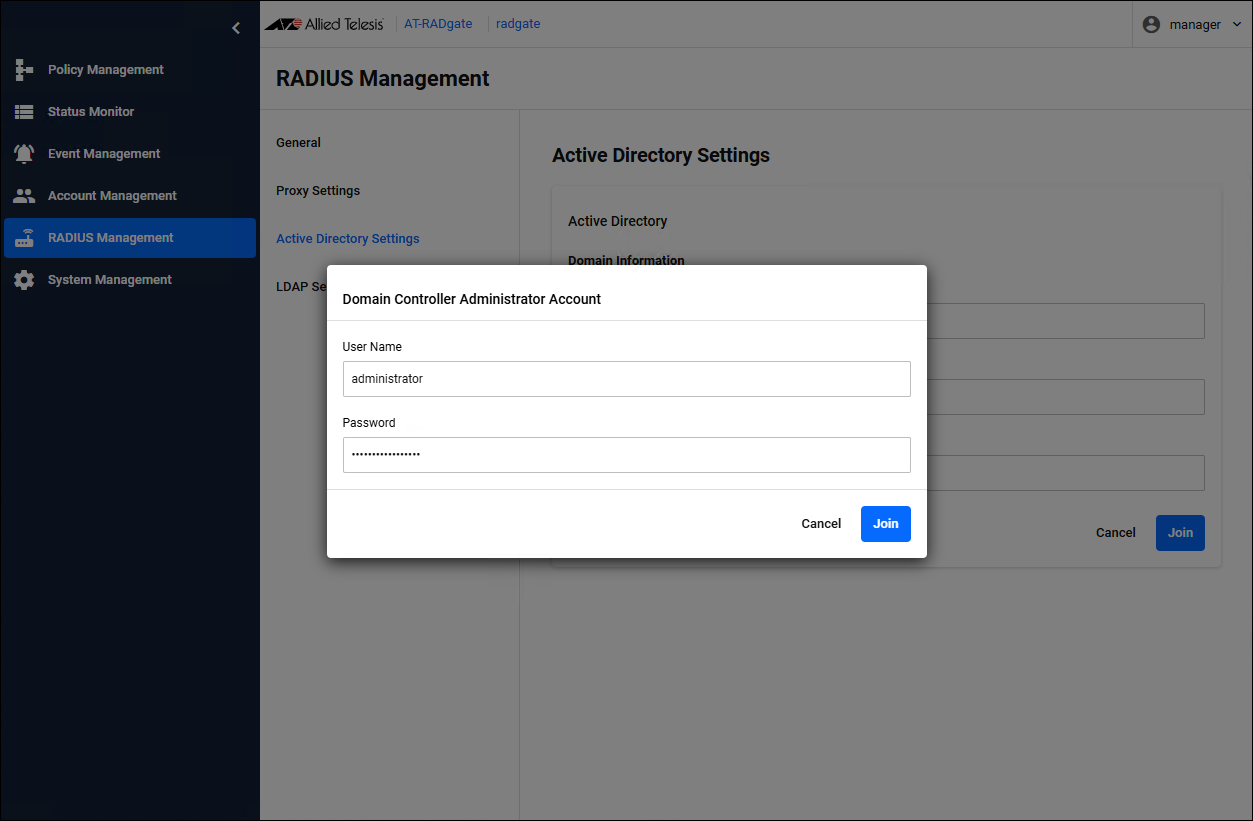

The "Domain Controller Administrator Account" dialog appears.

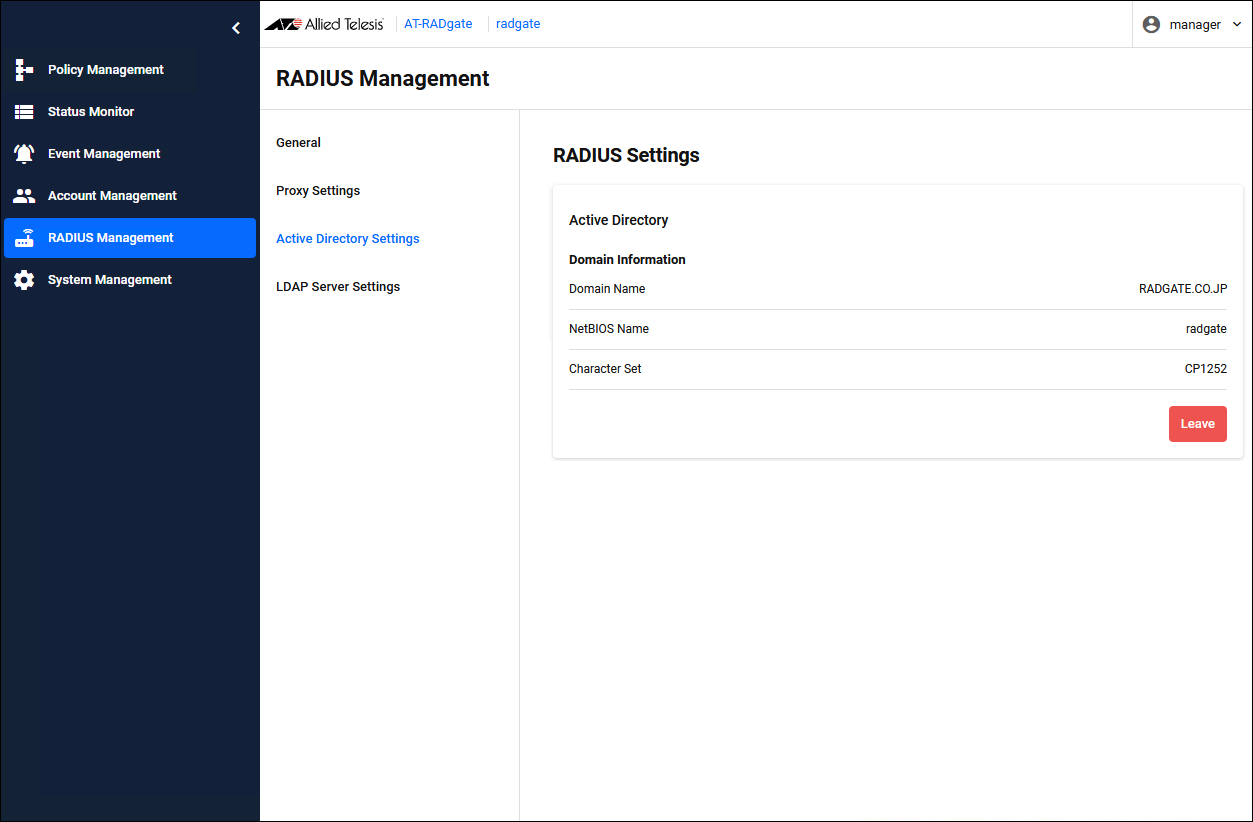

Enter the following information in the user name and password fields, then click the "Join" → "OK" button.
Note that the password is displayed on the page.

Registering NAS

Clicking the "Add" button in the upper right corner of the NAS > RADIUS Proxy page displays the Add NAS > RADIUS Proxy dialog.

Register NAS2 in the same way as NAS1.

Registering Supplicant Profile

Register Supplicant Profile and specify the network (VLAN) to which the supplicant connects.

Note

Since the networks to which supplicants authenticated via Windows Active Directory linkage connect cannot be separated for each supplicant, only one Supplicant Profile can be registered.

Click the "Add" button in the upper right corner of the Policy Management > Supplicant Profile page to display the Add Supplicant Profile dialog.


Configuration is complete.

AlliedWare Plus series (including the AT-TQR Wi-Fi router) and the TQ series of Wireless LAN Access Points

AW+ series (including the AT-TQR Wi-Fi router) and TQ series Wireless LAN Access Points store the MAC Address in the Calling-Station-Id attribute of the authentication request message, so they perform endpoint authentication if endpoint authentication is enabled. To perform endpoint authentication, check "Enable device authentication, in addition to user authentication." and "Enable MAC based authentication." for the NAS Profile you want to register on the Policy Management > NAS Profile page. And that NAS Profile must be configured on the NAS that authenticates the supplicant. Once you have authenticated your device, you can check the authentication status of the supplicant on the Status Monitor > Endpoint page. If a MAC-based Authentication request is received, only endpoint authentication is performed and no user authentication is performed.

Note

On the Status Monitor > Endpoint page, you can also check the authentication status of the supplicant and disconnect the supplicant. The supplicant is disconnected by the AT-RADgate sending a RADIUS Dynamic Authorization Disconnect message to the NAS. The following products and functions support supplicant disconnection.

AW+ (Wi-Fi routers other than AT-TQR) series: MAC-based Authentication, 802.1X Authentication, Web Authentication (requires radius dynamic-authorization-client setting)
AW+ (AT-TQR Wi-Fi router) series: MAC-based Authentication only (mac-auth radius dynamic-authorization-client settings required)

The order in which authentication policies are checked for each authentication method is as follows:

• MAC-based Authentication
  NAS → Endpoint Authentication → Supplicant Profile


• 802.1X Authentication, Web Authentication
  NAS → Endpoint Authentication → User Authentication → Supplicant Profile


Note

For an explanation of each authentication method and how to register an authentication policy, refer to Quick Tour > Authentication policy settings for each authentication method of Port Authentication.

MAC-based Authentication, 802.1X Authentication, Web Authentication

To register an authentication policy for each authentication method, follow the steps below.

• NAS Profile

• NAS

• User

• Endpoint

• Supplicant Profile


For user authentication policies, 802.1X Authentication and Web Authentication require the registration of a login name and password. MAC-based Authentication does not require the registration of user authentication policies.
This setting assumes the following configuration. It is assumed that the basic settings for each product have been completed.
Note that it is assumed that the NAS has a dynamic VLAN function.


Information on the NAS and supplicant for each authentication method are below.

Registering NAS Profile

Click the "Add" button in the upper right corner of the Policy Management > NAS Profile page to display the Add NAS Profile dialog.

Registering NAS

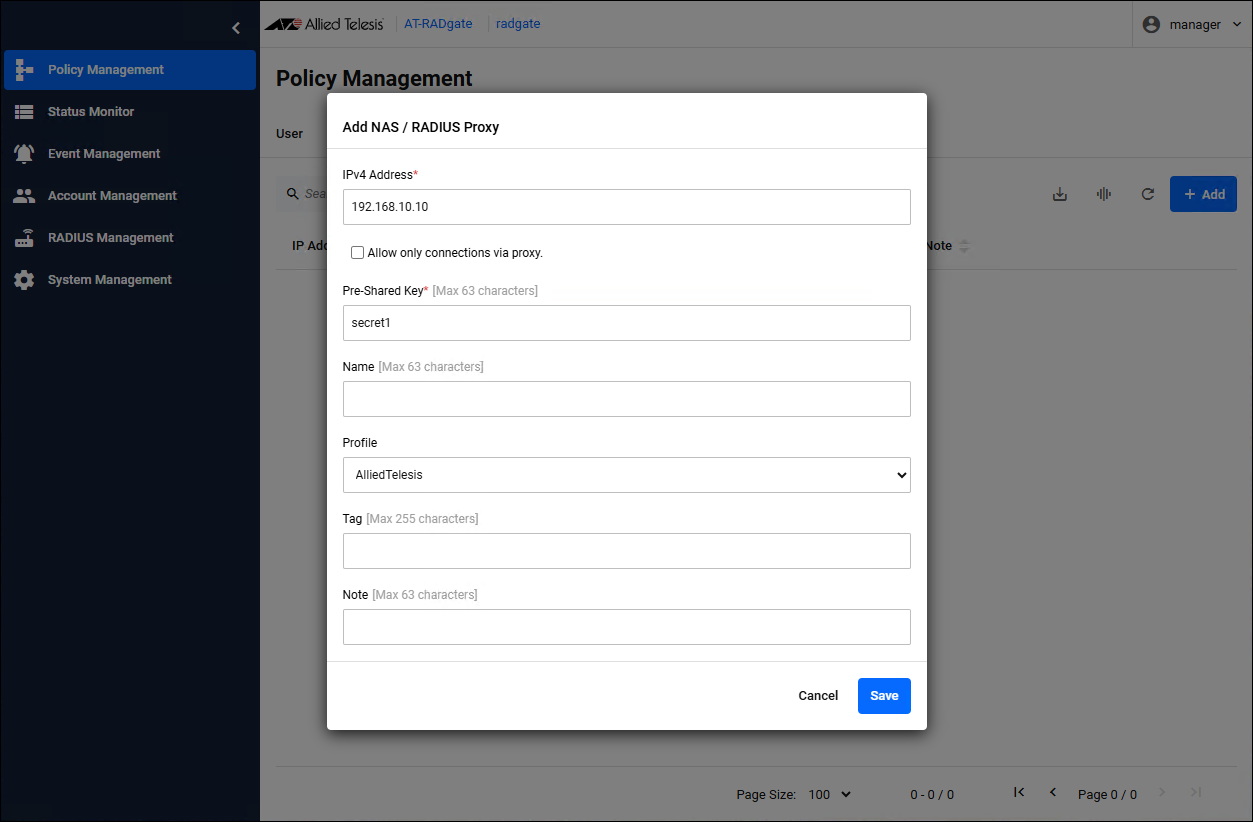

Clicking the "Add" button in the upper right corner of the NAS > RADIUS Proxy page displays the Add NAS > RADIUS Proxy dialog.

Register NAS2 and NAS3 in the same way as NAS1.

Registering User

Configure the information for each supplicant. You specify the network (VLAN) to which each supplicant is connected, but the actual network specification is done in the "Supplicant Profile." "Tag" is used to link each supplicant with a "Supplicant Profile," and the MAC Address of each supplicant is used to register the authentication policy of the endpoint for endpoint authentication. In this case, do not set a "Tag" in the user's authentication policy, but set a "Tag" in the endpoint authentication policy.

In addition, Supplicant 3, which performs MAC-based Authentication, does not perform user authentication but only endpoint authentication, so there is no need to register users.

Click the "Add" button in the upper right corner of the Policy Management > User page to display the Add User dialog.

Register Supplicant 2 in the same way as Supplicant 1.

Registering Endpoint

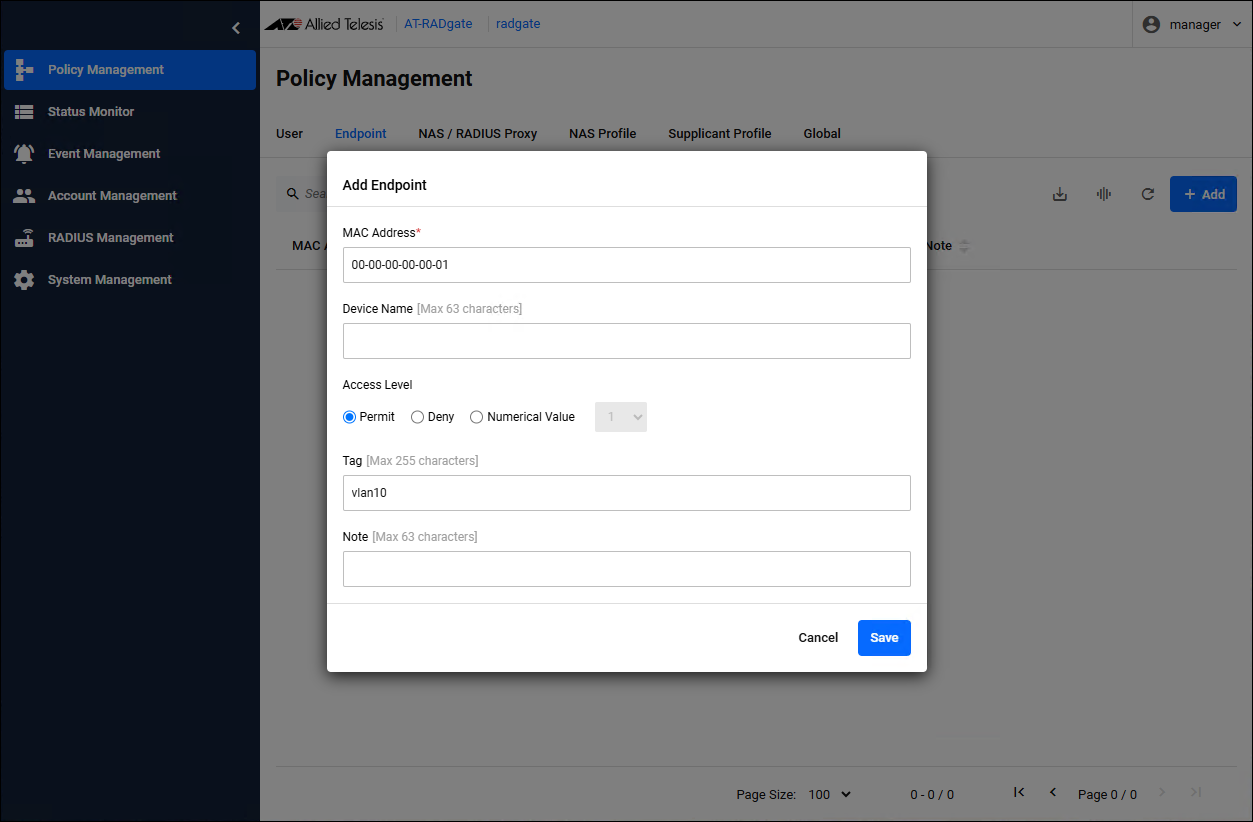

Click the "Add" button in the upper right corner of the Policy Management > Endpoint page to display the Add Endpoint dialog.

Register Supplicant 2 and Supplicant 3 in the same way as Supplicant 1.

Registering Supplicant Profile

Register Supplicant Profile and specify the network (VLAN) to which each supplicant connects.
As mentioned above, "Tag" is used to link "Endpoint" and "Supplicant Profile".

Since each supplicant is registered in the endpoint's authentication policy, the conditions for the Supplicant Profile are set to "Registered devices".

Note

In this case, the priorities would work as intended with the same number, but they are different numbers for clarity.

Click the "Add" button in the upper right corner of the Policy Management > Supplicant Profile page to display the Add Supplicant Profile dialog. Configure the Supplicant Profile for Supplicant 1.

Register Supplicant 2 and Supplicant 3 in the same way as Supplicant 1.

Configuration is complete.

Since endpoint authentication is enabled, you can check the authentication status of the supplicant on the Status Monitor > Endpoint page.

Intelligent Edge Security (IES)

Intelligent Edge Security (IES) uses MAC-based Authentication supported by our AW+ series (including the AT-TQR Wi-Fi router) to centrally manage whether or not supplicants (endpoints) can communicate using Vista Manager EX. AT-RADgate can also be used as an authentication server (RADIUS Server) for intelligent edge security.

Intelligent Edge Security is operated using Vista Manager EX, but the following authentication policies must be registered on the AT-RADgate Policy Management page. If you add a NAS to the configuration, register it on the AT-RADgate side.

• NAS Profile

• NAS


Note

Intelligent edge security uses AT-RADgate endpoint authentication. In addition, since Intelligent Edge Security uses MAC-based authentication, check both the "Enable device authentication, in addition to user authentication." and "Enable MAC based authentication." checkboxes in the NAS Profile. Set that NAS profile as the NAS that authenticate the supplicant.

Note

For information on operating Intelligent Edge Security, refer to the Vista Manager EX document posted on our website.

Do not register "Endpoint" and "Supplicant Profile" on the AT-RADgate Policy Management page. These are added via operations on the "Endpoint" tab on the "Asset Management" page of Vista Manager EX, or via "Users" and "Groups" on the "Network Services / RADIUS" page, and are registered in AT-RADgate.
Note that the item names are different between Vista Manager EX and AT-RADgate, but their correspondence is as follows.

Note

The "User" and "Group" added through Vista Manager EX operations are registered in the "Endpoints" and "Supplicant Profile" of AT-RADgate, but even if Vista Manager EX or AT-RADgate is restarted after being registered in AT-RADgate, there is no need to register them again.

The setup process is as follows:

• Enable AT-RADgate on the "System Management / Settings" page of Vista Manager EX

• Register AT-RADgate on the "Network Services / RADIUS" page of Vista Manager EX

• Set the Shared Secret on the "Network Services / RADIUS" page of Vista Manager EX

• Register the NAS Profile policy on the AT-RADgate Policy Management page

• Register the NAS policy on the AT-RADgate Policy Management page


Note

If you want to actually use Intelligent Edge Security, you need to operate it using Vista Manager EX after completing the above settings.

This setting assumes the following configuration. It is assumed that the basic settings for each product have been completed.


NAS and AT-RADgate information are below.

Enable AT-RADgate on the "System Management / Settings" page of Vista Manager EX

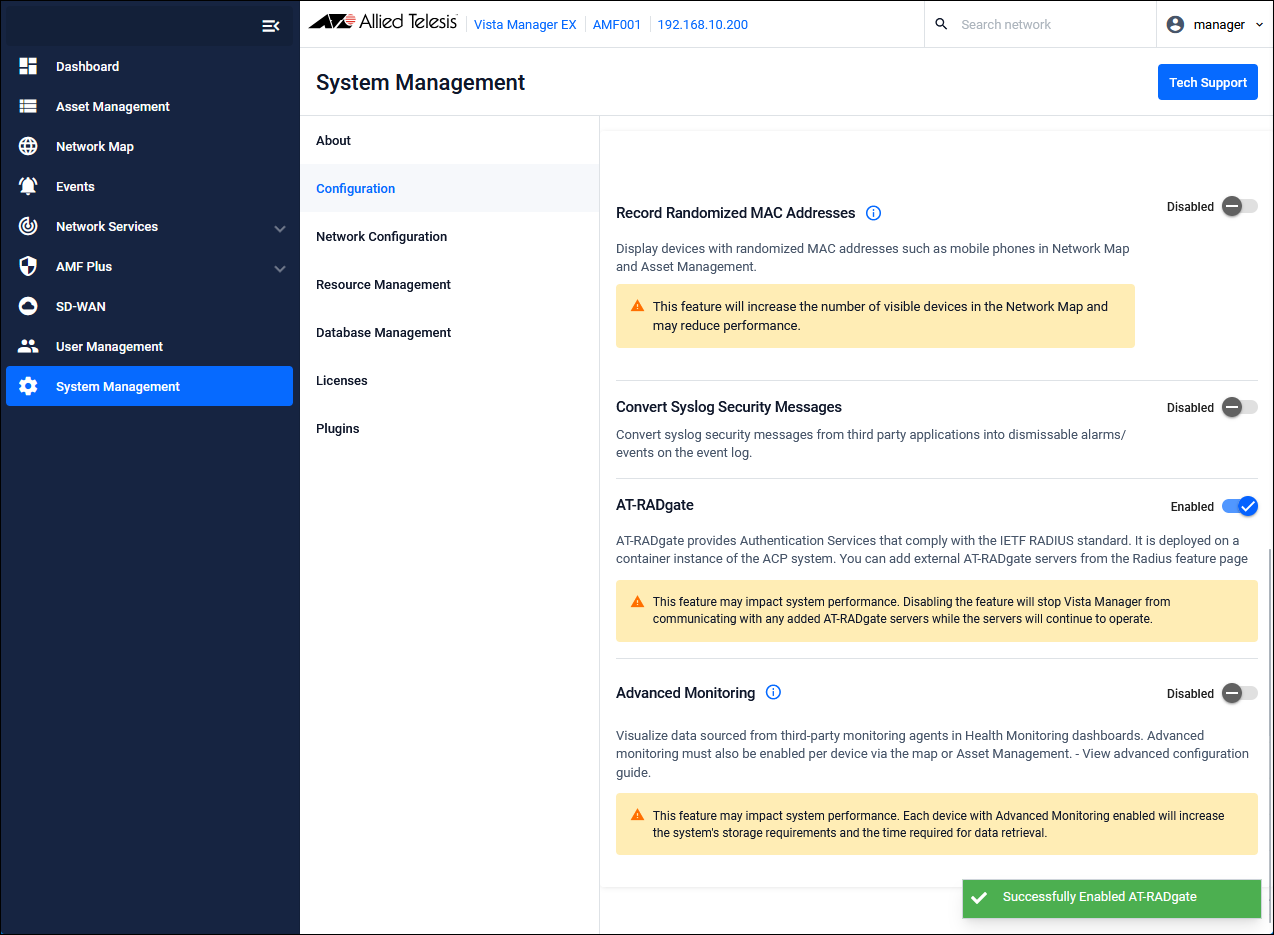

In the optional features of the Vista Manager EX "System Management / Settings" page, set AT-RADgate to "Enabled."

Register AT-RADgate on the "Network Services / RADIUS" page of Vista Manager EX

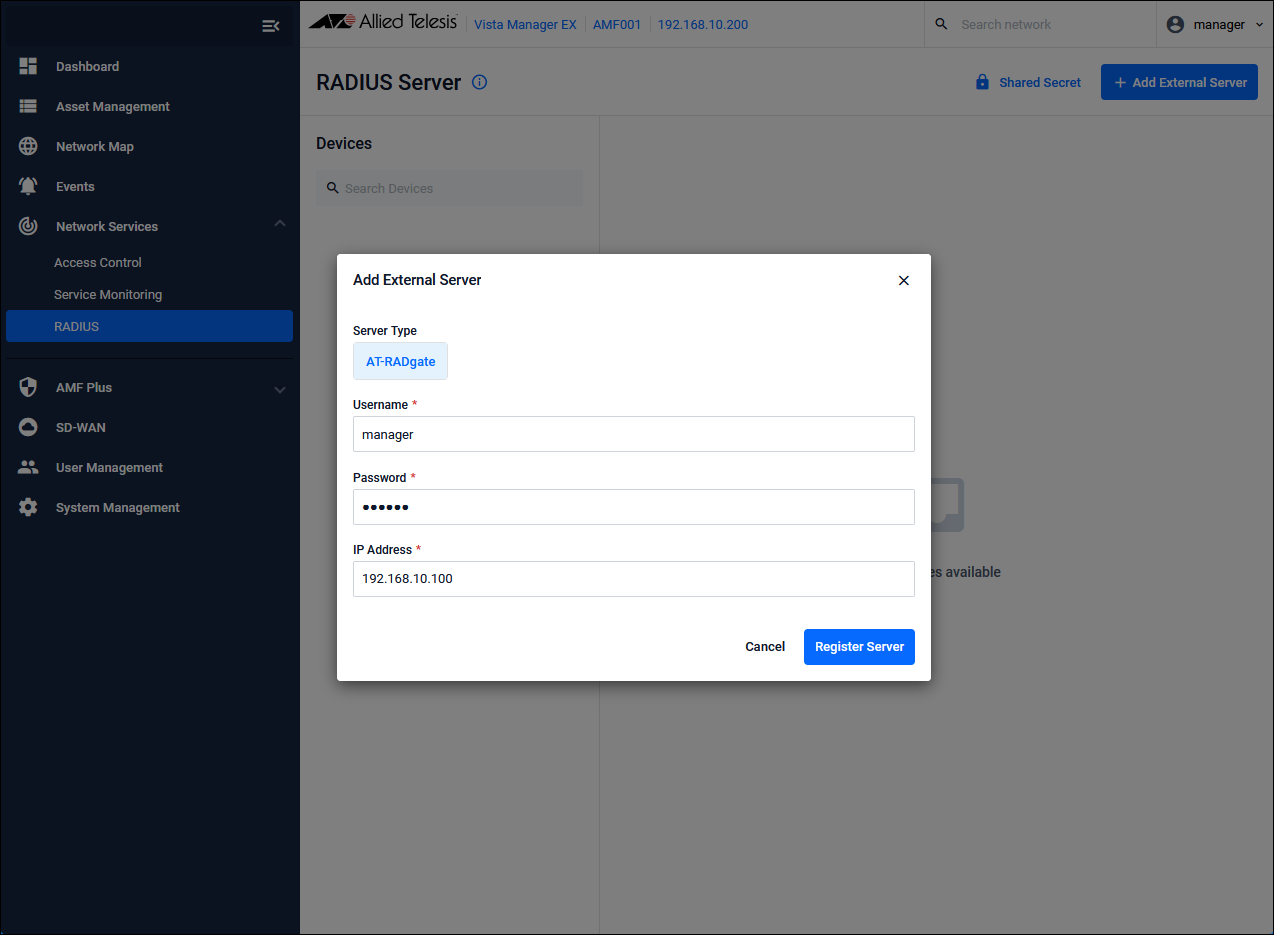

Clicking the "Add External Server" button on the "Network Services / RADIUS" page in Vista Manager EX displays the "Add External Server" dialog.

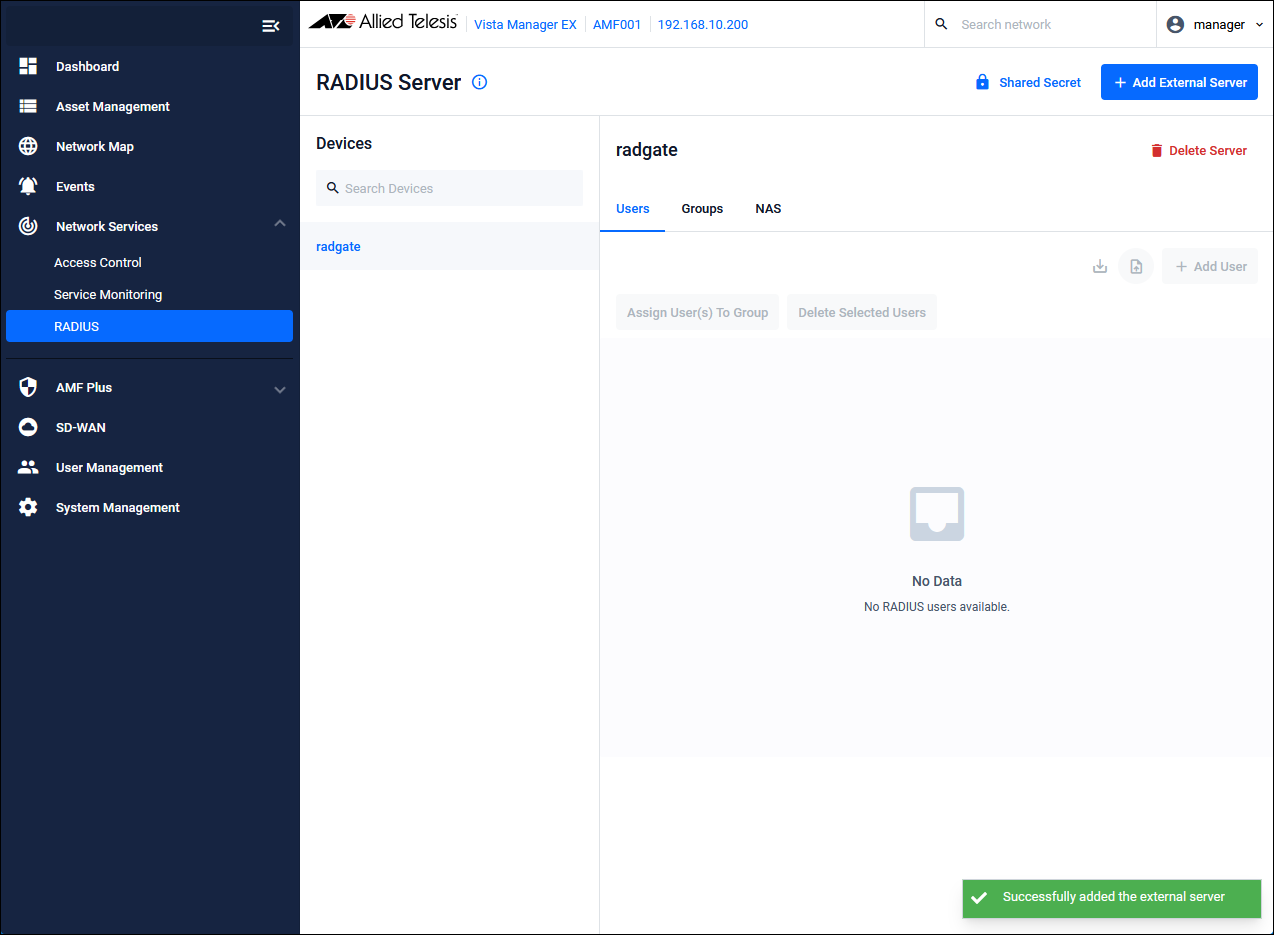

Enter the following information and click the "Register Server" button.

Set the Shared Secret on the "Network Services / RADIUS" page of Vista Manager EX

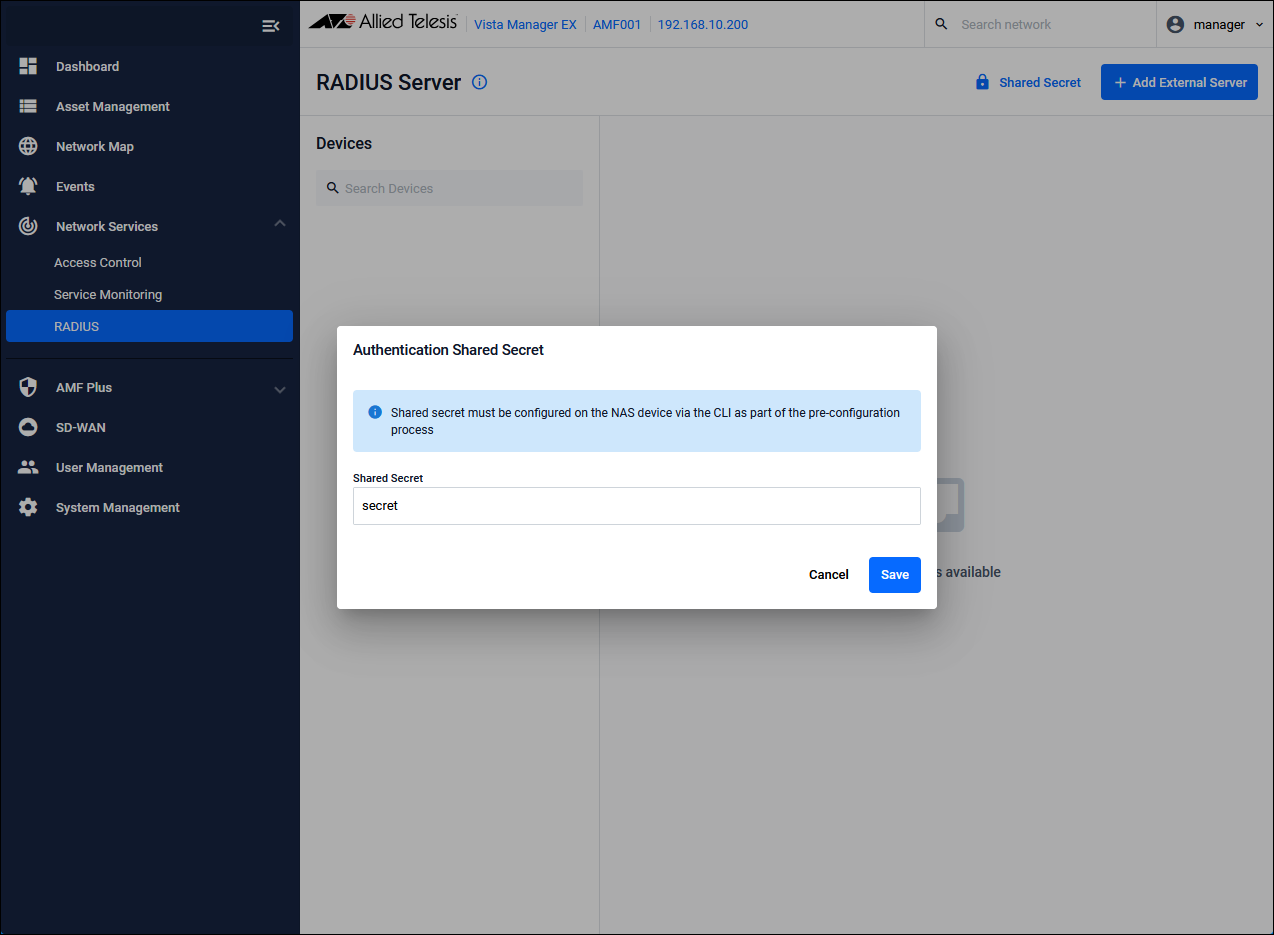

Clicking the "Shared Secret" button on the "Network Services / RADIUS" page in Vista Manager EX displays the "Authentication Shared Secret" dialog.

Registering NAS Profile

Click the "Add" button in the upper right corner of the Policy Management > NAS Profile page to display the Add NAS Profile dialog.

Registering NAS

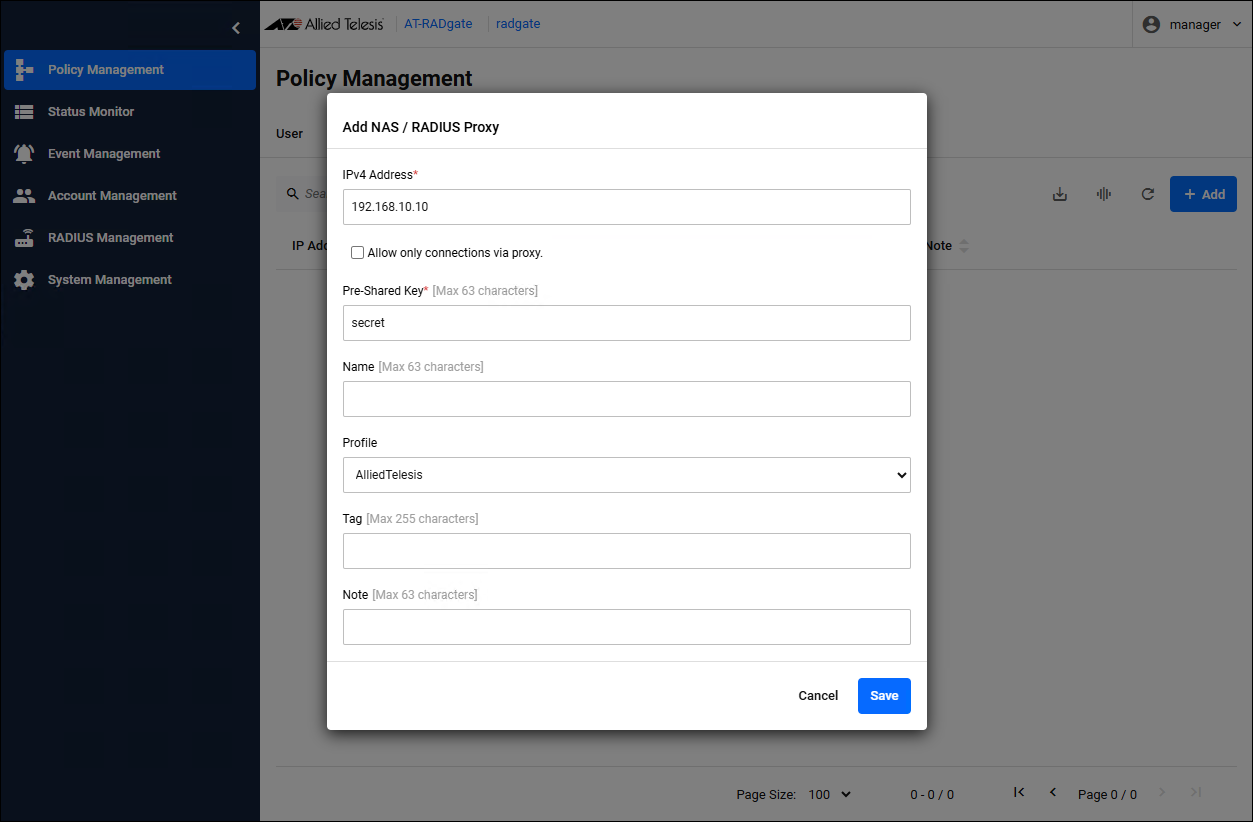

Clicking the "Add" button in the upper right corner of the NAS > RADIUS Proxy page displays the Add NAS > RADIUS Proxy dialog.

Register NAS2 in the same way as NAS1.

Configuration is complete.

The actual registration of supplicants is performed by operating the "Endpoint" tab on the "Asset Management" page of Vista Manager EX, or by using the "Users" and "Groups" on the "Network Services / RADIUS" page.

Since endpoint authentication is enabled in AT-RADgate, you can check the authentication status of the supplicant on the AT-RADgate Status Monitor > Endpoint page.

---
