SNMP Parameters

Screen Reference > Network Tree > SNMP Parameters

A SNMP Parameter is a group of SNMP configurations such as community name, username, context name and security level. It is used by the SNMP Plug-in to access devices via SNMP.

This section explains how to create, view and edit SNMP Parameters.

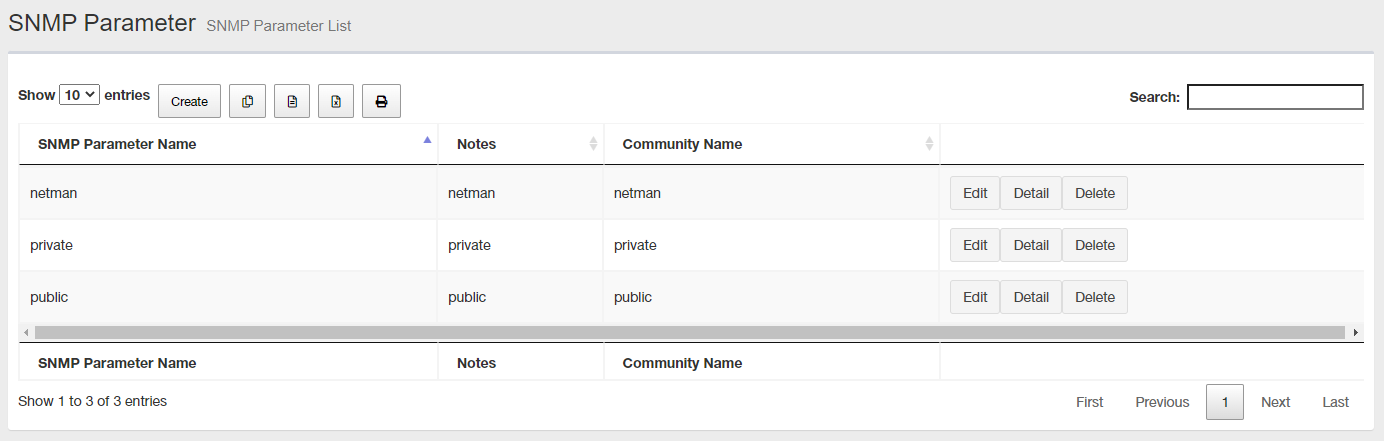

SNMP Parameter List

"SNMP Parameter List" lists all SNMP Parameters with some of their properties such as parameter name, comment and community name.

Table 1: SNMP Parameter List
Item Name	Description
Items per page	Lets you select a number of SNMP Parameters displayed on a single page.
"Create" button	Lets you create a new SNMP Parameter.
Copy to Clipboard	Copies the SNMP Parameter list (name, comment and community name) to clipboard as a tab-delimited text. It is useful when you want to copy a list to your text editor. You can filter target subnets with "Search" box. "Number of items on the page" and the current page do not affect an output.
Export to CSV file	Exports the SNMP Parameter list (name, comment and community name) to a CSV file. You can filter target subnets with "Search" box. "Number of items on the page" and the current page do not affect an output.
Export to Excel	Exports the SNMP Parameter list (name, comment and community name) to an Excel book file (.xlsx for Microsoft Excel 2007 or later). You can filter target subnets with "Search" box. "Number of items on the page" and the current page do not affect an output.
Print	Shows the SNMP Parameter list (name, comment and community name) on another browser window or tab and opens a print dialog box. You can filter target subnets with "Search" box. "Number of items on the page" and the current page do not affect an output.
Search field	Lets you filter target subnets by keywords. The search ignores case.
SNMP Parameter Name	Shows a name of the SNMP Parameter.
Notes	Shows a comment configured for the SNMP Parameter.
Community Name	Shows an SNMP community name configured for the SNMP Parameter.
"Edit" button	Opens Edit SNMP Parameter page for the SNMP Parameter.
"Details" button	Opens "SNMP Parameter Details page for the SNMP Parameter.
"Delete" button	Opens "Delete SNMP Parameter" dialog box for the SNMP Parameter. Click "Yes" to delete the SNMP Parameter. Click "No" or "Close (x)" button at the top left of the dialog box allows you to cancel the delete operation and go back to the "SNMP Parameter List" page.
Displayed Range	Currently displayed range of the list is shown as "From Xth to Yth out of Z items".
Page Navigation	Lets you view a specific page of the list. First Shows the first page. Previous Shows the previous page. Page Number When you click a page number, the page will be shown. Current page number is grayed out. Next Shows the next page. Last Shows the last page.

Create SNMP Parameters

This page lets you create a new SNMP Parameter.
Required parameters vary depending on a SNMP version you are going to use.

Table 2: Create SNMP Parameter
Item Name	SNMP Versions	Description
SNMP Parameter Name	v1/v2c/v3	Enter a name of the SNMP Parameter. A SNMP Parameter is a group of SNMP configurations such as community name, username, context name and security level. It is used by the SNMP Plug-in to access devices via SNMP.
Notes	Any	Enter a comment.
Community Name	v1/v2c	Enter a community name (max 255 characters).
Full Name	v3	Enter a username (1 to 32 characters).
Context Name	v3	Enter a context name (max 32 characters).
Security Level	v3	Select a security level. Select either "None", "NoAuth / NoPriv", "Auth / NoPriv" or "Auth / Priv".
Authentication Protocol	v3	Select an authentication protocol. Select either "None", "MD5" or "SHA".
Authentication Password	v3	Enter an authentication password (max 64 characters).
Encryption Protocol	v3	Select an encryption protocol. Select either "None", "DES" or "AES".
Encryption Password	v3	Enter an encryption password (max 64 characters).
"Create" button		Creates a new SNMP Parameter with the data you input on the page.

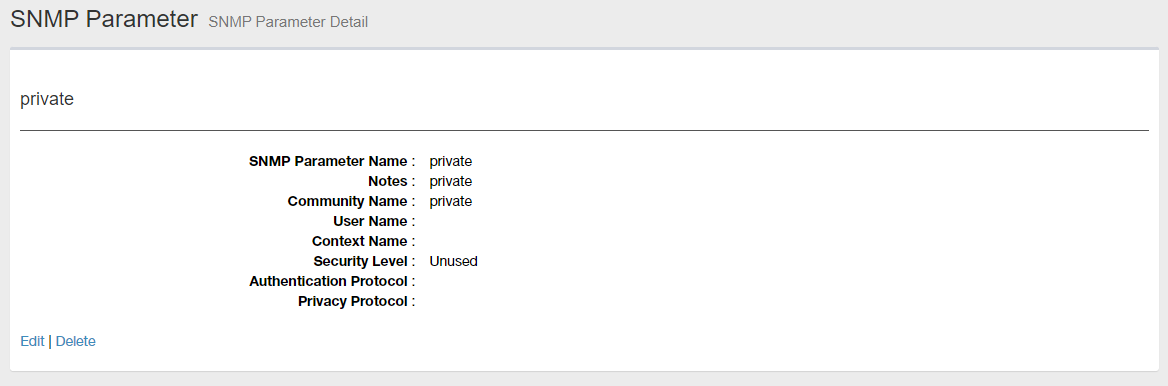

SNMP Parameter Details

You can see the details of an SNMP Parameter on this page.

Table 3: SNMP Parameter Details
Item Name	Description
SNMP Parameter Name	Shows a name of the SNMP Parameter.
Notes	Shows a comment.
Community Name	Shows a community name for SNMPv1 and v2c.
Full Name	Shows a username for SNMPv3.
Context Name	Shows a context name for SNMPv3.
Security Level	Shows an SNMPv3 security level.
Authentication Protocol	Shows an authentication protocol for SNMPv3.
Encryption Protocol	Shows an encryption protocol for SNMPv3.
Edit	Opens Edit SNMP Parameter page for the SNMP Parameter.
Delete	Opens "Delete SNMP Parameter" dialog box for the SNMP Parameter. Click "Yes" to delete the SNMP Parameter. Click "No" or "Close (x)" button at the top left of the dialog box allows you to cancel the delete operation and goes back to "SNMP Parameter Details" page.

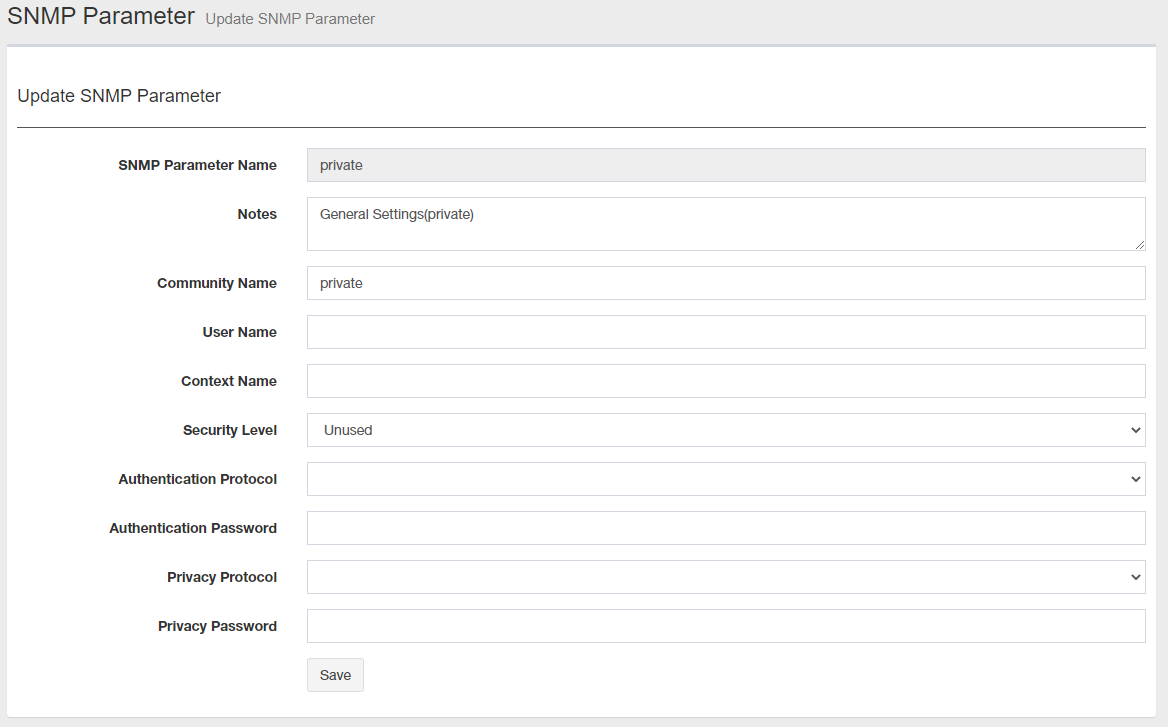

Edit SNMP Parameter

This page lets you change a SNMP Parameter properties.
Required parameters vary depending on a SNMP version you are going to use.

Table 4: Edit SNMP Parameter
Item Name	SNMP Versions	Description
SNMP Parameter Name	v1/v2c/v3	Shows a name of the SNMP Parameter. Note An SNMP Parameter name cannot be changed once it was created.
Notes	Any	Enter a comment.
Community Name	v1/v2c	Enter a community name (max 255 characters).
Full Name	v3	Enter a username (1 to 32 characters).
Context Name	v3	Enter a context name (max 32 characters).
Security Level	v3	Select a security level. Select either "None", "NoAuth / NoPriv", "Auth / NoPriv" or "Auth / Priv".
Authentication Protocol	v3	Select an authentication protocol. Select either "None", "MD5" or "SHA".
Authentication Password	v3	Enter an authentication password (max 64 characters).
Encryption Protocol	v3	Select an encryption protocol. Select either "None", "DES" or "AES".
Encryption Password	v3	Enter an encryption password (max 64 characters).
"Change" button		Saves changes to the SNMP Parameter.
