Action Command Configuration Utility

Server Configuration > Action Command Configuration Utility

"Action Command Configuration Utility" lets you define actions ("Action Commands") for use with the Event Filter function.

Note
You can configure which action to take on a specifc event using "Event Filter Configuration Utility".

Launch the Utility

To launch the utility, right-click [Vista Manager EX Installation Directory]\Plugins\AT-SNMP\NetManager\bin32\ANMActionConfig.exe and select "Run as administrator".

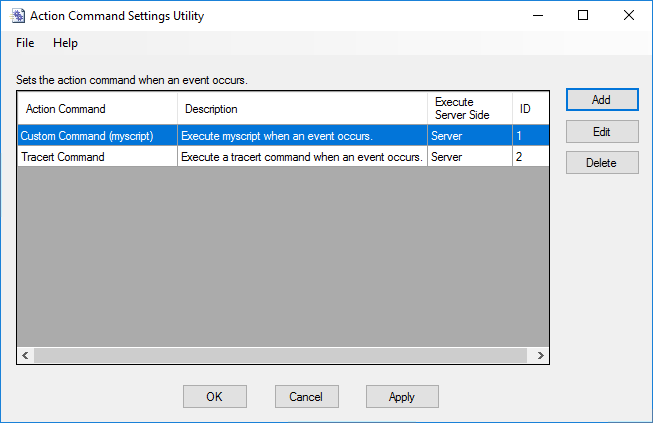

Configuration Items

Table 1: Action Command Configuration Utility
Item	Content
Action Command	Shows a name of the action command. No action command is defined by default.
Add	Lets you add an action command. Enter required parameters and click "OK" on "Action Command Properties" dialog box.
Edit	Lets you edit an action command selected on the list. Change parameters as required and click "OK" on "Action Command Properties" dialog box.
Delete	Lets you delete actions selected on the list.
OK	Saves changes and exits the utility.
Cancel	Exits the utility. Click "Yes" to save changes and exit, or click "No" to discard changes and exit on a confirmation dialog box.
"Close" button	Exits the utility.
Apply	Just saves changes. You can continue to use the utility.

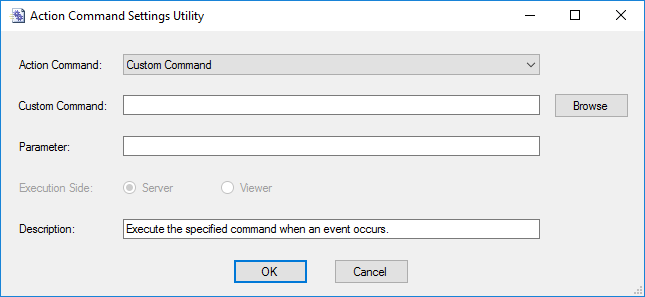

Action Command Properties

You can add or edit an action command.

Table 2: Action Command Properties
Item	Content
Action Command	Shows a list of pre-defined action commands. Select a command you want to add. If the selected command requires parameters, enter parameter values for the command in now enabled "Parameter" field. Note When you select "Send Mail", "minimail" program which came with SNMP Plug-in is used. minimail is a simple command-line mail transfer client. The program can only send emails and cannot receive them. It can check errors in parameter values only. If you use "Send Mail" action command for an event, test it on Command Prompt and make sure that emails are sent as expected.
Custom Command	If you want to use an arbitrary program on the SNMP Plug-in server, select "Custom Command" from the "Action Command" dropdown list. Then enter a full path to the program in now enabled "Custom Command" field. You can also specify a command path by clicking "Browse" button and selecting one from a standard file selection dialog box. Use "Parameter" field to specify a parameter to pass to the custom command.
Parameters	When you select a command which requires parameters in "Action Command" field, this field becomes active. Enter an appropriate parameters here. When an event occurs, a command specified in "Action Command" is invoked with the parameter you entered here appended to the command. You can use not only a literal string but also special variables such as event source address or timestamp in a parameter. Refer to "Parameters" and "Special Variables" for more details.
Where to run	Specify where to run the action command. Note Only "Server" (default) is supported. "Viewer" is not supported.
Description	You can enter a comment for the action command for later references. Initially, a default comment is input in the field.

Parameters

When you use "Send Mail" action command, specify the following parameters.

◼ Send Mail
Syntax: <server name> <option>...

<server name>:
Mail server name (required)

<option>:

Table 3: "Send Mail" option parameters
Option	Description
-from xxx	Sender email address
-to xxx[,yyy]	Recipient email address (required) Use commas (,) to specify multiple addresses.
-cc xxx[,yyy]	Carbon copy email address Use commas (,) to specify multiple addresses.
-bcc xxx	Blind carbon copy email address Use commas (,) to specify multiple addresses.
-replyto xxx	Reply-To email address
-subject xxx	Email subject
-mailbody "xxx\nyyy"	Email body text (enclosed with double-quotes) Specify a body text in double-quotes. Use "\n" for newline. (*1)
-mailfile xxx	A text file which contains email body text (*1)
-attach xxx	An attachment file
-encode xxx	Binary-to-ASCII encoding scheme (Base64 or UUENCODE)

(*1) You have to specify either -mailbody or -mailfile option but not both.

◼ Run Route Test Command
Syntax: <option> IPaddress

<option>:

Table 4: Run Route Test Command option parameters
Option	Description
-Queries	Number of executions
-ImmediateEnd	Whether or not to quit the test when there's no response from a node on the way to a destination Specify true to quit immediately. Specify false to continue test.
-TimeOut	Ping timeout (seconds)
-RetryCount	Ping retry count
-TTL	TTL
-Interval	Ping interval (milliseconds)
-MaxHop	Maximum hops
-DataSize	ICMP datasize (Byte)
-Mask	Subnet mask (not supported)

Special Variables

You can use the following special variables in action command's parameter.
The special variable names begin with "%". When you use them in "Parameter", they will be replaced with their actual values and then passed to the command.

Table 5: Action Command's Special Variables
Node Name	Description
%name	A name of a log event source (e.g. node name)
%adr	An address. IP address is used when both IP and MAC address are available.
%ip	An IP address. IPv4 address is used when both IPv4 and IPv6 address are available.
%ipv4	An IPv4 address
%ipv6	An IPv6 address
%mac	A MAC address. If a target node has IPv4, IPv6 and MAC addresses, those addresses are prefered in the order of IPv4, IPv6 and MAC.
%msg	A message (log event detail).
%type	Log Type
%subt	Event
%level	Log Level ("User", "Informational" or "Debug").
%time	Date/Time of a log event.
%aid	Action Command ID number.

Note
Special variable "%aid" is currently not supported.
