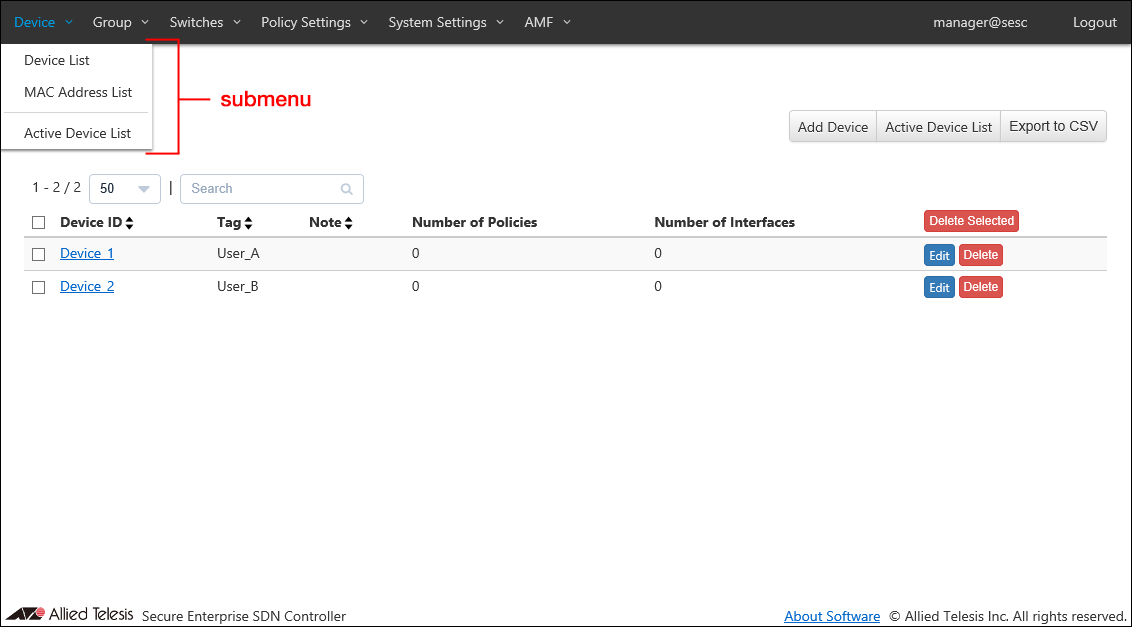

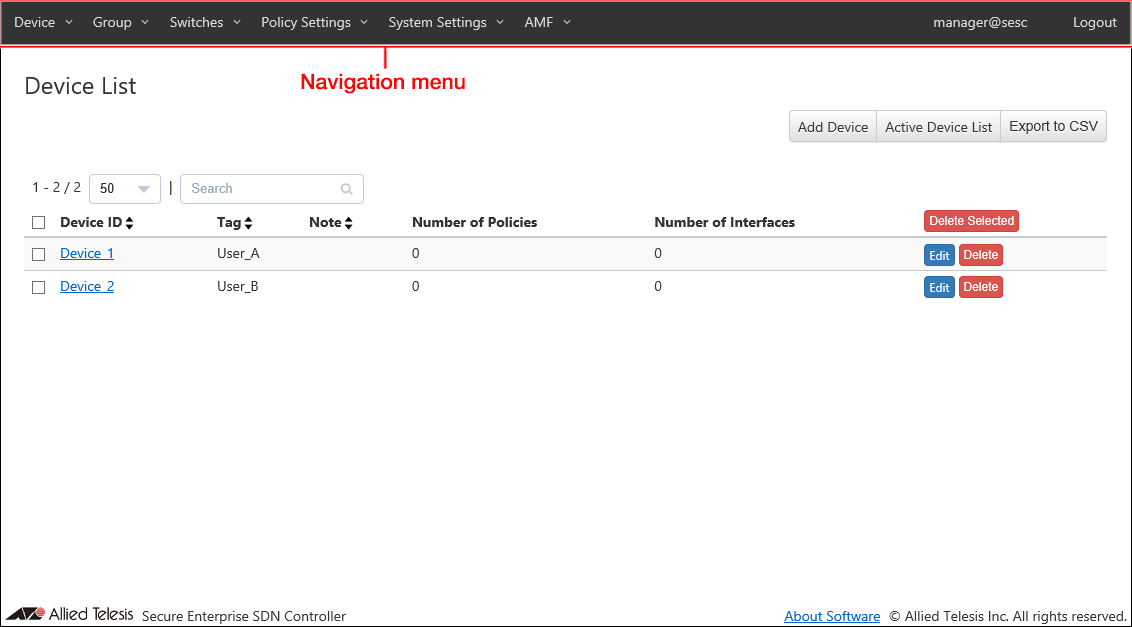

Navigation menu

Searching and Sorting in Tables

Sort

Toggling Order

Apply Configuration Changes

About Software

Searching and Sorting in Tables

The following pages have controls to search, filter or sort items in tables.

The next table shows which columns can be searched, filtered and sorted on each page.

Table 1: Target columns for search, filter and sort operations
Page	Item Name	Search	Filter	Sort	Note
Device > Device List	Device ID	×	−	×
	Tag	×	−	×
	Note	×	−	×
	Number of Policies	×	−	×
	Number of Interfaces	×	−	×
	Interface: MAC Address^*	×	−	×	* This column is not displayed on the screen.
	Interface: Name^*	×	−	×	* This column is not displayed on the screen.
	Interface: Note^*	×	−	×	* This column is not displayed on the screen.
Device > MAC Address List	MAC Address	×	−	×
	Name	×	−	×
	Device ID	×	−	×
	Note	×	−	×
	Device: Tag^*	×	−	×	* This column is not displayed on the screen.
	Device: Note^*	×	−	×	* This column is not displayed on the screen.
Device > Active Device List	MAC Address	△^*	−	×	* Only the strings after "mac=" and "ip=" can be matched.
	Device ID	△^*1	−	△^*2	1 "Unregistered" cannot be matched. For devices connected or detected in the UnAuth Group, only strings after "group=" can be matched. 2 Sorted in the order of "Unregistered", "UnAuth Group ID", "Empty" and "Device ID".
	Connected Switch	△^*1	−	△^*2	1 For OpenFlow Switches, only IPv4 Address after "ip=", Switch Port Number after "port=", OpenFlow Port Number in parenthesis and link status of the ports can be matched. For AMF nodes, only the strings after "id=" and the Port Number in parenthesis after "port=" can be matched. 2 OpenFlow Switches can be only sorted by the string after "ip=" while AMF nodes can be only sorted by the string after "id=". Sorting by the string after "port=" is not supported.
	Connecting Network	△^*1	−	△^*2	1 Only VLAN ID after "vlan=" and Network ID after "id=" can be matched. "Untagged" and "No Connection" cannot be matched. 2 Sorted in the order of "No Connection", "Empty", "vlan=Untagged" and "vlan=1-4094". Sorting by Network ID is not supported.
	Status	×	×	△^*	* Sorted in the order of "Authorized", "Blocked", "Link-Down", "Quarantined", "Authentication Failed", "Detected" and "IP-Filter".
Group > UnAuth Group List	Group ID	×	−	×
	Enabled	×	−	×
	Note	×	−	×
	Number of Policies	×	−	×
Switches > OpenFlow Switch List	Switch ID	×	−	×
	Datapath ID	×	−	×
	Upstream Port	×	−	×
	Account Group ID	×	−	×
	Note	×	−	×
Switches > Active OpenFlow Switch List	Datapath ID	×	−	×
	Switch ID	△^*	−	×	* "Unregistered" cannot be matched.
	IPv4 Address	×	−	×
	Status	×	×	△^*	* Sorted in the order of "Negotiating", "Updating" and "Ready".
	Upstream Port	△^*	−	×	* Only Switch Port Number before parenthesis and OpenFlow Port Number in parenthesis can be matched.
	Hardware Info	×	−	×
Switches > AMF Member List	Name	×	−	×
	Account Group ID	×	−	×
	Note	×	−	×
Switches > Active AMF Member List	Name	×	−	×
	Registration Status	×	−	×
	Domain Name	×	−	×
	Latest Access	×	−	×
Policy Settings > Network List	Network ID	×	−	×
	VLAN ID	×	−	×
	Note	×	−	×
Policy Settings > Location List	Location ID	×	−	×
	Note	×	−	×
	Number of Switches	×	−	×
Policy Settings > Schedule List	Schedule ID	×	−	×
	Start Date / Time	×	−	×
	End Date / Time	×	−	×
	Note	×	−	×
Policy Settings > Action List	Action ID	×	−	×
	Priority	×	−	×
	Condition	△^*	−	×	* Only the strings after "mac=", "ip=", "device-name=", "tag=", "location=", "switch=" and "network=" can be matched.
	Action (OpenFlow/AMF)	△ ^*1	−	△^*2	1 Only the strings after "Pass(Permit)", "Drop(Block)" and "Quarantine" can be matched. AMF Action after them cannot be matched. 2 Sorted in the order of "Pass(Permit)", "Drop(Block)", "Quarantine" and "Log-Only". Sort by the AMF Action is not supported.
	Requester	×	−	×
	Reason	×	−	×
System Settings > Account List	Account Name	−	−	×
System Settings > Account List	Account Group ID	−	−	×
System Settings > Account Group List	Account Group ID	×	−	×
System Settings > Account Group List	Note	×	−	×
System Settings > System Information	Name	×	−	△^*	* Sort order can be toggled between ascending and descending. Reload the page to restore the default sort order.
	Serial Number / Expiration Date	×	−	△^*	* Sort order can be toggled between ascending and descending. Reload the page to restore the default sort order.
	Number of Switches	×	−	△^*	* Sort order can be toggled between ascending and descending. Reload the page to restore the default sort order.
System Settings > Action Log	Duration	×	−	−
	MAC Address	×	−	−
	Device IPv4 Address	×	−	−
	Device Tag	×	−	−
	Action Originator	×	−	−
	Status	−	×	−

Search

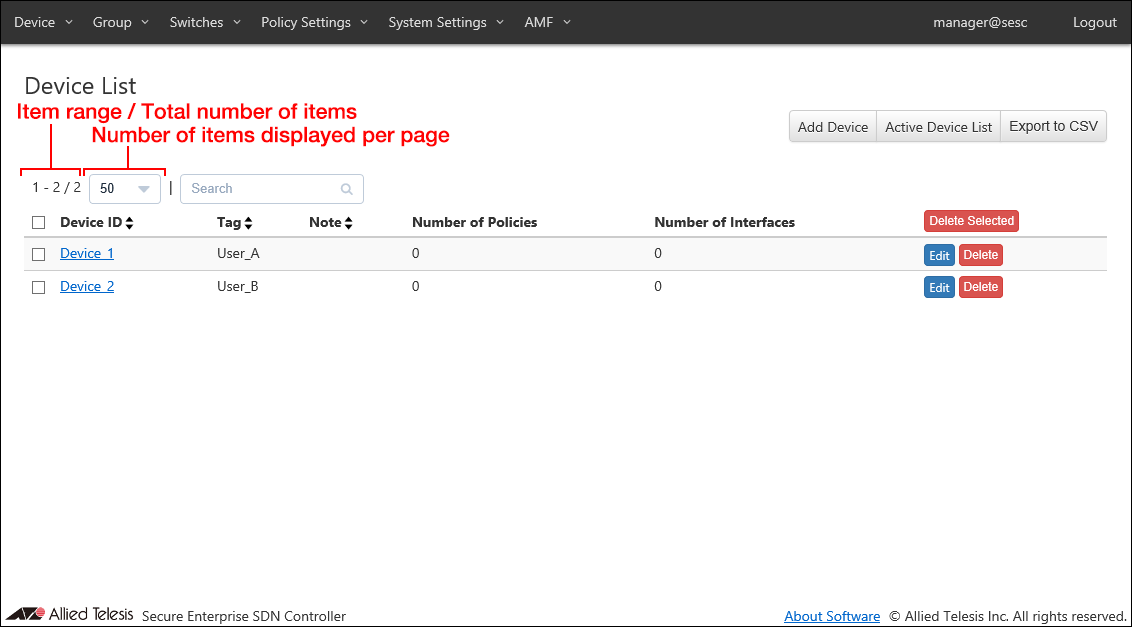

A range of currently displayed items and a total number of items are shown above each table in the form of "RANGE / TOTAL". You can also change the maximum number of items displayed on a page by using the dropdown menu.

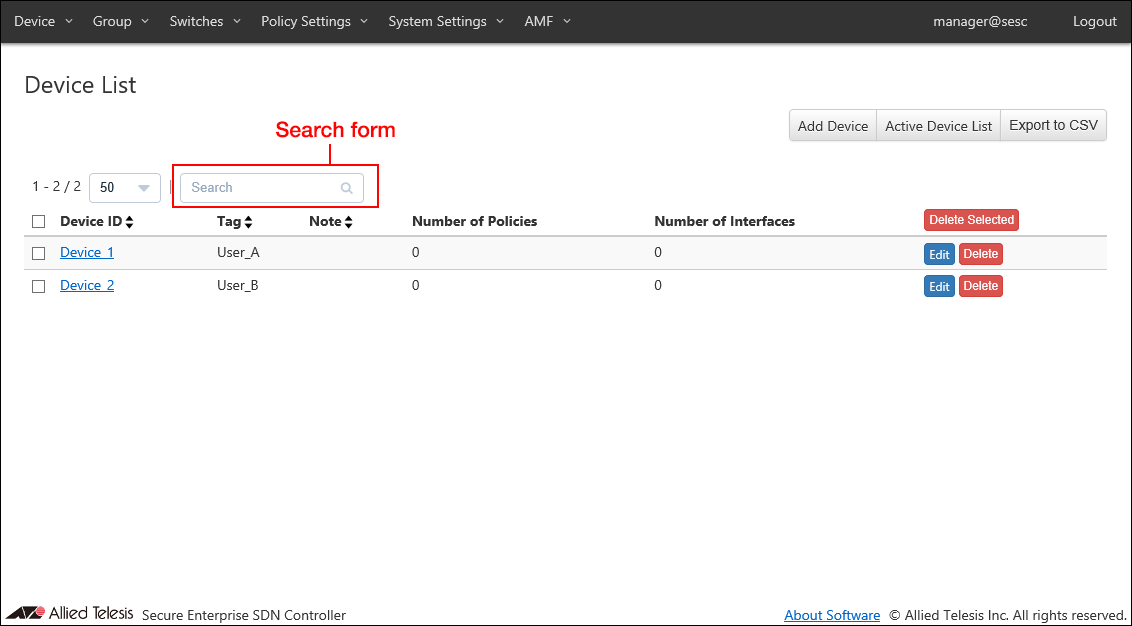

You can filter items to display by entering keywords in the search form.
If you enter multiple keywords separated by space, only items matching all the keywords are displayed. (AND search)
When you filter items, matched texts are highlighted in red. Matched texts are highlighted even when they are in the columns which cannot be matched.

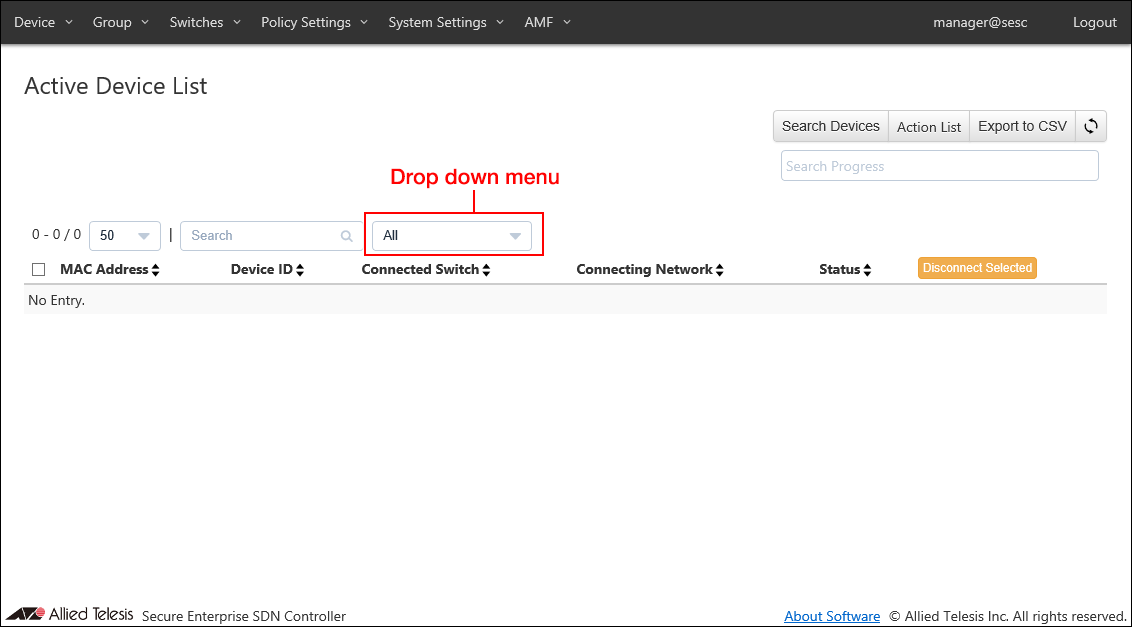

On the Device > Active Device List page and the Switches > Active OpenFlow Switch List page, you can filter items by the status of Devices or OpenFlow Switches using dropdown menu.

Table 2: Status Dropdown Menu
Option	What is displayed
Device > Active Device List
All	All the devices in any of the Authorized, Blocked, Link-Down, IP-Filter, Quarantined, Authentication Failed or Detected status.
Authorized	Devices matching the security policy for the registered device or the UnAuth Group.
Link-Down	Devices which are being blocked by AMF Application Proxy's Link-Down action.
IP-Filter	Devices which are being blocked by AMF Application Proxy's IP-Filter (Layer 3) action.
Blocked	Devices which were blocked by an instruction of an external system or an operation of an administrator.
Quarantined	Devices which were moved to quarantine network by an instruction of an external system or an operation of an administrator.
Authentication Failed	Devices which failed to authenticate because they were not registered or they didn't match any security policy.
Quarantined \| Blocked \| IP-Filter \| Authentication Failed	Devices which are in any of the Quarantined, Blocked, Link-Down, IP-Filter or Authentication Failed status.
Detected	Device which were detected by the UnAuth Group's detection feature.
Log-Only	Devices for which logs were generated without taking any actions.
Switches > Active OpenFlow Switch List
All	All OpenFlow Switches in any of the Negotiating, Updating or Ready status
Negotiating	Switches that are preparing synchronization with AT-SESC where they are initializing OpenFlow functionalities, confirming packet control flow, configuring upstream port name and number. Negotiating also means that an upstream port name and the OpenFlow port numbers are inconsistent.
Updating	Switches which are updating synchronization state with AT-SESC.
Ready	OpenFlow Switches that have completed the initial settings of the OpenFlow function and are ready for device connection.

Sort

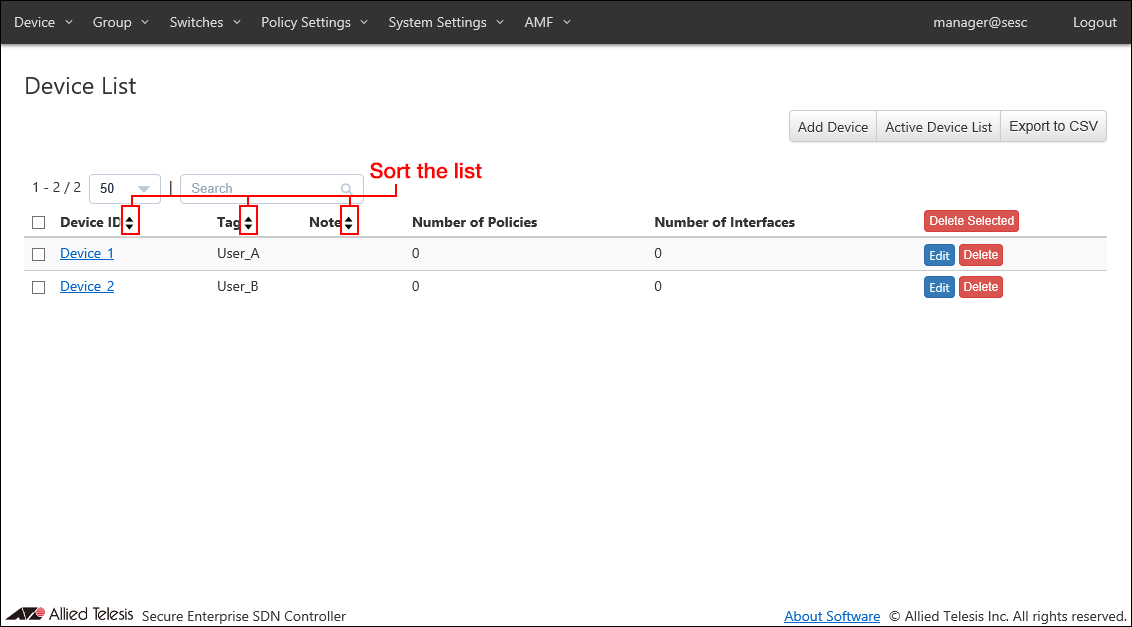

You can sort items by clicking small buttons next to the column headers.

Toggling Order

The sort order is toggled among ascending > descending > default order whenever you click the same button.

Status columns are sorted in the following orders.
- The Device > Active Device List page
  Authorized > Blocked > Link-Down > Quarantined > Authentication Failed > Detected > IP-Filter > Log-Only
- The Switches > Active OpenFlow Switch List page
  Negotiating > Updating > Ready
VLAN ID and Network ID is sorted in the order of No Connection > Untagged > VLAN ID (1-4094).

Apply Configuration Changes

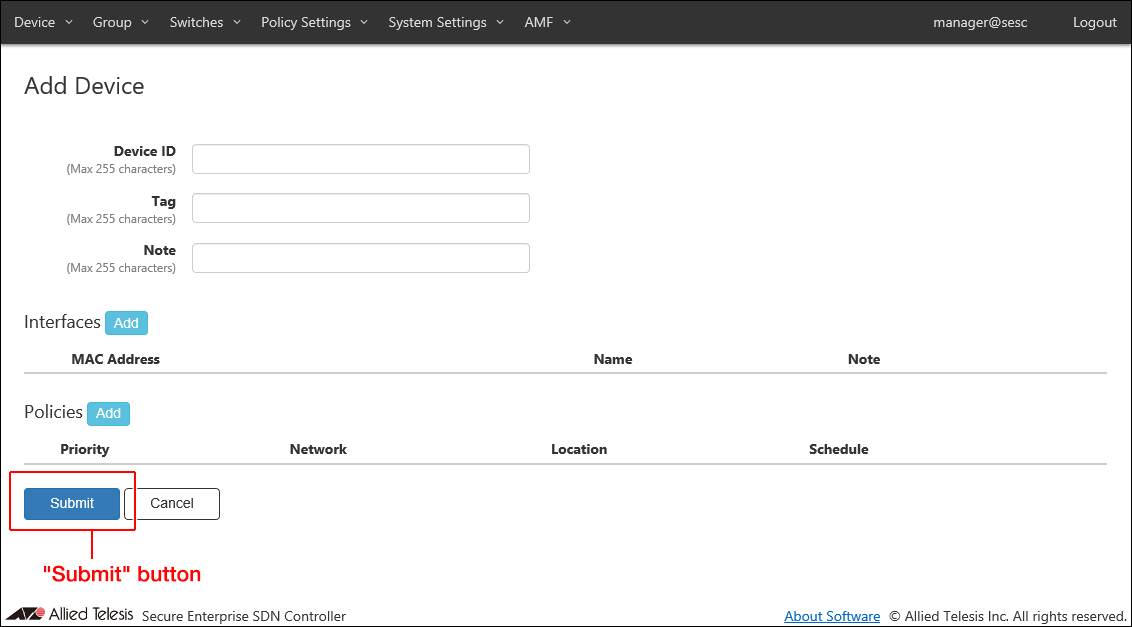

There is the "Submit" button on each configuration page or dialog. After changing configurations on a page or a dialog, do not forget to click the "Submit" button before moving to another page.
When you click the "Submit" button, the changes you made on the page are immediately applied to the AT-SESC's operation.

Note
There are some pages without the "Submit" button because they are read-only and do not have any configuration element to change.

About Software

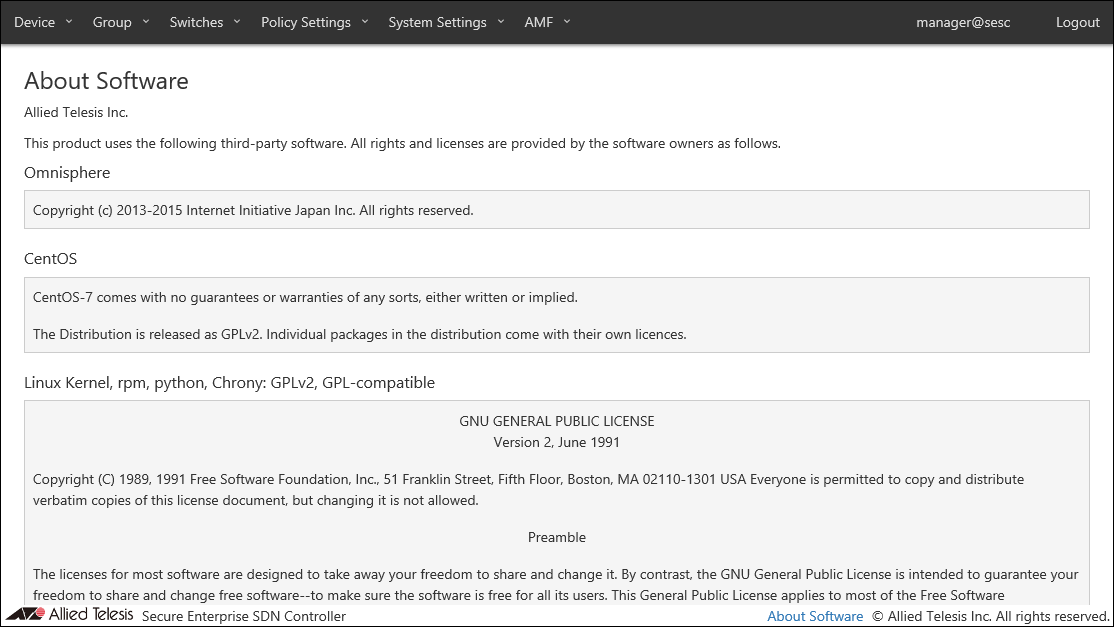

You can view the list of names and licenses of the software used by AT-SESC.
