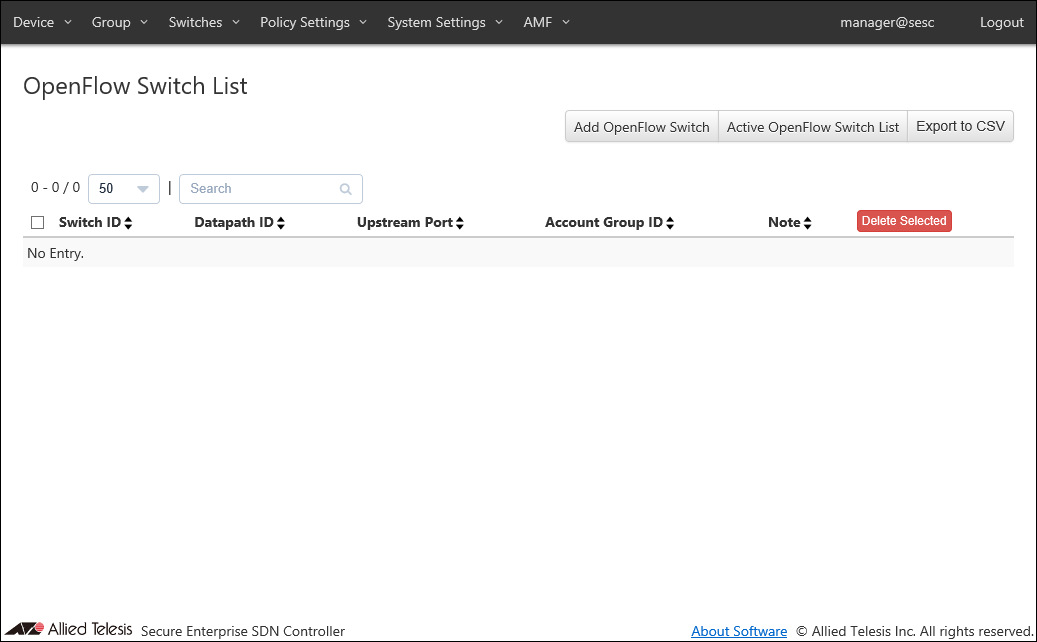

OpenFlow Switch List

This page shows a list of OpenFlow Switches which were registered in AT-SESC's database.

Table 1: Target columns for search and sort operations

Item Name	Search	Sort
Switch ID	×	×
Datapath ID	×	×
Upstream Port	×	×
Account Group ID	×	×
Note	×	×

Table 2: Displayed columns

Item Name	Description
Switch ID	ID (Name) of the registered OpenFlow Switch.
Datapath ID	OpenFlow Switch's Datapath ID (used by OpenFlow controller to identify this switch). In most cases, It is automatically generated or configured on the switch.
Upstream Port	Upstream port of the switch.
Account Group ID	Account Group to which the OpenFlow Switch belongs.
Note	Arbitrary string (comment) for the OpenFlow Switch.

Table 3: Buttons

Item Name	Description
Page Top
Add OpenFlow Switch	Open the Add OpenFlow Switch page.
Active OpenFlow Switch List	Open the Active OpenFlow Switch List page.
Export to CSV	Start downloading of a list of switches in CSV format.
OpenFlow Switch List
Heading Row
Delete Selected	Delete all the checked switches.
Each Row
Edit	Open the Update OpenFlow Switch page for the selected OpenFlow Switch.
Delete	Delete the switch.

Note

Refer to CSV File in Appendix for CSV Files.

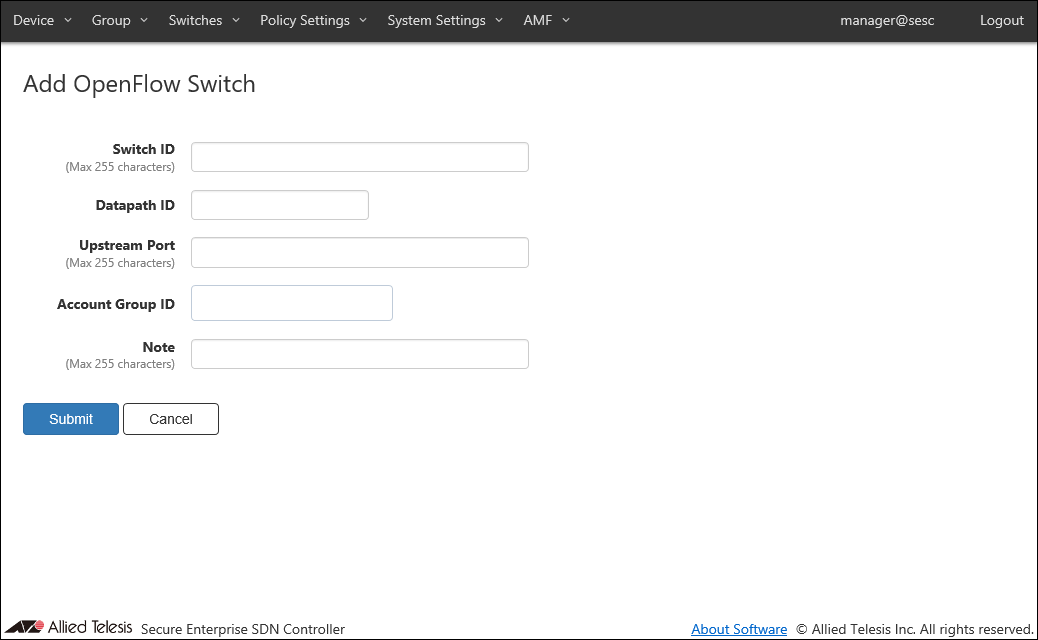

Add OpenFlow Switch

This page lets you add a new OpenFlow Switch.
The switch added here can be referenced when you configure a location.

Note

Although AT-SESC can manage OpenFlow Switches even if they are unregistered, you have to register them in order to specify upstream port individually or authenticate devices by their locations.

Note

When you register an OpenFlow Switch, AT-SESC resets packet control flows existing on the OpenFlow Switch.

Table 4: Sample Configuration Data

Item Name	Description
Switch ID (Mandatory)	Name of the OpenFlow Switch. Switch ID and Name that are already used cannot be set on the OpenFlow Switch List page and the AMF Member List page. Max 255 characters. Those elements are collectively referred to as security policies. Here is a list of elements of security policies: When you click the "Register" button on Active OpenFlow Switch List, the switch's "Hardware Info" is automatically set in this field (can be changed). If it's the same as an existing Switch ID, "_X" (X is a number) is appended to the "Hardware Info" (e.g. AT-TQ4600_1).
Datapath ID (Mandatory)	OpenFlow Switch's Datapath ID (used by OpenFlow controller to identify this switch). There's no need to change this in most cases because it is automatically generated or configured. Auto-generated Datapath ID is a 16 character HEX string which added leading zeros to the switch's MAC address. Datapath ID must be unique.
Upstream Port	Upstream port of the switch. Only one upstream port can be specified for a switch. Port can be specified as either a port name or an OpenFlow port number.
Account Group ID	Select Account Group ID to which OpenFlow Switch belongs.
Note	Arbitrary string (comment) for the switch. Max 255 characters.

Note

If datapath ID is inconsistent between the AT-SESC and the switch, packet forwarding ceases on its OpenFlow ports.

Note

Datapath ID of an OpenFlow Switch cannot be changed from AT-SESC.

Name of the upstream ports may vary depending on the model of the OpenFlow Switches.

Table 5: Valid Upstream Port Names.

Port Name	Description
AlliedWare Plus Devices
portX.Y.Z	X - always "1" Y - Expansion bay number. "0" for a base (non-expansion) port. Z - Port number printed on the product. It is different from OpenFlow port number.
AT-TQ series wireless access point
eth0	Ethernet Port (Wired Interface) OpenFlow Port Number is always "1".

For an AlliedWare plus switch, OpenFlow port numbers can vary depending on the configurations of the switch. They can be confirmed on the OpenFlow Switch Detail page.

Note

When you are using both AlliedWare plus switches and AT-TQ wireless access points as OpenFlow Switches, configure an upstream port for each OpenFlow Switch separately instead of using the "Default Upstream Port" on the System Settings > OpenFlow Settings page.

Table 6: Buttons

Item Name	Description
Page Bottom
Submit	Add the OpenFlow Switch.
Cancel	Cancel the operation for adding a new OpenFlow Switch.

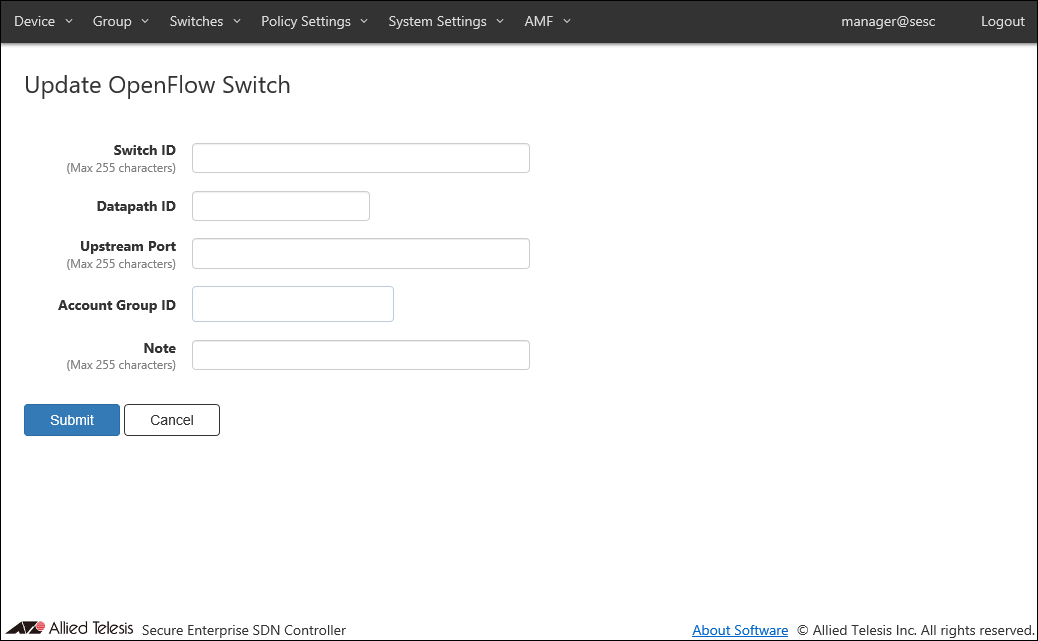

Update OpenFlow Switch

This page lets you update the information of an existing OpenFlow Switch.

Note

When you update information of an OpenFlow Switch, AT-SESC resets packet control flows existing on the OpenFlow Switch.

Table 7: Configurable fields

Item Name	Description
Switch ID (Mandatory)	Name of the OpenFlow Switch. Switch ID and Name that are already used cannot be set on the OpenFlow Switch List page and the AMF Member List page. Max 255 characters.
Datapath ID (Mandatory)	OpenFlow Switch's Datapath ID (used by OpenFlow controller to identify this switch). There's no need to change this in most cases because it is automatically generated or configured. Auto-generated Datapath ID is a 16 character HEX string which added leading zeros to the switch's MAC address. Datapath ID must be unique.
Upstream Port	Upstream port of the switch. Only one upstream port can be specified for a switch. Port can be specified as either a port name or an OpenFlow port number. If "Default Upstream Port" is configured on the System Settings > OpenFlow Settings page, it is used in case this field is empty.
Account Group ID	Select Account Group ID to which OpenFlow Switch belongs.
Note	Arbitrary string (comment) for the switch. Max 255 characters.

Note

If datapath ID is inconsistent between the AT-SESC and the switch, packet forwarding ceases on its OpenFlow ports.

Name of the upstream ports may vary depending on the model of the OpenFlow Switches.

Table 8: Valid Upstream Port Names.

Port Name	Description
AlliedWare Plus Devices
portX.Y.Z	X - always "1" Y - Expansion bay number. "0" for a base (non-expansion) port. Z - Port number printed on the product. It is different from OpenFlow port number.
AT-TQ series wireless access point
eth0	Ethernet Port (Wired Interface) OpenFlow Port Number is always "1".

For AlliedWare plus switch, OpenFlow port numbers can vary depending on the configurations of the switch. They can be confirmed on the OpenFlow Switch Detail page.

Note

When you are using both AlliedWare plus switches and AT-TQ wireless access points as OpenFlow Switches, configure an upstream port for each OpenFlow Switch separately instead of using the "Default Upstream Port" on the System Settings > OpenFlow Settings page.

Table 9: Buttons

Item Name	Description
Page Bottom
Submit	Update the information of the OpenFlow Switch.
Cancel	Cancel the operation for updating the switch.

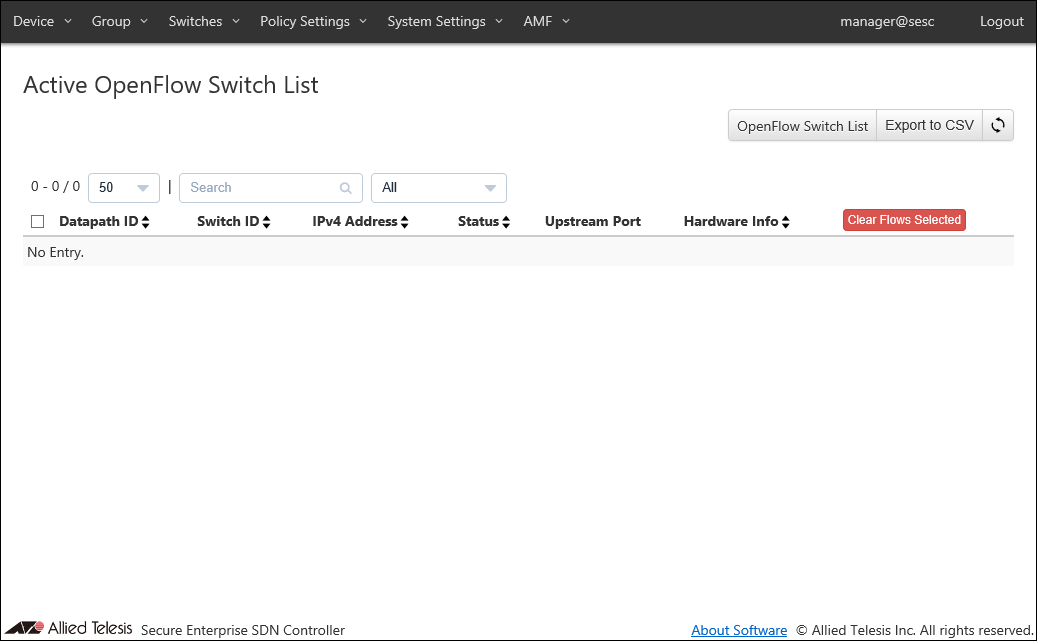

Active OpenFlow Switch List

This page shows a list of OpenFlow Switches which have established connections with AT-SESC.
When Account Group is set, only OpenFlow Switches belonging to the Account Group to which the logged-in Account belongs are displayed.
When an OpenFlow Switch whose IP address and Datapath ID are the same with an existing OpenFlow Switch listed on this page, an existing session is closed and a new session is established. If an OpenFlow Switch whose Datapath ID is the same as an existing switch but its IP address is different from the existing switch's, a new session is not established.

Table 10: Target columns for search, filter and sort operations

Item Name	Search	Filter	Sort	Note
Datapath ID	×	−	×
Switch ID	△*	−	×	* "Unregistered" cannot be matched.
IPv4 Address	×	−	×
Status	×	×	△*	* Sorted in the order of "Negotiating", "Updating" and "Ready".
Upstream Port	△*	−	×	* Only Switch Port Number before parenthesis and OpenFlow Port Number in parenthesis can be matched.
Hardware Info	×	−	×

Table 11: Displayed columns

Item Name	Description
Datapath ID	OpenFlow Switch's Datapath ID (used by OpenFlow controller to identify this switch). When clicked, the OpenFlow Switch Detail page is displayed.
Switch ID	ID (Name) of the registered OpenFlow Switch. When clicked, the Update OpenFlow Switch page is displayed. If the switch is not registered, a text "Unregistered" and the "Register" button are displayed.
IPv4 Address	IPv4 address of the switch.
Status	Status of the switch. Negotiating: the switch is preparing synchronization with AT-SESC where they are initializing OpenFlow functions, confirming packet control flow, configuring upstream port name and OpenFlow port numbers. Negotiating also means that an upstream port name and the OpenFlow port numbers are inconsistent. Updating: the switch is updating synchronization state with AT-SESC. Ready: the switch completed initialization of OpenFlow functions and now it's ready for devices to connect.
Upstream Port	Port Name and OpenFlow Port Number of the upstream port.
Hardware Info	Hardware information provided by the switch.

Table 12: Buttons

Item Name	Description
Page Top
OpenFlow Switch List	Open the OpenFlow Switch List page.
Export to CSV	Start downloading of a list of switches in CSV format.
Refresh	Refresh the Active OpenFlow Switch List page.
Active OpenFlow Switch List
Heading Row
Clear Flows Selected	Clear all flow entries on the checked OpenFlow Switches and close the connection (TCP session) with the OpenFlow Switch.
Each Row
Clear Flows	Clear all flow entries on the OpenFlow Switch and close the connection (TCP session) with the OpenFlow Switch.
Submit	(only when the switch is not registered) Open the Add OpenFlow Switch page.
Edit	(only when the switch is registered) Open the Update OpenFlow Switch page.

Note

Refer to CSV File in Appendix for CSV Files.

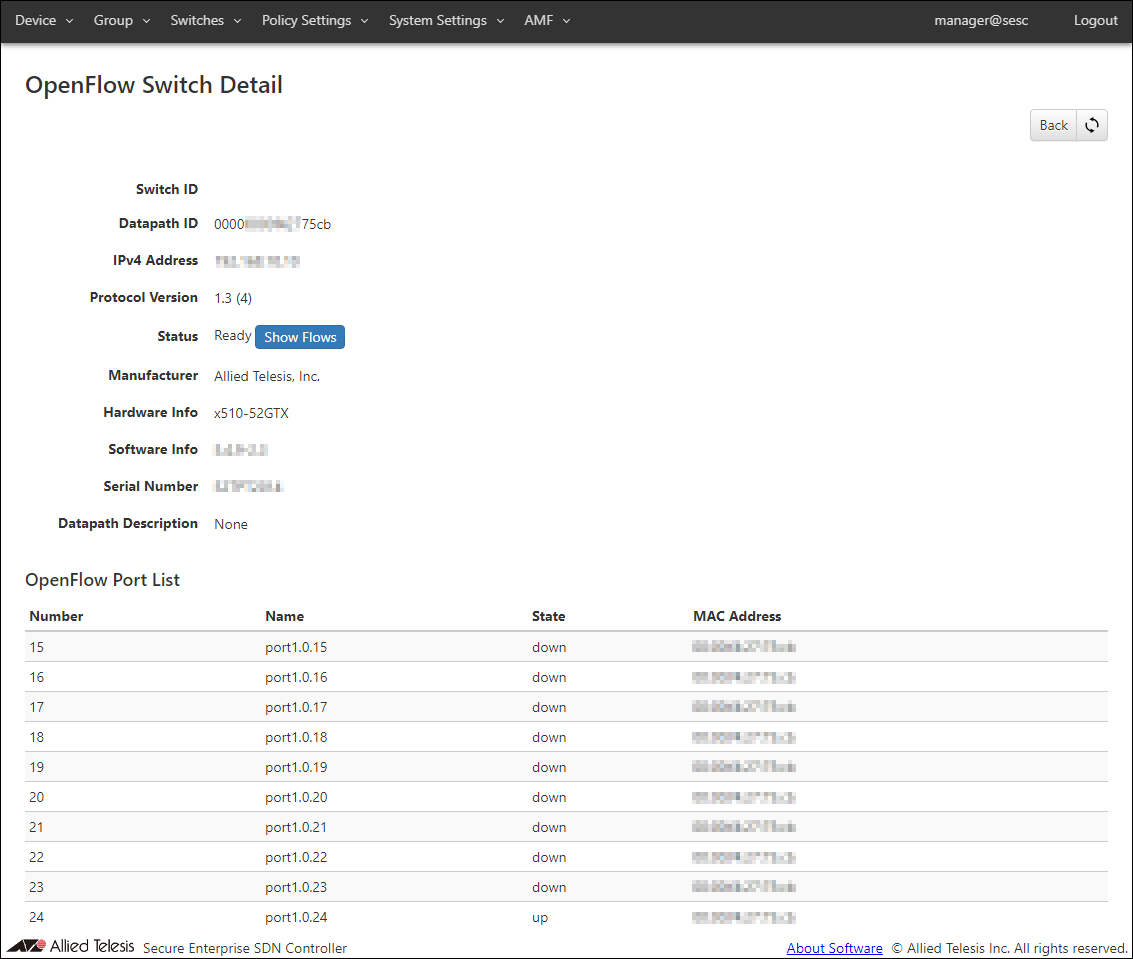

OpenFlow Switch Detail

This page shows detailed information of an OpenFlow Switch.

Table 13: Displayed columns

Item Name	Description
Switch ID	ID (Name) of the registered OpenFlow Switch.
Datapath ID	OpenFlow Switch's Datapath ID (used by OpenFlow controller to identify this switch).
IPv4 Address	IPv4 address of the switch.
Protocol Version	OpenFlow protocol version being used for the connection with the switch.
Status	Status of the switch. Negotiating: the switch is preparing synchronization with AT-SESC where they are initializing OpenFlow functions, confirming packet control flow, configuring upstream port name and OpenFlow port numbers. Negotiating also means that an upstream port name and the OpenFlow port numbers are inconsistent. Updating: the switch is updating synchronization state with AT-SESC. Ready: the switch completed initialization of OpenFlow functions and now it's ready for devices to connect.
Manufacturer	Manufacturer information provided by the switch.
Hardware Info	Hardware information provided by the switch.
Software Info	Software information provided by the switch.
Serial Number	Serial number provided by the switch.
Datapath Description	Datapath description provided by the switch.
OpenFlow Port List	List of OpenFlow ports of the switch.

Table 14: Displayed columns on OpenFlow Port List

Item Name	Description
Number	OpenFlow Port Number
Name	Port Name
Status	Link status of the port
MAC Address	MAC address of the port

Note

A link status of a port is either up or down for AlliedWare Plus switches. A link status is always up for AT-TQ series wireless LAN access points.

Table 15: Port Name

Port Name	Description
AlliedWare Plus Devices
portX.Y.Z	X - always "1" Y - Expansion bay number. "0" for a base (non-expansion) port. Z - Port number printed on the product. It is different from OpenFlow port number.
eth0	Management port (only for the AlliedWare plus switch supporting it)
AT-TQ series wireless access point
eth0	Ethernet Port (Wired Interface) OpenFlow Port Number is always "1".
wlanX	radio interface.
athX	radio interface.

For AlliedWare plus switch, OpenFlow port numbers can vary depending on the configurations of the switch.

Table 16: Buttons

Item Name	Description
Page Top
Back	Go back to the Active OpenFlow Switch List page.
Refresh	Refresh the OpenFlow Switch Detail page.
Status
Show Flows	Open the OpenFlow Switch Flow List page.

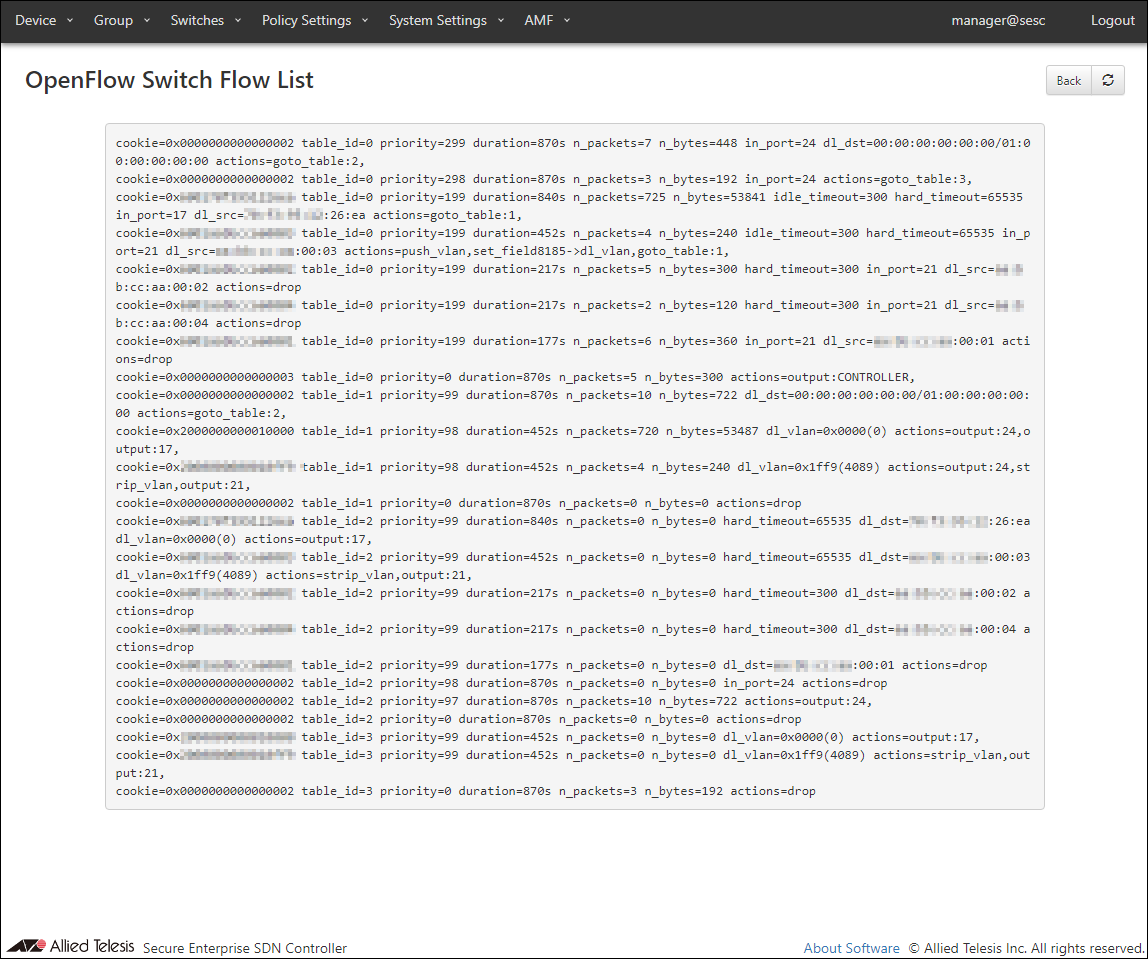

OpenFlow Switch Flow List

This page shows a list of flows on the OpenFlow Switch.

Table 17: Buttons

Item Name	Description
Page Top
Back	Open the OpenFlow Switch Detail page.
Refresh	Refresh the OpenFlow Switch Flow List page.

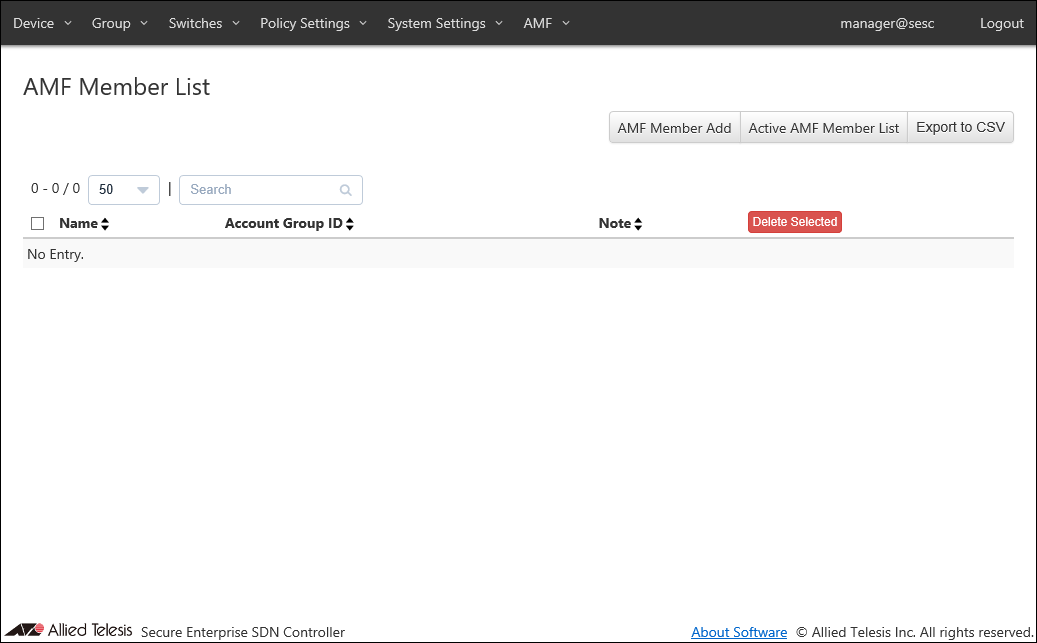

AMF Member List

This page shows a list of AMF Members registered on AT-SESC.

Table 18: Target columns for search and sort operations

Item Name	Search	Sort
Name	×	×
Account Group ID	×	×
Note	×	×

Table 19: Displayed columns

Item Name	Description
Name	Name of a registered AMF Member
Account Group ID	Account Group ID to which the AMF Member belongs.
Note	Arbitrary string (comment) for the AMF Member.

Table 20: Buttons

Item Name	Description
Page Top
AMF Member Add	Open the AMF Member Add page.
Active AMF Member List	Open the Active AMF Member List page.
Export to CSV	Start downloading of a list of AMF Members in CSV format.
AMF Member List
Heading Row
Delete Selected	Delete authentication information of the checked AMF Members.
Each Row
Edit	Open the AMF Member Update page for the selected AMF Member.
Delete	Delete information of the selected AMF Member.

Note

Refer to CSV File in Appendix for CSV Files.

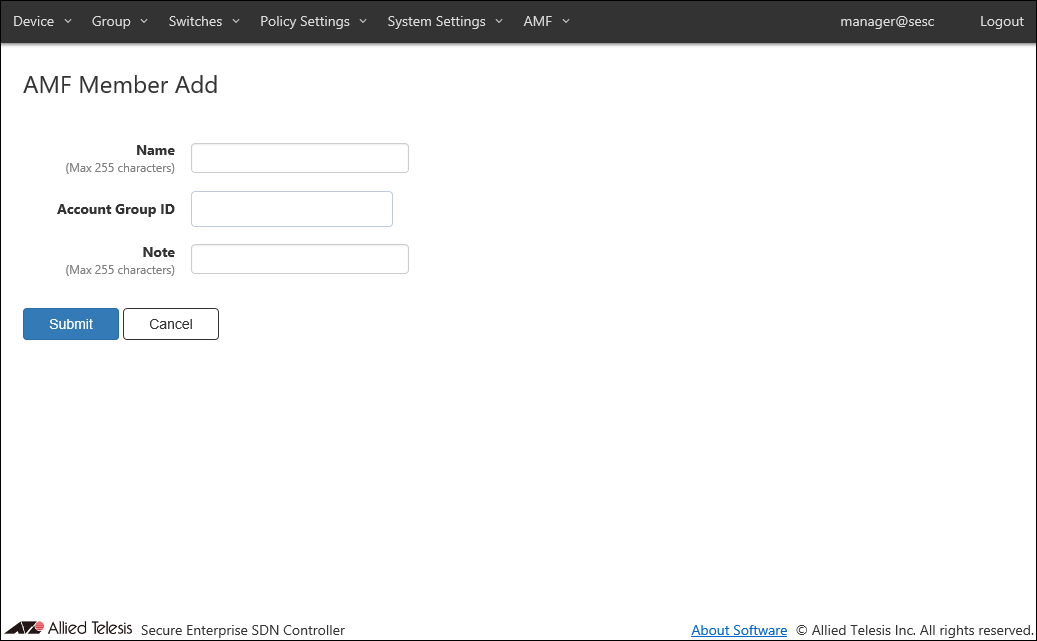

AMF Member Add

This page lets you register a new AMF Member.

Table 21: Configurable fields

Item Name	Description
Name	Name of the AMF Member. Switch ID and Name that are already used cannot be set on the OpenFlow Switch List page and the AMF Member List page. Max 255 characters. Can use alphanumeric, hyphen (-) and underscore (_).
Account Group ID	Select Account Group ID to which AMF Member belongs.
Note	Arbitrary string (comment) for the AMF Member. Max 255 characters.

Note

Name must be the same as the host name of AMF Member. This is because AMF Member is managed by the host name of AMF Member.

Note

Since the name of the AMF Member cannot be registered twice, make sure that the host name of the AMF Member is also unique.

Table 22: Buttons

Item Name	Description
Page Bottom
Submit	Register information of the AMF Member.
Cancel	Cancel the operation for adding a new AMF Member.

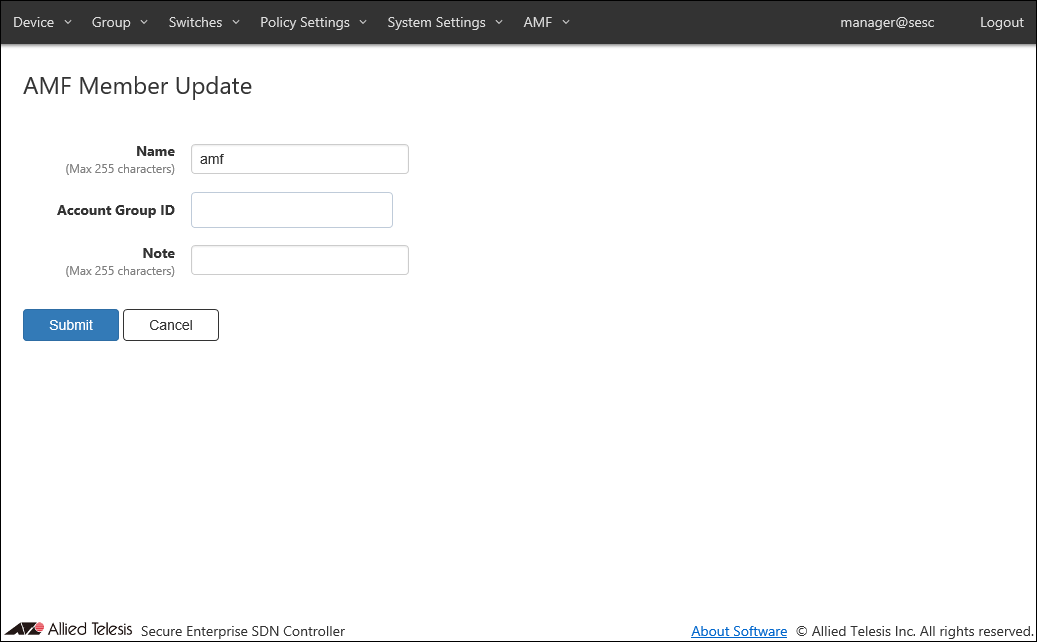

AMF Member Update

This page lets you update the information of an existing AMF Member.

Table 23: Configurable fields

Item Name	Description
Name	Name of the AMF Member. Switch ID and Name that are already used cannot be set on the OpenFlow Switch List page and the AMF Member List page. Max 255 characters. Can use alphanumeric, hyphen (-) and underscore (_).
Account Group ID	Select Account Group ID to which AMF Member belongs.
Note	Arbitrary string (comment) for the AMF Member. Max 255 characters.

Note

Name must be the same as the host name of AMF Member. This is because AMF Member is managed by the host name of AMF Member.

Table 24: Buttons

Item Name	Description
Page Bottom
Submit	Update information of the selected AMF Member.
Cancel	Cancel the operation for updating the AMF Member information.

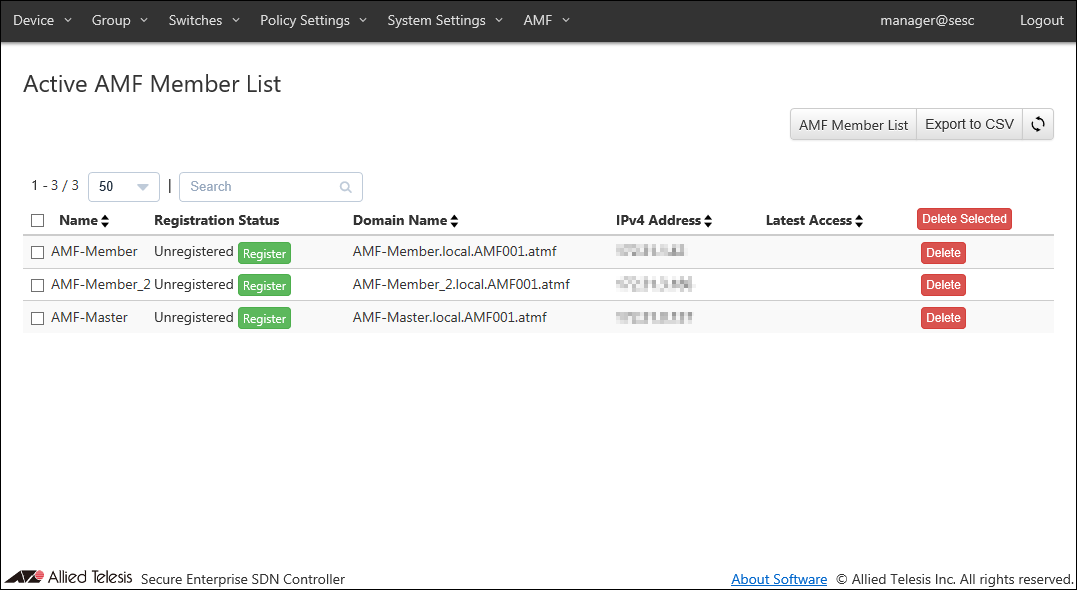

Active AMF Member List

This page shows a list of AMF Members which have established connections with AT-SESC.
When Account Group is set, only AMF Members belonging to the Account Group to which the logged-in Account belongs are displayed.

Table 25: Target columns for search, filter and sort operations

Item Name	Search	Filter	Sort
Name	×	−	×
Registration Status	×	−	×
Domain Name	×	−	×
IPv4 Address	×	−	×
Latest Access	×	−	×

Table 26: Displayed columns

Item Name	Description
Name	Name of the AMF Member (An identifier used by AT-SESC)
Registration Status	Registration status of the AMF Member Click "Register" to open the AMF Member Add page. If the AMF Member is not registered, a text "Unregistered" and the "Register" button are displayed.
Domain Name	Domain name of the AMF Member.
IPv4 Address	IPv4 address of the AMF Member.
Latest Access	Displays the date and time when AT-SESC and AMF Member last communicated.

Note

If the "application-proxy whitelist advertised-address" is not set for the AMF Member, the IP Address of the AMF management VLAN is displayed. If "application-proxy whitelist advertised-address" is set for the AMF Member, the primary IPv4 Address of the specified interface is displayed, but no inquiry has been received regarding the availability of terminals under the corresponding AMF Member shows the IP Address of the AMF management VLAN.

Table 27: Buttons

Item Name	Description
Page Top
AMF Member List	Open the AMF Member List page.
Export to CSV	Start downloading of a list of Active AMF Members in CSV format.
Active AMF Member List
Heading Row
Delete Selected	Delete authentication information of the checked AMF Members.
Each Row
Submit	Open the AMF Member Update page for the selected AMF Member.
Delete	Delete information of the selected AMF Member.

Note

Refer to CSV File in Appendix for CSV Files.

---
